Official File parts/3688.dat
Part Attributes:
File Header:

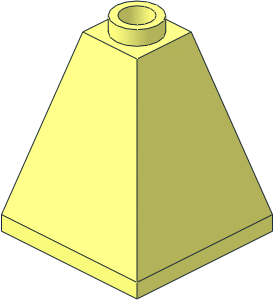

0 Slope Brick 75 2 x 2 x 2 Quadruple Convex
0 Name: 3688.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2023-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 1998-06-20 [PTadmin] Official Update 1998-06
0 !HISTORY 2002-09-13 [izanette] Modified with WINDZ for BFC compliance
0 !HISTORY 2003-11-05 [Steffen] fixed L3P errors
0 !HISTORY 2003-12-19 [PTadmin] Official Update 2003-03
0 !HISTORY 2007-06-29 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2020-06-04 [Sirio] Updated the use of primitives: removed ringr.dat or ringrr.dat, fixed flat primitives scaled in Y
0 !HISTORY 2021-12-31 [cwdee] Fix minor typo
0 !HISTORY 2023-10-31 [OrionP] Official Update 2023-05
Show contents
0 // Primitives
0 BFC INVERTNEXT
1 16 0 0 0 4 0 0 0 4 0 0 0 4 4-4cyli.dat
1 16 0 4 0 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 0 4 0 2 0 0 0 -1 0 0 0 2 4-4ring2.dat
1 16 0 4 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
0 BFC INVERTNEXT
1 16 0 4 0 6 0 0 0 16 0 0 0 6 4-4cyli.dat
1 16 0 20 0 1 0 0 0 -7 0 0 0 1 stud4a.dat
1 16 0 20 0 0 0 8 0 1 0 8 0 0 3-16edge.dat
1 16 0 20 0 0 0 -8 0 1 0 8 0 0 3-16edge.dat
1 16 0 20 0 0 0 -8 0 1 0 -8 0 0 3-16edge.dat
1 16 0 20 0 0 0 8 0 1 0 -8 0 0 3-16edge.dat
1 16 0 20 0 0 0 8 0 -1 0 8 0 0 3-16ndis.dat
1 16 0 20 0 0 0 -8 0 -1 0 8 0 0 3-16ndis.dat
1 16 0 20 0 0 0 -8 0 -1 0 -8 0 0 3-16ndis.dat
1 16 0 20 0 0 0 8 0 -1 0 -8 0 0 3-16ndis.dat
1 16 0 20 5.5 10 0 0 0 1 0 0 0 4.5 recte3.dat
1 16 0 20 -5.5 10 0 0 0 1 0 0 0 -4.5 recte3.dat
1 16 8 20 0 -1 0 0 0 24 0 0 0 1 boxjcyl4.dat
1 16 -8 20 0 1 0 0 0 24 0 0 0 1 boxjcyl4.dat
1 16 12 44 0 0 0 4 0 -1 0 1 0 0 rect3.dat
1 16 -12 44 0 0 0 -4 0 -1 0 1 0 0 rect3.dat
0 BFC INVERTNEXT
1 16 0 42 0 16 0 0 0 6 0 0 0 16 box4.dat
1 16 0 44 0 20 0 0 0 4 0 0 0 20 box4.dat
1 16 0 0 0 8 0 0 0 1 0 0 0 8 recte4.dat
1 16 0 0 0 6 0 0 0 1 0 0 0 6 4-4ndis.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 0 0 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
0 // Faces
4 16 8 44 1 8 20 1 10 20 1 16 42 1
3 16 8 44 1 16 42 1 16 44 1
3 16 8 44 -1 16 44 -1 16 42 -1
4 16 8 44 -1 16 42 -1 10 20 -1 8 20 -1
4 16 -8 44 1 -16 42 1 -10 20 1 -8 20 1
3 16 -8 44 1 -16 44 1 -16 42 1
3 16 -8 44 -1 -16 42 -1 -16 44 -1
4 16 -8 44 -1 -8 20 -1 -10 20 -1 -16 42 -1
4 16 8 20 8 8 20 1 7.80108 20 1 7.3912 20 3.0616
4 16 8 20 8 10 20 10 10 20 1 8 20 1
4 16 8 20 8 -8 20 8 -10 20 10 10 20 10
4 16 -8 20 8 -8 20 1 -10 20 1 -10 20 10
4 16 -8 20 8 -7.3912 20 3.0616 -7.80108 20 1 -8 20 1
4 16 -8 20 -8 -8 20 -1 -7.80108 20 -1 -7.3912 20 -3.0616
4 16 -8 20 -8 -10 20 -10 -10 20 -1 -8 20 -1
4 16 -8 20 -8 8 20 -8 10 20 -10 -10 20 -10
4 16 8 20 -8 8 20 -1 10 20 -1 10 20 -10
4 16 8 20 -8 7.3912 20 -3.0616 7.80108 20 -1 8 20 -1
4 16 10 20 10 16 42 16 16 42 -16 10 20 -10
4 16 10 20 10 -10 20 10 -16 42 16 16 42 16
4 16 -10 20 10 -10 20 -10 -16 42 -16 -16 42 16
4 16 -10 20 -10 10 20 -10 16 42 -16 -16 42 -16
4 16 20 48 20 16 48 16 -16 48 16 -20 48 20
4 16 20 48 20 20 48 -20 16 48 -16 16 48 16
4 16 -20 48 -20 -16 48 -16 16 48 -16 20 48 -20
4 16 -20 48 -20 -20 48 20 -16 48 16 -16 48 -16
4 16 8 0 8 20 44 20 -20 44 20 -8 0 8
4 16 8 0 8 8 0 -8 20 44 -20 20 44 20
4 16 -8 0 -8 -20 44 -20 20 44 -20 8 0 -8
4 16 -8 0 -8 -8 0 8 -20 44 20 -20 44 -20
4 16 8 0 8 -8 0 8 -6 0 6 6 0 6
4 16 8 0 8 6 0 6 6 0 -6 8 0 -8
4 16 -8 0 -8 8 0 -8 6 0 -6 -6 0 -6
4 16 -8 0 -8 -6 0 -6 -6 0 6 -8 0 8
0 // Edges
2 24 7.3912 20 3.0616 7.80108 20 1
2 24 7.80108 20 -1 7.3912 20 -3.0616
2 24 -7.3912 20 3.0616 -7.80108 20 1
2 24 -7.80108 20 -1 -7.3912 20 -3.0616
2 24 10 20 1 16 42 1
2 24 16 42 1 16 44 1
2 24 -10 20 1 -16 42 1
2 24 -16 42 1 -16 44 1
2 24 -10 20 -1 -16 42 -1
2 24 -16 42 -1 -16 44 -1
2 24 10 20 -1 16 42 -1
2 24 16 42 -1 16 44 -1
2 24 10 20 1 8 20 1
2 24 -10 20 1 -8 20 1
2 24 -10 20 -1 -8 20 -1
2 24 10 20 -1 8 20 -1
2 24 10 20 10 16 42 16
2 24 -10 20 10 -16 42 16
2 24 -10 20 -10 -16 42 -16
2 24 10 20 -10 16 42 -16
2 24 8 0 8 20 44 20
2 24 -8 0 8 -20 44 20
2 24 -8 0 -8 -20 44 -20
2 24 8 0 -8 20 44 -20
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2020-06-18 04:40:03
2021-10-16 14:00:02
Inner reinforcements are not connected to the understud, which results some massive gaps.
2021-10-18 17:55:02
2021-10-18 18:45:01
2021-10-18 20:25:01
I don't understand why the inner structure is divided into so many triangles/surfaces.
2021-10-18 23:15:01
Simplified underside geometry.
Existing certification-votes were deleted.
Existing certification-votes were deleted.
If the preview is correct, then the part misses the bottom quads of the reinforcements, now.
Not missing, but a bfc error.
Indeed, in LDView it's better to see than in the preview.
Fixed.
Existing certification-votes were deleted.
Existing certification-votes were deleted.
2021-10-20 19:25:02
Use the "green leaf button" in the preview instead.
2021-10-22 15:55:02
2021-10-23 04:15:01
2021-10-27 18:55:01
Contains a trailing zero in the first edge line after the '0 // Edges' comment
Not a trailling zero, but a typo: 7.80180 for 7.80108. Corrected
Existing certification-votes were deleted.
Existing certification-votes were deleted.
[PTadmin]
edited the part header.
2021-12-31 19:10:02
2023-09-10 16:48:20
2023-10-02 14:48:23
2023-10-13 03:02:33
2023-10-31 03:34:34
Release 2023-05
