File Detail parts/37178k01.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/37178k01.dat

Part Attributes: Base Part: 37178-f1.dat

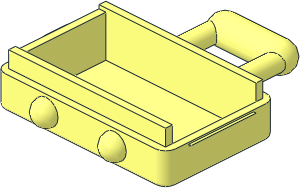

~Minifig Suitcase with Long Handle - Male Half

File Header:

0 ~Minifig Suitcase with Long Handle - Male Half
0 Name: 37178k01.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part Flexible_Section UPDATE 2022-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Minifig Accessory

0 !HISTORY 2022-09-15 [PTadmin] Official Update 2022-05

Show contents

0 // Handle and Intersection
1 16 -8 4.25 34.25 0 -4 0 4 0 0 0 0 4 4-8sphe.dat
1 16 8 4.25 34.25 0 4 0 4 0 0 0 0 4 4-8sphe.dat
1 16 -8 4.25 34.25 0 16 0 4 0 0 0 0 4 4-4cyli.dat
1 16 -9 4.25 16.25 0 0 2.5 2.5 0 0 0 16.5 0 4-4cyli.dat
1 16 9 4.25 16.25 0 0 2.5 2.5 0 0 0 16.5 0 4-4cyli.dat
1 16 -9 4.25 16.25 0 0 2.5 2.5 0 0 0 1 0 4-4edge.dat
1 16 9 4.25 16.25 0 0 2.5 2.5 0 0 0 1 0 4-4edge.dat

2 24 11.0601 2.9196 32.2326 10.7748 2.4928 32.1332
2 24 10.7678 2.4823 32.1367 9.9568 1.9403 31.8677
2 24 10.7748 2.4928 32.1332 10.7678 2.4823 32.1367
2 24 9.7572 1.9006 31.7078 9.9568 1.9403 31.8677
2 24 8.0433 1.9403 31.0851 8.6522 1.8192 31.308
2 24 8 1.9692 31.0557 8.0433 1.9403 31.0851
2 24 8.6522 1.8192 31.308 9 1.75 31.5287
2 24 9 1.75 31.5287 9.7572 1.9006 31.7078
2 24 11.3098 3.2933 32.4758 11.0601 2.9196 32.2326
2 24 11.5 4.25 32.4265 11.3098 3.2933 32.4758
2 24 -8.6522 6.6808 31.308 -8.0433 6.5598 31.0851
2 24 -8 6.5308 31.0557 -8.0433 6.5598 31.0851
2 24 -11.0601 5.5804 32.2326 -10.7748 6.0072 32.1332
2 24 -9.9568 6.5598 31.8677 -9.7572 6.5994 31.7078
2 24 -9.9568 6.5598 31.8677 -10.7678 6.0178 32.1367
2 24 -10.7748 6.0072 32.1332 -10.7678 6.0178 32.1367
2 24 -9 6.75 31.5287 -8.6522 6.6808 31.308
2 24 -9 6.75 31.5287 -9.7572 6.5994 31.7078
2 24 -11.3098 5.2068 32.4758 -11.5 4.25 32.4265
2 24 -11.3098 5.2068 32.4758 -11.0601 5.5804 32.2326
2 24 8 6.5308 31.0557 8.0433 6.5598 31.0851
2 24 8.0433 6.5598 31.0851 8.6522 6.6808 31.308
2 24 9.7572 6.5994 31.7078 9 6.75 31.5287
2 24 8.6522 6.6808 31.308 9 6.75 31.5287
2 24 11.0601 5.5804 32.2326 10.7748 6.0072 32.1332
2 24 9.7572 6.5994 31.7078 9.9568 6.5598 31.8677
2 24 10.7748 6.0072 32.1332 10.7678 6.0178 32.1367
2 24 9.9568 6.5598 31.8677 10.7678 6.0178 32.1367
2 24 11.3098 5.2068 32.4758 11.0601 5.5804 32.2326
2 24 11.3098 5.2068 32.4758 11.5 4.25 32.4265
2 24 -11.0601 2.9196 32.2326 -10.7748 2.4928 32.1332
2 24 -11.0601 2.9196 32.2326 -11.3098 3.2933 32.4758
2 24 -11.5 4.25 32.4265 -11.3098 3.2933 32.4758
2 24 -8.0433 1.9403 31.0851 -8.6522 1.8192 31.308
2 24 -8 1.9692 31.0557 -8.0433 1.9403 31.0851
2 24 -9 1.75 31.5287 -9.7572 1.9006 31.7078
2 24 -8.6522 1.8192 31.308 -9 1.75 31.5287
2 24 -9.7572 1.9006 31.7078 -9.9568 1.9403 31.8677
2 24 -10.7748 2.4928 32.1332 -10.7678 2.4823 32.1367
2 24 -10.7678 2.4823 32.1367 -9.9568 1.9403 31.8677
2 24 -6.6903 5.2068 30.4403 -7.0739 5.7808 30.5544
2 24 -7.0739 5.7808 30.5544 -7.2323 6.0178 30.7128
2 24 -8 6.5308 31.0557 -7.2323 6.0178 30.7128
2 24 7.2323 2.4823 30.7128 7.0739 2.7192 30.5544
2 24 8 1.9692 31.0557 7.2323 2.4823 30.7128
2 24 -8 1.9692 31.0557 -7.2323 2.4823 30.7128
2 24 -7.0739 2.7192 30.5544 -7.2323 2.4823 30.7128
2 24 8 6.5308 31.0557 7.2323 6.0178 30.7128
2 24 6.6903 5.2068 30.4403 7.0739 5.7808 30.5544
2 24 7.2323 6.0178 30.7128 7.0739 5.7808 30.5544
2 24 -6.6903 5.2068 30.4403 -6.5 4.25 30.25
2 24 6.5 4.25 30.25 6.6903 5.2068 30.4403
2 24 -6.6903 3.2933 30.4403 -6.5 4.25 30.25
2 24 6.6903 3.2933 30.4403 7.0739 2.7192 30.5544
2 24 -6.6903 3.2933 30.4403 -7.0739 2.7192 30.5544
2 24 6.5 4.25 30.25 6.6903 3.2933 30.4403

0 // Suitcase
1 16 10 4.25 -16.25 0 0 3.5 3.5 0 0 0 -3.5 0 4-8sphe.dat
1 16 -10 4.25 -16.25 0 0 3.5 3.5 0 0 0 -3.5 0 4-8sphe.dat
1 16 -10 4.25 -16.25 0 0 3.5 3.5 0 0 0 1 0 4-4edge.dat
1 16 10 4.25 -16.25 0 0 3.5 3.5 0 0 0 1 0 4-4edge.dat
1 16 -25 5 0 0 -2 0 1.5 0 0 0 0 -10 box5.dat
1 16 22 0 13.25 3 0 0 0 8 0 0 0 3 1-4cyli.dat
1 16 22 8 13.25 2 0 0 0 2 0 0 0 2 t04o5000.dat
1 16 -22 8 15.25 0 44 0 1 0 0 0 0 1 1-4cyli.dat
1 16 -22 0 13.25 -3 0 0 0 8 0 0 0 3 1-4cyli.dat
1 16 -22 8 13.25 -2 0 0 0 2 0 0 0 2 t04o5000.dat
1 16 -24 8 -13.25 0 0 -1 1 0 0 0 26.5 0 1-4cyli.dat
1 16 24 8 -13.25 0 0 1 1 0 0 0 26.5 0 1-4cyli.dat
1 16 22 0 -13.25 3 0 0 0 8 0 0 0 -3 1-4cyli.dat
1 16 22 8 -13.25 2 0 0 0 2 0 0 0 -2 t04o5000.dat
1 16 -22 8 -15.25 0 44 0 1 0 0 0 0 -1 1-4cyli.dat
1 16 -22 0 -13.25 -3 0 0 0 8 0 0 0 -3 1-4cyli.dat
1 16 -22 8 -13.25 -2 0 0 0 2 0 0 0 -2 t04o5000.dat
4 16 25 0 13.25 25 0 -13.25 25 8 -13.25 25 8 13.25
4 16 22 0 16.25 22 8 16.25 -22 8 16.25 -22 0 16.25
4 16 -25 0 13.25 -25 8 13.25 -25 8 -13.25 -25 0 -13.25
4 16 22 0 -16.25 -22 0 -16.25 -22 8 -16.25 22 8 -16.25
2 24 -22 0 16.25 22 0 16.25
2 24 25 0 13.25 25 0 -13.25
2 24 22 0 -16.25 -22 0 -16.25
2 24 -25 0 -13.25 -25 0 13.25
1 16 -22 9 -13.25 -2 0 0 0 -1 0 0 0 -2 1-4chrd.dat
1 16 -22 9 13.25 -2 0 0 0 -1 0 0 0 2 1-4chrd.dat
1 16 22 9 -13.25 2 0 0 0 -1 0 0 0 -2 1-4chrd.dat
1 16 22 9 13.25 2 0 0 0 -1 0 0 0 2 1-4chrd.dat
4 16 24 9 -13.25 22 9 -15.25 -22 9 -15.25 -24 9 -13.25
4 16 24 9 -13.25 -24 9 -13.25 -24 9 13.25 24 9 13.25
4 16 22 9 15.25 24 9 13.25 -24 9 13.25 -22 9 15.25
1 16 22 0 13.25 3 0 0 0 1 0 0 0 3 1-4edge.dat
1 16 -22 0 13.25 -3 0 0 0 1 0 0 0 3 1-4edge.dat
1 16 22 0 -13.25 3 0 0 0 1 0 0 0 -3 1-4edge.dat
1 16 -22 0 -13.25 -3 0 0 0 1 0 0 0 -3 1-4edge.dat
1 16 22 0 13.25 3 0 0 0 1 0 0 0 3 1-4chrd.dat
1 16 -22 0 13.25 -3 0 0 0 1 0 0 0 3 1-4chrd.dat
1 16 22 0 -13.25 3 0 0 0 1 0 0 0 -3 1-4chrd.dat
1 16 -22 0 -13.25 -3 0 0 0 1 0 0 0 -3 1-4chrd.dat
3 16 -23 0 -14.25 -25 0 -13.25 -22 0 -16.25
4 16 23 0 -14.25 -23 0 -14.25 -22 0 -16.25 22 0 -16.25
4 16 23 0 -12.25 25 0 -13.25 25 0 13.25 23 0 12.25
3 16 23 0 -12.25 23 0 -14.25 25 0 -13.25
3 16 23 0 14.25 23 0 12.25 25 0 13.25
4 16 23 0 14.25 22 0 16.25 -22 0 16.25 -23 0 14.25
4 16 -23 0 14.25 -25 0 13.25 -25 0 -13.25 -23 0 -14.25
3 16 -25 0 13.25 -23 0 14.25 -22 0 16.25
3 16 22 0 16.25 23 0 14.25 25 0 13.25
3 16 23 0 -14.25 22 0 -16.25 25 0 -13.25
4 16 -23 0 -14.25 -23 -3.5 -12.25 -23 -3.5 12.25 -23 0 14.25
4 16 -23 -4.5 -14.25 -23 -4.5 -12.25 -23 -3.5 -12.25 -23 0 -14.25
4 16 -23 -3.5 12.25 -23 -4.5 12.25 -23 -4.5 14.25 -23 0 14.25
1 16 0 -2.25 -13.25 23 0 0 0 -2.25 0 0 0 -1 box3-3.dat
2 24 -23 0 14.25 -23 0 -14.25
0 BFC INVERTNEXT
1 16 1 4 0 0 0 22 0 4 0 12.25 0 0 box2-5.dat
1 16 0 -2.25 13.25 23 0 0 0 -2.25 0 0 0 1 box3-3.dat
2 24 -23 -4.5 12.25 -23 -3.5 12.25
2 24 -23 -4.5 -12.25 -23 -3.5 -12.25
1 16 -22 -3.5 0 1 0 0 0 1 0 0 0 12.25 rect.dat
4 16 -23 -4.5 12.25 -23 -3.5 12.25 -21 -3.5 12.25 23 -4.5 12.25
4 16 23 0 12.25 23 -4.5 12.25 -21 -3.5 12.25 -21 8 12.25
3 16 23 0 12.25 -21 8 12.25 23 8 12.25
4 16 -21 -3.5 -12.25 -23 -3.5 -12.25 -23 -4.5 -12.25 23 -4.5 -12.25
4 16 -21 -3.5 -12.25 23 -4.5 -12.25 23 0 -12.25 -21 8 -12.25
3 16 -21 8 -12.25 23 0 -12.25 23 8 -12.25
1 16 -21 2.25 0 0 -1 0 -5.75 0 0 0 0 -12.25 rect2p.dat

0 // Outer Pouch
1 16 -17 9 8 -6 0 0 0 1 0 0 0 6 1-4cylo.dat
1 16 -17 10 8 -6 0 0 0 -1 0 0 0 6 1-4chrd.dat
1 16 -12.5 9.5 3 0 -10.5 0 .5 0 0 0 0 -5 box2-7.dat
1 16 -1.5 9.5 14 0 0 15.5 -.5 0 0 0 -1 0 rect3.dat
1 16 -2 9 14 16 0 0 0 1 0 0 0 -16 1-4cylo.dat
1 16 -2 10 14 16 0 0 0 -1 0 0 0 -16 1-4chrd.dat
0 BFC INVERTNEXT
1 16 -18 9 3 -3 0 0 0 1 0 0 0 3 4-4cylo.dat
1 16 -18 10 3 -3 0 0 0 -1 0 0 0 3 4-4ndis.dat
3 16 -21 10 0 -23 10 -2 -21 10 3
4 16 -21 10 3 -23 10 -2 -23 10 8 -21 10 6
4 16 -21 10 6 -23 10 8 -17 10 14 -18 10 6
3 16 -18 10 6 -17 10 14 -15 10 6
4 16 -2 10 -2 -15 10 6 -17 10 14 14 10 14
3 16 -15 10 6 -2 10 -2 -15 10 3
3 16 -15 10 3 -2 10 -2 -15 10 0
4 16 -23 10 -2 -18 10 0 -15 10 0 -2 10 -2
3 16 -18 10 0 -23 10 -2 -21 10 0

0 // Closure Clip
1 16 -23 -2.9 0 0 1 0 -.3 0 0 0 0 5 recte4.dat
1 16 -23.5 -2.9 0 0 1 0 -.3 0 0 0 0 3 rect.dat
4 16 -23.5 -2.6 -3 -23.5 -2.6 3 -23 -2.6 5 -23 -2.6 -5
4 16 -23 -3.2 5 -23.5 -3.2 3 -23.5 -3.2 -3 -23 -3.2 -5
1 16 -23.25 -2.9 4 .25 1 0 0 0 .3 1 0 0 rect2p.dat
1 16 -23.25 -2.9 -4 -.25 1 0 0 0 .3 1 0 0 rect2p.dat

0 // Attachment for Hinge
1 16 25 .45 -9.5 .8 0 0 0 0 .4 0 19 0 tri3u1.dat
1 16 25.4 .45 0 -.4 0 0 0 1 0 0 0 -9.5 rect1.dat
