Official File parts/3736.dat
Part Attributes:
External Sites:
External site data provided by Rebrickable.com View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

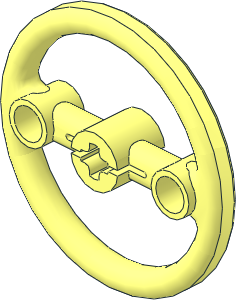

Technic Pulley Wheel 5D
File Header:
0 Technic Pulley Wheel 5D 0 Name: 3736.dat 0 Author: Marc Klein [marckl] 0 !LDRAW_ORG Part UPDATE 2010-03 0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 2000-09-30 [PTadmin] Official Update 2000-02 0 !HISTORY 2007-06-29 [PTadmin] Header formatted for Contributor Agreement 0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01 0 !HISTORY 2008-07-07 [guyvivan] Made BFC Compliant (2004-08-04) 0 !HISTORY 2010-12-31 [PTadmin] Official Update 2010-03
Show contents
1 16 0 0 0 0 0 -1 1 0 0 0 -1 0 s\3736c.dat 1 16 0 0 0 0 0 1 -1 0 0 0 -1 0 s\3736r.dat 1 16 0 0 0 0 0 -1 -1 0 0 0 -1 0 s\3736r.dat 1 16 0 0 0 0 0 1 1 0 0 0 1 0 s\3736r.dat 1 16 0 0 0 0 0 -1 1 0 0 0 1 0 s\3736r.dat 1 16 0 0 0 0 0 -1 -1 0 0 0 1 0 s\3736r.dat 1 16 0 0 0 0 0 1 -1 0 0 0 1 0 s\3736r.dat 1 16 0 0 0 0 0 -1 1 0 0 0 -1 0 s\3736r.dat 1 16 0 0 0 0 0 1 1 0 0 0 -1 0 s\3736r.dat 1 16 0 0 0 0.382683 0 0.92388 -0.92388 0 0.382683 0 -1 0 s\3736s.dat 1 16 0 0 0 -0.707107 0 0.707107 -0.707107 0 -0.707107 0 -1 0 s\3736s.dat 1 16 0 0 0 -1 0 0 0 0 -1 0 -1 0 s\3736s.dat 1 16 0 0 0 -0.92388 0 0.382683 -0.382683 0 -0.92388 0 -1 0 s\3736s.dat 1 16 0 0 0 -0.707107 0 -0.707107 0.707107 0 -0.707107 0 -1 0 s\3736s.dat 1 16 0 0 0 -0.92388 0 -0.382683 0.382683 0 -0.92388 0 -1 0 s\3736s.dat 1 16 0 0 0 -0.382683 0 -0.92388 0.92388 0 -0.382683 0 -1 0 s\3736s.dat 1 16 0 0 0 0.707107 0 -0.707107 0.707107 0 0.707107 0 -1 0 s\3736s.dat 1 16 0 0 0 1 0 0 0 0 1 0 -1 0 s\3736s.dat 1 16 0 0 0 0.92388 0 -0.382683 0.382683 0 0.92388 0 -1 0 s\3736s.dat 1 16 0 0 0 0.707107 0 0.707107 -0.707107 0 0.707107 0 -1 0 s\3736s.dat 1 16 0 0 0 0.92388 0 0.382683 -0.382683 0 0.92388 0 -1 0 s\3736s.dat 1 16 0 0 0 -0.382683 0 -0.92388 -0.92388 0 0.382683 0 1 0 s\3736s.dat 1 16 0 0 0 0.707107 0 -0.707107 -0.707107 0 -0.707107 0 1 0 s\3736s.dat 1 16 0 0 0 1 0 0 0 0 -1 0 1 0 s\3736s.dat 1 16 0 0 0 0.92388 0 -0.382683 -0.382683 0 -0.92388 0 1 0 s\3736s.dat 1 16 0 0 0 0.707107 0 0.707107 0.707107 0 -0.707107 0 1 0 s\3736s.dat 1 16 0 0 0 0.92388 0 0.382683 0.382683 0 -0.92388 0 1 0 s\3736s.dat 1 16 0 0 0 0.382683 0 0.92388 0.92388 0 -0.382683 0 1 0 s\3736s.dat 1 16 0 0 0 -0.707107 0 0.707107 0.707107 0 0.707107 0 1 0 s\3736s.dat 1 16 0 0 0 -1 0 0 0 0 1 0 1 0 s\3736s.dat 1 16 0 0 0 -0.92388 0 0.382683 0.382683 0 0.92388 0 1 0 s\3736s.dat 1 16 0 0 0 -0.707107 0 -0.707107 -0.707107 0 0.707107 0 1 0 s\3736s.dat 1 16 0 0 0 -0.92388 0 -0.382683 -0.382683 0 0.92388 0 1 0 s\3736s.dat 0
Status:
Official Official
This part has the following errors
  • Decimal precision exceeds 5 significant places
    Line 24: 1 16 0 0 0 0.382683 0 0.92388 -0.92388 0 0.382683 0 -1 0 s\3736s.dat
    Line 25: 1 16 0 0 0 -0.707107 0 0.707107 -0.707107 0 -0.707107 0 -1 0 s\3736s.dat
    Line 28: 1 16 0 0 0 -0.707107 0 -0.707107 0.707107 0 -0.707107 0 -1 0 s\3736s.dat
    Line 30: 1 16 0 0 0 -0.382683 0 -0.92388 0.92388 0 -0.382683 0 -1 0 s\3736s.dat
    Line 31: 1 16 0 0 0 0.707107 0 -0.707107 0.707107 0 0.707107 0 -1 0 s\3736s.dat
    Line 34: 1 16 0 0 0 0.707107 0 0.707107 -0.707107 0 0.707107 0 -1 0 s\3736s.dat
    Line 36: 1 16 0 0 0 -0.382683 0 -0.92388 -0.92388 0 0.382683 0 1 0 s\3736s.dat
    Line 37: 1 16 0 0 0 0.707107 0 -0.707107 -0.707107 0 -0.707107 0 1 0 s\3736s.dat
    Line 40: 1 16 0 0 0 0.707107 0 0.707107 0.707107 0 -0.707107 0 1 0 s\3736s.dat
    Line 42: 1 16 0 0 0 0.382683 0 0.92388 0.92388 0 -0.382683 0 1 0 s\3736s.dat
    Line 43: 1 16 0 0 0 -0.707107 0 0.707107 0.707107 0 0.707107 0 1 0 s\3736s.dat
    Line 46: 1 16 0 0 0 -0.707107 0 -0.707107 -0.707107 0 0.707107 0 1 0 s\3736s.dat
This part has the following warnings
  • Decimal precision exceeds library recommendation
    Line 27: 1 16 0 0 0 -0.92388 0 0.382683 -0.382683 0 -0.92388 0 -1 0 s\3736s.dat
    Line 29: 1 16 0 0 0 -0.92388 0 -0.382683 0.382683 0 -0.92388 0 -1 0 s\3736s.dat
    Line 33: 1 16 0 0 0 0.92388 0 -0.382683 0.382683 0 0.92388 0 -1 0 s\3736s.dat
    Line 35: 1 16 0 0 0 0.92388 0 0.382683 -0.382683 0 0.92388 0 -1 0 s\3736s.dat
    Line 39: 1 16 0 0 0 0.92388 0 -0.382683 -0.382683 0 -0.92388 0 1 0 s\3736s.dat
    Line 41: 1 16 0 0 0 0.92388 0 0.382683 0.382683 0 -0.92388 0 1 0 s\3736s.dat
    Line 45: 1 16 0 0 0 -0.92388 0 0.382683 0.382683 0 0.92388 0 1 0 s\3736s.dat
    Line 47: 1 16 0 0 0 -0.92388 0 -0.382683 -0.382683 0 0.92388 0 1 0 s\3736s.dat
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Marc Klein
Licensed under CC BY 4.0
