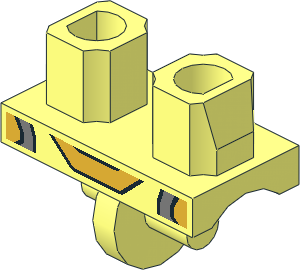

0 Minifig Hips with Iron Man Armoured Suit Mark XLII Pattern
0 Name: 3815bpbf.dat
0 Author: Chris Dee [cwdee]
0 !LDRAW_ORG Part UPDATE 2020-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS set 76006
0 !HISTORY 2013-12-23 [MagFors] Original pattern design
0 !HISTORY 2020-05-30 [cwdee] Adapted to corrected geometry
0 !HISTORY 2020-09-05 [PTadmin] Official Update 2020-02
