File Detail parts/3815bpc67.dat

Download Download zip file View patterns/composites/shortcuts

Official File parts/3815bpc67.dat

Part Attributes: Base Part: 3815b.dat

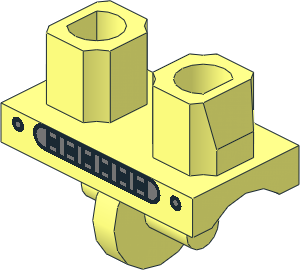

Minifig Hips with Clockwork Robot Pattern

File Header:

0 Minifig Hips with Clockwork Robot Pattern
0 Name: 3815bpc67.dat
0 Author: Chris Dee [cwdee]
0 !LDRAW_ORG Part UPDATE 2020-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS set 8827

0 !HISTORY 2012-12-28 [MagFors] Original pattern design
0 !HISTORY 2020-05-30 [cwdee] Adapted to corrected geometry
0 !HISTORY 2020-09-05 [PTadmin] Official Update 2020-02
