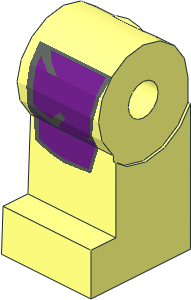

0 ~Minifig Leg Right with Purple Greatcoat Pattern (Obsolete)
0 Name: 3816phb.dat
0 Author: Andy Westrate [westrate]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Obsolete
0 !KEYWORDS Harry Potter, Hogwarts, Severus Snape, Slytherin
0 !CMDLINE -c0
0 !HISTORY 2004-04-22 [PTadmin] Official Update 2004-02
0 !HISTORY 2007-07-27 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2009-08-24 [PTadmin] Renamed from 972phb.dat
0 !HISTORY 2011-05-10 [Philo] Inlined purple subpart, changed it to color 22
0 !HISTORY 2011-07-25 [PTadmin] Official Update 2011-01
0 !HISTORY 2020-06-18 [cwdee] Obsoleted due to bad geometry
0 !HISTORY 2022-01-14 [PTadmin] Official Update 2022-01
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
