Official File parts/3817phb.dat
Part Attributes:
Base Part: 3817.dat
File Header:

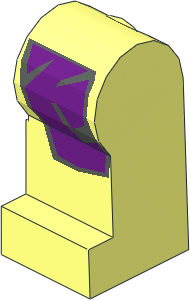

0 ~Minifig Leg Left with Purple Greatcoat Pattern (Obsolete)
0 Name: 3817phb.dat
0 Author: Andy Westrate [westrate]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Obsolete
0 !KEYWORDS Harry Potter, Hogwarts, Severus Snape, Slytherin
0 !CMDLINE -c0
0 !HISTORY 2004-04-22 [PTadmin] Official Update 2004-02
0 !HISTORY 2007-07-27 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2009-08-24 [PTadmin] Renamed from 972phb.dat
0 !HISTORY 2011-05-10 [Philo] Inlined purple subpart, changed it to color 22
0 !HISTORY 2011-07-25 [PTadmin] Official Update 2011-01
0 !HISTORY 2020-06-18 [cwdee] Obsoleted due to bad geometry
0 !HISTORY 2022-01-14 [PTadmin] Official Update 2022-01
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3817s01.dat
4 22 17.5 10 -6 6 6.74 -6 8 11 -6 12 11.25 -6
3 22 9.5 0.5 -8.895 10.5 0 -9 4.25 0 -9
4 22 16 1.75 -8.63 10.5 0 -9 13 3.42 -8.28 13.5 3.42 -8.28
3 22 16 1.75 -8.63 16 0 -9 10.5 0 -9
3 22 4 -3.42 -8.28 4.25 -1.95 -8.59 5.75 -3.42 -8.28
4 22 8.25 -5.5 -6.85 3.5 -5.95 -6.54 4 -3.42 -8.28 5.75 -3.42 -8.28
3 22 3.5 -5.95 -6.54 8.25 -5.5 -6.85 14.75 -5.95 -6.54
4 22 14.75 -5.95 -6.54 8.25 -5.5 -6.85 7 -3.42 -8.28 10.75 -3.42 -8.28
4 22 4.25 0 -9 10 -2.19 -8.54 10.75 -3.42 -8.28 7 -3.42 -8.28
3 22 15.5 -5.1 -7.125 12.25 -3.42 -8.28 15.75 -3.42 -8.28
4 22 10 -2.19 -8.54 16 0 -9 15.75 -3.42 -8.28 12.25 -3.42 -8.28
3 22 16 0 -9 10 -2.19 -8.54 4.25 0 -9
3 22 13.5 6.74 -6 17.75 6.74 -6 17.25 4.5 -7.54
4 22 9.5 0.5 -8.895 4.25 0 -9 5 3.42 -8.28 11.25 3.42 -8.28
4 22 6 6.74 -6 13.5 6.74 -6 13 5.35 -6.955 11.25 3.42 -8.28
3 22 6 6.74 -6 11.25 3.42 -8.28 5 3.42 -8.28
3 22 6 6.74 -6 17.5 10 -6 17.75 6.74 -6
4 8 18 3.42 -8.28 17.25 1.75 -8.63 16 1.75 -8.63 13.5 3.42 -8.28
4 8 13 5.35 -6.955 13.5 6.74 -6 17.25 4.5 -7.54 18 3.42 -8.28
3 8 13 5.35 -6.955 18 3.42 -8.28 11.25 3.42 -8.28
4 8 9.5 0.5 -8.895 11.25 3.42 -8.28 13 3.42 -8.28 10.5 0 -9
4 8 16 0 -9 16 1.75 -8.63 17.25 1.75 -8.63 16.75 0 -9
4 8 16 0 -9 16.75 0 -9 16.5 -3.42 -8.28 15.75 -3.42 -8.28
4 8 16.5 -3.42 -8.28 16.5 -5.1 -7.125 15.5 -5.1 -7.125 15.75 -3.42 -8.28
4 8 17.75 6.74 -6 18.64 6.74 -6 18 3.42 -8.28 17.25 4.5 -7.54
4 8 16.5 -5.1 -7.125 16 -6.3 -6.3 14.75 -5.95 -6.54 15.5 -5.1 -7.125
4 8 16 -6.3 -6.3 2.5 -6.3 -6.3 3.5 -5.95 -6.54 14.75 -5.95 -6.54
4 8 2.5 -6.3 -6.3 2.75 -3.42 -8.28 4 -3.42 -8.28 3.5 -5.95 -6.54
4 8 2.75 -3.42 -8.28 3.25 0 -9 4.25 -1.95 -8.59 4 -3.42 -8.28
3 8 3.25 0 -9 4.25 0 -9 4.25 -1.95 -8.59
4 8 4.25 0 -9 7 -3.42 -8.28 5.75 -3.42 -8.28 4.25 -1.95 -8.59
3 8 10.75 -3.42 -8.28 10 -2.19 -8.54 12.25 -3.42 -8.28
3 8 5.75 -3.42 -8.28 7 -3.42 -8.28 8.25 -5.5 -6.85
4 8 14.75 -5.95 -6.54 10.75 -3.42 -8.28 12.25 -3.42 -8.28 15.5 -5.1 -7.125
3 16 16 -6.3 -6.3 16.5 -5.1 -7.125 18.11 -6.3 -6.3
4 16 18.11 -6.3 -6.3 16.5 -5.1 -7.125 16.5 -3.42 -8.28 18.23 -3.42 -8.28
4 16 2.75 -3.42 -8.28 2.5 -6.3 -6.3 2 -6.3 -6.3 2 -3.42 -8.28
4 16 2 0 -9 3.25 0 -9 2.75 -3.42 -8.28 2 -3.42 -8.28
4 16 18.23 -3.42 -8.28 16.5 -3.42 -8.28 16.75 0 -9 18.36 0 -9
3 16 16.75 0 -9 17.25 1.75 -8.63 18.36 0 -9
4 16 18.36 0 -9 17.25 1.75 -8.63 18 3.42 -8.28 18.5 3.42 -8.28
3 16 18.64 6.74 -6 18.5 3.42 -8.28 18 3.42 -8.28
4 8 4 3.42 -8.28 5 3.42 -8.28 4.25 0 -9 3.25 0 -9
4 8 5 6.74 -6 6 6.74 -6 5 3.42 -8.28 4 3.42 -8.28
4 16 2 3.42 -8.28 4 3.42 -8.28 3.25 0 -9 2 0 -9
4 16 2 6.74 -6 5 6.74 -6 4 3.42 -8.28 2 3.42 -8.28
4 8 18.64 6.74 -6 17.75 6.74 -6 17.5 10 -6 18.25 10.5 -6
4 8 18.25 10.5 -6 17.5 10 -6 12 11.25 -6 12 12 -6
4 8 8 11 -6 7 12 -6 12 12 -6 12 11.25 -6
4 8 7 12 -6 8 11 -6 6 6.74 -6 5 6.74 -6
4 16 5 6.74 -6 2 6.74 -6 2 7.7 -6 7 12 -6
4 16 1.5 20 -6 7 12 -6 2 7.7 -6 1.5 7.7 -6
4 16 19.18 20 -6 12 12 -6 7 12 -6 1.5 20 -6
3 16 18.64 6.74 -6 18.25 10.5 -6 19.18 20 -6
3 16 19.18 20 -6 18.25 10.5 -6 12 12 -6
4 16 19.18 20 -6 1.5 20 -6 1.5 20 -11 19.18 20 -11
4 16 19.18 20 -11 1.5 20 -11 1.5 28 -11 19.5 28 -11
Status:
Official
This part has the following errors
- Pattern parts and sticker shortcuts must have a "Set <setnumber>", "CMF", or "Build-A-Minifigure" keyword
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information
This part is copyright © Andy Westrate
Licensed under CC BY 4.0
