Official File parts/38317.dat
Part Attributes:
File Header:

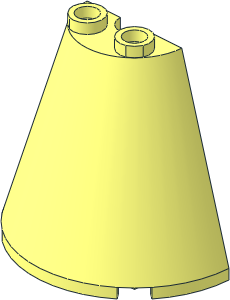

0 Cone 4 x 2 x 3 Half
0 Name: 38317.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-05
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2019-06-28 [PTadmin] Official Update 2019-01
0 !HISTORY 2023-01-17 [Philo] Corrected wrong radius of top half hole.
0 !HISTORY 2024-06-30 [OrionP] Official Update 2024-05
Show contents
1 16 10 0 -10 0 0 1 0 1 0 -1 0 0 stud6.dat
1 16 -10 0 -10 -1 0 0 0 1 0 0 0 -1 stud6.dat
2 24 -20 72 0 -40 72 0
2 24 -20 64 0 -35.5 64 0
4 16 -20 72 0 -40 72 0 -35.5 64 0 -20 64 0
3 16 -40 68 0 -35.5 64 0 -40 72 0
2 24 20 72 0 40 72 0
2 24 20 64 0 35.5 64 0
4 16 20 64 0 35.5 64 0 40 72 0 20 72 0
3 16 40 72 0 35.5 64 0 40 68 0
1 16 0 72 0 -40 0 0 0 1 0 0 0 -40 48\5-48edge.dat
1 16 0 72 0 -24.3504 0 31.7342 0 1 0 -31.7342 0 -24.3504 48\5-24edge.dat
1 16 0 72 0 40 0 0 0 -1 0 0 0 -40 48\5-48edge.dat
1 16 -10 72 -30 -6 0 0 0 1 0 0 0 -6 1-4edge.dat
1 16 10 72 -30 0 0 6 0 1 0 -6 0 0 1-4edge.dat
4 16 -34.64 72 -20 -32.042 72 -18.5 -29.3558 72 -22.5256 -31.736 72 -24.352
4 16 -36.956 72 -15.308 -34.1335 72 -14.3155 -32.042 72 -18.5 -34.64 72 -20
3 16 -36.956 72 -15.308 -34.2426 72 -14.2426 -34.1335 72 -14.3155
4 16 -36.956 72 -15.308 -38.636 72 -10.352 -35.5434 72 -12.2962 -34.2426 72 -14.2426
3 16 -36 72 -10 -35.5434 72 -12.2962 -38.636 72 -10.352
4 16 -35.8269 72 -9.1297 -36 72 -10 -38.636 72 -10.352 -39.656 72 -5.22
4 16 -39.656 72 -5.22 -40 72 0 -36.7364 72 -4 -35.8269 72 -9.1297
4 16 -24 72 -4 -36.7364 72 -4 -40 72 0 -20 72 0
1 16 -22 72 -12 0 0 -2 0 -1 0 -10 0 -2 rect2p.dat
3 16 -24 72 -24 -20 72 -20 -19 72 -24
3 16 -19 72 -24 -20 72 -20 -16 72 -24
4 16 -16 72 -24 -16 72 -30 -19 72 -29.3558 -19 72 -24
4 16 -22.5256 72 -29.3558 -19 72 -29.3558 -16 72 -30 -24.352 72 -31.736
4 16 -24.352 72 -31.736 -16 72 -30 -15.5434 72 -32.2962 -20 72 -34.64
4 16 -20 72 -34.64 -15.5434 72 -32.2962 -14.2426 72 -34.2426 -15.308 72 -36.956
3 16 -15.308 72 -36.956 -14.2426 72 -34.2426 -12.2962 72 -35.5434
4 16 -10.352 72 -38.636 -15.308 72 -36.956 -12.2962 72 -35.5434 -10 72 -36
4 16 -10 72 -36 0 72 -36 -5.22 72 -39.656 -10.352 72 -38.636
4 16 -5.22 72 -39.656 0 72 -36 5.22 72 -39.656 0 72 -40
4 16 20 72 -20 16 72 -24 -16 72 -24 -20 72 -20
4 16 10.352 72 -38.636 5.22 72 -39.656 0 72 -36 10 72 -36
4 16 10 72 -36 12.2962 72 -35.5434 15.308 72 -36.956 10.352 72 -38.636
3 16 12.2962 72 -35.5434 14.2426 72 -34.2426 15.308 72 -36.956
4 16 15.308 72 -36.956 14.2426 72 -34.2426 15.5434 72 -32.2962 20 72 -34.64
4 16 20 72 -34.64 15.5434 72 -32.2962 16 72 -30 24.352 72 -31.736
4 16 24.352 72 -31.736 16 72 -30 19 72 -29.3558 22.5256 72 -29.3558
4 16 19 72 -24 19 72 -29.3558 16 72 -30 16 72 -24
3 16 16 72 -24 20 72 -20 19 72 -24
3 16 19 72 -24 20 72 -20 24 72 -24
1 16 22 72 -12 0 0 -2 0 -1 0 -10 0 2 rect2p.dat
4 16 20 72 0 40 72 0 36.7364 72 -4 24 72 -4
4 16 35.8269 72 -9.1297 36.7364 72 -4 40 72 0 39.656 72 -5.22
4 16 39.656 72 -5.22 38.636 72 -10.352 36 72 -10 35.8269 72 -9.1297
3 16 38.636 72 -10.352 35.5434 72 -12.2962 36 72 -10
4 16 34.2426 72 -14.2426 35.5434 72 -12.2962 38.636 72 -10.352 36.956 72 -15.308
3 16 34.1335 72 -14.3155 34.2426 72 -14.2426 36.956 72 -15.308
4 16 34.64 72 -20 32.042 72 -18.5 34.1335 72 -14.3155 36.956 72 -15.308
4 16 31.736 72 -24.352 29.3558 72 -22.5256 32.042 72 -18.5 34.64 72 -20
1 16 0 68 0 -40 0 0 0 4 0 0 0 -40 48\5-48cyli.dat
1 16 -30.5459 70 -23.4388 0 -0.52001 -1.1901 -2 0 0 0 0.85416 -0.9132 rect.dat
1 16 -30.6989 70 -20.5128 1.3431 -1 0 0 0 2 -2.0128 0 0 rect2p.dat
1 16 -33.0878 70 -16.4078 1.0458 -0.89448 0 0 0 2 -2.0922 -0.44711 0 rect2p.dat
2 24 -34.1335 68 -14.3155 -34.2426 68 -14.2426
2 24 -34.1335 72 -14.3155 -34.2426 72 -14.2426
4 16 -34.2426 72 -14.2426 -34.2426 68 -14.2426 -34.1335 68 -14.3155 -34.1335 72 -14.3155
1 16 -34.893 70 -13.2694 0.6504 -1 0 0 0 2 -0.9732 0 0 rect2p.dat
1 16 -35.7717 70 -11.1481 0.2283 -1 0 0 0 2 -1.1481 0 0 rect2p.dat
1 16 -35.9134 70 -9.5648 -0.0866 -1 0 0 0 2 -0.4352 0 0 rect2p.dat
1 16 -36.2816 70 -6.5648 0 -1 -0.4548 2 0 0 0 0 2.5648 rect3.dat
5 24 -32.042 72 -18.5 -32.042 68 -18.5 -29.3558 68 -22.5256 -34.1335 72 -14.3155
5 24 -34.1335 72 -14.3155 -34.1335 68 -14.3155 -32.042 68 -18.5 -34.2426 72 -14.2426
5 24 -34.2426 72 -14.2426 -34.2426 68 -14.2426 -34.1335 68 -14.3155 -36 72 -10
5 24 -35.5434 72 -12.2962 -35.5434 68 -12.2962 -34.2426 68 -14.2426 -36 72 -10
5 24 -36 72 -10 -36 68 -10 -34.2426 68 -14.2426 -35.8269 72 -9.1297
5 24 -35.8269 72 -9.1297 -35.8269 68 -9.1297 -36 68 -10 -36.7364 72 -4
1 16 -30.3682 70 -4 0 0 6.3682 2 0 0 0 1 0 rect3.dat
1 16 -24 70 -14 0 1 0 0 0 -2 -10 0 0 rect2a.dat
1 16 -21.5 70 -24 0 0 2.5 2 0 0 0 1 0 rect3.dat
1 16 -19 70 -26.6779 0 1 0 2 0 0 0 0 -2.6779 rect3.dat
1 16 -20.7628 70 -29.3558 0 0 -1.7628 2 0 0 0 -1 0 rect3.dat
1 16 -23.4388 70 -30.5459 0 1 -0.9132 2 0 0 0 0 -1.1901 rect3.dat
1 16 0 72 0 40 0 0 0 -4 0 0 0 -40 48\5-48cyli.dat
1 16 30.5459 70 -23.4388 0 0.52001 1.1901 2 0 0 0 0.85416 -0.9132 rect.dat
1 16 30.6989 70 -20.5128 -1.3431 0.63949 0 0 0 -2 -2.0128 -0.7688 0 rect2p.dat
1 16 33.0878 70 -16.4078 -1.0458 1 0 0 0 -2 -2.0922 0 0 rect2p.dat
2 24 34.1335 68 -14.3155 34.2426 68 -14.2426
2 24 34.1335 72 -14.3155 34.2426 72 -14.2426
4 16 34.2426 68 -14.2426 34.2426 72 -14.2426 34.1335 72 -14.3155 34.1335 68 -14.3155
1 16 34.893 70 -13.2694 0.6504 0.63931 0 0 0 2 0.9732 -0.76895 0 rect2p.dat
1 16 35.7717 70 -11.1481 0.2283 1 0 0 0 2 1.1481 0 0 rect2p.dat
1 16 35.9134 70 -9.5648 0.0866 1 0 0 0 -2 -0.4352 0 0 rect2p.dat
1 16 36.2816 70 -6.5648 0 0.7016 0.4548 -2 0 0 0 -0.71257 2.5648 rect3.dat
5 24 32.042 68 -18.5 32.042 72 -18.5 29.3558 72 -22.5256 34.1335 68 -14.3155
5 24 34.1335 68 -14.3155 34.1335 72 -14.3155 32.042 72 -18.5 34.2426 68 -14.2426
5 24 34.2426 68 -14.2426 34.2426 72 -14.2426 34.1335 72 -14.3155 36 68 -10
5 24 35.5434 72 -12.2962 35.5434 68 -12.2962 34.2426 68 -14.2426 36 72 -10
5 24 36 68 -10 36 72 -10 34.2426 72 -14.2426 35.8269 68 -9.1297
5 24 35.8269 68 -9.1297 35.8269 72 -9.1297 36 72 -10 36.7364 68 -4
1 16 30.3682 70 -4 0 0 -6.3682 -2 0 0 0 1 0 rect3.dat
1 16 24 70 -14 0 -1 0 -2 0 0 0 0 -10 rect2a.dat
1 16 21.5 70 -24 0 0 -2.5 -2 0 0 0 1 0 rect3.dat
1 16 19 70 -26.6779 0 -1 0 -2 0 0 0 0 -2.6779 rect3.dat
1 16 20.7628 70 -29.3558 0 0 1.7628 -2 0 0 0 -1 0 rect3.dat
1 16 23.4388 70 -30.5459 0 -1 0.9132 -2 0 0 0 0 -1.1901 rect3.dat
1 16 0 68 -30 -1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 0 70 -24 -16 0 0 0 0 2 0 1 0 rect.dat
1 16 -16 70 -27 0 -1 0 0 0 2 -3 0 0 rect2p.dat
1 16 -10 68 -30 -6 0 0 0 1 0 0 0 -6 1-4edge.dat
0 BFC INVERTNEXT
1 16 -10 68 -30 -6 0 0 0 4 0 0 0 -6 1-4cyli.dat
1 16 0 70 -36 10 0 0 0 0 2 0 -1 0 rect2p.dat
1 16 10 68 -30 0 0 6 0 1 0 -6 0 0 1-4edge.dat
0 BFC INVERTNEXT
1 16 10 68 -30 0 0 6 0 4 0 -6 0 0 1-4cyli.dat
1 16 16 70 -27 0 1 0 0 0 2 3 0 0 rect2p.dat
1 16 10 68 -30 6 0 0 0 -1 0 0 0 -6 1-4chrd.dat
1 16 -10 68 -30 0 0 -6 0 -1 0 -6 0 0 1-4chrd.dat
4 16 16 68 -24 16 68 -30 -16 68 -30 -16 68 -24
4 16 -10 68 -36 -16 68 -30 16 68 -30 10 68 -36
4 16 -35.8269 68 -9.1297 -36.7364 68 -4 -24 68 -4 -34.1335 68 -14.3155
4 16 -34.1335 68 -14.3155 -34.2426 68 -14.2426 -36 68 -10 -35.8269 68 -9.1297
3 16 -36 68 -10 -34.2426 68 -14.2426 -35.5434 68 -12.2962
3 16 -32.042 68 -18.5 -34.1335 68 -14.3155 -24 68 -4
4 16 -24 68 -24 -29.3558 68 -22.5256 -32.042 68 -18.5 -24 68 -4
4 16 -28.284 68 -28.284 -31.736 68 -24.352 -29.3558 68 -22.5256 -24 68 -24
4 16 -24 68 -24 -22.5256 68 -29.3558 -24.352 68 -31.736 -28.284 68 -28.284
4 16 -19 68 -24 -19 68 -29.3558 -22.5256 68 -29.3558 -24 68 -24
4 16 24 68 -4 36.7364 68 -4 35.8269 68 -9.1297 34.1335 68 -14.3155
4 16 35.8269 68 -9.1297 36 68 -10 34.2426 68 -14.2426 34.1335 68 -14.3155
3 16 35.5434 68 -12.2962 34.2426 68 -14.2426 36 68 -10
3 16 24 68 -4 34.1335 68 -14.3155 32.042 68 -18.5
4 16 24 68 -4 32.042 68 -18.5 29.3558 68 -22.5256 24 68 -24
4 16 24 68 -24 29.3558 68 -22.5256 31.736 68 -24.352 28.284 68 -28.284
4 16 28.284 68 -28.284 24.352 68 -31.736 22.5256 68 -29.3558 24 68 -24
4 16 24 68 -24 22.5256 68 -29.3558 19 68 -29.3558 19 68 -24
1 16 0 68 0 -24.3504 0 31.7342 0 4 0 -31.7342 0 -24.3504 48\5-24cyli.dat
1 16 -20 68 -10 0 -1 0 0 0 -4 10 0 0 rect3.dat
1 16 0 68 -20 0 0 20 -4 0 0 0 -1 0 rect3.dat
1 16 20 68 -10 0 1 0 -4 0 0 0 0 10 rect2a.dat
1 16 0 64 0 -35.5 0 0 0 1 0 0 0 -35.5 48\1-8chrd.dat
1 16 0 64 0 0 0 35.5 0 1 0 -35.5 0 0 48\1-8chrd.dat
1 16 0 64 0 35.5 0 0 0 1 0 0 0 -35.5 48\1-8chrd.dat
1 16 0 64 0 0 0 -35.5 0 1 0 -35.5 0 0 48\1-8chrd.dat
1 16 0 64 0 35.5 0 0 0 1 0 0 0 -35.5 48\2-4edge.dat
1 16 0 4 0 17.75 0 0 0 1 0 0 0 -17.75 48\2-4edge.dat
1 16 0 68 0 40 0 0 0 1 0 0 0 -40 48\2-4edge.dat
4 16 -20 64 -20 -20 64 0 -35.5 64 0 -25.1021 64 -25.1021
4 16 25.1021 64 -25.1021 20 64 -20 -20 64 -20 -25.1021 64 -25.1021
3 16 25.1021 64 -25.1021 -25.1021 64 -25.1021 0 64 -35.5
4 16 25.1021 64 -25.1021 35.5 64 0 20 64 0 20 64 -20
0 BFC INVERTNEXT
1 16 0 64 0 17.75 0 0 0 -60 0 0 0 -17.75 48\1-4con1.dat
1 16 0 68 0 20 0 0 0 -68 0 0 0 -20 48\1-4con1.dat
1 16 0 4 0 17.75 0 0 0 -1 0 0 0 -17.75 48\1-4chrd.dat
1 16 0 0 0 20 0 0 0 1 0 0 0 -20 48\1-4chrd.dat
2 24 20 0 0 40 68 0
2 24 17.75 4 0 35.5 64 0
2 24 40 68 0 40 72 0
0 BFC INVERTNEXT
1 16 0 64 0 -17.75 0 0 0 -60 0 0 0 -17.75 48\1-4con1.dat
1 16 0 68 0 -20 0 0 0 -68 0 0 0 -20 48\1-4con1.dat
1 16 0 4 0 -17.75 0 0 0 -1 0 0 0 -17.75 48\1-4chrd.dat
1 16 0 0 0 -20 0 0 0 1 0 0 0 -20 48\1-4chrd.dat
2 24 -20 0 0 -40 68 0
2 24 -17.75 4 0 -35.5 64 0
2 24 -40 68 0 -40 72 0
4 16 35.5 64 0 17.75 4 0 20 0 0 40 68 0
4 16 -20 0 0 -17.75 4 0 -35.5 64 0 -40 68 0
1 16 0 0 0 -20 0 0 0 1 0 0 0 -20 48\2-4edge.dat
3 16 6 4 -6 0 4 -17.75 -6 4 -6
0 BFC INVERTNEXT
1 16 0 0 0 6 0 0 0 4 0 0 0 -6 2-4cylo.dat
1 16 0 0 0 6 0 0 0 1 0 0 0 -6 2-4ndis.dat
1 16 0 4 0 6 0 0 0 -1 0 0 0 -6 2-4ndis.dat
3 16 0 4 -17.75 6 4 -6 17.75 4 0
3 16 17.75 4 0 6 4 -6 6 4 0
3 16 -6 4 -6 0 4 -17.75 -17.75 4 0
3 16 -6 4 -6 -17.75 4 0 -6 4 0
3 16 -6 0 -6 -6 0 0 -20 0 0
3 16 -6 0 -6 -20 0 0 0 0 -20
3 16 -6 0 -6 0 0 -20 6 0 -6
3 16 6 0 -6 0 0 -20 20 0 0
3 16 6 0 -6 20 0 0 6 0 0
4 16 6 4 0 6 0 0 20 0 0 17.75 4 0
4 16 -6 0 0 -6 4 0 -17.75 4 0 -20 0 0
2 24 -6 0 0 -20 0 0
2 24 -6 0 0 -6 4 0
2 24 -6 4 0 -17.75 4 0
2 24 6 0 0 6 4 0
2 24 6 4 0 17.75 4 0
2 24 20 0 0 6 0 0
2 24 14.142 0 -14.142 11.9397 0 -15.6145
2 24 14.142 0 -14.142 15.6145 0 -11.9387
2 24 -11.9387 0 -15.6145 -14.142 0 -14.142
2 24 -14.142 0 -14.142 -15.6145 0 -11.9397
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2023-02-10 04:43:37
2023-02-20 18:16:50
2024-05-26 19:33:25
2024-06-26 23:32:03
2024-06-30 00:13:47
Release 2024-05
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
