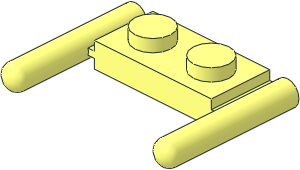

0 Plate 1 x 2 with Handles Type 1
0 Name: 3839a.dat
0 Author: Bernd Munding
0 !LDRAW_ORG Part UPDATE 2010-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS bar, bars, guns, Shooters, Space
0 !HISTORY 2001-10-26 [PTadmin] Official Update 2001-01
0 !HISTORY 2001-11-23 [BrickCaster] Fixed quad
0 !HISTORY 2001-12-31 [PTadmin] Official Update 2001-03
0 !HISTORY 2007-06-30 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-11-23 [anathema] Added hemispheres to ends of arms, fixed gap between arms and supports
0 !HISTORY 2010-04-05 [PTadmin] Official Update 2010-01
1 16 0 8 0 20 0 0 0 -8 0 0 0 -10 box3u8p.dat
1 16 -10 0 0 0 0 1 0 1 0 -1 0 0 stud.dat
1 16 10 0 0 0 0 1 0 1 0 -1 0 0 stud.dat
0 // Sides
1 16 20 1.5 0 0 -1 0 0 0 1.5 -10 0 0 rect.dat
1 16 20 6.5 0 0 -1 0 0 0 -1.5 10 0 0 rect.dat
1 16 -20 1.5 0 0 1 0 0 0 1.5 10 0 0 rect.dat
1 16 -20 6.5 0 0 1 0 0 0 -1.5 -10 0 0 rect.dat
0 // Under
0 BFC INVERTNEXT
1 16 0 8 0 16 0 0 0 -4 0 0 0 -6 box5.dat
4 16 -20 8 -10 -16 8 -6 16 8 -6 20 8 -10
4 16 20 8 10 16 8 6 -16 8 6 -20 8 10
4 16 -20 8 -10 -20 8 10 -16 8 6 -16 8 -6
4 16 20 8 10 20 8 -10 16 8 -6 16 8 6
1 16 0 4 0 1 0 0 0 -1 0 0 0 1 stud3.dat
0 // Left arm
1 16 -22.199 4 0 0 2.199 0 -1 0 0 0 0 -10 box4o8a.dat
2 24 -22.199 3 10 -22.199 3 -10
2 24 -22.199 3 10 -22.304 2.469 10
2 24 -22.199 5 10 -22.304 5.531 10
2 24 -22.199 5 -10 -22 4 -10
2 24 -22.199 3 -10 -22 4 -10
2 24 -22.199 5 10 -22.199 5 -10
1 16 -26 4 10 4 0 0 0 0 4 0 -41 0 4-4cyli.dat
1 16 -26 4 10 3.69552 0 -1.53073 -1.53073 0 -3.69552 0 1 0 7-8edge.dat
1 16 -26 4 10 4 0 0 0 0 4 0 -1 0 4-4disc.dat
1 16 -26 4 -31 4 0 0 0 0 4 0 -3 0 4-8sphe.dat
0 // Right arm
1 16 22.199 4 0 0 -2.199 0 -1 0 0 0 0 -10 box4o8a.dat
2 24 22.199 3 10 22.199 3 -10
2 24 22.199 3 10 22.304 2.469 10
2 24 22.199 5 10 22.304 5.531 10
2 24 22.199 5 -10 22 4 -10
2 24 22.199 3 -10 22 4 -10
2 24 22.199 5 10 22.199 5 -10
1 16 26 4 10 4 0 0 0 0 4 0 -41 0 4-4cyli.dat
1 16 26 4 10 -3.69552 0 1.53073 -1.53073 0 -3.69552 0 -1 0 7-8edge.dat
1 16 26 4 10 4 0 0 0 0 4 0 -1 0 4-4disc.dat
1 16 26 4 -31 4 0 0 0 0 4 0 -3 0 4-8sphe.dat
0
This part is copyright © Bernd Munding
Licensed under CC BY 2.0
Edits:
LDraw.org Parts Tracker,
Damien Guichard,
Alex Taylor,
3D View
