File Detail parts/3938.dat

Official File parts/3938.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

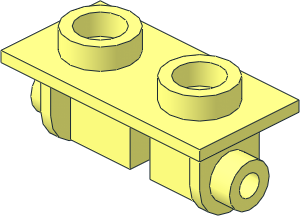

0 Hinge  1 x  2 Top
0 Name: 3938.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2025-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2003-06-08 [jriley] BFC compliant
0 !HISTORY 2003-09-22 [OrionP] Rounded over bottom
0 !HISTORY 2003-11-05 [Steffen] fixed L3P error
0 !HISTORY 2003-12-19 [PTadmin] Official Update 2003-03
0 !HISTORY 2007-06-30 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2024-11-11 [KnightOfTarenta] Sub-filed and side holes added
0 !HISTORY 2025-04-27 [OrionP] Official Update 2025-04

Show contents

0 // Top Plate
1 16 0 1 0 20 0 0 0 1 0 0 0 10 box.dat
1 16 10 0 0 1 0 0 0 1 0 0 0 1 stud2.dat
1 16 -10 0 0 1 0 0 0 1 0 0 0 1 stud2.dat

0 // Connector Sides
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3938s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\3938s01.dat

0 // Mid Section
1 16 0 8 0 -2 0 0 0 -1 0 0 0 2 rect.dat
1 16 8 11.75 0 0 0 -6 0 3.75 0 2 0 0 box2-5.dat
1 16 -8 11.75 0 0 0 6 0 3.75 0 2 0 0 box2-5.dat
4 16 -2 8 -2 2 8 -2 14 2 -2 -14 2 -2
4 16 -14 15.5 -2 -2 15.5 -2 -2 8 -2 -14 2 -2
4 16 2 8 -2 2 15.5 -2 14 15.5 -2 14 2 -2
2 24 -14 2 2 14 2 2
4 16 14 2 2 2 8 2 -2 8 2 -14 2 2
4 16 -2 8 2 -2 15.5 2 -14 15.5 2 -14 2 2
4 16 14 15.5 2 2 15.5 2 2 8 2 14 2 2
2 24 14 2 -2 -14 2 -2

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Chris Böhnke [KnightOfTarenta]

initially submitted the part.

2024-11-11 19:37:07

*added holes to the sides

Rene Rechthaler [Blechtaler]

made the following comment.

2024-11-11 19:42:05

are there two variants or do all have these holes?
should it get reworked more (while it is unofficial)?

Orion Pobursky [OrionP]

made the following comment.

2024-11-11 20:18:24

Do the variants have notable functional differences? If not that they don't need to modeled.

Chris Böhnke [KnightOfTarenta]

made the following comment.

2024-11-11 20:34:40

As far as I could tell there only exists the version with holes.

I have tested a few of mine (ca. 1991-2010) and the holes seem to be able to accept a helmet feather and similar parts, though older ones seem to be a tighter fit.

This new file should work with all possible models that use the current official file, since I only removed 'material'.

Rene Rechthaler [Blechtaler]

made the following comment.

2024-11-11 20:49:19

should the bottom "ridge" also get more "cubic" like the 6134? this one has some kind of rounded bottom, 6134 has a square bottom...

Chris Böhnke [KnightOfTarenta]

made the following comment.

2024-11-11 22:50:50

Yes, I think real ones are more flat at the bottom. Also the LDD one seems to break the curvature here. Rework coming soon.

Orion Pobursky [OrionP]

made the following comment.

2024-11-11 23:25:50

See my comments on 6134

Chris Böhnke [KnightOfTarenta]

submitted a new version of the part.

2024-11-12 15:24:49

*subfiled to reuse the connector sides
*removed the curved middle section in 3938
*middle area completely reworked to remove T-junctions

There is still T-junc to the main plate. Should this be reworked as well, or keep the box prim to reduce poly count?

Magnus Forsberg [MagFors]

posted a vote of Certify.

2025-04-26 12:19:49

Rene Rechthaler [Blechtaler]

posted a vote of Certify.

2025-04-26 12:21:37

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2025-04-27 00:35:19

Orion Pobursky [OrionP]

2025-04-27 06:57:34

Release 2025-04
