Official File parts/3942a.dat
Part Attributes:
File Header:

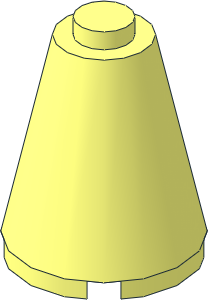

0 Cone 2 x 2 x 2 with Solid Stud
0 Name: 3942a.dat
0 Author: Ronald Scott Moody [rmoody]
0 !LDRAW_ORG Part UPDATE 2022-02
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2003-01-01 [rmoody] Solid stud, axle end
0 !HISTORY 2003-07-10 [Steffen] BFCed
0 !HISTORY 2004-11-06 [PTadmin] Official Update 2004-04
0 !HISTORY 2007-10-12 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2010-06-12 [mikeheide] Added conditional lines at base
0 !HISTORY 2010-12-31 [PTadmin] Official Update 2010-03
0 !HISTORY 2021-12-29 [MagFors] Reshaped axlehole, used cyli and tang primitives
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
