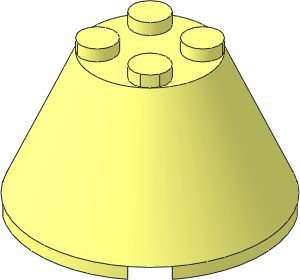

0 Cone 4 x 4 x 2 without Axlehole
0 Name: 3943a.dat
0 Author: Andy Westrate [westrate]
0 !LDRAW_ORG Part UPDATE 2022-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2007-11-05 [mikeheide] corrected edgelines, uses 4-4con1
0 !HISTORY 2009-09-03 [PTadmin] Official Update 2009-02
0 !HISTORY 2022-01-02 [MagFors] Made common subfile, thinner outside ring
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3943s01.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 s\3943s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\3943s01.dat
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 s\3943s01.dat
4 16 20 0 0 0 0 20 -20 0 0 0 0 -20
4 16 18.5 4 0 0 4 -18.5 -18.5 4 0 0 4 18.5
1 16 0 16 0 1 0 0 0 -8 0 0 0 1 stud4a.dat
1 16 0 4 0 1 0 0 0 1 0 0 0 1 axlehol2.dat
1 16 0 4 0 1 0 0 0 12 0 0 0 1 axlehole.dat
1 16 0 16 0 1 0 0 0 1 0 0 0 1 axlehol3.dat
1 16 0 4 0 8 0 0 0 1 0 0 0 8 4-4edge.dat
1 16 0 4 0 8 0 0 0 12 0 0 0 8 4-4cyli.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug10-2x2.dat
0 // outside surface
1 16 0 44 0 20 0 0 0 -44 0 0 0 20 48\1-4con1.dat
1 16 0 44 0 0 0 20 0 -44 0 -20 0 0 48\1-4con1.dat
1 16 0 44 0 -20 0 0 0 -44 0 0 0 -20 48\1-4con1.dat
1 16 0 44 0 0 0 -20 0 -44 0 20 0 0 48\1-4con1.dat
This part is copyright © Andy Westrate
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Michael Heidemann,
Magnus Forsberg,
3D View
