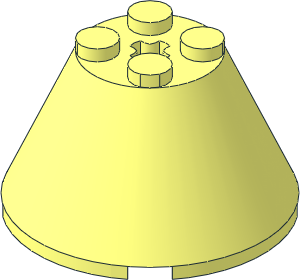

0 Cone 4 x 4 x 2 with Axlehole
0 Name: 3943b.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2022-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 1999-05-17 [PTadmin] Official Update 1999-03
0 !HISTORY 2004-03-25 [westrate] Added stud10, replaced quads with primitives
0 !HISTORY 2004-04-22 [PTadmin] Official Update 2004-02
0 !HISTORY 2007-06-30 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2009-05-21 [PTadmin] Moved from 3943
0 !HISTORY 2010-04-05 [PTadmin] Official Update 2010-01
0 !HISTORY 2014-12-19 [GeraldLasser] BFCed, optimised reinforcement between bottom tubes
0 !HISTORY 2015-12-30 [PTadmin] Official Update 2015-02
0 !HISTORY 2022-01-02 [MagFors] Made common subfile, thinner outside ring
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\3943s01.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 s\3943s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\3943s01.dat
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 s\3943s01.dat
1 16 0 16 0 1 0 0 0 -8 0 0 0 1 stud4a.dat
1 16 0 0 0 1 0 0 0 16 0 0 0 1 axlehole.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 axlehol2.dat
1 16 0 16 0 1 0 0 0 1 0 0 0 1 axlehol3.dat
1 16 0 0 0 6 0 0 0 1 0 0 0 6 4-4ndis.dat
3 16 6 0 6 20 0 0 0 0 20
3 16 6 0 6 0 0 20 -6 0 6
3 16 -6 0 6 0 0 20 -20 0 0
3 16 -6 0 6 -20 0 0 -6 0 -6
3 16 -6 0 -6 -20 0 0 0 0 -20
3 16 -6 0 -6 0 0 -20 6 0 -6
3 16 6 0 -6 0 0 -20 20 0 0
3 16 6 0 -6 20 0 0 6 0 6
1 16 0 4 0 8 0 0 0 12 0 0 0 8 4-4cyli.dat
1 16 0 4 0 8 0 0 0 1 0 0 0 8 4-4edge.dat
1 16 0 4 0 8 0 0 0 -1 0 0 0 8 4-4ndis.dat
3 16 18.5 4 0 8 4 8 0 4 18.5
3 16 0 4 18.5 8 4 8 -8 4 8
3 16 0 4 18.5 -8 4 8 -18.5 4 0
3 16 -18.5 4 0 -8 4 8 -8 4 -8
3 16 -18.5 4 0 -8 4 -8 0 4 -18.5
3 16 0 4 -18.5 -8 4 -8 8 4 -8
3 16 0 4 -18.5 8 4 -8 18.5 4 0
3 16 18.5 4 0 8 4 -8 8 4 8
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug10-2x2.dat
0 // outside surface
1 16 0 44 0 20 0 0 0 -44 0 0 0 20 48\1-4con1.dat
1 16 0 44 0 0 0 20 0 -44 0 -20 0 0 48\1-4con1.dat
1 16 0 44 0 -20 0 0 0 -44 0 0 0 -20 48\1-4con1.dat
1 16 0 44 0 0 0 -20 0 -44 0 20 0 0 48\1-4con1.dat
This part is copyright © James Jessiman
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Andy Westrate,
Gerald Lasser,
Magnus Forsberg,
