File Detail parts/3956.dat

Official File parts/3956.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

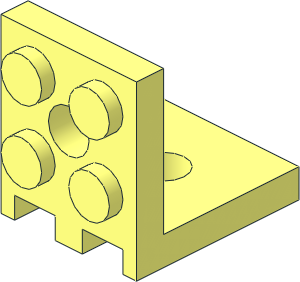

0 Bracket  2 x  2 -  2 x  2 Up
0 Name: 3956.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2012-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CW

0 !HISTORY 2007-12-20 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2009-06-15 [Steffen] un-mirrored studs, BFCed, closed gaps
0 !HISTORY 2010-10-17 [Steffen] fixed wrong quads and primitives
0 !HISTORY 2010-12-31 [PTadmin] Official Update 2010-03
0 !HISTORY 2012-02-07 [cwdee] Minor description change
0 !HISTORY 2012-03-14 [timgould] Changed to use stud4h.dat
0 !HISTORY 2012-03-30 [PTadmin] Official Update 2012-01

Show contents

1 16 0 4 0 1 0 0 0 -1 0 0 0 1 stud4h.dat
0 BFC INVERTNEXT
1 16 0 4 0 16 0 0 0 4 0 0 0 16 box4.dat
2 24 20 8 20 20 8 -28
2 24 -20 8 -28 -20 8 20
1 16 10 2 -24 -6 0 0 0 -1 0 0 0 4 rect.dat
1 16 -10 2 -24 6 0 0 0 -1 0 0 0 4 rect.dat
2 24 20 0 20 20 0 -20
2 24 20 0 -20 16 0 -20
2 24 -16 0 -20 -20 0 -20
2 24 -20 0 -20 -20 0 20
1 16 0 -36 -22 16 0 0 0 -1 0 0 0 2 rect.dat
1 16 0 -40 -24 20 0 0 0 1 0 0 0 4 rect.dat
1 16 0 -20 -24 1 0 0 0 0 1 0 -1 0 stud4h.dat
1 16 10 -2 -24 -1.5 0 0 0 0 -2 0 4 0 box4-1.dat
1 16 -10 -2 -24 -1.5 0 0 0 0 -2 0 4 0 box4-1.dat
2 24 20 -40 -20 20 0 -20
2 24 -20 -40 -20 -20 0 -20
2 24 20 -40 -28 20 8 -28
2 24 -20 -40 -28 -20 8 -28
4 16 -20 8 20 -16 8 16 16 8 16 20 8 20
4 16 -20 8 -20 -16 8 -16 -16 8 16 -20 8 20
4 16 20 8 -20 16 8 -16 -16 8 -16 -20 8 -20
4 16 20 8 20 16 8 16 16 8 -16 20 8 -20
1 16 18 8 -24 -2 0 0 0 -1 0 0 0 -4 rect2a.dat
1 16 -18 8 -24 0 0 2 0 -1 0 -4 0 0 rect2a.dat
1 16 0 8 -24 -4 0 0 0 -1 0 0 0 -4 rect3.dat
1 16 0 4 0 8 0 0 0 -1 0 0 0 -8 4-4ndis.dat
4 16 -16 4 16 -8 4 8 8 4 8 16 4 16
4 16 -16 4 -16 -8 4 -8 -8 4 8 -16 4 16
4 16 16 4 -16 8 4 -8 -8 4 -8 -16 4 -16
4 16 16 4 16 8 4 8 8 4 -8 16 4 -16
1 16 0 0 0 6 0 0 0 6 0 0 0 6 4-4ndis.dat
4 16 20 0 20 6 0 6 -6 0 6 -20 0 20
4 16 -20 0 20 -6 0 6 -6 0 -6 -20 0 -20
4 16 -20 0 -20 -6 0 -6 6 0 -6 20 0 -20
4 16 20 0 -20 6 0 -6 6 0 6 20 0 20
1 16 0 0 -22 16 0 0 0 1 0 0 0 -2 rect3.dat
1 16 0 -20 -28 6 0 0 0 0 6 0 6 0 4-4ndis.dat
4 16 -20 2 -28 -6 -14 -28 6 -14 -28 20 2 -28
4 16 -20 -40 -28 -6 -26 -28 -6 -14 -28 -20 2 -28
4 16 20 -40 -28 6 -26 -28 -6 -26 -28 -20 -40 -28
4 16 20 2 -28 6 -14 -28 6 -26 -28 20 -40 -28
1 16 18 5 -28 -2 0 0 0 0 -3 0 1 0 rect1.dat
1 16 -18 5 -28 2 0 0 0 0 3 0 1 0 rect1.dat
1 16 0 5 -28 0 0 -4 3 0 0 0 1 0 rect2p.dat
1 16 0 -20 -24 -8 0 0 0 0 -8 0 -1 0 4-4ndis.dat
4 16 16 0 -24 8 -12 -24 -8 -12 -24 -16 0 -24
4 16 -16 0 -24 -8 -12 -24 -8 -28 -24 -16 -36 -24
4 16 -16 -36 -24 -8 -28 -24 8 -28 -24 16 -36 -24
4 16 16 -36 -24 8 -28 -24 8 -12 -24 16 0 -24
4 16 16 0 -20 20 0 -20 20 -40 -20 16 -36 -20
4 16 -20 0 -20 -16 0 -20 -16 -36 -20 -20 -40 -20
4 16 -20 -40 -20 -16 -36 -20 16 -36 -20 20 -40 -20
1 16 10 5 -20 6 0 0 0 0 3 0 1 0 rect3.dat
1 16 -10 5 -20 6 0 0 0 0 3 0 1 0 rect3.dat
1 16 0 4 20 0 0 -20 -4 0 0 0 -1 0 rect.dat
4 16 4 2 -20 4 8 -20 4 8 -28 4 2 -28
4 16 -4 2 -28 -4 8 -28 -4 8 -20 -4 2 -20
4 16 16 2 -28 16 8 -28 16 8 -20 16 2 -20
4 16 -16 2 -20 -16 8 -20 -16 8 -28 -16 2 -28
1 16 16 -18 -22 0 1 0 -18 0 0 0 0 -2 rect2p.dat
1 16 -16 -18 -22 0 -1 0 -18 0 0 0 0 2 rect2p.dat
4 16 20 8 -28 20 0 -20 20 0 20 20 8 20
4 16 -20 8 20 -20 0 20 -20 0 -20 -20 8 -28
4 16 20 -40 -28 20 -40 -20 20 0 -20 20 8 -28
4 16 -20 8 -28 -20 0 -20 -20 -40 -20 -20 -40 -28
1 16 0 -20 -28 0 0 1 1 0 0 0 1 0 stug-2x2.dat
0

Status:

Official

This part has the following errors

All parts must be BFC CERTIFY CCW

Unofficial parents

Part Events:

Archived Part Events:

None

Creative Commons Attribution License information

This part is copyright © James Jessiman
Licensed under CC BY 4.0
