Official File parts/39789.dat
Part Attributes:
File Header:

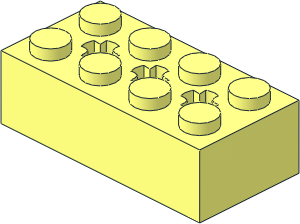

0 Brick 2 x 4 with 3 Axleholes Vertical
0 Name: 39789.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2019-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Spike Prime
0 !HISTORY 2019-06-28 [PTadmin] Official Update 2019-01
Show contents
0 BFC INVERTNEXT
1 16 0 4 0 36 0 0 0 20 0 0 0 16 box4.dat
1 16 0 0 0 40 0 0 0 24 0 0 0 20 box4.dat
1 16 -20 0 0 1 0 0 0 1 0 0 0 1 stug-2x2.dat
1 16 20 0 0 1 0 0 0 1 0 0 0 1 stug-2x2.dat
4 16 40 24 20 36 24 16 -36 24 16 -40 24 20
4 16 -40 24 20 -36 24 16 -36 24 -16 -40 24 -20
4 16 -40 24 -20 -36 24 -16 36 24 -16 40 24 -20
4 16 40 24 -20 36 24 -16 36 24 16 40 24 20
4 16 36 4 16 28 4 8 -28 4 8 -36 4 16
4 16 -36 4 16 -28 4 8 -28 4 -8 -36 4 -16
4 16 -36 4 -16 -28 4 -8 28 4 -8 36 4 -16
4 16 36 4 -16 28 4 -8 28 4 8 36 4 16
4 16 -40 0 20 -26 0 6 26 0 6 40 0 20
4 16 -40 0 -20 -26 0 -6 -26 0 6 -40 0 20
4 16 40 0 -20 26 0 -6 -26 0 -6 -40 0 -20
4 16 40 0 20 26 0 6 26 0 -6 40 0 -20
1 16 0 18 0 1 0 0 0 1 0 0 0 1 axl3hol3.dat
1 16 0 18 0 1 0 0 0 1 0 0 0 1 axl3hol9.dat
1 16 0 18 0 1 0 0 0 -1 0 0 0 1 axl3ho10.dat
1 16 0 0 0 1 0 0 0 18 0 0 0 1 axl3hol8.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 axl3hol2.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 axl3hol9.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 axl3ho10.dat
1 16 0 18 0 1 0 0 0 -1.5 0 0 0 1 stud4a.dat
1 16 0 4 0 8 0 0 0 14 0 0 0 8 4-4cyli.dat
1 16 0 4 0 8 0 0 0 1 0 0 0 8 4-4edge.dat
1 16 0 4 0 8 0 0 0 -1 0 0 0 8 4-4ndis.dat
1 16 0 0 0 6 0 0 0 1 0 0 0 6 4-4ndis.dat
1 16 20 18 0 1 0 0 0 1 0 0 0 1 axl3hol3.dat
1 16 20 18 0 1 0 0 0 1 0 0 0 1 axl3hol9.dat
1 16 20 18 0 1 0 0 0 -1 0 0 0 1 axl3ho10.dat
1 16 20 0 0 1 0 0 0 18 0 0 0 1 axl3hol8.dat
1 16 20 0 0 1 0 0 0 1 0 0 0 1 axl3hol2.dat
1 16 20 0 0 1 0 0 0 1 0 0 0 1 axl3hol9.dat
1 16 20 0 0 1 0 0 0 1 0 0 0 1 axl3ho10.dat
1 16 20 18 0 1 0 0 0 -1.5 0 0 0 1 stud4a.dat
1 16 20 4 0 8 0 0 0 14 0 0 0 8 4-4cyli.dat
1 16 20 4 0 8 0 0 0 1 0 0 0 8 4-4edge.dat
1 16 20 4 0 8 0 0 0 -1 0 0 0 8 4-4ndis.dat
1 16 20 0 0 6 0 0 0 1 0 0 0 6 4-4ndis.dat
1 16 -20 18 0 1 0 0 0 1 0 0 0 1 axl3hol3.dat
1 16 -20 18 0 1 0 0 0 1 0 0 0 1 axl3hol9.dat
1 16 -20 18 0 1 0 0 0 -1 0 0 0 1 axl3ho10.dat
1 16 -20 0 0 1 0 0 0 18 0 0 0 1 axl3hol8.dat
1 16 -20 0 0 1 0 0 0 1 0 0 0 1 axl3hol2.dat
1 16 -20 0 0 1 0 0 0 1 0 0 0 1 axl3hol9.dat
1 16 -20 0 0 1 0 0 0 1 0 0 0 1 axl3ho10.dat
1 16 -20 18 0 1 0 0 0 -1.5 0 0 0 1 stud4a.dat
1 16 -20 4 0 8 0 0 0 14 0 0 0 8 4-4cyli.dat
1 16 -20 4 0 8 0 0 0 1 0 0 0 8 4-4edge.dat
1 16 -20 4 0 8 0 0 0 -1 0 0 0 8 4-4ndis.dat
1 16 -20 0 0 6 0 0 0 1 0 0 0 6 4-4ndis.dat
4 16 -14 0 6 -14 0 -6 -6 0 -6 -6 0 6
4 16 14 0 6 6 0 6 6 0 -6 14 0 -6
4 16 12 4 -8 8 4 -8 8 4 8 12 4 8
4 16 -8 4 -8 -12 4 -8 -12 4 8 -8 4 8
1 16 0 4 11.9006 0 0 1 0 14 0 4.00994 0 0 box3u4p.dat
2 24 -1 18 7.8012 0 18 8
2 24 1 18 7.8012 0 18 8
2 24 -1 18 15.9105 1 18 15.9105
1 16 0 4 -11.9006 0 0 1 0 14 0 -4.00994 0 0 box3u4p.dat
2 24 -1 18 -7.8012 0 18 -8
2 24 1 18 -7.8012 0 18 -8
2 24 -1 18 -15.9105 1 18 -15.9105
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © Philippe Hurbain
Licensed under CC BY 4.0
