Official File parts/40066.dat
Part Attributes:
File Header:

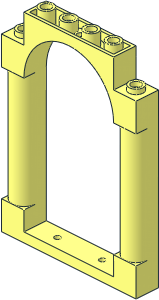

0 Door 1 x 6 x 7 with Arch and Rounded Pillars
0 Name: 40066.dat
0 Author: Gerald Lasser [GeraldLasser]
0 !LDRAW_ORG Part UPDATE 2022-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2022-01-14 [PTadmin] Official Update 2022-01
Show contents
0 // // Doorstep
2 24 60 168 10 -60 168 10
2 24 -60 168 10 -60 168 -10
2 24 -60 168 -10 60 168 -10
2 24 60 168 -10 60 168 10
1 16 0 164 0 -1 0 0 0 -1 0 0 0 -1 stud3.dat
1 16 -40 164 0 -1 0 0 0 -1 0 0 0 -1 stud3.dat
1 16 40 164 0 -1 0 0 0 -1 0 0 0 -1 stud3.dat
1 16 -20 168 0 -.5 0 0 0 -1 0 0 0 -.5 4-4ring5.dat
1 16 -20 168 0 -1 0 0 0 -1 0 0 0 -1 4-4ring3.dat
1 16 -20 168 0 -4 0 0 0 -4 0 0 0 -4 4-4cylo.dat
0 BFC INVERTNEXT
1 16 -20 168 0 -2.5 0 0 0 -8 0 0 0 -2.5 4-4cylo.dat
1 16 20 168 0 -.5 0 0 0 -1 0 0 0 -.5 4-4ring5.dat
1 16 20 168 0 -1 0 0 0 -1 0 0 0 -1 4-4ring3.dat
1 16 20 168 0 -4 0 0 0 -4 0 0 0 -4 4-4cylo.dat
0 BFC INVERTNEXT
1 16 20 168 0 -2.5 0 0 0 -8 0 0 0 -2.5 4-4cylo.dat
4 16 60 168 -10 -60 168 -10 -56 168 -6 56 168 -6
4 16 60 168 10 56 168 6 -56 168 6 -60 168 10
4 16 -60 168 10 -56 168 6 -56 168 -6 -60 168 -10
4 16 56 168 -6 56 168 6 60 168 10 60 168 -10
0 BFC INVERTNEXT
1 16 0 168 0 -56 0 0 0 -4 0 0 0 -6 box4.dat
1 16 20 164 0 -4 0 0 0 -1 0 0 0 -4 4-4ndis.dat
1 16 -20 164 0 -4 0 0 0 -1 0 0 0 -4 4-4ndis.dat
4 16 -16 164 4 16 164 4 16 164 0 -16 164 0
4 16 -16 164 -4 -16 164 0 16 164 0 16 164 -4
4 16 56 164 6 16 164 4 -16 164 4 -56 164 6
3 16 -24 164 4 -56 164 6 -20 164 4
3 16 -20 164 4 -56 164 6 -16 164 4
3 16 -56 164 6 -24 164 4 -24 164 0
4 16 -56 164 6 -24 164 0 -24 164 -4 -56 164 -6
4 16 -56 164 -6 -16 164 -4 16 164 -4 56 164 -6
4 16 24 164 0 56 164 6 56 164 -6 24 164 -4
3 16 16 164 4 56 164 6 20 164 4
3 16 24 164 4 20 164 4 56 164 6
3 16 24 164 4 56 164 6 24 164 0
3 16 24 164 -4 56 164 -6 20 164 -4
3 16 20 164 -4 56 164 -6 16 164 -4
3 16 -56 164 -6 -24 164 -4 -20 164 -4
3 16 -56 164 -6 -20 164 -4 -16 164 -4
4 16 40 160 -10 -40 160 -10 -60 168 -10 60 168 -10
4 16 -40 160 10 40 160 10 60 168 10 -60 168 10
3 16 -44 160 10 -40 160 10 -60 168 10
3 16 -44 160 10 -60 168 10 -56 160 10
3 16 40 160 10 44 160 10 60 168 10
3 16 60 168 10 44 160 10 56 160 10
1 16 20 160 0 -2.5 0 0 0 1 0 0 0 -2.5 4-4ndis.dat
1 16 -20 160 0 -2.5 0 0 0 1 0 0 0 -2.5 4-4ndis.dat
4 16 17.5 160 0 17.5 160 2.5 -17.5 160 2.5 -17.5 160 0
4 16 17.5 160 0 -17.5 160 0 -17.5 160 -2.5 17.5 160 -2.5
4 16 -17.5 160 2.5 17.5 160 2.5 40 160 10 -40 160 10
3 16 -40 160 10 -22.5 160 2.5 -20 160 2.5
3 16 -40 160 10 -20 160 2.5 -17.5 160 2.5
3 16 -22.5 160 2.5 -40 160 10 -22.5 160 0
4 16 -22.5 160 -2.5 -22.5 160 0 -40 160 10 -40 160 -10
4 16 17.5 160 -2.5 -17.5 160 -2.5 -40 160 -10 40 160 -10
4 16 40 160 -10 40 160 10 22.5 160 0 22.5 160 -2.5
3 16 40 160 10 17.5 160 2.5 20 160 2.5
3 16 20 160 2.5 22.5 160 2.5 40 160 10
3 16 40 160 10 22.5 160 2.5 22.5 160 0
3 16 40 160 -10 22.5 160 -2.5 20 160 -2.5
3 16 40 160 -10 20 160 -2.5 17.5 160 -2.5
3 16 -22.5 160 -2.5 -40 160 -10 -20 160 -2.5
3 16 -20 160 -2.5 -40 160 -10 -17.5 160 -2.5
2 24 -40 160 -10 40 160 -10
2 24 -40 160 10 40 160 10
0 // //Pillars
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\40066s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\40066s01.dat
1 16 -50 24 0 -1 0 0 0 1 0 0 0 -1 stud2.dat
1 16 50 24 0 -1 0 0 0 1 0 0 0 -1 stud2.dat
0 // // Top Joiner
3 16 -37.5 0 7.5 0 4 7.5 37.5 0 7.5
3 16 37.5 0 -7.5 0 4 -7.5 -37.5 0 -7.5
4 16 -40 0 10 -37.5 0 7.5 37.5 0 7.5 40 0 10
4 16 40 0 -10 37.5 0 -7.5 -37.5 0 -7.5 -40 0 -10
2 24 -40 0 -10 40 0 -10
2 24 37.5 0 -7.5 -37.5 0 -7.5
2 24 -40 0 10 40 0 10
2 24 37.5 0 7.5 -37.5 0 7.5
3 16 40 0 10 40 8 10 0 8 10
4 16 40 0 10 0 8 10 -40 8 10 -40 0 10
4 16 -40 0 -10 -40 8 -10 0 8 -10 40 0 -10
3 16 0 8 -10 40 8 -10 40 0 -10
5 24 0 4 -2.5 0 4 -7.5 -2.5 4.1648 -7.5 2.5 4.1648 -7.5
5 24 0 4 2.5 0 4 7.5 -2.5 4.1648 7.5 2.5 4.1648 7.5
5 24 0 8 10 0 8 2.5 -5.22 8.344 10 5.22 8.344 10
5 24 0 8 -2.5 0 8 -10 -5.22 8.344 -10 5.22 8.344 -10
