Official File parts/4033.dat
Part Attributes:
File Header:

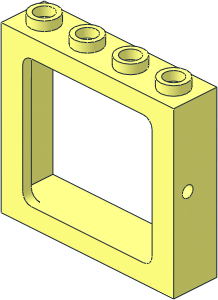

0 Train Window 1 x 4 x 3
0 Name: 4033.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2010-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2007-06-30 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [DeannaEarley] BFC'd and fixed errors (2006-02-19)
0 !HISTORY 2008-07-08 [DeannaEarley] Added side holes (2008-03-03)
0 !HISTORY 2010-12-31 [PTadmin] Official Update 2010-03
Show contents
1 16 20 68 0 1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 0 68 0 1 0 0 0 -1 0 0 0 1 stud3.dat
1 16 -20 68 0 1 0 0 0 -1 0 0 0 1 stud3.dat
0 BFC INVERTNEXT
1 16 0 72 0 36 0 0 0 -4 0 0 0 6 box5.dat
4 16 40 72 10 36 72 6 -36 72 6 -40 72 10
4 16 -40 72 10 -36 72 6 -36 72 -6 -40 72 -10
4 16 -40 72 -10 -36 72 -6 36 72 -6 40 72 -10
4 16 40 72 -10 36 72 -6 36 72 6 40 72 10
2 24 40 72 -10 -40 72 -10
2 24 40 72 10 -40 72 10
2 24 40 72 -10 40 72 10
2 24 -40 72 -10 -40 72 10
2 24 40 0 -10 -40 0 -10
2 24 40 0 10 -40 0 10
2 24 40 0 -10 40 0 10
2 24 -40 0 -10 -40 0 10
2 24 40 0 -10 40 72 -10
2 24 40 0 10 40 72 10
2 24 -40 0 -10 -40 72 -10
2 24 -40 0 10 -40 72 10
1 16 26 12 -10 4 0 0 0 0 -4 0 1 0 1-4edge.dat
2 24 30 12 -10 30 60 -10
1 16 26 60 -10 4 0 0 0 0 4 0 1 0 1-4edge.dat
2 24 26 64 -10 -26 64 -10
1 16 -26 60 -10 -4 0 0 0 0 4 0 1 0 1-4edge.dat
2 24 -30 60 -10 -30 12 -10
1 16 -26 12 -10 -4 0 0 0 0 -4 0 1 0 1-4edge.dat
2 24 -26 8 -10 26 8 -10
1 16 26 12 -6 4 0 0 0 0 -4 0 1 0 1-4edge.dat
2 24 30 12 -6 30 60 -6
1 16 26 60 -6 4 0 0 0 0 4 0 1 0 1-4edge.dat
1 16 -26 60 -6 -4 0 0 0 0 4 0 1 0 1-4edge.dat
2 24 -30 60 -6 -30 12 -6
1 16 -26 12 -6 -4 0 0 0 0 -4 0 1 0 1-4edge.dat
2 24 -26 8 -6 26 8 -6
2 24 36 4 10 -36 4 10
2 24 36 64 10 -36 64 10
2 24 36 4 10 36 64 10
2 24 -36 4 10 -36 64 10
2 24 36 4 -6 -36 4 -6
2 24 36 64 -6 26 64 -6
2 24 -36 64 -6 -26 64 -6
2 24 36 4 -6 36 64 -6
2 24 -36 4 -6 -36 64 -6
2 24 36 4 10 36 4 -6
2 24 -36 4 10 -36 4 -6
2 24 36 64 10 36 64 -6
2 24 -36 64 10 -36 64 -6
0 BFC INVERTNEXT
1 16 26 12 -10 4 0 0 0 0 -4 0 4 0 1-4cyli.dat
4 16 30 12 -6 30 60 -6 30 60 -10 30 12 -10
0 BFC INVERTNEXT
1 16 26 60 -10 4 0 0 0 0 4 0 4 0 1-4cyli.dat
4 16 26 64 -6 -26 64 -6 -26 64 -10 26 64 -10
0 BFC INVERTNEXT
1 16 -26 60 -10 -4 0 0 0 0 4 0 4 0 1-4cyli.dat
4 16 -30 60 -6 -30 12 -6 -30 12 -10 -30 60 -10
0 BFC INVERTNEXT
1 16 -26 12 -10 -4 0 0 0 0 -4 0 4 0 1-4cyli.dat
4 16 -26 8 -6 26 8 -6 26 8 -10 -26 8 -10
1 16 26 12 -6 4 0 0 0 0 -4 0 -1 0 1-4ndis.dat
1 16 26 60 -6 4 0 0 0 0 4 0 -1 0 1-4ndis.dat
1 16 -26 60 -6 -4 0 0 0 0 4 0 -1 0 1-4ndis.dat
1 16 -26 12 -6 -4 0 0 0 0 -4 0 -1 0 1-4ndis.dat
4 16 36 4 -6 30 8 -6 -30 8 -6 -36 4 -6
4 16 30 8 -6 36 4 -6 36 64 -6 30 64 -6
4 16 -30 64 -6 -36 64 -6 -36 4 -6 -30 8 -6
0 // Inside edge faces
4 16 -36 4 -6 -36 4 10 36 4 10 36 4 -6
4 16 36 64 -6 36 64 10 -36 64 10 -36 64 -6
4 16 36 31.5 -1 36 4 10 36 64 10 36 36.5 -1
4 16 36 4 -6 36 4 10 36 31.5 -1 36 31.5 -6
4 16 36 64 10 36 64 -6 36 36.5 -6 36 36.5 -1
4 16 -36 36.5 -1 -36 64 10 -36 4 10 -36 31.5 -1
4 16 -36 31.5 -6 -36 31.5 -1 -36 4 10 -36 4 -6
4 16 -36 36.5 -1 -36 36.5 -6 -36 64 -6 -36 64 10
4 16 40 0 10 36 4 10 -36 4 10 -40 0 10
4 16 36 64 10 40 72 10 -40 72 10 -36 64 10
4 16 36 4 10 40 0 10 40 72 10 36 64 10
4 16 -36 64 10 -40 72 10 -40 0 10 -36 4 10
1 16 26 12 -10 4 0 0 0 0 -4 0 1 0 1-4ndis.dat
1 16 26 60 -10 4 0 0 0 0 4 0 1 0 1-4ndis.dat
1 16 -26 60 -10 -4 0 0 0 0 4 0 1 0 1-4ndis.dat
1 16 -26 12 -10 -4 0 0 0 0 -4 0 1 0 1-4ndis.dat
4 16 -40 0 -10 -30 8 -10 30 8 -10 40 0 -10
4 16 -30 64 -10 -40 72 -10 40 72 -10 30 64 -10
4 16 30 64 -10 40 72 -10 40 0 -10 30 8 -10
4 16 -30 8 -10 -40 0 -10 -40 72 -10 -30 64 -10
0 // Outside edge faces
4 16 40 0 -10 40 0 10 -40 0 10 -40 0 -10
4 16 40 72 -10 40 72 10 40 36.5 -1 40 36.5 -6
4 16 40 0 10 40 31.5 -1 40 36.5 -1 40 72 10
4 16 40 31.5 -6 40 31.5 -1 40 0 10 40 0 -10
4 16 40 72 -10 40 36.5 -6 40 31.5 -6 40 0 -10
4 16 -40 36.5 -6 -40 36.5 -1 -40 72 10 -40 72 -10
4 16 -40 72 10 -40 36.5 -1 -40 31.5 -1 -40 0 10
4 16 -40 0 -10 -40 0 10 -40 31.5 -1 -40 31.5 -6
4 16 -40 0 -10 -40 31.5 -6 -40 36.5 -6 -40 72 -10
0 // Side holes
1 16 40 34 -3.5 0 -1 0 2.5 0 0 0 0 2.5 4-4ndis.dat
1 16 40 34 -3.5 0 -1 0 2.5 0 0 0 0 2.5 4-4edge.dat
0 BFC INVERTNEXT
1 16 36 34 -3.5 0 4 0 2.5 0 0 0 0 2.5 4-4cyli.dat
1 16 36 34 -3.5 0 1 0 2.5 0 0 0 0 2.5 4-4ndis.dat
1 16 36 34 -3.5 0 1 0 2.5 0 0 0 0 2.5 4-4edge.dat
1 16 -40 34 -3.5 0 1 0 2.5 0 0 0 0 2.5 4-4ndis.dat
1 16 -40 34 -3.5 0 1 0 2.5 0 0 0 0 2.5 4-4edge.dat
0 BFC INVERTNEXT
1 16 -40 34 -3.5 0 4 0 2.5 0 0 0 0 2.5 4-4cyli.dat
1 16 -36 34 -3.5 0 -1 0 2.5 0 0 0 0 2.5 4-4ndis.dat
1 16 -36 34 -3.5 0 -1 0 2.5 0 0 0 0 2.5 4-4edge.dat
0 // Top studs
1 16 30 0 0 1 0 0 0 1 0 0 0 1 stud2.dat
1 16 10 0 0 1 0 0 0 1 0 0 0 1 stud2.dat
1 16 -10 0 0 1 0 0 0 1 0 0 0 1 stud2.dat
1 16 -30 0 0 1 0 0 0 1 0 0 0 1 stud2.dat
0 // Glass pane
0 // 1 47 0 0 0 1 0 0 0 1 0 0 0 1 4034.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © James Jessiman
Licensed under CC BY 4.0
