Official File parts/40341.dat
Part Attributes:
File Header:

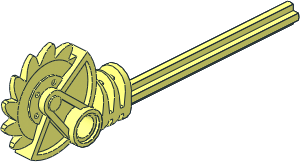

0 Constraction Weapon Circular Saw with Axle 6L
0 Name: 40341.dat
0 Author: Santeri Piippo [arezey]
0 !LDRAW_ORG Part UPDATE 2022-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Constraction Accessory
0 !KEYWORDS bionicle
0 !HISTORY 2020-03-28 [Holly-Wood] Sanded part, added cond. lines
0 !HISTORY 2022-07-18 [PTadmin] Official Update 2022-04
