Official File parts/4093c.dat
Part Attributes:
File Header:

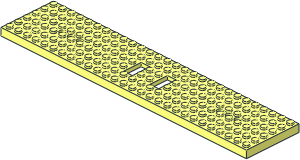

0 Train Base 6 x 28 with 8 Holes
0 Name: 4093c.dat
0 Author: Matthew J. Chiles [mchiles]
0 !LDRAW_ORG Part UPDATE 2009-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CW
0 !KEYWORDS BrickLink 4093a, Rebrickable 4093a
0 !HISTORY 2009-05-02 [PTadmin] Official Update 2009-01
Show contents
0 // // Bottom Rim
4 16 276 16 56 280 16 60 -280 16 60 -276 16 56
4 16 -276 16 56 -280 16 60 -280 16 -60 -276 16 -56
4 16 -276 16 -56 -280 16 -60 280 16 -60 276 16 -56
4 16 276 16 -56 280 16 -60 280 16 60 276 16 56
0 // Bottom Rims of 2 rectangular holes
4 16 40 8 20 44 8 24 16 8 24 20 8 20
4 16 20 8 20 16 8 24 16 8 -24 20 8 -20
4 16 20 8 -20 16 8 -24 44 8 -24 40 8 -20
4 16 40 8 -20 44 8 -24 44 8 24 40 8 20
4 16 -44 8 24 -40 8 20 -20 8 20 -16 8 24
4 16 -16 8 24 -20 8 20 -20 8 -20 -16 8 -24
4 16 -16 8 -24 -20 8 -20 -40 8 -20 -44 8 -24
4 16 -44 8 -24 -40 8 -20 -40 8 20 -44 8 24
0 // Boxes to make all square verticle faces & edges
0 BFC INVERTNEXT
1 16 0 4 0 276 0 0 0 12 0 0 0 56 box4.dat
1 16 30 4 0 14 0 0 0 4 0 0 0 24 box4.dat
1 16 -30 4 0 14 0 0 0 4 0 0 0 24 box4.dat
1 16 0 0 0 280 0 0 0 16 0 0 0 60 box4.dat
0 BFC INVERTNEXT
1 16 30 0 0 10 0 0 0 8 0 0 0 20 box4.dat
0 BFC INVERTNEXT
1 16 -30 0 0 10 0 0 0 8 0 0 0 20 box4.dat
0 // Rings on the bottom
1 16 260 4 40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 240 4 40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 220 4 40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 200 4 40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 180 4 40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 160 4 40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 140 4 40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 40 4 40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 20 4 40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 0 4 40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -20 4 40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -40 4 40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -140 4 40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -160 4 40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -180 4 40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -200 4 40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -220 4 40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -240 4 40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -260 4 40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 260 4 20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 240 4 20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 220 4 20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 200 4 20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 180 4 20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 160 4 20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 140 4 20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 0 4 20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -140 4 20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -160 4 20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -180 4 20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -200 4 20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -220 4 20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -240 4 20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -260 4 20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 260 4 0 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 240 4 0 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 220 4 0 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 200 4 0 1 0 0 0 -1 0 0 0 1 stud4a.dat
1 16 180 4 0 1 0 0 0 -1 0 0 0 1 stud4a.dat
1 16 160 4 0 1 0 0 0 -1 0 0 0 1 stud4a.dat
1 16 140 4 0 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 0 4 0 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -140 4 0 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -160 4 0 1 0 0 0 -1 0 0 0 1 stud4a.dat
1 16 -180 4 0 1 0 0 0 -1 0 0 0 1 stud4a.dat
1 16 -200 4 0 1 0 0 0 -1 0 0 0 1 stud4a.dat
1 16 -220 4 0 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -240 4 0 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -260 4 0 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 260 4 -20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 240 4 -20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 220 4 -20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 200 4 -20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 180 4 -20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 160 4 -20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 140 4 -20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 0 4 -20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -140 4 -20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -160 4 -20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -180 4 -20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -200 4 -20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -220 4 -20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -240 4 -20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -260 4 -20 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 260 4 -40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 240 4 -40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 220 4 -40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 200 4 -40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 180 4 -40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 160 4 -40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 140 4 -40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 40 4 -40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 20 4 -40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 0 4 -40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -20 4 -40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -40 4 -40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -140 4 -40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -160 4 -40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -180 4 -40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -200 4 -40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -220 4 -40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -240 4 -40 1 0 0 0 -1 0 0 0 1 stud4.dat
1 16 -260 4 -40 1 0 0 0 -1 0 0 0 1 stud4.dat
0 // Rings around the bottoms of bottom center studs
1 16 200 4 0 8 0 0 0 1 0 0 0 8 4-4edge.dat
1 16 180 4 0 8 0 0 0 1 0 0 0 8 4-4edge.dat
1 16 160 4 0 8 0 0 0 1 0 0 0 8 4-4edge.dat
1 16 -160 4 0 8 0 0 0 1 0 0 0 8 4-4edge.dat
1 16 -180 4 0 8 0 0 0 1 0 0 0 8 4-4edge.dat
1 16 -200 4 0 8 0 0 0 1 0 0 0 8 4-4edge.dat
0 // Fillers around holes on bottom
0 BFC INVERTNEXT
1 16 200 4 0 8 0 0 0 1 0 0 0 8 4-4ndis.dat
0 BFC INVERTNEXT
1 16 180 4 0 8 0 0 0 1 0 0 0 8 4-4ndis.dat
0 BFC INVERTNEXT
1 16 160 4 0 8 0 0 0 1 0 0 0 8 4-4ndis.dat
0 BFC INVERTNEXT
1 16 -160 4 0 8 0 0 0 1 0 0 0 8 4-4ndis.dat
0 BFC INVERTNEXT
1 16 -180 4 0 8 0 0 0 1 0 0 0 8 4-4ndis.dat
0 BFC INVERTNEXT
1 16 -200 4 0 8 0 0 0 1 0 0 0 8 4-4ndis.dat
0 // Bottom Face Surfaces
4 16 192 4 -8 192 4 8 188 4 8 188 4 -8
4 16 172 4 -8 172 4 8 168 4 8 168 4 -8
4 16 -172 4 8 -172 4 -8 -168 4 -8 -168 4 8
4 16 -192 4 8 -192 4 -8 -188 4 -8 -188 4 8
4 16 152 4 8 208 4 8 276 4 56 44 4 24
4 16 44 4 -24 152 4 -8 152 4 8 44 4 24
4 16 208 4 -8 152 4 -8 44 4 -24 276 4 -56
4 16 208 4 -8 276 4 -56 276 4 56 208 4 8
4 16 16 4 -24 16 4 24 -16 4 24 -16 4 -24
4 16 -276 4 56 -208 4 8 -152 4 8 -44 4 24
4 16 -44 4 24 -152 4 8 -152 4 -8 -44 4 -24
4 16 -44 4 -24 -152 4 -8 -208 4 -8 -276 4 -56
4 16 -276 4 -56 -208 4 -8 -208 4 8 -276 4 56
4 16 44 4 24 276 4 56 -276 4 56 -44 4 24
4 16 276 4 -56 44 4 -24 -44 4 -24 -276 4 -56
0 // cylinders in the bottom holes
0 BFC INVERTNEXT
1 16 200 0 0 6 0 0 0 4 0 0 0 6 4-4cyli.dat
0 BFC INVERTNEXT
1 16 180 0 0 6 0 0 0 4 0 0 0 6 4-4cyli.dat
0 BFC INVERTNEXT
1 16 160 0 0 6 0 0 0 4 0 0 0 6 4-4cyli.dat
0 BFC INVERTNEXT
1 16 -160 0 0 6 0 0 0 4 0 0 0 6 4-4cyli.dat
0 BFC INVERTNEXT
1 16 -180 0 0 6 0 0 0 4 0 0 0 6 4-4cyli.dat
0 BFC INVERTNEXT
1 16 -200 0 0 6 0 0 0 4 0 0 0 6 4-4cyli.dat
0 // top edge of bottom holes
1 16 200 0 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 180 0 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 160 0 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -160 0 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -180 0 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -200 0 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
0 // Fill bits around top edge of holes
1 16 200 0 0 6 0 0 0 1 0 0 0 6 4-4ndis.dat
1 16 180 0 0 6 0 0 0 1 0 0 0 6 4-4ndis.dat
1 16 160 0 0 6 0 0 0 1 0 0 0 6 4-4ndis.dat
1 16 -160 0 0 6 0 0 0 1 0 0 0 6 4-4ndis.dat
1 16 -180 0 0 6 0 0 0 1 0 0 0 6 4-4ndis.dat
1 16 -200 0 0 6 0 0 0 1 0 0 0 6 4-4ndis.dat
0 // Top Face Surfaces
4 16 194 0 6 194 0 -6 186 0 -6 186 0 6
4 16 174 0 6 174 0 -6 166 0 -6 166 0 6
4 16 -174 0 -6 -174 0 6 -166 0 6 -166 0 -6
4 16 -194 0 -6 -194 0 6 -186 0 6 -186 0 -6
4 16 280 0 60 206 0 6 154 0 6 40 0 20
4 16 40 0 20 154 0 6 154 0 -6 40 0 -20
4 16 40 0 -20 154 0 -6 206 0 -6 280 0 -60
4 16 280 0 -60 206 0 -6 206 0 6 280 0 60
4 16 20 0 20 20 0 -20 -20 0 -20 -20 0 20
4 16 -206 0 6 -280 0 60 -40 0 20 -154 0 6
4 16 -154 0 6 -40 0 20 -40 0 -20 -154 0 -6
4 16 -154 0 -6 -40 0 -20 -280 0 -60 -206 0 -6
4 16 -206 0 -6 -280 0 -60 -280 0 60 -206 0 6
4 16 280 0 60 40 0 20 -40 0 20 -280 0 60
4 16 40 0 -20 280 0 -60 -280 0 -60 -40 0 -20
0 // The studs on top
1 16 220 0 0 1 0 0 0 1 0 0 0 1 stug6.dat
1 16 -220 0 0 1 0 0 0 1 0 0 0 1 stug6.dat
1 16 100 0 0 1 0 0 0 1 0 0 0 1 stug6.dat
1 16 -100 0 0 1 0 0 0 1 0 0 0 1 stug6.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug2.dat
1 16 20 0 40 1 0 0 0 1 0 0 0 1 stug2.dat
1 16 20 0 -40 1 0 0 0 1 0 0 0 1 stug2.dat
1 16 -20 0 40 1 0 0 0 1 0 0 0 1 stug2.dat
1 16 -20 0 -40 1 0 0 0 1 0 0 0 1 stug2.dat
0
Status:
Official
This part has the following errors
- All parts must be BFC CERTIFY CCW
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © Matthew J. Chiles
Licensed under CC BY 4.0
