File Detail parts/41668.dat

Official File parts/41668.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

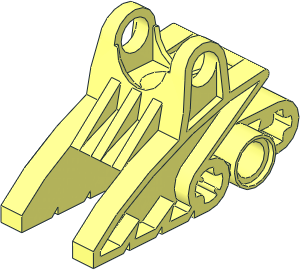

Constraction Foot 2 x 5 x 3 with Ball Socket

File Header:

0 Constraction Foot  2 x  5 x  3 with Ball Socket
0 Name: 41668.dat
0 Author: Michael Heidemann [mikeheide]
0 !LDRAW_ORG Part UPDATE 2022-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS bionicle, block, connector

0 !HISTORY 2019-10-20 [MagFors] Moved peghole to subfile
0 !HISTORY 2022-02-13 [MagFors] Corrected description
0 !HISTORY 2022-05-07 [PTadmin] Official Update 2022-03

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\41668s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\41668s01.dat

1 16 10 40 40 0 1 0 -9 0 0 0 0 9 2-4edge.dat
1 16 -10 40 40 0 20 0 1 0 0 0 0 -1 axlehol4.dat
1 16 10 40 40 0 -1 0 3 0 0 0 0 3 2-4ring2.dat
1 16 -10 40 30 0 20 0 1 0 0 0 0 -1 npeghol5.dat
1 16 -10 40 40 0 1 0 -9 0 0 0 0 9 2-4edge.dat
1 16 -10 40 40 0 20 0 -9 0 0 0 0 9 2-4cyli.dat
1 16 0 33.6361 28.182 10 0 0 0 -1 0 0 0 -1.81805 rect3.dat
1 16 -10 40 40 0 1 0 -3 0 0 0 0 3 2-4ring2.dat
4 16 2 49 28 -2 49 28 -10 49 40 10 49 40
1 16 0 44.5 28 -2 0 0 0 0 4.5 0 1 0 rect3.dat
1 16 0 31 30 -10 0 0 0 1 0 0 0 -10 rect3.dat
2 24 2.5 31 27.8941 2.31 31 28.8843
2 24 2.31 31 28.8843 1.768 31 29.7245
2 24 0.957 31 30.285 0.9708 31 30.2755
2 24 0 31 30.4824 0.0117 31 30.48
2 24 0.957 31 25.5028 1.768 31 26.0644
2 24 1.768 31 26.0644 2.31 31 26.9036
2 24 2.31 31 26.9036 2.5 31 27.8941
0 BFC INVERTNEXT
1 16 -2 40 20 0 4 0 0 0 -8 -8 0 0 2-4cylo.dat
1 16 0 21.151 25.255 2.5 0 0 0 1 -0.647 0 0 2.415 4-4edge.dat
1 16 0 21.151 25.255 3 0 0 0 1 -0.776 0 0 2.898 4-4edge.dat
1 16 0 21.151 25.255 3 0 0 0 -8.693 -0.776 0 -2.329 2.898 4-4cyli.dat
1 16 0 21.151 25.255 3 0 0 0 -1 0.776 0 0 -2.898 4-4disc.dat
1 16 0 21.151 25.255 2.5 0 0 0 10.625 -0.647 0 2.847 2.415 4-4cyli.dat
2 24 0.9708 31 30.2755 1.768 31 29.7245
2 24 0.0117 31 30.48 0.957 31 30.285
2 24 -2.31 31 28.8843 -1.768 31 29.7245
2 24 -2.5 31 27.8941 -2.31 31 28.8843
2 24 -2.31 31 26.9036 -2.5 31 27.8941
2 24 -1.768 31 26.0644 -2.31 31 26.9036
2 24 0.8327 31 25.4772 0.957 31 25.5028
2 24 0 31 25.3055 0.8327 31 25.4772
4 16 -10 22.955 11 -10 18.901 16.543 -10 31 20 -10 40 11
1 16 0 24.9505 18.2715 -10 0 0 0 1 -6.0495 0 0 -1.7285 rect3.dat
1 16 -10 40 20 0 20 0 0 0 -9 9 0 0 1-8cyli.dat
2 24 -0.957 31 30.285 -0.941 31 30.2884
2 24 -0.941 31 30.2884 0 31 30.4824
2 24 -1.744 31 29.7411 -0.957 31 30.285
2 24 -1.768 31 26.0644 -0.957 31 25.5028
2 24 -0.1277 31 25.3318 0 31 25.3055
2 24 -1.768 31 29.7245 -1.744 31 29.7411
2 24 -0.957 31 25.5028 -0.1277 31 25.3318
2 24 10 23 11 10 40 11
4 16 10 22.955 11 -10 22.955 11 -10 40 11 10 40 11
2 24 -10 23 11 -10 40 11
1 16 0 40 11.5 -2 0 0 0 -1 0 0 0 0.5 rect.dat
1 16 10 47.682 29.5 0 -1 0 -1.31805 0 0 0 0 -0.5 rect1.dat
4 16 -10 49 30 -10 49 29 -10 46.3639 29 -10 46.3639 30
1 16 0 46.3639 29.5 -10 0 0 0 1 0 0 0 -0.5 rect2a.dat
1 16 0 43.18 29 0 0 -10 3.18 0 0 0 -1 0 rect2p.dat
1 16 11 11 24 0 -22 0 1.41421 0 -1.41421 -1.41421 0 -1.41421 3-4cyli.dat
5 24 11 12.414 25.414 -11 12.414 25.414 10 18.901 16.543 11 11.7654 25.8478
1 16 0 18.4645 -20.059 2 0 0 0 1 -8.4645 0 0 8.941 rect3.dat
1 16 0 22.4645 -12.5 11 0 0 0 -1 5.4645 0 0 -11.5 rect3.dat
1 16 0 17 5 11 0 0 0 -1 0 0 0 -6 rect3.dat
1 16 0 27.429 -26.5 11 0 0 0 -1 -0.5 0 0 -2.5 rect3.dat
1 16 0 12 16 -11 0 0 0 1 0 0 0 -7 rect3.dat
2 24 -11 12 22.3091 11 12 22.3091
4 16 -10 22.955 11 10 22.955 11 11 17 11 -11 17 11
4 16 11 12.414 25.414 10 18.901 16.543 -10 18.901 16.543 -11 12.414 25.414
3 16 11 12 9 -11 12 9 0 10.668 9
5 24 0 10.668 9 0 11.523 7.72 4.083 9.86 9 -4.083 9.86 9
5 24 0 11.523 -7.72 0 9.346 -10.979 -3.611 8.725 -10.848 3.611 8.725 -10.848
2 24 -11 17 11 11 17 11

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

None
