Official File parts/41969.dat
Part Attributes:
File Header:

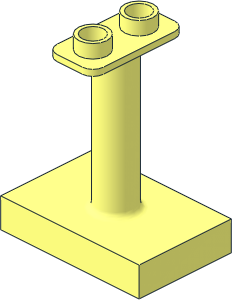

0 Duplo Support Column 2 x 3 x 3 with 2 Top Studs
0 Name: 41969.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2022-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Support
0 !KEYWORDS Cylinder, post, sign, stand
0 !HISTORY 2021-04-28 {LEGO/Unity Microgame} Original part shape
0 !HISTORY 2021-07-07 [Philo] File preparation for LDraw Parts Tracker
0 !HISTORY 2022-05-07 [PTadmin] Official Update 2022-03
Show contents
1 16 0 0 0 0 0 -1 0 2.75 0 1 0 0 stug7-1x2.dat
1 16 0 144 0 60 0 0 0 -24 0 0 0 40 box4.dat
0 BFC INVERTNEXT
1 16 0 144 0 56 0 0 0 -20 0 0 0 36 box4.dat
1 16 0 120 0 20 0 0 0 1 0 0 0 20 4-4ndis.dat
4 16 20 120 -20 60 120 -40 60 120 40 20 120 20
0 BFC INVERTNEXT
1 16 0 115 0 0 0 20 0 20 0 -20 0 0 t04i2500.dat
4 16 -20 120 -20 -60 120 -40 60 120 -40 20 120 -20
0 BFC INVERTNEXT
1 16 0 115 0 -20 0 0 0 20 0 0 0 -20 t04i2500.dat
4 16 -20 120 20 -60 120 40 -60 120 -40 -20 120 -20
0 BFC INVERTNEXT
1 16 0 115 0 0 0 -20 0 20 0 20 0 0 t04i2500.dat
4 16 20 120 20 60 120 40 -60 120 40 -20 120 20
0 BFC INVERTNEXT
1 16 0 115 0 20 0 0 0 20 0 0 0 20 t04i2500.dat
1 16 54 124 -20 0 0 -2 0 19 0 1.5 0 0 box4-1.dat
4 16 56 144 -36 56 144 36 60 144 40 60 144 -40
1 16 54 124 20 0 0 -2 0 19 0 -1.5 0 0 box4-1.dat
1 16 40 124 34 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 0 124 34 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
1 16 -40 124 34 1.5 0 0 0 19 0 0 0 -2 box4-1.dat
4 16 56 144 36 -56 144 36 -60 144 40 60 144 40
1 16 -54 124 20 0 0 2 0 19 0 -1.5 0 0 box4-1.dat
4 16 -56 144 36 -56 144 -36 -60 144 -40 -60 144 40
1 16 -54 124 -20 0 0 2 0 19 0 1.5 0 0 box4-1.dat
1 16 -40 124 -34 -1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 0 124 -34 -1.5 0 0 0 19 0 0 0 2 box4-1.dat
1 16 40 124 -34 -1.5 0 0 0 19 0 0 0 2 box4-1.dat
4 16 -56 144 -36 56 144 -36 60 144 -40 -60 144 -40
1 16 0 5 0 15 0 0 0 110 0 0 0 15 4-4cyli.dat
1 16 0 5 0 15 0 0 0 1 0 0 0 15 4-4edge.dat
1 16 11 0 31 9 0 0 0 5 0 0 0 9 1-4cylo.dat
1 16 11 0 31 9 0 0 0 1 0 0 0 9 1-4chrd.dat
1 16 11 5 31 9 0 0 0 -1 0 0 0 9 1-4chrd.dat
1 16 0 11.2161 25.2798 -1.4 0 0 0 -1 -6.2161 0 0 10.5582 rect3.dat
2 24 1.4 5 14.7216 1.4 5 35.838
2 24 -1.4 5 35.838 -1.4 5 14.7216
2 24 -1.4 17.4322 14.7216 -1.4 5 14.7216
2 24 1.4 5 14.7216 1.4 17.4322 14.7216
3 16 1.4 5 14.7216 1.4 17.4322 14.7216 1.4 5 35.838
3 16 -1.4 17.4322 14.7216 -1.4 5 14.7216 -1.4 5 35.838
1 16 -11 0 31 -9 0 0 0 5 0 0 0 9 1-4cylo.dat
1 16 -11 0 31 -9 0 0 0 1 0 0 0 9 1-4chrd.dat
1 16 -11 5 31 -9 0 0 0 -1 0 0 0 9 1-4chrd.dat
1 16 0 2.5 40 11 0 0 0 0 2.5 0 -1 0 rect2p.dat
4 16 -20 0 31 20 0 31 11 0 40 -11 0 40
4 16 -20 5 31 -11 5 40 11 5 40 20 5 31
2 24 1.4 17.4322 14.7216 0 17.2683 15
2 24 0 17.2683 15 -1.4 17.4322 14.7216
1 16 11 0 -31 9 0 0 0 5 0 0 0 -9 1-4cylo.dat
1 16 11 0 -31 9 0 0 0 1 0 0 0 -9 1-4chrd.dat
1 16 11 5 -31 9 0 0 0 -1 0 0 0 -9 1-4chrd.dat
1 16 0 11.2161 -25.2798 -1.4 0 0 0 -1 -6.2161 0 0 -10.5582 rect3.dat
2 24 1.4 5 -14.7216 1.4 5 -35.838
2 24 -1.4 5 -35.838 -1.4 5 -14.7216
2 24 -1.4 17.4322 -14.7216 -1.4 5 -14.7216
2 24 1.4 5 -14.7216 1.4 17.4322 -14.7216
3 16 1.4 17.4322 -14.7216 1.4 5 -14.7216 1.4 5 -35.838
3 16 -1.4 5 -14.7216 -1.4 17.4322 -14.7216 -1.4 5 -35.838
1 16 -11 0 -31 -9 0 0 0 5 0 0 0 -9 1-4cylo.dat
1 16 -11 0 -31 -9 0 0 0 1 0 0 0 -9 1-4chrd.dat
1 16 -11 5 -31 -9 0 0 0 -1 0 0 0 -9 1-4chrd.dat
1 16 0 2.5 -40 -11 0 0 0 0 2.5 0 1 0 rect2p.dat
4 16 11 0 -40 20 0 -31 -20 0 -31 -11 0 -40
4 16 11 5 -40 -11 5 -40 -20 5 -31 20 5 -31
2 24 1.4 17.4322 -14.7216 0 17.2683 -15
2 24 0 17.2683 -15 -1.4 17.4322 -14.7216
1 16 0 2.5 -31 0 0 -20 2.5 0 0 0 62 0 box4o8a.dat
0 BFC INVERTNEXT
1 16 0 5 0 12 0 0 0 110 0 0 0 12 4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 124 0 2 0 0 0 -9 0 0 0 2 4-4con6.dat
0 BFC INVERTNEXT
1 16 20 140 0 14 0 0 0 -16 0 0 0 14 5-16cylo.dat
1 16 20 140 0 16 0 0 0 -16 0 0 0 16 3-8cylo.dat
1 16 20 140 0 2 0 0 0 -1 0 0 0 2 5-16ring7.dat
0 BFC INVERTNEXT
1 16 0 140 0 14 0 0 0 -16 0 0 0 14 1-8cylo.dat
1 16 0 140 0 14 0 0 0 -1 0 0 0 14 1-8tang.dat
1 16 0 140 0 17 0 0 0 -16 0 0 0 17 1-16cylo.dat
1 16 0 140 0 17 0 0 0 -1 0 0 0 17 1-16chrd.dat
1 16 9.2929 132 10.6065 0 1 -0.6065 -8 0 0 0 0 0.7071 rect3.dat
1 16 14.0571 132 8.97365 0 -1 -1.6492 8 0 0 0 0 2.46775 rect3.dat
1 16 13.52505 132 12.188 -1.11715 0 0 0 0 8 -0.7466 1 0 rect2p.dat
1 16 20 140 0 -6.12293 0 -14.78207 0 -1 0 14.78207 0 -6.12293 1-16chrd.dat
4 16 8.6859 140 11.3139 13.8768 140 14.7824 14.6422 140 12.9346 12.4079 140 11.4414
4 16 11.8692 140 7.931 9.8994 140 9.8994 8.6859 140 11.3139 12.4079 140 11.4414
4 16 11.8692 140 7.931 12.4079 140 11.4414 15.7063 140 6.5059 12.9346 140 5.3578
4 16 17 140 0 14 140 0 14 140 2.7846 15.7063 140 6.5059
3 16 15.7063 140 6.5059 14 140 2.7846 12.9346 140 5.3578
1 16 0 124 0 0 0 14 0 -1 0 14 0 0 1-8edge.dat
1 16 0 124 0 0 0 14 0 -1 0 14 0 0 1-8ndis.dat
4 16 17 124 0 12.4079 124 11.4414 14 124 14 56 124 36
0 BFC INVERTNEXT
1 16 -20 140 0 -14 0 0 0 -16 0 0 0 14 5-16cylo.dat
1 16 -20 140 0 -16 0 0 0 -16 0 0 0 16 3-8cylo.dat
1 16 -20 140 0 -2 0 0 0 -1 0 0 0 2 5-16ring7.dat
0 BFC INVERTNEXT
1 16 0 140 0 -14 0 0 0 -16 0 0 0 14 1-8cylo.dat
1 16 0 140 0 -14 0 0 0 -1 0 0 0 14 1-8tang.dat
1 16 0 140 0 -17 0 0 0 -16 0 0 0 17 1-16cylo.dat
1 16 0 140 0 -17 0 0 0 -1 0 0 0 17 1-16chrd.dat
1 16 -9.2929 132 10.6065 0 -1 0.6065 8 0 0 0 0 0.7071 rect3.dat
1 16 -14.0571 132 8.97365 0 1 1.6492 -8 0 0 0 0 2.46775 rect3.dat
1 16 -13.52505 132 12.188 -1.11715 0 0 0 0 8 0.7466 1 0 rect2p.dat
1 16 -20 140 0 6.12293 0 14.78207 0 -1 0 14.78207 0 -6.12293 1-16chrd.dat
4 16 -14.6422 140 12.9346 -13.8768 140 14.7824 -8.6859 140 11.3139 -12.4079 140 11.4414
4 16 -8.6859 140 11.3139 -9.8994 140 9.8994 -11.8692 140 7.931 -12.4079 140 11.4414
4 16 -15.7063 140 6.5059 -12.4079 140 11.4414 -11.8692 140 7.931 -12.9346 140 5.3578
4 16 -14 140 2.7846 -14 140 0 -17 140 0 -15.7063 140 6.5059
3 16 -14 140 2.7846 -15.7063 140 6.5059 -12.9346 140 5.3578
1 16 0 124 0 0 0 -14 0 -1 0 14 0 0 1-8edge.dat
1 16 0 124 0 0 0 -14 0 -1 0 14 0 0 1-8ndis.dat
4 16 -14 124 14 -12.4079 124 11.4414 -17 124 0 -56 124 36
4 16 14 124 14 -14 124 14 -56 124 36 56 124 36
0 BFC INVERTNEXT
1 16 20 140 0 14 0 0 0 -16 0 0 0 -14 5-16cylo.dat
1 16 20 140 0 16 0 0 0 -16 0 0 0 -16 3-8cylo.dat
1 16 20 140 0 2 0 0 0 -1 0 0 0 -2 5-16ring7.dat
0 BFC INVERTNEXT
1 16 0 140 0 14 0 0 0 -16 0 0 0 -14 1-8cylo.dat
1 16 0 140 0 14 0 0 0 -1 0 0 0 -14 1-8tang.dat
1 16 0 140 0 17 0 0 0 -16 0 0 0 -17 1-16cylo.dat
1 16 0 140 0 17 0 0 0 -1 0 0 0 -17 1-16chrd.dat
1 16 9.2929 132 -10.6065 0 1 -0.6065 8 0 0 0 0 -0.7071 rect3.dat
1 16 14.0571 132 -8.97365 0 -1 -1.6492 -8 0 0 0 0 -2.46775 rect3.dat
1 16 13.52505 132 -12.188 1.11715 0 0 0 0 8 -0.7466 -1 0 rect2p.dat
1 16 20 140 0 -6.12293 0 -14.78207 0 -1 0 -14.78207 0 6.12293 1-16chrd.dat
4 16 14.6422 140 -12.9346 13.8768 140 -14.7824 8.6859 140 -11.3139 12.4079 140 -11.4414
4 16 8.6859 140 -11.3139 9.8994 140 -9.8994 11.8692 140 -7.931 12.4079 140 -11.4414
4 16 15.7063 140 -6.5059 12.4079 140 -11.4414 11.8692 140 -7.931 12.9346 140 -5.3578
4 16 14 140 -2.7846 14 140 0 17 140 0 15.7063 140 -6.5059
3 16 14 140 -2.7846 15.7063 140 -6.5059 12.9346 140 -5.3578
1 16 0 124 0 0 0 14 0 -1 0 -14 0 0 1-8edge.dat
1 16 0 124 0 0 0 14 0 -1 0 -14 0 0 1-8ndis.dat
4 16 14 124 -14 12.4079 124 -11.4414 17 124 0 56 124 -36
0 BFC INVERTNEXT
1 16 -20 140 0 -14 0 0 0 -16 0 0 0 -14 5-16cylo.dat
1 16 -20 140 0 -16 0 0 0 -16 0 0 0 -16 3-8cylo.dat
1 16 -20 140 0 -2 0 0 0 -1 0 0 0 -2 5-16ring7.dat
0 BFC INVERTNEXT
1 16 0 140 0 -14 0 0 0 -16 0 0 0 -14 1-8cylo.dat
1 16 0 140 0 -14 0 0 0 -1 0 0 0 -14 1-8tang.dat
1 16 0 140 0 -17 0 0 0 -16 0 0 0 -17 1-16cylo.dat
1 16 0 140 0 -17 0 0 0 -1 0 0 0 -17 1-16chrd.dat
1 16 -9.2929 132 -10.6065 0 -1 0.6065 -8 0 0 0 0 -0.7071 rect3.dat
1 16 -14.0571 132 -8.97365 0 1 1.6492 8 0 0 0 0 -2.46775 rect3.dat
1 16 -13.52505 132 -12.188 1.11715 0 0 0 0 8 0.7466 -1 0 rect2p.dat
1 16 -20 140 0 6.12293 0 14.78207 0 -1 0 -14.78207 0 6.12293 1-16chrd.dat
4 16 -8.6859 140 -11.3139 -13.8768 140 -14.7824 -14.6422 140 -12.9346 -12.4079 140 -11.4414
4 16 -11.8692 140 -7.931 -9.8994 140 -9.8994 -8.6859 140 -11.3139 -12.4079 140 -11.4414
4 16 -11.8692 140 -7.931 -12.4079 140 -11.4414 -15.7063 140 -6.5059 -12.9346 140 -5.3578
4 16 -17 140 0 -14 140 0 -14 140 -2.7846 -15.7063 140 -6.5059
3 16 -15.7063 140 -6.5059 -14 140 -2.7846 -12.9346 140 -5.3578
1 16 0 124 0 0 0 -14 0 -1 0 -14 0 0 1-8edge.dat
1 16 0 124 0 0 0 -14 0 -1 0 -14 0 0 1-8ndis.dat
4 16 -17 124 0 -12.4079 124 -11.4414 -14 124 -14 -56 124 -36
4 16 -56 124 -36 -14 124 -14 14 124 -14 56 124 -36
3 16 56 124 -36 17 124 0 56 124 36
3 16 -17 124 0 -56 124 -36 -56 124 36
5 24 15.7063 124 6.5059 15.7063 140 6.5059 12.4079 124 11.4414 17 140 0
5 24 -15.7063 140 6.5059 -15.7063 124 6.5059 -12.4079 140 11.4414 -17 140 0
5 24 15.7063 140 -6.5059 15.7063 124 -6.5059 12.4079 140 -11.4414 17 140 0
5 24 -15.7063 124 -6.5059 -15.7063 140 -6.5059 -12.4079 124 -11.4414 -17 140 0
