Official File parts/4198p01.dat
Part Attributes:
Base Part: 4198.dat
File Header:

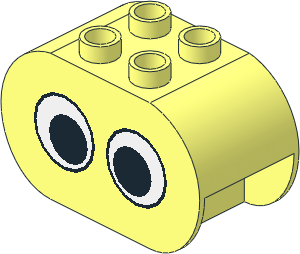

0 Duplo Brick 2 x 4 x 2 with Rounded Ends with 2 Eyes Pattern
0 Name: 4198p01.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2024-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Brick
0 !KEYWORDS BrickLink 4198pb10, Rebrickable 4198pr9981, Set 3191
0 !HISTORY 2018-01-30 [PTadmin] Official Update 2018-01
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
