Official File parts/4204.dat
Part Attributes:
File Header:

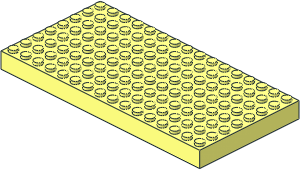

0 Brick 8 x 16
0 Name: 4204.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2013-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CW
0 !HISTORY 2003-06-09 [jriley] BFC compliant
0 !HISTORY 2003-12-19 [PTadmin] Official Update 2003-03
0 !HISTORY 2007-07-04 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2013-08-02 [theJudeAbides] Used more primitives
0 !HISTORY 2013-12-23 [PTadmin] Official Update 2013-02
Show contents
1 16 -120 4 -40 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -120 4 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -120 4 40 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -80 4 -40 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -80 4 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -80 4 40 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -40 4 -40 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -40 4 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -40 4 40 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 4 -40 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 4 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 4 40 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 40 4 -40 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 40 4 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 40 4 40 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 80 4 -40 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 80 4 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 80 4 40 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 120 4 -40 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 120 4 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 120 4 40 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 -120 4 40 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 -100 4 40 1 0 0 0 1 0 0 0 1 filletp0s.dat
1 16 -80 4 40 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 -60 4 40 1 0 0 0 1 0 0 0 1 filletp0s.dat
1 16 -40 4 40 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 -20 4 40 1 0 0 0 1 0 0 0 1 filletp0s.dat
1 16 0 4 40 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 20 4 40 1 0 0 0 1 0 0 0 1 filletp0s.dat
1 16 40 4 40 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 60 4 40 1 0 0 0 1 0 0 0 1 filletp0s.dat
1 16 80 4 40 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 100 4 40 1 0 0 0 1 0 0 0 1 filletp0s.dat
1 16 120 4 40 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 -120 4 20 0 0 1 0 1 0 -1 0 0 filletp0s.dat
1 16 -80 4 20 0 0 1 0 1 0 -1 0 0 filletp0s.dat
1 16 -40 4 20 0 0 1 0 1 0 -1 0 0 filletp0s.dat
1 16 0 4 20 0 0 1 0 1 0 -1 0 0 filletp0s.dat
1 16 40 4 20 0 0 1 0 1 0 -1 0 0 filletp0s.dat
1 16 80 4 20 0 0 1 0 1 0 -1 0 0 filletp0s.dat
1 16 120 4 20 0 0 1 0 1 0 -1 0 0 filletp0s.dat
1 16 -120 4 0 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 -100 4 0 1 0 0 0 1 0 0 0 1 filletp0s.dat
1 16 -80 4 0 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 -60 4 0 1 0 0 0 1 0 0 0 1 filletp0s.dat
1 16 -40 4 0 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 -20 4 0 1 0 0 0 1 0 0 0 1 filletp0s.dat
1 16 0 4 0 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 20 4 0 1 0 0 0 1 0 0 0 1 filletp0s.dat
1 16 40 4 0 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 60 4 0 1 0 0 0 1 0 0 0 1 filletp0s.dat
1 16 80 4 0 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 100 4 0 -1 0 0 0 1 0 0 0 -1 filletp0s.dat
1 16 120 4 0 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 -120 4 -20 0 0 1 0 1 0 -1 0 0 filletp0s.dat
1 16 -80 4 -20 0 0 1 0 1 0 -1 0 0 filletp0s.dat
1 16 -40 4 -20 0 0 1 0 1 0 -1 0 0 filletp0s.dat
1 16 0 4 -20 0 0 1 0 1 0 -1 0 0 filletp0s.dat
1 16 40 4 -20 0 0 1 0 1 0 -1 0 0 filletp0s.dat
1 16 80 4 -20 0 0 1 0 1 0 -1 0 0 filletp0s.dat
1 16 120 4 -20 0 0 1 0 1 0 -1 0 0 filletp0s.dat
1 16 -120 4 -40 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 -100 4 -40 1 0 0 0 1 0 0 0 1 filletp0s.dat
1 16 -80 4 -40 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 -60 4 -40 1 0 0 0 1 0 0 0 1 filletp0s.dat
1 16 -40 4 -40 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 -20 4 -40 1 0 0 0 1 0 0 0 1 filletp0s.dat
1 16 0 4 -40 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 20 4 -40 1 0 0 0 1 0 0 0 1 filletp0s.dat
1 16 40 4 -40 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 60 4 -40 1 0 0 0 1 0 0 0 1 filletp0s.dat
1 16 80 4 -40 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 100 4 -40 1 0 0 0 1 0 0 0 1 filletp0s.dat
1 16 120 4 -40 1 0 0 0 -5 0 0 0 1 stud4f4s.dat
1 16 -120 4 40 0 0 -1 0 1 0 1 0 0 filletp2s.dat
1 16 -120 4 40 1 0 0 0 1 0 0 0 1 filletp1s.dat
1 16 -80 4 40 1 0 0 0 1 0 0 0 1 filletp1s.dat
1 16 -40 4 40 1 0 0 0 1 0 0 0 1 filletp1s.dat
1 16 0 4 40 1 0 0 0 1 0 0 0 1 filletp1s.dat
1 16 40 4 40 1 0 0 0 1 0 0 0 1 filletp1s.dat
1 16 80 4 40 1 0 0 0 1 0 0 0 1 filletp1s.dat
1 16 120 4 40 1 0 0 0 1 0 0 0 1 filletp2s.dat
1 16 120 4 40 0 0 1 0 1 0 -1 0 0 filletp1s.dat
1 16 120 4 0 0 0 1 0 1 0 -1 0 0 filletp1s.dat
1 16 120 4 -40 0 0 1 0 1 0 -1 0 0 filletp2s.dat
1 16 120 4 -40 -1 0 0 0 1 0 0 0 -1 filletp1s.dat
1 16 80 4 -40 -1 0 0 0 1 0 0 0 -1 filletp1s.dat
1 16 40 4 -40 -1 0 0 0 1 0 0 0 -1 filletp1s.dat
1 16 0 4 -40 -1 0 0 0 1 0 0 0 -1 filletp1s.dat
1 16 -40 4 -40 -1 0 0 0 1 0 0 0 -1 filletp1s.dat
1 16 -80 4 -40 -1 0 0 0 1 0 0 0 -1 filletp1s.dat
1 16 -120 4 -40 -1 0 0 0 1 0 0 0 -1 filletp2s.dat
1 16 -120 4 -40 0 0 -1 0 1 0 1 0 0 filletp1s.dat
1 16 -120 4 0 0 0 -1 0 1 0 1 0 0 filletp1s.dat
1 16 -140 4 60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -100 4 60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -60 4 60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -20 4 60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 20 4 60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 60 4 60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 100 4 60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 140 4 60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -140 4 20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -100 4 20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -60 4 20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -20 4 20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 20 4 20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 60 4 20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 100 4 20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 140 4 20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -140 4 -20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -100 4 -20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -60 4 -20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -20 4 -20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 20 4 -20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 60 4 -20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 100 4 -20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 140 4 -20 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -140 4 -60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -100 4 -60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -60 4 -60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 -20 4 -60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 20 4 -60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 60 4 -60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 100 4 -60 1 0 0 0 -5 0 0 0 1 stud4.dat
1 16 140 4 -60 1 0 0 0 -5 0 0 0 1 stud4.dat
4 16 -156 4 76 -156 4 -76 156 4 -76 156 4 76
4 16 -160 24 80 -156 24 76 156 24 76 160 24 80
4 16 156 24 76 156 24 -76 160 24 -80 160 24 80
4 16 156 24 -76 -156 24 -76 -160 24 -80 160 24 -80
4 16 -160 24 -80 -156 24 -76 -156 24 76 -160 24 80
1 16 0 24 0 160 0 0 0 -24 0 0 0 80 box5.dat
1 16 -80 0 0 1 0 0 0 1 0 0 0 1 stug-8x8.dat
1 16 80 0 0 1 0 0 0 1 0 0 0 1 stug-8x8.dat
Status:
Official
This part has the following errors
- All parts must be BFC CERTIFY CCW
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © James Jessiman
Licensed under CC BY 4.0
