Official File parts/4216.dat
Part Attributes:
File Header:

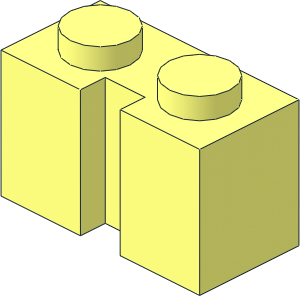

0 Brick 1 x 2 with Groove
0 Name: 4216.dat
0 Author: Christian M. Angele [cma_1971]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 1997-12-05 [PTadmin] Official Update 1997-17
0 !HISTORY 1998-01-12 [PTadmin] Official Update 1998-01
0 !HISTORY 2007-07-04 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [tchang] Made BFC compliant (2008-02-24)
0 !HISTORY 2009-05-02 [PTadmin] Official Update 2009-01
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
0 // // inner box bottom
2 24 16 24 -6 16 24 6
2 24 16 24 6 -16 24 6
2 24 -16 24 6 -16 24 -6
2 24 -16 24 -6 -10 24 -6
1 16 -10 24 0 0 0 6 0 1 0 -6 0 0 1-4edge.dat
1 16 0 24 0 4 0 0 0 4 0 0 0 4 2-4edge.dat
1 16 10 24 0 -6 0 0 0 1 0 0 0 -6 1-4edge.dat
2 24 10 24 -6 16 24 -6
0 // inner box side
2 24 16 24 -6 16 4 -6
2 24 16 24 6 16 4 6
2 24 -16 24 6 -16 4 6
2 24 -16 24 -6 -16 4 -6
0 // inner box top
2 24 16 4 -6 16 4 6
2 24 16 4 6 -16 4 6
2 24 -16 4 6 -16 4 -6
2 24 -16 4 -6 -10 4 -6
1 16 -10 4 0 0 0 6 0 1 0 -6 0 0 1-4edge.dat
1 16 0 4 0 4 0 0 0 1 0 0 0 4 2-4edge.dat
1 16 10 4 0 -6 0 0 0 1 0 0 0 -6 1-4edge.dat
2 24 10 4 -6 16 4 -6
0 // inner box side
4 16 16 4 -6 16 4 6 16 24 6 16 24 -6
4 16 16 4 6 -16 4 6 -16 24 6 16 24 6
4 16 -16 4 6 -16 4 -6 -16 24 -6 -16 24 6
4 16 -16 4 -6 -10 4 -6 -10 24 -6 -16 24 -6
0 BFC INVERTNEXT
1 16 -10 4 0 0 0 6 0 20 0 -6 0 0 1-4cyli.dat
1 16 0 4 0 4 0 0 0 20 0 0 0 4 2-4cyli.dat
0 BFC INVERTNEXT
1 16 10 4 0 -6 0 0 0 20 0 0 0 -6 1-4cyli.dat
4 16 10 4 -6 16 4 -6 16 24 -6 10 24 -6
0 // inner box top
4 16 -16 4 6 -10 4 6 -10 4 -6 -16 4 -6
1 16 -10 4 0 0 0 6 0 -1 0 -6 0 0 1-4disc.dat
4 16 -10 4 6 -4 4 6 -4 4 0 -10 4 0
1 16 0 4 0 0 0 -4 0 -1 0 4 0 0 1-4ndis.dat
4 16 -4 4 6 4 4 6 4 4 4 -4 4 4
1 16 0 4 0 4 0 0 0 -1 0 0 0 4 1-4ndis.dat
4 16 4 4 6 10 4 6 10 4 0 4 4 0
1 16 10 4 0 -6 0 0 0 -1 0 0 0 -6 1-4disc.dat
4 16 10 4 6 16 4 6 16 4 -6 10 4 -6
0 // outer box bottom
2 24 20 24 -10 20 24 10
2 24 20 24 10 -20 24 10
2 24 -20 24 10 -20 24 -10
2 24 -20 24 -10 -4 24 -10
2 24 -4 24 -10 -4 24 -5
2 24 -4 24 -5 4 24 -5
2 24 4 24 -5 4 24 -10
2 24 4 24 -10 20 24 -10
0 // outer box side
2 24 20 24 -10 20 0 -10
2 24 20 24 10 20 0 10
2 24 -20 24 10 -20 0 10
2 24 -20 24 -10 -20 0 -10
2 24 -4 24 -10 -4 0 -10
2 24 -4 24 -5 -4 0 -5
2 24 4 24 -5 4 0 -5
2 24 4 24 -10 4 0 -10
0 // outer box top
2 24 20 0 -10 20 0 10
2 24 20 0 10 -20 0 10
2 24 -20 0 10 -20 0 -10
2 24 -20 0 -10 -4 0 -10
2 24 -4 0 -10 -4 0 -5
2 24 -4 0 -5 4 0 -5
2 24 4 0 -5 4 0 -10
2 24 4 0 -10 20 0 -10
0 // inner+outer box bottom
4 16 20 24 -10 16 24 -6 16 24 6 20 24 10
4 16 20 24 10 16 24 6 -16 24 6 -20 24 10
4 16 -20 24 10 -16 24 6 -16 24 -6 -20 24 -10
4 16 -16 24 -6 -4 24 -6 -4 24 -10 -20 24 -10
1 16 -10 24 0 0 0 6 0 -1 0 -6 0 0 1-4ndis.dat
4 16 -4 24 0 4 24 0 4 24 -5 -4 24 -5
1 16 0 24 0 4 0 0 0 -1 0 0 0 4 2-4disc.dat
1 16 10 24 0 -6 0 0 0 -1 0 0 0 -6 1-4ndis.dat
4 16 20 24 -10 4 24 -10 4 24 -6 16 24 -6
0 // outer box side
4 16 20 24 -10 20 24 10 20 0 10 20 0 -10
4 16 20 24 10 -20 24 10 -20 0 10 20 0 10
4 16 -20 24 10 -20 24 -10 -20 0 -10 -20 0 10
4 16 -20 24 -10 -4 24 -10 -4 0 -10 -20 0 -10
4 16 -4 24 -10 -4 24 -5 -4 0 -5 -4 0 -10
4 16 -4 24 -5 4 24 -5 4 0 -5 -4 0 -5
4 16 4 24 -5 4 24 -10 4 0 -10 4 0 -5
4 16 4 24 -10 20 24 -10 20 0 -10 4 0 -10
0 // outer box top
4 16 20 0 -10 20 0 10 4 0 10 4 0 -10
4 16 4 0 -5 4 0 10 -4 0 10 -4 0 -5
4 16 -4 0 -10 -4 0 10 -20 0 10 -20 0 -10
0 // stud
1 16 10 0 0 1 0 0 0 1 0 0 0 1 stud.dat
1 16 -10 0 0 1 0 0 0 1 0 0 0 1 stud.dat
0
Status:
Official
