Official File parts/4216816a.dat
Part Attributes:
File Header:

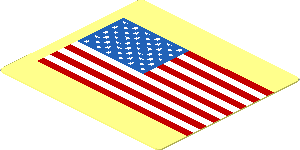

0 Sticker 1.6 x 1.8 with US Flag
0 Name: 4216816a.dat
0 Author: Willy Tschager [Holly-Wood]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS America, BrickLink 10029stk01, Old Glory, Rebrickable 4216816
0 !KEYWORDS Star-Spangled Banner, Stars and Stripes, United States
0 !KEYWORDS United States of America, USA
0 !HISTORY 2011-07-22 [Philo] Cyli -> cyli2
0 !HISTORY 2011-12-29 [PTadmin] Official Update 2011-02
0 !HISTORY 2016-07-01 [cwdee] Updated description
0 !HISTORY 2016-12-31 [PTadmin] Official Update 2016-01
0 !HISTORY 2017-07-03 [cwdee] Use cylinder primitives with conditional lines
0 !HISTORY 2017-12-30 [PTadmin] Official Update 2017-01
0 !HISTORY 2021-07-01 [OrionP] Made use of US Flag subfile
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
1 16 -15.15 -.25 9.45 .18903 0 0 0 1 0 0 0 .18903 s\usflags02.dat
1 16 -0.78372 -.25 9.45 18.28372 0 0 0 1 0 0 0 .18903 s\usflags03.dat
0 // Border
1 16 -16.5 -0.25 14.5 0 0 -1 0 1 0 1 0 0 1-4disc.dat
1 16 16.5 -0.25 14.5 1 0 0 0 1 0 0 0 1 1-4disc.dat
1 16 16.5 -0.25 -14.5 0 0 1 0 1 0 -1 0 0 1-4disc.dat
1 16 -16.5 -0.25 -14.5 -1 0 0 0 1 0 0 0 -1 1-4disc.dat
4 16 -1.25 -.25 15.5 -16.5 -.25 15.5 -16.5 -.25 14.5 -15.15 -.25 9.45
3 16 -.78372 -.25 9.45 -1.25 -.25 15.5 -15.15 -.25 9.45
4 16 -.78372 -.25 9.45 16.5 -.25 14.5 16.5 -.25 15.5 -1.25 -.25 15.5
4 16 -.78372 -.25 9.45 17.5 -.25 9.45 17.5 -.25 14.5 16.5 -.25 14.5
3 16 16.5 -0.25 -14.5 17.5 -0.25 -14.5 17.5 -0.25 -9.453
4 16 -15.15 -.25 -9.453 -16.5 -.25 -14.5 16.5 -.25 -14.5 17.5 -.25 -9.453
4 16 -17.5 -.25 -9.45 -17.5 -.25 -14.5 -16.5 -.25 -14.5 -15.15 -.25 -9.453
4 16 -16.5 -0.25 -14.5 -16.5 -0.25 -15.5 16.5 -0.25 -15.5 16.5 -0.25 -14.5
3 16 -15.15 -.25 -9.453 -15.15 -.25 -7.998924531 -17.5 -.25 -9.45
3 16 -15.15 -.25 -7.998924531 -15.15 -.25 -6.544849062 -17.5 -.25 -9.45
4 16 -15.15 -.25 -6.544849062 -15.15 -.25 -5.085 -17.5 -.25 -.723 -17.5 -.25 -9.45
3 16 -15.15 -.25 -5.085 -15.15 -.25 -3.633 -17.5 -.25 -.723
3 16 -15.15 -.25 -3.633 -15.15 -.25 -2.177 -17.5 -.25 -.723
3 16 -15.15 -.25 -2.177 -15.15 -.25 -.723 -17.5 -.25 -.723
3 16 -15.15 -.25 -.723 -15.15 -.25 9.45 -17.5 -.25 -.723
3 16 -15.15 -.25 9.45 -17.5 -.25 9.45 -17.5 -.25 -.723
4 16 -17.5 -.25 14.5 -17.5 -.25 9.45 -15.15 -.25 9.45 -16.5 -.25 14.5
0 // Thin Box
1 16 -16.5 0 14.5 -1 0 0 0 -1 0 0 0 1 1-4disc.dat
1 16 16.5 0 14.5 0 0 1 0 -1 0 1 0 0 1-4disc.dat
1 16 16.5 0 -14.5 1 0 0 0 -1 0 0 0 -1 1-4disc.dat
1 16 -16.5 0 -14.5 0 0 -1 0 -1 0 -1 0 0 1-4disc.dat
1 16 -16.5 0 14.5 0 0 -1 0 -0.25 0 1 0 0 1-4cyli.dat
1 16 16.5 0 14.5 1 0 0 0 -0.25 0 0 0 1 1-4cyli.dat
1 16 16.5 0 -14.5 0 0 1 0 -0.25 0 -1 0 0 1-4cyli.dat
1 16 -16.5 0 -14.5 -1 0 0 0 -0.25 0 0 0 -1 1-4cyli.dat
4 16 -16.5 0 14.5 -16.5 0 15.5 16.5 0 15.5 16.5 0 14.5
4 16 16.5 0 14.5 17.5 0 14.5 17.5 0 -14.5 16.5 0 -14.5
4 16 16.5 0 -14.5 16.5 0 -15.5 -16.5 0 -15.5 -16.5 0 -14.5
4 16 -16.5 0 -14.5 -17.5 0 -14.5 -17.5 0 14.5 -16.5 0 14.5
4 16 -16.5 0 14.5 16.5 0 14.5 16.5 0 -14.5 -16.5 0 -14.5
4 16 -16.5 0 15.5 -16.5 -0.25 15.5 16.5 -0.25 15.5 16.5 0 15.5
4 16 17.5 0 14.5 17.5 -0.25 14.5 17.5 -0.25 -14.5 17.5 0 -14.5
4 16 16.5 0 -15.5 16.5 -0.25 -15.5 -16.5 -0.25 -15.5 -16.5 0 -15.5
4 16 -17.5 0 -14.5 -17.5 -0.25 -14.5 -17.5 -0.25 14.5 -17.5 0 14.5
