File Detail parts/4218b.dat

Official File parts/4218b.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

File Header:

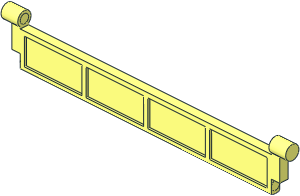

0 Roller Door Normal
0 Name: 4218b.dat
0 Author: Jaco van der Molen [Jaco]
0 !LDRAW_ORG Part UPDATE 2013-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Door
0 !KEYWORDS BrickLink 4218, Garage, Rebrickable 4218, slat

0 !HISTORY 1997-12-05 [PTadmin] Official Update 1997-17
0 !HISTORY 2002-07-16 [fwcain] Added keywords...
0 !HISTORY 2002-11-30 [PTadmin] Official Update 2002-05
0 !HISTORY 2007-07-04 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [tchang] Add BFC, partially rebuild (2008-02-24)
0 !HISTORY 2009-07-15 [PTadmin] Renamed from 4219 (incorrect number)
0 !HISTORY 2009-09-03 [PTadmin] Official Update 2009-02
0 !HISTORY 2013-04-15 [MMR1988] Completely rewritten due to bad dimensions
0 !HISTORY 2013-12-23 [PTadmin] Official Update 2013-02
