Official File parts/4261.dat
Part Attributes:
File Header:

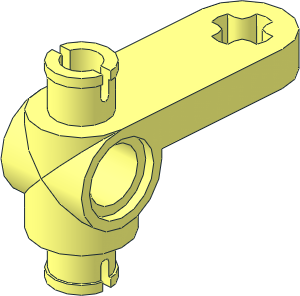

0 Technic Steering Arm
0 Name: 4261.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2010-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2007-07-04 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2008-07-07 [guyvivan] Made BFC compliant (2004-07-20)
0 !HISTORY 2010-04-05 [PTadmin] Official Update 2010-01
Show contents
1 16 0 24 0 1 0 0 0 -1 0 0 0 1 connect4.dat
1 16 0 24 0 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 0 24 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 24 0 10 0 0 0 1 0 0 0 10 4-4edge.dat
1 16 0 0 40 10 0 0 0 1 0 0 0 10 2-4edge.dat
1 16 0 0 0 10 0 0 0 1 0 0 0 -10 2-4edge.dat
2 24 -10 0 40 -10 0 0
2 24 10 0 0 10 0 40
1 16 10 10 0 0 1 0 -10 0 0 0 0 -10 3-4edge.dat
1 16 -10 10 0 0 1 0 -10 0 0 0 0 -10 3-4edge.dat
1 16 0 8 40 10 0 0 0 1 0 0 0 10 2-4edge.dat
2 24 10 10 10 10 8 10
2 24 10 8 10 10 8 40
2 24 -10 8 40 -10 8 10
2 24 -10 8 10 -10 10 10
1 16 0 0 40 1 0 0 0 8 0 0 0 1 axlehole.dat
1 16 0 0 40 3 0 0 0 1 0 0 0 3 2-4ring2.dat
1 16 0 0 40 1 0 0 0 1 0 0 0 1 2-4ring9.dat
1 16 0 8 40 3 0 0 0 -1 0 0 0 3 2-4ring2.dat
1 16 0 8 40 1 0 0 0 -1 0 0 0 1 2-4ring9.dat
1 16 0 0 40 1 0 0 0 1 0 0 0 1 axlehol2.dat
1 16 0 8 40 1 0 0 0 1 0 0 0 1 axlehol2.dat
2 24 10 8 10 -10 8 10
2 24 6 8 30 6 8 14
2 24 6 8 14 -6 8 14
2 24 -6 8 14 -6 8 30
2 24 -6 8 30 -2 8 30
2 24 -2 8 30 -2 8 26
2 24 -2 8 26 2 8 26
2 24 2 8 26 2 8 30
2 24 2 8 30 6 8 30
2 24 6 4 30 6 4 14
2 24 6 4 14 -6 4 14
2 24 -6 4 14 -6 4 30
2 24 -6 4 30 -2 4 30
2 24 -2 4 30 -2 4 26
2 24 -2 4 26 2 4 26
2 24 2 4 26 2 4 30
2 24 2 4 30 6 4 30
2 24 6 4 30 6 8 30
2 24 6 4 14 6 8 14
2 24 -6 4 14 -6 8 14
2 24 -6 4 30 -6 8 30
2 24 -2 4 30 -2 8 30
2 24 -2 4 26 -2 8 26
2 24 2 4 26 2 8 26
2 24 2 4 30 2 8 30
1 16 0 10 0 10 1 0 10 0 0 0 0 10 1-4edge.dat
1 16 0 10 0 -10 1 0 10 0 0 0 0 10 1-4edge.dat
1 16 0 10 0 10 1 0 10 0 0 0 0 -10 2-4edge.dat
1 16 0 10 0 -10 1 0 10 0 0 0 0 -10 2-4edge.dat
1 16 10 10 0 0 -1 0 1 0 0 0 0 1 peghole.dat
1 16 -10 10 0 0 1 0 1 0 0 0 0 1 peghole.dat
1 16 -10 10 0 0 1 0 2 0 0 0 0 2 4-4ring4.dat
1 16 10 10 0 0 -1 0 2 0 0 0 0 2 4-4ring4.dat
0 BFC INVERTNEXT
1 16 8 10 0 0 -16 0 6 0 0 0 0 6 4-4cyli.dat
1 16 0 24 0 10 0 0 0 -1 0 0 0 10 4-4disc.dat
1 16 0 8 40 6 0 0 0 -1 0 0 0 -6 2-4ndis.dat
4 16 6 8 40 10 8 40 10 8 10 6 8 14
4 16 -10 8 40 -6 8 40 -6 8 14 -10 8 10
4 16 -10 8 10 -6 8 14 6 8 14 10 8 10
4 16 6 8 34 6 8 30 -6 8 30 -6 8 34
4 16 2 8 30 2 8 26 -2 8 26 -2 8 30
4 16 2 4 30 6 4 30 6 4 14 2 4 26
4 16 -6 4 30 -2 4 30 -2 4 26 -6 4 14
4 16 -6 4 14 -2 4 26 2 4 26 6 4 14
1 16 0 0 40 6 0 0 0 1 0 0 0 -6 2-4ndis.dat
1 16 0 0 0 10 0 0 0 1 0 0 0 -10 2-4disc.dat
4 16 10 0 40 6 0 40 6 0 34 10 0 0
4 16 -6 0 40 -10 0 40 -10 0 0 -6 0 34
4 16 10 0 0 6 0 34 -6 0 34 -10 0 0
1 16 0 0 0 10 0 0 0 10 0 0 0 -10 1-4cyls.dat
1 16 0 0 0 -10 0 0 0 10 0 0 0 -10 1-4cyls.dat
1 16 0 20 0 10 0 0 0 -10 0 0 0 10 1-4cyls.dat
1 16 0 20 0 -10 0 0 0 -10 0 0 0 10 1-4cyls.dat
1 16 0 20 0 10 0 0 0 -10 0 0 0 -10 1-4cyls.dat
1 16 0 20 0 -10 0 0 0 -10 0 0 0 -10 1-4cyls.dat
1 16 0 20 0 10 0 0 0 4 0 0 0 10 4-4cyli.dat
1 16 0 0 40 10 0 0 0 8 0 0 0 10 2-4cyli.dat
1 16 10 10 0 0 -10 0 10 0 0 0 0 10 1-4cyls.dat
1 16 -10 10 0 0 10 0 10 0 0 0 0 10 1-4cyls.dat
1 16 10 10 0 0 -10 0 10 0 0 0 0 -10 1-4cyls.dat
1 16 -10 10 0 0 10 0 10 0 0 0 0 -10 1-4cyls.dat
1 16 10 10 0 0 -10 0 -10 0 0 0 0 -10 1-4cyls.dat
1 16 -10 10 0 0 10 0 -10 0 0 0 0 -10 1-4cyls.dat
4 16 10 8 10 10 10 10 -10 10 10 -10 8 10
4 16 6 4 14 6 8 14 -6 8 14 -6 4 14
4 16 2 8 26 2 4 26 -2 4 26 -2 8 26
4 16 6 8 30 6 4 30 2 4 30 2 8 30
4 16 -6 4 30 -6 8 30 -2 8 30 -2 4 30
4 16 10 8 40 10 0 40 10 0 10 10 8 10
1 16 10 10 0 0 -1 0 -10 0 0 0 0 10 1-4ndis.dat
4 16 6 4 30 6 8 30 6 8 14 6 4 14
4 16 2 8 30 2 4 30 2 4 26 2 8 26
4 16 -2 4 30 -2 8 30 -2 8 26 -2 4 26
4 16 -6 8 30 -6 4 30 -6 4 14 -6 8 14
4 16 -10 0 40 -10 8 40 -10 8 10 -10 0 10
1 16 -10 10 0 0 1 0 -10 0 0 0 0 10 1-4ndis.dat
1 16 0 0 0 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 0 0 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 connect4.dat
0
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © James Jessiman
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
Guy Vivan,
3D View
