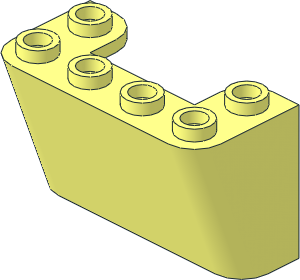

Windscreen 2 x 4 x 2 Inverted
File Header:
0 Windscreen 2 x 4 x 2 Inverted 0 Name: 4284.dat 0 Author: Lutz Uhlmann [El-Lutzo] 0 !LDRAW_ORG Part UPDATE 2025-09 0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt 0 BFC CERTIFY CCW 0 !HISTORY 1997-12-05 [PTadmin] Official Update 1997-17 0 !HISTORY 2007-07-04 [PTadmin] Header formatted for Contributor Agreement 0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01 0 !HISTORY 2008-07-07 [tchang] Add BFC (2008-02-08) 0 !HISTORY 2009-09-03 [PTadmin] Official Update 2009-02 0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW 0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
Show contents
2 24 40 0 30 36 0 30 2 24 36 0 30 30 0 30 2 24 20 0 20 20 0 10 2 24 -20 0 10 -20 0 20 2 24 -30 0 30 -36 0 30 2 24 -36 0 30 -40 0 30 2 24 -40 0 30 -40 0 0 2 24 -30 0 -10 30 0 -10 2 24 40 0 0 40 0 30 1 16 30 0 20 -10 0 0 0 1 0 0 0 10 1-4edge.dat 1 16 -30 0 20 10 0 0 0 1 0 0 0 10 1-4edge.dat 1 16 30 0 0 10 0 0 0 1 0 0 0 -10 1-4edge.dat 1 16 -30 0 0 -10 0 0 0 1 0 0 0 -10 1-4edge.dat 0 1 16 30 0 20 -10 0 0 0 1 0 0 0 10 1-4disc.dat 1 16 -30 0 20 10 0 0 0 1 0 0 0 10 1-4disc.dat 1 16 30 0 0 10 0 0 0 1 0 0 0 -10 1-4disc.dat 1 16 -30 0 0 -10 0 0 0 1 0 0 0 -10 1-4disc.dat 4 16 40 0 30 30 0 30 30 0 0 40 0 0 4 16 -40 0 0 -30 0 0 -30 0 30 -40 0 30 4 16 30 0 20 20 0 20 20 0 10 30 0 10 4 16 -30 0 10 -20 0 10 -20 0 20 -30 0 20 4 16 30 0 10 -30 0 10 -30 0 -10 30 0 -10 0 2 24 30 4 -6 -30 4 -6 2 24 36 4 30 30 4 30 2 24 20 4 20 20 4 10 2 24 36 4 0 36 4 30 2 24 -36 4 30 -30 4 30 2 24 -20 4 20 -20 4 10 2 24 -36 4 0 -36 4 30 1 16 30 4 20 -10 0 0 0 1 0 0 0 10 1-4edge.dat 1 16 -30 4 20 10 0 0 0 1 0 0 0 10 1-4edge.dat 1 16 30 4 0 6 0 0 0 1 0 0 0 -6 1-4edge.dat 1 16 -30 4 0 -6 0 0 0 1 0 0 0 -6 1-4edge.dat 0 1 16 30 4 20 -10 0 0 0 -1 0 0 0 10 1-4disc.dat 1 16 -30 4 20 10 0 0 0 -1 0 0 0 10 1-4disc.dat 1 16 30 4 0 6 0 0 0 -1 0 0 0 -6 1-4disc.dat 1 16 -30 4 0 -6 0 0 0 -1 0 0 0 -6 1-4disc.dat 4 16 36 4 0 30 4 0 30 4 30 36 4 30 4 16 -36 4 30 -30 4 30 -30 4 0 -36 4 0 4 16 30 4 10 20 4 10 20 4 20 30 4 20 4 16 -30 4 20 -20 4 20 -20 4 10 -30 4 10 4 16 30 4 10 30 4 -6 -30 4 -6 -30 4 10 0 1 16 0 2 10 20 0 0 0 0 2 0 -1 0 rect.dat 1 16 30 0 20 -10 0 0 0 4 0 0 0 10 1-4cyli.dat 1 16 -30 0 20 10 0 0 0 4 0 0 0 10 1-4cyli.dat 4 16 -36 0 30 -30 0 30 -30 4 30 -36 4 30 4 16 20 0 20 20 4 20 20 4 10 20 0 10 4 16 -20 0 10 -20 4 10 -20 4 20 -20 0 20 4 16 36 4 30 30 4 30 30 0 30 36 0 30 0 2 24 36 4 30 36 44 30 2 24 -36 4 30 -36 44 30 2 24 40 0 30 40 48 30 2 24 -40 0 30 -40 48 30 2 24 36 44 30 20 44 30 2 24 40 48 30 20 48 30 2 24 -36 44 30 -20 44 30 2 24 -40 48 30 -20 48 30 4 16 36 44 30 36 48 30 20 48 30 20 44 30 4 16 -20 44 30 -20 48 30 -36 48 30 -36 44 30 4 16 36 0 30 40 0 30 40 48 30 36 48 30 4 16 -36 48 30 -40 48 30 -40 0 30 -36 0 30 1 16 0 46 10 20 0 0 0 0 2 0 -1 0 rect.dat 1 16 20 46 20 0 1 0 2 0 0 0 0 10 rect.dat 1 16 -20 46 20 0 -1 0 2 0 0 0 0 10 rect.dat 0 1 16 30 44 20 6 0 0 0 1 0 0 0 6 4-4edge.dat 1 16 -30 44 20 6 0 0 0 1 0 0 0 6 4-4edge.dat 1 16 30 48 20 6 0 0 0 1 0 0 0 6 4-4edge.dat 1 16 -30 48 20 6 0 0 0 1 0 0 0 6 4-4edge.dat 0 BFC INVERTNEXT 1 16 30 48 20 6 0 0 0 -4 0 0 0 6 4-4cyli.dat 0 BFC INVERTNEXT 1 16 -30 48 20 6 0 0 0 -4 0 0 0 6 4-4cyli.dat 1 16 30 44 20 6 0 0 0 1 0 0 0 6 4-4ndis.dat 1 16 30 48 20 6 0 0 0 -1 0 0 0 6 4-4ndis.dat 1 16 -30 44 20 6 0 0 0 1 0 0 0 6 4-4ndis.dat 1 16 -30 48 20 6 0 0 0 -1 0 0 0 6 4-4ndis.dat 0 2 24 30 44 9 -30 44 9 2 24 36 44 15 36 44 30 2 24 -36 44 15 -36 44 30 1 16 30 44 15 6 0 0 0 1 0 0 0 -6 1-4edge.dat 1 16 -30 44 15 -6 0 0 0 1 0 0 0 -6 1-4edge.dat 0 4 16 20 44 26 36 44 26 36 44 30 20 44 30 4 16 20 44 26 20 44 10 24 44 10 24 44 26 4 16 34.2426 44 10.7574 35.5434 44 12.7038 36 44 15 30 44 14 4 16 30 44 9 32.2962 44 9.4566 34.2426 44 10.7574 30 44 14 4 16 30 44 14 24 44 14 24 44 9 30 44 9 4 16 -20 44 30 -36 44 30 -36 44 26 -20 44 26 4 16 -24 44 26 -24 44 10 -20 44 10 -20 44 26 4 16 -30 44 14 -36 44 15 -35.5434 44 12.7038 -34.2426 44 10.7574 4 16 -30 44 14 -34.2426 44 10.7574 -32.2962 44 9.4566 -30 44 9 4 16 -30 44 9 -24 44 9 -24 44 14 -30 44 14 4 16 24 44 9 24 44 10 -24 44 10 -24 44 9 0 2 24 30 48 8 -30 48 8 2 24 40 48 18 40 48 30 2 24 -40 48 18 -40 48 30 1 16 30 48 18 10 0 0 0 1 0 0 0 -10 1-4edge.dat 1 16 -30 48 18 -10 0 0 0 1 0 0 0 -10 1-4edge.dat 0 4 16 20 48 30 40 48 30 40 48 26 20 48 26 4 16 24 48 26 24 48 10 20 48 10 20 48 26 4 16 36 48 26 40 48 26 40 48 18 36 48 18 4 16 36 48 18 40 48 18 39.239 48 14.173 37.071 48 10.929 4 16 36 48 18 37.071 48 10.929 33.827 48 8.761 30 48 8 4 16 24 48 14 35 48 14 30 48 8 24 48 8 4 16 -20 48 26 -40 48 26 -40 48 30 -20 48 30 4 16 -20 48 26 -20 48 10 -24 48 10 -24 48 26 4 16 -36 48 18 -40 48 18 -40 48 26 -36 48 26 4 16 -37.071 48 10.929 -39.239 48 14.173 -40 48 18 -36 48 18 4 16 -30 48 8 -33.827 48 8.761 -37.071 48 10.929 -36 48 18 4 16 -24 48 8 -30 48 8 -35 48 14 -24 48 14 4 16 -24 48 8 -24 48 10 24 48 10 24 48 8 0 4 16 30 44 9 -30 44 9 -30 4 -6 30 4 -6 0 BFC INVERTNEXT 1 16 30 4 0 6 0 0 0 40 0 0 15 -6 1-4cyli.dat 0 BFC INVERTNEXT 1 16 -30 4 0 -6 0 0 0 40 0 0 15 -6 1-4cyli.dat 4 16 36 44 30 36 44 15 36 4 0 36 4 30 4 16 -36 4 30 -36 4 0 -36 44 15 -36 44 30 0 1 16 30 0 0 10 0 0 0 48 0 0 18 -10 1-4cyli.dat 1 16 -30 0 0 -10 0 0 0 48 0 0 18 -10 1-4cyli.dat 4 16 30 0 -10 -30 0 -10 -30 48 8 30 48 8 4 16 40 0 30 40 0 0 40 48 18 40 48 30 4 16 -40 48 30 -40 48 18 -40 0 0 -40 0 30 0 1 16 10 0 0 1 0 0 0 1 0 0 0 1 stud2.dat 1 16 -10 0 0 1 0 0 0 1 0 0 0 1 stud2.dat 1 16 30 0 0 1 0 0 0 1 0 0 0 1 stud2.dat 1 16 -30 0 0 1 0 0 0 1 0 0 0 1 stud2.dat 1 16 30 0 20 1 0 0 0 1 0 0 0 1 stud2.dat 1 16 -30 0 20 1 0 0 0 1 0 0 0 1 stud2.dat 0
Status:
Official Official
Unofficial parents
Part Events:
Archived Part Events:
Creative Commons Attribution License information

This part is copyright © Lutz Uhlmann
Licensed under CC BY 2.0

Edits:
LDraw.org Parts Tracker, J.C. Tchang, Orion Pobursky,
