File Detail parts/4285a.dat

Official File parts/4285a.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on BrickOwl

File Header:

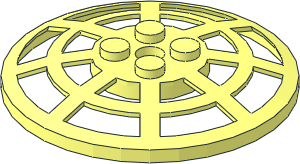

0 Dish  6 x  6 Inverted Webbed Type 1
0 Name: 4285a.dat
0 Author: Tore Eriksson [Tore_Eriksson]
0 !LDRAW_ORG Part UPDATE 2010-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS Radar Dish, Round, Space, town

0 !HISTORY 2002-07-15 [sbliss] Fix bad cylinder ref, serious L3P warnings.
0 !HISTORY 2002-07-30 [sbliss] Added missing quads, conditional lines, fixed ghost edges.
0 !HISTORY 2002-09-05 [BrickCaster] Made Type 1 from Type 2, moved webbing to subpart 4285s01
0 !HISTORY 2003-07-20 [Steffen] BFCed
0 !HISTORY 2004-03-02 [PTadmin] Official Update 2004-01
0 !HISTORY 2004-10-31 [Steffen] fixed wrong heighted cylinder
0 !HISTORY 2004-11-06 [PTadmin] Official Update 2004-04
0 !HISTORY 2007-07-04 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2010-05-09 [cwdee] Remove CATEGORY Round
0 !HISTORY 2010-07-05 [PTadmin] Official Update 2010-02

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\4285s01.dat
1 16 0 0 0 0.707 0 -0.707 0 1 0 0.707 0 0.707 s\4285s01.dat
1 16 0 0 0 0 0 -1 0 1 0 1 0 0 s\4285s01.dat
1 16 0 0 0 -0.707 0 -0.707 0 1 0 0.707 0 -0.707 s\4285s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\4285s01.dat
1 16 0 0 0 -0.707 0 0.707 0 1 0 -0.707 0 -0.707 s\4285s01.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 s\4285s01.dat
1 16 0 0 0 0.707 0 0.707 0 1 0 -0.707 0 0.707 s\4285s01.dat
1 16 0 8 0 24 0 0 0 1 0 0 0 24 4-4edge.dat
1 16 0 4 0 1 0 0 0 -1 0 0 0 1 stud4a.dat
1 16 0 4 0 8 0 0 0 1 0 0 0 8 4-4edge.dat
1 16 -10 0 10 1 0 0 0 1 0 0 0 1 stud.dat
1 16 10 0 10 1 0 0 0 1 0 0 0 1 stud.dat
1 16 -10 0 -10 1 0 0 0 1 0 0 0 1 stud.dat
1 16 10 0 -10 1 0 0 0 1 0 0 0 1 stud.dat
1 16 0 0 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 0 0 0 6 0 0 0 1 0 0 0 6 4-4ring1.dat
1 16 0 0 0 6 0 0 0 1 0 0 0 6 4-4ring2.dat
1 16 0 0 0 6 0 0 0 1 0 0 0 6 4-4ring3.dat
0 BFC INVERTNEXT
1 16 0 0 0 6 0 0 0 4 0 0 0 6 4-4cyli.dat
1 16 0 2 0 24 0 0 0 6 0 0 0 24 4-4cyli.dat
0 BFC INVERTNEXT
1 16 0 4 0 21 0 0 0 4 0 0 0 21 4-4cyli.dat
1 16 0 8 0 21 0 0 0 1 0 0 0 21 4-4edge.dat
1 16 0 4 0 21 0 0 0 1 0 0 0 21 4-4edge.dat
1 16 0 4 0 6 0 0 0 -1 0 0 0 6 4-4ring1.dat
1 16 0 4 0 6 0 0 0 -1 0 0 0 6 4-4ring2.dat
1 16 0 4 0 3 0 0 0 -1 0 0 0 3 4-4ring6.dat
1 16 0 8 0 3 0 0 0 -1 0 0 0 3 4-4ring7.dat
0

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

None

Creative Commons Attribution License information

This part is copyright © Tore Eriksson
Licensed under CC BY 4.0
