Official File parts/4287c.dat
Part Attributes:
File Header:

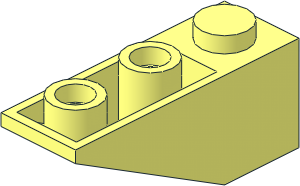

0 Slope Brick 33 3 x 1 Inverted with Notch, Stud Blocker and Thin Front
0 Name: 4287c.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2017-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS BrickLink 4287
0 !HISTORY 2017-12-30 [PTadmin] Official Update 2017-01
Show contents
0 // Studs with blocker
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stud.dat
1 16 0 0 -20 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 0 0 -40 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 0 0 -20 1 0 0 0 13.044 0 0 0 1 stud2s2e.dat
1 16 0 0 -40 1 0 0 0 2.544 0 0 0 1 stud2s2e.dat
1 16 0 13.044 -20 0 0 -1 0 3.15 0 -1 0 0 stud2s2.dat
1 16 0 2.544 -40 0 0 -1 0 3.15 0 -1 0 0 stud2s2.dat
0 // Underside box
1 16 0 13.375 6 6 0 0 0 0 10.625 0 1 0 rect2p.dat
1 16 -6 13.375 -0.375 0 -1 0 10.625 0 0 0 0 6.375 rect3.dat
1 16 -3.625 13.375 -6.75 0 0 -2.375 10.625 0 0 0 -1 0 rect3.dat
1 16 0 13.375 -6.75 1.25 0 0 0 0 10.625 0 0.75 0 box4-2p.dat
1 16 3.625 13.375 -6.75 0 0 2.375 -10.625 0 0 0 -1 0 rect3.dat
1 16 6 13.375 -0.375 0 1 0 -10.625 0 0 0 0 6.375 rect3.dat
4 16 -6 2.75 6 -1.25 2.75 -6 -1.25 2.75 -6.75 -6 2.75 -6.75
4 16 1.25 2.75 -6 -1.25 2.75 -6 -6 2.75 6 6 2.75 6
4 16 6 2.75 -6.75 1.25 2.75 -6.75 1.25 2.75 -6 6 2.75 6
0 // Underside surface
4 16 10 24 10 6 24 6 -6 24 6 -10 24 10
4 16 -10 24 10 -6 24 6 -6 24 -6.75 -10 24 -10
3 16 -6 24 -6.75 -1.25 24 -6.75 -10 24 -10
4 16 -10 24 -10 -1.25 24 -6.75 1.25 24 -6.75 10 24 -10
3 16 1.25 24 -6.75 6 24 -6.75 10 24 -10
4 16 10 24 -10 6 24 -6.75 6 24 6 10 24 10
2 24 -10 24 -10 -10 24 10
2 24 10 24 -10 -10 24 -10
2 24 10 24 -10 10 24 10
0 // Internal surface
1 16 0 10.722 -10 8 0 0 0 0 -10.722 0 1 0 rect3.dat
1 16 0 11.534 -28.875 8 0 0 0 18.875 9.91 0 -9.91 18.875 rect.dat
1 16 0 0.812 -47.75 -8 0 0 0 0 -0.812 0 -1 0 rect3.dat
4 16 -8 21.444 -10 -8 0 -10 -8 0 -47.75 -8 1.625 -47.75
4 16 8 21.444 -10 8 1.625 -47.75 8 0 -47.75 8 0 -10
0 // Upper surface
4 16 10 0 10 -10 0 10 -8 0 -10 8 0 -10
4 16 -10 0 10 -10 0 -50 -8 0 -47.75 -8 0 -10
4 16 -10 0 -50 10 0 -50 8 0 -47.75 -8 0 -47.75
4 16 10 0 -50 10 0 10 8 0 -10 8 0 -47.75
0 // Lateral surface
1 16 0 12 10 -10 0 0 0 0 -12 0 -1 0 rect.dat
4 16 -10 24 -10 -10 3 -50 -10 0 10 -10 24 10
4 16 10 24 -10 10 24 10 10 0 10 10 3 -50
3 16 -10 0 -50 -10 0 10 -10 3 -50
1 16 0 1.5 -50 -10 0 0 0 0 1.5 0 1 0 rect.dat
3 16 10 0 -50 10 3 -50 10 0 10
2 24 -10 3 -50 -10 24 -10
2 24 10 3 -50 10 24 -10
2 24 -10 0 -50 -10 0 10
2 24 10 0 -50 10 0 10
2 24 -8 0 -10 -8 0 -47.75
2 24 8 0 -47.75 8 0 -10
0 // Sloped surface and Notch
4 16 -10 24 -10 10 24 -10 0 21.9 -14 -2.296 21.66 -14.457
3 16 -10 24 -10 -2.296 21.66 -14.457 -4.243 20.978 -15.757
3 16 -10 24 -10 -4.243 20.978 -15.757 -5.486 20 -17.619
3 16 10 24 -10 2.296 21.66 -14.457 0 21.9 -14
3 16 10 24 -10 4.243 20.978 -15.757 2.296 21.66 -14.457
3 16 10 24 -10 5.486 20 -17.619 4.243 20.978 -15.757
3 16 -4.243 20.978 -15.757 -4.243 20 -15.757 -5.486 20 -17.619
4 16 -2.296 21.66 -14.457 -2.296 20 -14.457 -4.243 20 -15.757 -4.243 20.978 -15.757
4 16 0 21.9 -14 0 20 -14 -2.296 20 -14.457 -2.296 21.66 -14.457
4 16 2.296 21.66 -14.457 2.296 20 -14.457 0 20 -14 0 21.9 -14
4 16 4.243 20.978 -15.757 4.243 20 -15.757 2.296 20 -14.457 2.296 21.66 -14.457
3 16 5.486 20 -17.619 4.243 20 -15.757 4.243 20.978 -15.757
3 16 0 20 -14 2.296 20 -14.457 -2.296 20 -14.457
4 16 -4.243 20 -15.757 -2.296 20 -14.457 2.296 20 -14.457 4.243 20 -15.757
4 16 5.486 20 -17.619 -5.486 20 -17.619 -4.243 20 -15.757 4.243 20 -15.757
3 16 -10 24 -10 -5.486 20 -17.619 -10 3 -50
3 16 10 3 -50 5.486 20 -17.619 10 24 -10
4 16 -5.486 20 -17.619 5.486 20 -17.619 10 3 -50 -10 3 -50
2 24 5.486 20 -17.619 -5.486 20 -17.619
2 24 5.486 20 -17.619 4.243 20.978 -15.757
2 24 4.243 20.978 -15.757 2.296 21.66 -14.457
2 24 2.296 21.66 -14.457 0 21.9 -14
2 24 0 21.9 -14 -2.296 21.66 -14.457
2 24 -2.296 21.66 -14.457 -4.243 20.978 -15.757
2 24 -4.243 20.978 -15.757 -5.486 20 -17.619
2 24 -4.243 20 -15.757 -5.486 20 -17.619
2 24 -4.243 20 -15.757 -2.296 20 -14.457
2 24 0 20 -14 -2.296 20 -14.457
2 24 5.486 20 -17.619 4.243 20 -15.757
2 24 2.296 20 -14.457 4.243 20 -15.757
2 24 0 20 -14 2.296 20 -14.457
5 24 -4.243 20 -15.757 -4.243 20.978 -15.757 -5.543 20 -17.704 -2.296 20 -14.457
5 24 -2.296 20 -14.457 -2.296 21.66 -14.457 -4.243 20 -15.757 0 20 -14
5 24 0 20 -14 0 21.9 -14 -2.296 20 -14.457 2.296 20 -14.457
5 24 2.296 20 -14.457 2.296 21.66 -14.457 0 20 -14 4.243 20 -15.757
5 24 4.243 20 -15.757 4.243 20.978 -15.757 2.296 20 -14.457 5.543 20 -17.704
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
