Official File parts/42938.dat
Part Attributes:
File Header:

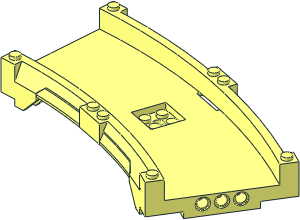

0 Car Track 16 x 8 x 2 Curve
0 Name: 42938.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2020-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Turn radius: 640
0 !HELP Turn amplitude: 30 degrees
0 !HELP Turn center: 0 0 -640
0 !HELP To obtain a quarter of turn use following lines
0 !HELP 1 16 -480 -24 420 1 0 0 0 1 0 0 0 1 42938.dat
0 !HELP 1 16 -160 -24 334.256 0.866 0 0.5 0 1 0 -0.5 0 0.866 42938.dat
0 !HELP 1 16 74.256 -24 100 0.5 0 0.866 0 1 0 -0.866 0 0.5 42938.dat
0 BFC CERTIFY CCW
0 !KEYWORDS Race, racetrack, Sports
0 !HISTORY 2013-08-14 {LEGO Digital Designer} Original part shape
0 !HISTORY 2020-05-14 [Sirio] File preparation for LDraw Parts Tracker
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03
Show contents
0 // Subparts
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\42938s01.dat
1 16 320 0 -85.744 -.86603 0 .5 0 1 0 .5 0 .86603 s\42938s01.dat
1 16 165.644 0 -21.807 .96593 0 .25882 0 1 0 -.25882 0 .96593 s\42938s02.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\42938s03.dat
1 16 320 0 -85.744 -.86603 0 .5 0 1 0 .5 0 .86603 s\42938s03.dat
0 // Primitives
1 16 10 0 70 1 0 0 0 1 0 0 0 1 stud.dat
1 16 10 0 -70 1 0 0 0 1 0 0 0 1 stud.dat
1 16 174.102 0 48.396 .96593 0 .25882 0 1 0 -.25882 0 .96593 stud.dat
1 16 137.868 0 -86.834 .96593 0 .25882 0 1 0 -.25882 0 .96593 stud.dat
1 16 193.421 0 43.219 .96593 0 .25882 0 1 0 -.25882 0 .96593 stud.dat
1 16 157.186 0 -92.01 .96593 0 .25882 0 1 0 -.25882 0 .96593 stud.dat
1 16 346.34 0 -20.122 .86603 0 .5 0 1 0 -.5 0 .86603 stud.dat
1 16 276.34 0 -141.366 .86603 0 .5 0 1 0 -.5 0 .86603 stud.dat
1 16 183.762 4 45.807 1 0 0 0 -5 0 0 0 1 stud3.dat
1 16 147.527 4 -89.422 1 0 0 0 -5 0 0 0 1 stud3.dat
0 BFC INVERTNEXT
1 16 183.762 24 45.807 15.45481 0 1.55291 0 -20 0 -4.1411 0 5.79555 box5.dat
0 BFC INVERTNEXT
1 16 147.527 24 -89.422 15.45481 0 1.55291 0 -20 0 -4.1411 0 5.79555 box5.dat
0 // End faces
3 16 0 24 -10 0 26 -28 0 24 -60
4 16 0 24 -60 0 26 -28 0 40 -40 0 40 -80
4 16 0 40 -80 0 0 -80 0 0 -60 0 24 -60
3 16 0 24 10 0 24 60 0 26 28
4 16 0 40 40 0 26 28 0 24 60 0 40 80
4 16 0 40 80 0 24 60 0 0 60 0 0 80
3 16 350 24 -33.7822 325 24 -77.0837 334 26 -61.49516
4 16 360 40 -16.4617 350 24 -33.7822 334 26 -61.49516 340 40 -51.1028
4 16 360 40 -16.4617 360 0 -16.4617 350 0 -33.7822 350 24 -33.7822
3 16 315 24 -94.4043 290 24 -137.7053 306 26 -109.99284
4 16 300 40 -120.3852 306 26 -109.99284 290 24 -137.7053 280 40 -155.0258
4 16 290 24 -137.7053 290 0 -137.7053 280 0 -155.0258 280 40 -155.0258
0 // Edges
2 24 0 24 60 0 0 60
2 24 0 24 -10 0 24 -60
2 24 0 0 80 0 40 80
2 24 0 40 -80 0 0 -80
2 24 0 0 -80 0 0 -60
2 24 0 0 -60 0 24 -60
2 24 0 0 60 0 0 80
2 24 0 24 60 0 24 10
2 24 0 24 10 0 24 -10
2 24 350 0 -33.7822 350 24 -33.7822
2 24 325 24 -77.0837 350 24 -33.7822
2 24 360 40 -16.4617 360 0 -16.4617
2 24 290 24 -137.7053 315 24 -94.4043
2 24 290 0 -137.7053 280 0 -155.0258
2 24 280 0 -155.0258 280 40 -155.0258
2 24 290 24 -137.7053 290 0 -137.7053
2 24 360 0 -16.4617 350 0 -33.7822
2 24 315 24 -94.4043 325 24 -77.0837
0 // Bottom faces
4 16 20 48 -60.43638 24 48 -64.5237 24 48 -76.5237 20 48 -80.4364
4 16 20 48 79.56359 24 48 75.4763 24 48 63.4763 20 48 59.56363
4 16 31.406 48 79.3147 31.2315 48 75.3185 24 48 75.4763 20 48 79.56359
4 16 47.47165 48 78.26172 47.097 48 74.27863 31.2315 48 75.3185 31.406 48 79.3147
4 16 45.97305 48 62.32942 45.59841 48 58.34638 30.5336 48 59.3338 30.708 48 63.3299
4 16 30.5336 48 59.3338 20 48 59.56363 24 48 63.4763 30.708 48 63.3299
4 16 34.35893 48 -61.14583 33.98428 48 -65.12891 25.1248 48 -64.5482 25.2992 48 -60.552
4 16 25.2992 48 -60.552 25.1248 48 -64.5482 24 48 -64.5237 20 48 -60.43638
4 16 32.86034 48 -77.07813 32.48569 48 -81.06121 24.4269 48 -80.533 24.6013 48 -76.5368
4 16 24.4269 48 -80.533 20 48 -80.4364 24 48 -76.5237 24.6013 48 -76.5368
4 16 262.4614 48 -145.4038 260.9535 48 -140.0152 266.9535 48 -129.6229 272.4614 48 -128.0832
4 16 332.4613 48 -24.16016 330.9535 48 -18.7717 336.9536 48 -8.3793 342.4613 48 -6.83965
4 16 316.3521 48 2.131981 318.0192 48 5.768704 332.459 48 -1.3522 330.612 48 -4.9002
4 16 330.612 48 -4.9002 332.459 48 -1.3522 342.4613 48 -6.83965 336.9536 48 -8.3793
4 16 309.6838 48 -12.41509 311.3509 48 -8.77835 325.071 48 -15.5444 323.224 48 -19.0924
4 16 323.224 48 -19.0924 325.071 48 -15.5444 330.9535 48 -18.7717 332.4613 48 -24.16016
4 16 258.0043 48 -125.1549 259.6714 48 -121.5181 267.8142 48 -125.5337 265.9672 48 -129.0818
4 16 265.9672 48 -129.0818 267.8142 48 -125.5337 272.4614 48 -128.0832 266.9535 48 -129.6229
4 16 251.336 48 -139.7019 253.0031 48 -136.0652 260.4262 48 -139.7259 258.5792 48 -143.2739
4 16 258.5792 48 -143.2739 260.4262 48 -139.7259 260.9535 48 -140.0152 262.4614 48 -145.4038
0 // Edges
2 24 31.406 48 79.3147 47.47165 48 78.26172
2 24 45.59841 48 58.34638 30.5336 48 59.3338
2 24 30.708 48 63.3299 45.97305 48 62.32942
2 24 31.2315 48 75.3185 24 48 75.4763
2 24 24 48 63.4763 24 48 75.4763
2 24 20 48 59.56363 20 48 79.56359
2 24 47.097 48 74.27863 31.2315 48 75.3185
2 24 31.406 48 79.3147 20 48 79.56359
2 24 24 48 63.4763 30.708 48 63.3299
2 24 20 48 59.56363 30.5336 48 59.3338
2 24 45.97305 48 62.32942 45.59841 48 58.34638
2 24 47.47165 48 78.26172 47.097 48 74.27863
2 24 24 48 -76.5237 24 48 -64.5237
2 24 24.4269 48 -80.533 32.48569 48 -81.06121
2 24 32.86034 48 -77.07813 24.6013 48 -76.5368
2 24 25.2992 48 -60.552 34.35893 48 -61.14583
2 24 24.6013 48 -76.5368 24 48 -76.5237
2 24 20 48 -80.4364 24.4269 48 -80.533
2 24 25.1248 48 -64.5482 33.98428 48 -65.12891
2 24 20 48 -80.4364 20 48 -60.43638
2 24 25.2992 48 -60.552 20 48 -60.43638
2 24 34.35893 48 -61.14583 33.98428 48 -65.12891
2 24 32.86034 48 -77.07813 32.48569 48 -81.06121
2 24 24 48 -64.5237 25.1248 48 -64.5482
2 24 323.224 48 -19.0924 332.4613 48 -24.16016
2 24 342.4613 48 -6.83965 332.459 48 -1.3522
2 24 316.3521 48 2.131981 318.0192 48 5.768704
2 24 336.9536 48 -8.3793 330.9535 48 -18.7717
2 24 323.224 48 -19.0924 309.6838 48 -12.41509
2 24 336.9536 48 -8.3793 330.612 48 -4.9002
2 24 316.3521 48 2.131981 330.612 48 -4.9002
2 24 309.6838 48 -12.41509 311.3509 48 -8.77835
2 24 325.071 48 -15.5444 330.9535 48 -18.7717
2 24 325.071 48 -15.5444 311.3509 48 -8.77835
2 24 342.4613 48 -6.83965 332.4613 48 -24.16016
2 24 318.0192 48 5.768704 332.459 48 -1.3522
2 24 265.9672 48 -129.0818 258.0043 48 -125.1549
2 24 272.4614 48 -128.0832 267.8142 48 -125.5337
2 24 258.5792 48 -143.2739 262.4614 48 -145.4038
2 24 262.4614 48 -145.4038 272.4614 48 -128.0832
2 24 260.9535 48 -140.0152 260.4262 48 -139.7259
2 24 266.9535 48 -129.6229 260.9535 48 -140.0152
2 24 266.9535 48 -129.6229 265.9672 48 -129.0818
2 24 258.0043 48 -125.1549 259.6714 48 -121.5181
2 24 260.4262 48 -139.7259 253.0031 48 -136.0652
2 24 251.336 48 -139.7019 258.5792 48 -143.2739
2 24 251.336 48 -139.7019 253.0031 48 -136.0652
2 24 259.6714 48 -121.5181 267.8142 48 -125.5337
0 // Sloped faces
4 16 48.8072 31.65002 -82.131 32.48569 48 -81.06121 32.86034 48 -77.07813 49.1558 31.67612 -78.1462
4 16 52.43595 28 -82.52841 48.8072 31.65002 -82.131 49.1558 31.67612 -78.1462 52.81049 28 -78.54645
4 16 53.93412 28 -66.60066 50.2017 31.7543 -66.1919 50.5503 31.78039 -62.2071 54.30866 28 -62.61871
4 16 50.2017 31.7543 -66.1919 33.98428 48 -65.12891 34.35893 48 -61.14583 50.5503 31.78039 -62.2071
4 16 52.81049 28 -78.54645 52.81049 24 -78.54645 52.48277 24 -82.03067 52.43595 28 -82.52841
4 16 65.91948 28 60.82149 65.54494 28 56.83953 61.009 32.56253 57.3363 61.3576 32.58863 61.3211
4 16 61.009 32.56253 57.3363 45.59841 48 58.34638 45.97305 48 62.32942 61.3576 32.58863 61.3211
4 16 62.7521 32.6929 77.2602 67.41765 28 76.74924 67.04311 28 72.76728 62.4035 32.66681 73.2754
4 16 62.4035 32.66681 73.2754 47.097 48 74.27863 47.47165 48 78.26172 62.7521 32.6929 77.2602
4 16 67.04311 28 72.76728 67.41765 28 76.74924 67.37083 24 76.2515 67.04311 24 72.76728
4 16 239.9914 28 -116.4545 241.658 28 -112.8188 245.1186 31.78038 -114.3415 243.4281 31.75427 -117.9667
4 16 243.4281 31.75427 -117.9667 245.1186 31.78038 -114.3415 259.6714 48 -121.5181 258.0043 48 -125.1549
4 16 233.325 28 -130.9974 234.9916 28 -127.3617 238.3567 31.67608 -128.8424 236.6662 31.64997 -132.4676
4 16 236.6662 31.64997 -132.4676 238.3567 31.67608 -128.8424 253.0031 48 -136.0652 251.336 48 -139.7019
4 16 234.9916 28 -127.3617 233.325 28 -130.9974 233.5333 24 -130.543 234.9916 24 -127.3617
4 16 299.9892 28 14.43185 304.2851 32.69282 12.5416 302.5947 32.66681 8.9164 298.3226 28 10.79615
4 16 302.5947 32.66681 8.9164 304.2851 32.69282 12.5416 318.0192 48 5.768704 316.3521 48 2.131981
4 16 291.6562 28 -3.746759 293.3228 28 -.1110438 297.5233 32.58861 -1.9593 295.8328 32.5625 -5.5845
4 16 295.8328 32.5625 -5.5845 297.5233 32.58861 -1.9593 311.3509 48 -8.77835 309.6838 48 -12.41509
4 16 299.9892 28 14.43185 298.3226 28 10.79615 298.3226 24 10.79615 299.7809 24 13.97741
0 // Edges
2 24 61.009 32.56253 57.3363 65.54494 28 56.83953
2 24 67.41765 28 76.74924 67.04311 28 72.76728
2 24 67.04311 28 72.76728 62.4035 32.66681 73.2754
2 24 62.7521 32.6929 77.2602 47.47165 48 78.26172
2 24 65.91948 28 60.82149 61.3576 32.58863 61.3211
2 24 65.54494 28 56.83953 65.91948 28 60.82149
2 24 61.009 32.56253 57.3363 45.59841 48 58.34638
2 24 45.97305 48 62.32942 61.3576 32.58863 61.3211
2 24 62.4035 32.66681 73.2754 47.097 48 74.27863
2 24 67.41765 28 76.74924 62.7521 32.6929 77.2602
2 24 33.98428 48 -65.12891 50.2017 31.7543 -66.1919
2 24 34.35893 48 -61.14583 50.5503 31.78039 -62.2071
2 24 50.2017 31.7543 -66.1919 53.93412 28 -66.60066
2 24 49.1558 31.67612 -78.1462 32.86034 48 -77.07813
2 24 52.81049 28 -78.54645 49.1558 31.67612 -78.1462
2 24 52.81049 28 -78.54645 52.43595 28 -82.52841
2 24 32.48569 48 -81.06121 48.8072 31.65002 -82.131
2 24 48.8072 31.65002 -82.131 52.43595 28 -82.52841
2 24 54.30866 28 -62.61871 50.5503 31.78039 -62.2071
2 24 53.93412 28 -66.60066 54.30866 28 -62.61871
2 24 302.5947 32.66681 8.9164 298.3226 28 10.79615
2 24 297.5233 32.58861 -1.9593 293.3228 28 -.1110438
2 24 293.3228 28 -.1110438 291.6562 28 -3.746759
2 24 316.3521 48 2.131981 302.5947 32.66681 8.9164
2 24 304.2851 32.69282 12.5416 318.0192 48 5.768704
2 24 299.9892 28 14.43185 304.2851 32.69282 12.5416
2 24 298.3226 28 10.79615 299.9892 28 14.43185
2 24 291.6562 28 -3.746759 295.8328 32.5625 -5.5845
2 24 309.6838 48 -12.41509 295.8328 32.5625 -5.5845
2 24 311.3509 48 -8.77835 297.5233 32.58861 -1.9593
2 24 238.3567 31.67608 -128.8424 234.9916 28 -127.3617
2 24 234.9916 28 -127.3617 233.325 28 -130.9974
2 24 245.1186 31.78038 -114.3415 259.6714 48 -121.5181
2 24 245.1186 31.78038 -114.3415 241.658 28 -112.8188
2 24 241.658 28 -112.8188 239.9914 28 -116.4545
2 24 239.9914 28 -116.4545 243.4281 31.75427 -117.9667
2 24 236.6662 31.64997 -132.4676 251.336 48 -139.7019
2 24 233.325 28 -130.9974 236.6662 31.64997 -132.4676
2 24 258.0043 48 -125.1549 243.4281 31.75427 -117.9667
2 24 253.0031 48 -136.0652 238.3567 31.67608 -128.8424
0 // Underside lateral faces
4 16 4 40 -40 4 40 -76 0 40 -80 0 40 -40
4 16 0 40 -80 4 40 -76 20 40 -76 20 40 -80.4364
4 16 16 40 -40 20 40 -40 20 40 -60.43638 16 40 -64
3 16 20 40 -60.43638 20 40 -64 16 40 -64
4 16 4 40 76 4 40 40 0 40 40 0 40 80
4 16 20 40 79.56359 20 40 76 4 40 76 0 40 80
4 16 20 40 59.56363 20 40 40 16 40 40 16 40 64
3 16 16 40 64 20 40 64 20 40 59.56363
4 16 300 40 -120.3852 280 40 -155.0258 278.53588 40 -149.56228 296.53588 40 -118.3852
4 16 278.53588 40 -149.56228 280 40 -155.0258 262.4614 40 -145.4038 264.6794 40 -141.56228
4 16 286.14352 40 -112.3852 274.14352 40 -133.16992 272.4614 40 -128.0832 282.6794 40 -110.3852
3 16 274.14352 40 -133.16992 270.6794 40 -131.16992 272.4614 40 -128.0832
4 16 360 40 -16.4617 340 40 -51.1028 336.53588 40 -49.1028 354.53588 40 -17.92572
4 16 342.4613 40 -6.83965 360 40 -16.4617 354.53588 40 -17.92572 340.6794 40 -9.92572
4 16 338.14352 40 -22.31808 326.14352 40 -43.1028 322.6794 40 -41.1028 332.4613 40 -24.16016
3 16 332.4613 40 -24.16016 334.6794 40 -20.31808 338.14352 40 -22.31808
0 // Edges
2 24 0 40 80 0 40 40
2 24 20 40 59.56363 20 40 64
2 24 20 40 79.56359 0 40 80
2 24 20 40 40 20 40 59.56363
2 24 20 40 76 20 40 79.56359
2 24 20 40 40 16 40 40
2 24 20 40 76 4 40 76
2 24 20 40 68.5 20 40 71.5
2 24 16 40 64 20 40 64
2 24 4 40 76 4 40 40
2 24 16 40 40 16 40 64
2 24 4 40 40 0 40 40
2 24 0 40 -40 0 40 -80
2 24 0 40 -80 20 40 -80.4364
2 24 20 40 -80.4364 20 40 -76
2 24 20 40 -60.43638 20 40 -40
2 24 20 40 -64 20 40 -60.43638
2 24 16 40 -40 20 40 -40
2 24 4 40 -40 4 40 -76
2 24 4 40 -76 20 40 -76
2 24 0 40 -40 4 40 -40
2 24 20 40 -64 16 40 -64
2 24 20 40 -71.5 20 40 -68.5
2 24 16 40 -64 16 40 -40
2 24 340 40 -51.1028 360 40 -16.4617
2 24 342.4613 40 -6.83965 340.6794 40 -9.92572
2 24 334.6794 40 -20.31808 332.4613 40 -24.16016
2 24 332.4613 40 -24.16016 322.6794 40 -41.1028
2 24 360 40 -16.4617 342.4613 40 -6.83965
2 24 334.6794 40 -20.31808 338.14352 40 -22.31808
2 24 336.53588 40 -49.1028 354.53588 40 -17.92572
2 24 326.14352 40 -43.1028 322.6794 40 -41.1028
2 24 340 40 -51.1028 336.53588 40 -49.1028
2 24 354.53588 40 -17.92572 340.6794 40 -9.92572
2 24 338.14352 40 -22.31808 326.14352 40 -43.1028
2 24 338.4294 40 -13.822855 336.9294 40 -16.420945
2 24 280 40 -155.0258 300 40 -120.3852
2 24 264.6794 40 -141.56228 262.4614 40 -145.4038
2 24 272.4614 40 -128.0832 270.6794 40 -131.16992
2 24 262.4614 40 -145.4038 280 40 -155.0258
2 24 282.6794 40 -110.3852 272.4614 40 -128.0832
2 24 278.53588 40 -149.56228 296.53588 40 -118.3852
2 24 274.14352 40 -133.16992 270.6794 40 -131.16992
2 24 296.53588 40 -118.3852 300 40 -120.3852
2 24 264.6794 40 -141.56228 278.53588 40 -149.56228
2 24 282.6794 40 -110.3852 286.14352 40 -112.3852
2 24 286.14352 40 -112.3852 274.14352 40 -133.16992
2 24 268.4294 40 -135.067055 266.9294 40 -137.665145
0 // Underside central faces
3 16 25.2992 28 -60.552 20 28 -60.43638 20 28 -28
3 16 30.5336 28 59.3338 20 28 28 20 28 59.56363
4 16 25.2992 28 -60.552 20 28 -28 20 28 28 30.5336 28 59.3338
4 16 50.5503 28 -62.2071 25.2992 28 -60.552 30.5336 28 59.3338 61.009 28 57.3363
4 16 50.5503 28 -62.2071 61.009 28 57.3363 65.54494 28 56.83953 54.30866 28 -62.61871
3 16 54.30866 28 -62.61871 75.1831 28 -68.9278 53.93412 28 -66.60066
3 16 91.8904 28 57.9772 65.54494 28 56.83953 65.91948 28 60.82149
4 16 75.1831 28 -68.9278 54.30866 28 -62.61871 65.54494 28 56.83953 91.8904 28 57.9772
4 16 100.0214 28 -72.7507 75.1831 28 -68.9278 91.8904 28 57.9772 122.2483 28 53.3047
4 16 124.6692 28 -77.6535 100.0214 28 -72.7507 122.2483 28 53.3047 152.3735 28 47.3124
4 16 162.7775 28 44.76656 160.8195 28 37.4608 148.67336 28 7.587 152.3735 28 47.3124
4 16 129.6486 28 -78.87193 124.6692 28 -77.6535 136.25 28 -38.77764 131.8318 28 -70.7229
4 16 148.67336 28 7.587 136.25 28 -38.77764 124.6692 28 -77.6535 152.3735 28 47.3124
4 16 148.67336 28 7.587 160.8195 28 37.4608 199.4566 28 27.108 195.038 28 -4.83636
4 16 131.8318 28 -70.7229 136.25 28 -38.77764 182.61464 28 -51.201 170.4688 28 -81.0757
4 16 182.61464 28 -51.201 173.2065 28 -90.659 168.2856 28 -89.22469 170.4688 28 -81.0757
4 16 201.4145 28 34.41376 211.6969 28 31.4167 195.038 28 -4.83636 199.4566 28 27.108
4 16 211.6969 28 31.4167 173.2065 28 -90.659 182.61464 28 -51.201 195.038 28 -4.83636
3 16 323.224 28 -19.0924 332.4613 28 -24.16016 316.6794 28 -51.49516
3 16 267.8142 28 -125.5337 288.6794 28 -99.99284 272.4614 28 -128.0832
4 16 323.224 28 -19.0924 316.6794 28 -51.49516 288.6794 28 -99.99284 267.8142 28 -125.5337
4 16 197.0036 28 -98.7371 173.2065 28 -90.659 211.6969 28 31.4167 240.7822 28 21.5436
4 16 220.4256 28 -107.8454 197.0036 28 -98.7371 240.7822 28 21.5436 269.4091 28 10.4112
3 16 241.658 28 -112.8188 239.9914 28 -116.4545 220.4256 28 -107.8454
3 16 291.6562 28 -3.746759 269.4091 28 10.4112 293.3228 28 -.1110438
4 16 241.658 28 -112.8188 220.4256 28 -107.8454 269.4091 28 10.4112 291.6562 28 -3.746759
4 16 245.1186 28 -114.3415 241.658 28 -112.8188 291.6562 28 -3.746759 295.8328 28 -5.5845
4 16 267.8142 28 -125.5337 245.1186 28 -114.3415 295.8328 28 -5.5845 323.224 28 -19.0924
0 // Edges
2 24 61.009 28 57.3363 30.5336 28 59.3338
2 24 65.54494 28 56.83953 61.009 28 57.3363
2 24 20 28 28 20 28 59.56363
2 24 20 28 59.56363 30.5336 28 59.3338
2 24 50.5503 28 -62.2071 54.30866 28 -62.61871
2 24 25.2992 28 -60.552 20 28 -60.43638
2 24 20 28 -60.43638 20 28 -28
2 24 25.2992 28 -60.552 50.5503 28 -62.2071
2 24 20 28 28 20 28 -28
2 24 170.4688 28 -81.0757 168.2856 28 -89.22469
2 24 75.1831 28 -68.9278 53.93412 28 -66.60066
2 24 162.7775 28 44.76656 152.3735 28 47.3124
2 24 160.8195 28 37.4608 162.7775 28 44.76656
2 24 131.8318 28 -70.7229 170.4688 28 -81.0757
2 24 91.8904 28 57.9772 122.2483 28 53.3047
2 24 199.4566 28 27.108 160.8195 28 37.4608
2 24 124.6692 28 -77.6535 129.6486 28 -78.87193
2 24 75.1831 28 -68.9278 100.0214 28 -72.7507
2 24 65.91948 28 60.82149 91.8904 28 57.9772
2 24 122.2483 28 53.3047 152.3735 28 47.3124
2 24 100.0214 28 -72.7507 124.6692 28 -77.6535
2 24 129.6486 28 -78.87193 131.8318 28 -70.7229
2 24 201.4145 28 34.41376 199.4566 28 27.108
2 24 211.6969 28 31.4167 240.7822 28 21.5436
2 24 269.4091 28 10.4112 293.3228 28 -.1110438
2 24 197.0036 28 -98.7371 173.2065 28 -90.659
2 24 239.9914 28 -116.4545 220.4256 28 -107.8454
2 24 168.2856 28 -89.22469 173.2065 28 -90.659
2 24 240.7822 28 21.5436 269.4091 28 10.4112
2 24 211.6969 28 31.4167 201.4145 28 34.41376
2 24 220.4256 28 -107.8454 197.0036 28 -98.7371
2 24 272.4614 28 -128.0832 267.8142 28 -125.5337
2 24 295.8328 28 -5.5845 291.6562 28 -3.746759
2 24 241.658 28 -112.8188 245.1186 28 -114.3415
2 24 245.1186 28 -114.3415 267.8142 28 -125.5337
2 24 332.4613 28 -24.16016 316.6794 28 -51.49516
2 24 323.224 28 -19.0924 332.4613 28 -24.16016
2 24 323.224 28 -19.0924 295.8328 28 -5.5845
2 24 288.6794 28 -99.99284 272.4614 28 -128.0832
2 24 316.6794 28 -51.49516 288.6794 28 -99.99284
0 // Upperside central faces
3 16 0 24 60 0 24 10 30.5336 24 59.3338
3 16 0 24 -10 0 24 -60 25.2992 24 -60.552
4 16 0 24 10 0 24 -10 25.2992 24 -60.552 30.5336 24 59.3338
4 16 61.009 24 57.3363 30.5336 24 59.3338 25.2992 24 -60.552 50.5503 24 -62.2071
4 16 91.3683 24 54.0114 61.009 24 57.3363 50.5503 24 -62.2071 75.7052 24 -64.962
4 16 121.5537 24 49.3654 91.3683 24 54.0114 75.7052 24 -64.962 100.7159 24 -68.8115
4 16 151.5077 24 43.4072 121.5537 24 49.3654 100.7159 24 -68.8115 125.535 24 -73.7483
3 16 160.8195 24 37.4608 161.7422 24 40.90284 151.5077 24 43.4072
3 16 130.6838 24 -75.00822 131.8318 24 -70.7229 125.535 24 -73.7483
3 16 160.8195 24 37.4608 151.5077 24 43.4072 151.5018 24 2.688
3 16 131.8318 24 -70.7229 141.149 24 -35.9492 125.535 24 -73.7483
4 16 151.5018 24 2.688 151.5077 24 43.4072 125.535 24 -73.7483 141.149 24 -35.9492
4 16 160.8195 24 37.4608 151.5018 24 2.688 190.139 24 -7.6648 199.4566 24 27.108
4 16 170.4688 24 -81.0757 179.7862 24 -46.302 141.149 24 -35.9492 131.8318 24 -70.7229
3 16 174.4094 24 -86.8442 170.4688 24 -81.0757 169.3209 24 -85.36102
3 16 210.4941 24 27.6019 200.3792 24 30.5501 199.4566 24 27.108
3 16 210.4941 24 27.6019 199.4566 24 27.108 190.139 24 -7.6648
3 16 174.4094 24 -86.8442 179.7862 24 -46.302 170.4688 24 -81.0757
4 16 210.4941 24 27.6019 190.139 24 -7.6648 179.7862 24 -46.302 174.4094 24 -86.8442
4 16 239.4141 24 17.7848 210.4941 24 27.6019 174.4094 24 -86.8442 198.3717 24 -94.9783
4 16 267.8784 24 6.7157 239.4141 24 17.7848 198.3717 24 -94.9783 221.9564 24 -104.1499
4 16 295.8328 24 -5.5845 267.8784 24 6.7157 221.9564 24 -104.1499 245.1186 24 -114.3415
4 16 323.224 24 -19.0924 295.8328 24 -5.5845 245.1186 24 -114.3415 267.8142 24 -125.5337
3 16 267.8142 24 -125.5337 290 24 -137.7053 315 24 -94.4043
3 16 325 24 -77.0837 350 24 -33.7822 323.224 24 -19.0924
4 16 325 24 -77.0837 323.224 24 -19.0924 267.8142 24 -125.5337 315 24 -94.4043
0 // Edges
2 24 61.009 24 57.3363 91.3683 24 54.0114
2 24 210.4941 24 27.6019 239.4141 24 17.7848
2 24 161.7422 24 40.90284 181.1733 24 36.1481
2 24 121.5537 24 49.3654 151.5077 24 43.4072
2 24 295.8328 24 -5.5845 323.224 24 -19.0924
2 24 91.3683 24 54.0114 121.5537 24 49.3654
2 24 30.5336 24 59.3338 61.009 24 57.3363
2 24 161.7422 24 40.90284 151.5077 24 43.4072
2 24 350 24 -33.7822 323.224 24 -19.0924
2 24 181.1733 24 36.1481 200.3792 24 30.5501
2 24 210.4941 24 27.6019 200.3792 24 30.5501
2 24 239.4141 24 17.7848 267.8784 24 6.7157
2 24 267.8784 24 6.7157 295.8328 24 -5.5845
2 24 30.5336 24 59.3338 0 24 60
2 24 160.8195 24 37.4608 199.4566 24 27.108
2 24 200.3792 24 30.5501 199.4566 24 27.108
2 24 160.8195 24 37.4608 161.7422 24 40.90284
2 24 170.4688 24 -81.0757 169.3209 24 -85.36102
2 24 170.4688 24 -81.0757 131.8318 24 -70.7229
2 24 130.6838 24 -75.00822 131.8318 24 -70.7229
2 24 198.3717 24 -94.9783 174.4094 24 -86.8442
2 24 75.7052 24 -64.962 50.5503 24 -62.2071
2 24 267.8142 24 -125.5337 245.1186 24 -114.3415
2 24 100.7159 24 -68.8115 75.7052 24 -64.962
2 24 125.535 24 -73.7483 130.6838 24 -75.00822
2 24 50.5503 24 -62.2071 25.2992 24 -60.552
2 24 130.6838 24 -75.00822 150.115 24 -79.763
2 24 169.3209 24 -85.36102 174.4094 24 -86.8442
2 24 125.535 24 -73.7483 100.7159 24 -68.8115
2 24 221.9564 24 -104.1499 198.3717 24 -94.9783
2 24 267.8142 24 -125.5337 290 24 -137.7053
2 24 245.1186 24 -114.3415 221.9564 24 -104.1499
2 24 150.115 24 -79.763 169.3209 24 -85.36102
2 24 0 24 -60 25.2992 24 -60.552
0 // Top faces
4 16 0 0 -60 0 0 -80 20 0 -80.4364 20 0 -70.43639
4 16 0 0 80 0 0 60 20 0 69.56357 20 0 79.5636
4 16 24.8631 0 -70.5425 25.2992 0 -60.552 0 0 -60 20 0 -70.43639
4 16 49.6788 0 -72.169 50.5503 0 -62.2071 25.2992 0 -60.552 24.8631 0 -70.5425
4 16 74.3999 0 -74.8764 75.7052 0 -64.962 50.5503 0 -62.2071 49.6788 0 -72.169
4 16 98.9795 0 -78.6596 100.7159 0 -68.8115 75.7052 0 -64.962 74.3999 0 -74.8764
4 16 123.3706 0 -83.5113 125.535 0 -73.7483 100.7159 0 -68.8115 98.9795 0 -78.6596
4 16 150.115 0 -79.763 125.535 0 -73.7483 123.3706 0 -83.5113 128.0956 0 -84.66751
3 16 150.115 0 -79.763 128.0956 0 -84.66751 166.7327 0 -95.02024
4 16 181.1733 0 36.1481 164.3304 0 50.56211 153.6721 0 53.1702 151.5077 0 43.4072
4 16 123.2902 0 59.2135 121.5537 0 49.3654 151.5077 0 43.4072 153.6721 0 53.1702
4 16 92.6736 0 63.9259 91.3683 0 54.0114 121.5537 0 49.3654 123.2902 0 59.2135
4 16 61.8806 0 67.2982 61.009 0 57.3363 91.3683 0 54.0114 92.6736 0 63.9259
4 16 30.9698 0 69.3242 30.5336 0 59.3338 61.009 0 57.3363 61.8806 0 67.2982
4 16 20 0 69.56357 0 0 60 30.5336 0 59.3338 30.9698 0 69.3242
4 16 167.03158 0 60.64301 164.3304 0 50.56211 202.9674 0 40.20928 205.66862 0 50.29025
4 16 128.0956 0 -84.66751 125.62038 0 -93.90525 164.25742 0 -104.25801 166.7327 0 -95.02024
4 16 171.4023 0 -96.3813 174.4094 0 -86.8442 150.115 0 -79.763 166.7327 0 -95.02024
3 16 181.1733 0 36.1481 202.9674 0 40.20928 164.3304 0 50.56211
4 16 194.9515 0 -104.3752 198.3717 0 -94.9783 174.4094 0 -86.8442 171.4023 0 -96.3813
4 16 218.1296 0 -113.3887 221.9564 0 -104.1499 198.3717 0 -94.9783 194.9515 0 -104.3752
4 16 240.8924 0 -123.4046 245.1186 0 -114.3415 221.9564 0 -104.1499 218.1296 0 -113.3887
4 16 263.1967 0 -134.4038 267.8142 0 -125.5337 245.1186 0 -114.3415 240.8924 0 -123.4046
4 16 267.4614 0 -136.7435 290 0 -137.7053 267.8142 0 -125.5337 263.1967 0 -134.4038
4 16 327.8415 0 -10.2223 323.224 0 -19.0924 350 0 -33.7822 337.4613 0 -15.49992
4 16 300.059 0 3.4785 295.8328 0 -5.5845 323.224 0 -19.0924 327.8415 0 -10.2223
4 16 271.7052 0 15.9544 267.8784 0 6.7157 295.8328 0 -5.5845 300.059 0 3.4785
4 16 242.8343 0 27.1818 239.4141 0 17.7848 267.8784 0 6.7157 271.7052 0 15.9544
4 16 213.5011 0 37.139 210.4941 0 27.6019 239.4141 0 17.7848 242.8343 0 27.1818
4 16 181.1733 0 36.1481 210.4941 0 27.6019 213.5011 0 37.139 202.9674 0 40.20928
4 16 290 0 -137.7053 267.4614 0 -136.7435 262.4614 0 -145.4038 280 0 -155.0258
4 16 360 0 -16.4617 342.4613 0 -6.83965 337.4613 0 -15.49992 350 0 -33.7822
0 // Edges
2 24 213.5011 0 37.139 242.8343 0 27.1818
2 24 342.4613 0 -6.83965 360 0 -16.4617
2 24 61.8806 0 67.2982 92.6736 0 63.9259
2 24 271.7052 0 15.9544 300.059 0 3.4785
2 24 153.6721 0 53.1702 164.3304 0 50.56211
2 24 167.03158 0 60.64301 205.66862 0 50.29025
2 24 300.059 0 3.4785 327.8415 0 -10.2223
2 24 327.8415 0 -10.2223 337.4613 0 -15.49992
2 24 0 0 80 20 0 79.5636
2 24 242.8343 0 27.1818 271.7052 0 15.9544
2 24 20 0 69.56357 30.9698 0 69.3242
2 24 92.6736 0 63.9259 123.2902 0 59.2135
2 24 20 0 79.5636 20 0 69.56357
2 24 164.3304 0 50.56211 167.03158 0 60.64301
2 24 205.66862 0 50.29025 202.9674 0 40.20928
2 24 123.2902 0 59.2135 153.6721 0 53.1702
2 24 337.4613 0 -15.49992 342.4613 0 -6.83965
2 24 202.9674 0 40.20928 213.5011 0 37.139
2 24 30.9698 0 69.3242 61.8806 0 67.2982
2 24 239.4141 0 17.7848 210.4941 0 27.6019
2 24 91.3683 0 54.0114 61.009 0 57.3363
2 24 295.8328 0 -5.5845 267.8784 0 6.7157
2 24 151.5077 0 43.4072 121.5537 0 49.3654
2 24 350 0 -33.7822 323.224 0 -19.0924
2 24 121.5537 0 49.3654 91.3683 0 54.0114
2 24 323.224 0 -19.0924 295.8328 0 -5.5845
2 24 181.1733 0 36.1481 210.4941 0 27.6019
2 24 61.009 0 57.3363 30.5336 0 59.3338
2 24 181.1733 0 36.1481 151.5077 0 43.4072
2 24 30.5336 0 59.3338 0 0 60
2 24 267.8784 0 6.7157 239.4141 0 17.7848
2 24 267.8142 0 -125.5337 290 0 -137.7053
2 24 198.3717 0 -94.9783 221.9564 0 -104.1499
2 24 25.2992 0 -60.552 50.5503 0 -62.2071
2 24 50.5503 0 -62.2071 75.7052 0 -64.962
2 24 245.1186 0 -114.3415 267.8142 0 -125.5337
2 24 0 0 -60 25.2992 0 -60.552
2 24 221.9564 0 -104.1499 245.1186 0 -114.3415
2 24 100.7159 0 -68.8115 125.535 0 -73.7483
2 24 174.4094 0 -86.8442 150.115 0 -79.763
2 24 75.7052 0 -64.962 100.7159 0 -68.8115
2 24 174.4094 0 -86.8442 198.3717 0 -94.9783
2 24 125.535 0 -73.7483 150.115 0 -79.763
2 24 240.8924 0 -123.4046 218.1296 0 -113.3887
2 24 125.62038 0 -93.90525 164.25742 0 -104.25801
2 24 166.7327 0 -95.02024 164.25742 0 -104.25801
2 24 74.3999 0 -74.8764 49.6788 0 -72.169
2 24 171.4023 0 -96.3813 166.7327 0 -95.02024
2 24 263.1967 0 -134.4038 240.8924 0 -123.4046
2 24 218.1296 0 -113.3887 194.9515 0 -104.3752
2 24 280 0 -155.0258 262.4614 0 -145.4038
2 24 262.4614 0 -145.4038 267.4614 0 -136.7435
2 24 24.8631 0 -70.5425 20 0 -70.43639
2 24 194.9515 0 -104.3752 171.4023 0 -96.3813
2 24 20 0 -70.43639 20 0 -80.4364
2 24 98.9795 0 -78.6596 74.3999 0 -74.8764
2 24 20 0 -80.4364 0 0 -80
2 24 128.0956 0 -84.66751 123.3706 0 -83.5113
2 24 49.6788 0 -72.169 24.8631 0 -70.5425
2 24 123.3706 0 -83.5113 98.9795 0 -78.6596
2 24 125.62038 0 -93.90525 128.0956 0 -84.66751
2 24 267.4614 0 -136.7435 263.1967 0 -134.4038
0 // Underside top faces
4 16 24 4 -70.5237 24 4 -64.5237 25.1248 4 -64.5482 24.8631 4 -70.5425
4 16 24.8631 4 -70.5425 25.1248 4 -64.5482 50.2017 4 -66.1919 49.6788 4 -72.169
4 16 49.6788 4 -72.169 50.2017 4 -66.1919 75.1831 4 -68.9278 74.3999 4 -74.8764
4 16 74.3999 4 -74.8764 75.1831 4 -68.9278 100.0214 4 -72.7507 98.9795 4 -78.6596
4 16 124.6692 4 -77.6535 123.3706 4 -83.5113 98.9795 4 -78.6596 100.0214 4 -72.7507
4 16 129.6486 4 -78.87193 128.0956 4 -84.66751 123.3706 4 -83.5113 124.6692 4 -77.6535
4 16 152.3735 4 47.3124 153.6721 4 53.1702 164.3304 4 50.56211 162.7775 4 44.76656
4 16 122.2483 4 53.3047 123.2902 4 59.2135 153.6721 4 53.1702 152.3735 4 47.3124
4 16 91.8904 4 57.9772 92.6736 4 63.9259 123.2902 4 59.2135 122.2483 4 53.3047
4 16 61.3576 4 61.3211 61.8806 4 67.2982 92.6736 4 63.9259 91.8904 4 57.9772
4 16 30.708 4 63.3299 30.9698 4 69.3242 61.8806 4 67.2982 61.3576 4 61.3211
4 16 24 4 63.4763 24 4 69.4763 30.9698 4 69.3242 30.708 4 63.3299
4 16 266.9535 4 -129.6229 263.9536 4 -134.819 263.1967 4 -134.4038 265.9672 4 -129.0818
4 16 265.9672 4 -129.0818 263.1967 4 -134.4038 240.8924 4 -123.4046 243.4281 4 -117.9667
4 16 243.4281 4 -117.9667 240.8924 4 -123.4046 218.1296 4 -113.3887 220.4256 4 -107.8454
4 16 220.4256 4 -107.8454 218.1296 4 -113.3887 194.9515 4 -104.3752 197.0036 4 -98.7371
4 16 197.0036 4 -98.7371 194.9515 4 -104.3752 171.4023 4 -96.3813 173.2065 4 -90.659
4 16 171.4023 4 -96.3813 166.739 4 -95.0221 168.2856 4 -89.22469 173.2065 4 -90.659
4 16 325.071 4 -15.5444 327.8415 4 -10.2224 333.9535 4 -13.5756 330.9535 4 -18.7717
4 16 297.5233 4 -1.9593 300.059 4 3.4785 327.8415 4 -10.2224 325.071 4 -15.5444
4 16 269.4091 4 10.4112 271.7052 4 15.9544 300.059 4 3.4785 297.5233 4 -1.9593
4 16 240.7822 4 21.5436 242.8343 4 27.1818 271.7052 4 15.9544 269.4091 4 10.4112
4 16 211.6969 4 31.4167 213.5011 4 37.139 242.8343 4 27.1818 240.7822 4 21.5436
4 16 201.4145 4 34.41376 202.9674 4 40.20928 213.5011 4 37.139 211.6969 4 31.4167
0 // Inner faces
3 16 61.009 28 57.3363 30.5336 28 59.3338 30.5336 48 59.3338
4 16 30.5336 48 59.3338 45.59841 48 58.34638 61.009 32.56253 57.3363 61.009 28 57.3363
3 16 61.009 32.56253 57.3363 65.54494 28 56.83953 61.009 28 57.3363
4 16 30.5336 28 59.3338 20 28 59.56363 20 40 59.56363 30.5336 48 59.3338
4 16 20 28 59.56363 20 28 28 20 34 28 20 40 40
3 16 20 28 59.56363 20 40 40 20 40 59.56363
3 16 20 40 59.56363 20 48 59.56363 30.5336 48 59.3338
4 16 25.2992 48 -60.552 20 40 -60.43638 20 28 -60.43638 25.2992 28 -60.552
4 16 50.5503 28 -62.2071 50.5503 31.78039 -62.2071 34.35893 48 -61.14583 25.2992 48 -60.552
3 16 25.2992 48 -60.552 25.2992 28 -60.552 50.5503 28 -62.2071
3 16 54.30866 28 -62.61871 50.5503 31.78039 -62.2071 50.5503 28 -62.2071
4 16 20 28 -60.43638 20 40 -40 20 34 -28 20 28 -28
3 16 20 28 -60.43638 20 40 -60.43638 20 40 -40
3 16 20 40 -60.43638 25.2992 48 -60.552 20 48 -60.43638
3 16 295.8328 32.5625 -5.5845 295.8328 28 -5.5845 291.6562 28 -3.746759
4 16 295.8328 28 -5.5845 295.8328 32.5625 -5.5845 309.6838 48 -12.41509 323.224 48 -19.0924
3 16 323.224 48 -19.0924 323.224 28 -19.0924 295.8328 28 -5.5845
4 16 323.224 48 -19.0924 332.4613 40 -24.16016 332.4613 28 -24.16016 323.224 28 -19.0924
4 16 332.4613 28 -24.16016 322.6794 40 -41.1028 316.6794 34 -51.49516 316.6794 28 -51.49516
3 16 332.4613 28 -24.16016 332.4613 40 -24.16016 322.6794 40 -41.1028
3 16 332.4613 40 -24.16016 323.224 48 -19.0924 332.4613 48 -24.16016
3 16 245.1186 31.78038 -114.3415 241.658 28 -112.8188 245.1186 28 -114.3415
3 16 245.1186 28 -114.3415 267.8142 28 -125.5337 267.8142 48 -125.5337
4 16 267.8142 48 -125.5337 259.6714 48 -121.5181 245.1186 31.78038 -114.3415 245.1186 28 -114.3415
4 16 272.4614 28 -128.0832 272.4614 40 -128.0832 267.8142 48 -125.5337 267.8142 28 -125.5337
4 16 288.6794 28 -99.99284 288.6794 34 -99.99284 282.6794 40 -110.3852 272.4614 28 -128.0832
3 16 282.6794 40 -110.3852 272.4614 40 -128.0832 272.4614 28 -128.0832
3 16 272.4614 40 -128.0832 272.4614 48 -128.0832 267.8142 48 -125.5337
0 // Edges
2 24 20 40 59.56363 20 28 59.56363
2 24 20 28 -60.43638 20 40 -60.43638
2 24 332.4613 28 -24.16016 332.4613 40 -24.16016
2 24 272.4614 40 -128.0832 272.4614 28 -128.0832
0 // Conditional lines
5 24 30.5336 28 59.3338 30.5336 48 59.3338 20 28 59.56363 61.009 28 57.3363
5 24 61.009 28 57.3363 61.009 32.56253 57.3363 30.5336 28 59.3338 65.54494 28 56.83953
5 24 25.2992 28 -60.552 25.2992 48 -60.552 20 28 -60.43638 50.5503 28 -62.2071
5 24 50.5503 28 -62.2071 50.5503 31.78039 -62.2071 25.2992 28 -60.552 54.30866 28 -62.61871
5 24 323.224 28 -19.0924 323.224 48 -19.0924 295.8328 28 -5.5845 332.4613 28 -24.16016
5 24 295.8328 28 -5.5845 295.8328 32.5625 -5.5845 323.224 28 -19.0924 291.6562 28 -3.746759
5 24 267.8142 28 -125.5337 267.8142 48 -125.5337 272.4614 28 -128.0832 245.1186 28 -114.3415
5 24 245.1186 28 -114.3415 245.1186 31.78038 -114.3415 267.8142 28 -125.5337 241.658 28 -112.8188
0 // Boxes faces
4 16 125.6368 21 -93.8438 125.6368 24 -93.8438 125.62038 24 -93.90525 125.62038 0 -93.90525
4 16 125.62038 0 -93.90525 126.8015 10 -89.49715 126.8015 12 -89.49715 125.6368 21 -93.8438
3 16 125.62038 0 -93.90525 128.0956 0 -84.66751 126.8015 10 -89.49715
4 16 164.25742 0 -104.25801 125.62038 0 -93.90525 125.62038 24 -93.90525 164.25742 24 -104.25801
4 16 164.25742 24 -104.25801 164.2739 24 -104.1965 164.2739 21 -104.1965 164.25742 0 -104.25801
4 16 165.4386 12 -99.84987 165.4386 10 -99.84987 164.25742 0 -104.25801 164.2739 21 -104.1965
3 16 164.25742 0 -104.25801 165.4386 10 -99.84987 166.7327 0 -95.02024
4 16 205.4262 21 49.38557 205.4262 24 49.38557 205.66862 24 50.29025 205.66862 0 50.29025
4 16 205.66862 0 50.29025 204.2615 10 45.03894 204.2615 12 45.03894 205.4262 21 49.38557
3 16 205.66862 0 50.29025 202.9674 0 40.20928 204.2615 10 45.03894
4 16 167.03158 24 60.64301 166.7892 24 59.7384 166.7892 21 59.7384 167.03158 0 60.64301
4 16 167.03158 0 60.64301 166.7892 21 59.7384 165.6245 12 55.39171 165.6245 10 55.39171
3 16 167.03158 0 60.64301 165.6245 10 55.39171 164.3304 0 50.56211
4 16 205.66862 24 50.29025 167.03158 24 60.64301 167.03158 0 60.64301 205.66862 0 50.29025
0 // Edges
2 24 167.03158 0 60.64301 167.03158 24 60.64301
2 24 125.62038 24 -93.90525 125.62038 0 -93.90525
2 24 205.66862 24 50.29025 205.66862 0 50.29025
2 24 164.25742 0 -104.25801 164.25742 24 -104.25801
0 // Front lower arch
4 16 97.3298 21 -88.0153 73.1599 21 -84.2952 73.1599 24 -84.2952 97.3298 24 -88.0153
4 16 121.3144 21 -92.7861 97.3298 21 -88.0153 97.3298 24 -88.0153 121.3144 24 -92.7861
4 16 125.6368 24 -93.8438 125.6368 21 -93.8438 121.3144 21 -92.7861 121.3144 24 -92.7861
4 16 191.7023 21 -113.3023 168.5456 21 -105.4416 168.5456 24 -105.4416 191.7023 24 -113.3023
4 16 214.4941 21 -122.1655 191.7023 21 -113.3023 191.7023 24 -113.3023 214.4941 24 -122.1655
4 16 168.5456 21 -105.4416 164.2739 21 -104.1965 164.2739 24 -104.1965 168.5456 24 -105.4416
4 16 214.4941 21 -122.1655 214.4941 24 -122.1655 233.5333 24 -130.543 233.5333 21 -130.543
4 16 73.1599 24 -84.2952 73.1599 21 -84.2952 52.48277 21 -82.03067 52.48277 24 -82.03067
4 16 98.1112 12 -83.5836 73.7473 12 -79.8337 73.1599 21 -84.2952 97.3298 21 -88.0153
4 16 122.2884 12 -88.3928 98.1112 12 -83.5836 97.3298 21 -88.0153 121.3144 21 -92.7861
4 16 193.2414 12 -109.0737 169.8988 12 -101.1499 168.5456 21 -105.4416 191.7023 21 -113.3023
4 16 216.2161 12 -118.0081 193.2414 12 -109.0737 191.7023 21 -113.3023 214.4941 21 -122.1655
4 16 60.63657 12 -78.39782 52.5764 19 -81.03518 52.48277 21 -82.03067 73.1599 21 -84.2952
3 16 73.1599 21 -84.2952 73.7473 12 -79.8337 60.63657 12 -78.39782
4 16 126.8015 12 -89.49715 122.2884 12 -88.3928 121.3144 21 -92.7861 125.6368 21 -93.8438
4 16 164.2739 21 -104.1965 168.5456 21 -105.4416 169.8988 12 -101.1499 165.4386 12 -99.84987
4 16 214.4941 21 -122.1655 233.5333 21 -130.543 233.9499 19 -129.6341 228.2883 12 -123.32
3 16 228.2883 12 -123.32 216.2161 12 -118.0081 214.4941 21 -122.1655
0 // Edges
2 24 73.1599 24 -84.2952 97.3298 24 -88.0153
2 24 52.48277 24 -82.03067 73.1599 24 -84.2952
2 24 97.3298 24 -88.0153 121.3144 24 -92.7861
2 24 121.3144 24 -92.7861 125.6368 24 -93.8438
2 24 125.62038 24 -93.90525 125.6368 24 -93.8438
2 24 164.25742 24 -104.25801 125.62038 24 -93.90525
2 24 164.2739 24 -104.1965 164.25742 24 -104.25801
2 24 164.2739 24 -104.1965 168.5456 24 -105.4416
2 24 214.4941 24 -122.1655 233.5333 24 -130.543
2 24 191.7023 24 -113.3023 214.4941 24 -122.1655
2 24 168.5456 24 -105.4416 191.7023 24 -113.3023
2 24 52.48277 24 -82.03067 52.48277 21 -82.03067
2 24 125.6368 21 -93.8438 125.6368 24 -93.8438
2 24 164.2739 24 -104.1965 164.2739 21 -104.1965
2 24 233.5333 21 -130.543 233.5333 24 -130.543
2 24 73.1599 21 -84.2952 52.48277 21 -82.03067
2 24 97.3298 21 -88.0153 73.1599 21 -84.2952
2 24 121.3144 21 -92.7861 97.3298 21 -88.0153
2 24 125.6368 21 -93.8438 121.3144 21 -92.786
2 24 168.5456 21 -105.4416 164.2739 21 -104.1965
2 24 191.7023 21 -113.3023 168.5456 21 -105.4416
2 24 214.4941 21 -122.1655 191.7023 21 -113.3023
2 24 233.5333 21 -130.543 214.4941 21 -122.1655
2 24 52.48277 21 -82.03067 52.5764 19 -81.03518
2 24 233.9499 19 -129.6341 233.5333 21 -130.543
2 24 52.5764 19 -81.03518 60.63657 12 -78.39782
2 24 126.8015 12 -89.49715 125.6368 21 -93.8438
2 24 164.2739 21 -104.1965 165.4386 12 -99.84987
2 24 228.2883 12 -123.32 233.9499 19 -129.6341
2 24 73.7473 12 -79.8337 60.63657 12 -78.39782
2 24 98.1112 12 -83.5836 122.2884 12 -88.392
2 24 122.2884 12 -88.3928 126.8015 12 -89.49715
2 24 73.7473 12 -79.8337 98.1112 12 -83.5836
2 24 193.2414 12 -109.0737 216.2161 12 -118.0081
2 24 165.4386 12 -99.84987 169.8988 12 -101.1499
2 24 228.2883 12 -123.32 216.2161 12 -118.0081
2 24 169.8988 12 -101.1499 193.2414 12 -109.0737
2 24 52.48277 24 -82.03067 52.81049 24 -78.54645
2 24 233.5333 24 -130.543 234.9916 24 -127.3617
0 // Conditional lines
5 24 73.1599 24 -84.2952 73.1599 21 -84.2952 97.3298 24 -88.0153 52.48277 24 -82.03067
5 24 97.3298 24 -88.0153 97.3298 21 -88.0153 121.3144 24 -92.7861 73.1599 24 -84.2952
5 24 121.3144 24 -92.7861 121.3144 21 -92.7861 125.6368 24 -93.8438 97.3298 24 -88.0153
5 24 168.5456 24 -105.4416 168.5456 21 -105.4416 191.7023 24 -113.3023 164.2739 24 -104.1965
5 24 191.7023 24 -113.3023 191.7023 21 -113.3023 214.4941 24 -122.1655 168.5456 24 -105.4416
5 24 214.4941 24 -122.1655 214.4941 21 -122.1655 191.7023 24 -113.3023 233.5333 24 -130.543
5 24 73.1599 21 -84.2952 73.7473 12 -79.8337 97.3298 21 -88.0153 52.48277 21 -82.03067
5 24 97.3298 21 -88.0153 98.1112 12 -83.5836 121.3144 21 -92.7861 73.1599 21 -84.2952
5 24 121.3144 21 -92.7861 122.2884 12 -88.3928 125.6368 21 -93.8438 97.3298 21 -88.0153
5 24 168.5456 21 -105.4416 169.8988 12 -101.1499 191.7023 21 -113.3023 164.2739 21 -104.1965
5 24 191.7023 21 -113.3023 193.2414 12 -109.0737 214.4941 21 -122.1655 168.5456 21 -105.4416
5 24 214.4941 21 -122.1655 216.2161 12 -118.0081 233.5333 21 -130.543 191.7023 21 -113.3023
0 // Rear lower arch
4 16 299.7809 21 13.97741 299.7809 24 13.97741 275.3407 24 24.7313 275.3407 21 24.7313
4 16 246.0835 21 36.1088 275.3407 21 24.7313 275.3407 24 24.7313 246.0835 24 36.1088
4 16 216.3578 21 46.1993 246.0835 21 36.1088 246.0835 24 36.1088 216.3578 24 46.1993
4 16 216.3578 24 46.1993 205.4262 24 49.38557 205.4262 21 49.38557 216.3578 21 46.1993
4 16 124.9399 21 68.5692 155.7283 21 62.445 155.7283 24 62.445 124.9399 24 68.5692
4 16 93.9136 21 73.3446 124.9399 21 68.5692 124.9399 24 68.5692 93.9136 24 73.3446
4 16 166.7892 21 59.7384 166.7892 24 59.7384 155.7283 24 62.445 155.7283 21 62.445
4 16 93.9136 21 73.3446 93.9136 24 73.3446 67.37083 24 76.2515 67.37083 21 76.2515
4 16 244.5444 12 31.8802 273.6187 12 20.5739 275.3407 21 24.7313 246.0835 21 36.1088
4 16 215.0046 12 41.9076 244.5444 12 31.8802 246.0835 21 36.1088 216.3578 21 46.1993
4 16 124.1584 12 64.1375 154.7543 12 58.0516 155.7283 21 62.445 124.9399 21 68.5692
4 16 93.3262 12 68.8831 124.1584 12 64.1375 124.9399 21 68.5692 93.9136 21 73.3446
3 16 275.3407 21 24.7313 273.6187 12 20.5739 290.7861 12 13.02007
4 16 275.3407 21 24.7313 290.7861 12 13.02007 299.3643 19 13.06849 299.7809 21 13.97741
4 16 215.0046 12 41.9076 216.3578 21 46.1993 205.4262 21 49.38557 204.2615 12 45.03894
4 16 165.6245 12 55.39171 166.7892 21 59.7384 155.7283 21 62.445 154.7543 12 58.0516
4 16 93.9136 21 73.3446 67.37083 21 76.2515 67.2772 19 75.25601 74.68191 12 70.92497
3 16 74.68191 12 70.92497 93.3262 12 68.8831 93.9136 21 73.3446
0 // Edges
2 24 205.66862 24 50.29025 167.03158 24 60.64301
2 24 67.37083 24 76.2515 93.9136 24 73.3446
2 24 167.03158 24 60.64301 166.7892 24 59.7384
2 24 205.4262 24 49.38557 205.66862 24 50.29025
2 24 216.3578 24 46.1993 246.0835 24 36.1088
2 24 246.0835 24 36.1088 275.3407 24 24.7313
2 24 205.4262 24 49.38557 216.3578 24 46.1993
2 24 275.3407 24 24.7313 299.7809 24 13.97741
2 24 93.9136 24 73.3446 124.9399 24 68.5692
2 24 155.7283 24 62.445 166.7892 24 59.7384
2 24 124.9399 24 68.5692 155.7283 24 62.445
2 24 67.37083 21 76.2515 67.37083 24 76.2515
2 24 166.7892 24 59.7384 166.7892 21 59.7384
2 24 205.4262 21 49.38557 205.4262 24 49.38557
2 24 299.7809 24 13.97741 299.7809 21 13.97741
2 24 67.2772 19 75.25601 67.37083 21 76.2515
2 24 74.68191 12 70.92497 67.2772 19 75.25601
2 24 166.7892 21 59.7384 165.6245 12 55.39171
2 24 204.2615 12 45.03894 205.4262 21 49.38557
2 24 299.7809 21 13.97741 299.3643 19 13.06849
2 24 299.3643 19 13.06849 290.7861 12 13.02007
2 24 67.37083 21 76.2515 93.9136 21 73.3446
2 24 93.9136 21 73.3446 124.9399 21 68.5692
2 24 124.9399 21 68.5692 155.7283 21 62.445
2 24 155.7283 21 62.445 166.7892 21 59.7384
2 24 205.4262 21 49.38557 216.3578 21 46.1993
2 24 216.3578 21 46.1993 246.0835 21 36.1088
2 24 246.0835 21 36.1088 275.3407 21 24.7313
2 24 275.3407 21 24.7313 299.7809 21 13.97741
2 24 74.68191 12 70.92497 93.3262 12 68.8831
2 24 124.1584 12 64.1375 93.3262 12 68.8831
2 24 154.7543 12 58.0516 124.1584 12 64.1375
2 24 165.6245 12 55.39171 154.7543 12 58.0516
2 24 215.0046 12 41.9076 204.2615 12 45.03894
2 24 244.5444 12 31.8802 215.0046 12 41.9076
2 24 273.6187 12 20.5739 244.5444 12 31.8802
2 24 273.6187 12 20.5739 290.7861 12 13.02007
2 24 67.37083 24 76.2515 67.04311 24 72.76728
2 24 298.3226 24 10.79615 299.7809 24 13.97741
0 // Conditional lines
5 24 93.9136 24 73.3446 93.9136 21 73.3446 124.9399 24 68.5692 67.37083 24 76.2515
5 24 124.9399 24 68.5692 124.9399 21 68.5692 155.7283 24 62.445 93.9136 24 73.3446
5 24 155.7283 24 62.445 155.7283 21 62.445 166.7892 24 59.7384 124.9399 24 68.5692
5 24 216.3578 24 46.1993 216.3578 21 46.1993 246.0835 21 36.1088 205.4262 24 49.38557
5 24 246.0835 24 36.1088 246.0835 21 36.1088 275.3407 21 24.7313 216.3578 24 46.1993
5 24 275.3407 24 24.7313 275.3407 21 24.7313 299.7809 21 13.97741 246.0835 24 36.1088
5 24 93.9136 21 73.3446 93.3262 12 68.8831 124.9399 21 68.5692 67.37083 21 76.2515
5 24 124.9399 21 68.5692 124.1584 12 64.1375 93.9136 21 73.3446 155.7283 21 62.445
5 24 155.7283 21 62.445 154.7543 12 58.0516 166.7892 21 59.7384 124.9399 21 68.5692
5 24 216.3578 21 46.1993 215.0046 12 41.9076 246.0835 21 36.1088 205.4262 21 49.38557
5 24 246.0835 21 36.1088 244.5444 12 31.8802 275.3407 21 24.7313 216.3578 21 46.1993
5 24 275.3407 21 24.7313 273.6187 12 20.5739 299.7809 21 13.97741 246.0835 21 36.1088
0 // Front upper arch
3 16 20 0 -80.4364 0 0 -80 20 20 -80.4364
4 16 0 0 -80 0 40 -80 20 40 -80.4364 20 20 -80.4364
3 16 20 0 -70.43639 20 0 -80.4364 20 20 -80.4364
3 16 48.8072 20 -82.131 24.4269 20 -80.533 24.4269 48 -80.533
4 16 32.48569 48 -81.06121 48.8072 31.65002 -82.131 48.8072 20 -82.131 24.4269 48 -80.533
4 16 52.43595 20 -82.52841 48.8072 20 -82.131 48.8072 31.65002 -82.131 52.43595 28 -82.52841
4 16 24.4269 48 -80.533 24.4269 20 -80.533 20 20 -80.4364 20 40 -80.4364
3 16 24.4269 48 -80.533 20 40 -80.4364 20 48 -80.4364
4 16 49.6788 0 -72.169 24.8631 0 -70.5425 24.4269 20 -80.533 48.8072 20 -82.131
4 16 98.9795 0 -78.6596 74.3999 0 -74.8764 73.7473 10 -79.8337 98.1112 10 -83.5836
4 16 123.3706 0 -83.5113 98.9795 0 -78.6596 98.1112 10 -83.5836 122.2884 10 -88.3928
4 16 24.8631 0 -70.5425 20 0 -70.43639 20 20 -80.4364 24.4269 20 -80.533
4 16 49.6788 0 -72.169 48.8072 20 -82.131 52.43595 20 -82.52841 52.48277 19 -82.03067
3 16 52.48277 19 -82.03067 62.84586 10 -78.63975 49.6788 0 -72.169
4 16 49.6788 0 -72.169 62.84586 10 -78.63975 73.7473 10 -79.8337 74.3999 0 -74.8764
4 16 122.2884 10 -88.3928 126.8015 10 -89.49715 128.0956 0 -84.66751 123.3706 0 -83.5113
4 16 194.9515 0 -104.3752 171.4023 0 -96.3813 169.8988 10 -101.1499 193.2414 10 -109.0737
4 16 218.1296 0 -113.3887 194.9515 0 -104.3752 193.2414 10 -109.0737 216.2161 10 -118.0081
4 16 263.1967 0 -134.4038 240.8924 0 -123.4046 236.6662 20 -132.4676 258.5792 20 -143.2739
4 16 166.7327 0 -95.02024 165.4386 10 -99.84987 169.8988 10 -101.1499 171.4023 0 -96.3813
4 16 233.325 20 -130.9974 236.6662 20 -132.4676 240.8924 0 -123.4046 233.5333 19 -130.543
3 16 240.8924 0 -123.4046 226.254 10 -122.4249 233.5333 19 -130.543
4 16 218.1296 0 -113.3887 216.2161 10 -118.0081 226.254 10 -122.4249 240.8924 0 -123.4046
4 16 262.4614 20 -145.4038 267.4614 0 -136.7435 263.1967 0 -134.4038 258.5792 20 -143.2739
3 16 262.4614 0 -145.4038 267.4614 0 -136.7435 262.4614 20 -145.4038
4 16 236.6662 31.64997 -132.4676 236.6662 20 -132.4676 233.325 20 -130.9974 233.325 28 -130.9974
4 16 236.6662 31.64997 -132.4676 251.336 48 -139.7019 258.5792 48 -143.2739 258.5792 20 -143.2739
3 16 258.5792 20 -143.2739 236.6662 20 -132.4676 236.6662 31.64997 -132.4676
4 16 258.5792 48 -143.2739 262.4614 40 -145.4038 262.4614 20 -145.4038 258.5792 20 -143.2739
4 16 262.4614 40 -145.4038 280 40 -155.0258 280 0 -155.0258 262.4614 20 -145.4038
3 16 262.4614 40 -145.4038 258.5792 48 -143.2739 262.4614 48 -145.4038
3 16 280 0 -155.0258 262.4614 0 -145.4038 262.4614 20 -145.4038
0 // Edges
2 24 20 20 -80.4364 24.4269 20 -80.533
2 24 48.8072 20 -82.131 24.4269 20 -80.533
2 24 52.43595 20 -82.52841 48.8072 20 -82.131
2 24 233.325 20 -130.9974 236.6662 20 -132.4676
2 24 236.6662 20 -132.4676 258.5792 20 -143.2739
2 24 258.5792 20 -143.2739 262.4614 20 -145.4038
2 24 20 0 -80.4364 20 20 -80.4364
2 24 20 20 -80.4364 20 0 -70.43639
2 24 128.0956 0 -84.66751 126.8015 10 -89.49715
2 24 165.4386 10 -99.84987 166.7327 0 -95.02024
2 24 267.4614 0 -136.7435 262.4614 20 -145.4038
2 24 262.4614 0 -145.4038 262.4614 20 -145.4038
2 24 52.43595 28 -82.52841 52.43595 20 -82.52841
2 24 233.325 20 -130.9974 233.325 28 -130.9974
2 24 52.43595 20 -82.52841 52.48277 19 -82.03067
2 24 52.48277 19 -82.03067 62.84586 10 -78.63975
2 24 62.84586 10 -78.63975 73.7473 10 -79.8337
2 24 73.7473 10 -79.8337 98.1112 10 -83.5836
2 24 98.1112 10 -83.5836 122.2884 10 -88.3928
2 24 122.2884 10 -88.3928 126.8015 10 -89.49715
2 24 165.4386 10 -99.84987 169.8988 10 -101.1499
2 24 169.8988 10 -101.1499 193.2414 10 -109.0737
2 24 193.2414 10 -109.0737 216.2161 10 -118.0081
2 24 216.2161 10 -118.0081 226.254 10 -122.4249
2 24 226.254 10 -122.4249 233.5333 19 -130.543
2 24 233.5333 19 -130.543 233.325 20 -130.9974
0 // Conditional lines
5 24 24.4269 20 -80.533 24.4269 48 -80.533 48.8072 20 -82.131 20 20 -80.4364
5 24 48.8072 20 -82.131 48.8072 31.65002 -82.131 52.43595 20 -82.52841 24.4269 20 -80.533
5 24 236.6662 20 -132.4676 236.6662 31.64997 -132.4676 258.5792 20 -143.2739 233.325 20 -130.9974
5 24 258.5792 20 -143.2739 258.5792 48 -143.2739 262.4614 20 -145.4038 236.6662 20 -132.4676
5 24 24.8631 0 -70.5425 24.4269 20 -80.533 49.6788 0 -72.169 20 0 -70.43639
5 24 49.6788 0 -72.169 48.8072 20 -82.131 74.3999 0 -74.8764 24.8631 0 -70.5425
5 24 74.3999 0 -74.8764 73.7473 10 -79.8337 98.9795 0 -78.6596 49.6788 0 -72.169
5 24 98.9795 0 -78.6596 98.1112 10 -83.5836 123.3706 0 -83.5113 74.3999 0 -74.8764
5 24 123.3706 0 -83.5113 122.2884 10 -88.3928 128.0956 0 -84.66751 98.9795 0 -78.6596
5 24 171.4023 0 -96.3813 169.8988 10 -101.1499 194.9515 0 -104.3752 166.7327 0 -95.02024
5 24 194.9515 0 -104.3752 193.2414 10 -109.0737 218.1296 0 -113.3887 171.4023 0 -96.3813
5 24 218.1296 0 -113.3887 216.2161 10 -118.0081 240.8924 0 -123.4046 194.9515 0 -104.3752
5 24 240.8924 0 -123.4046 236.6662 20 -132.4676 263.1967 0 -134.4038 218.1296 0 -113.3887
5 24 263.1967 0 -134.4038 258.5792 20 -143.2739 267.4614 0 -136.7435 240.8924 0 -123.4046
0 // Rear upper arch
3 16 20 0 79.5636 20 20 79.56359 0 0 80
4 16 67.41765 20 76.74924 67.41765 28 76.74924 62.7521 32.6929 77.2602 62.7521 20 77.2602
4 16 62.7521 20 77.2602 62.7521 32.6929 77.2602 47.47165 48 78.26172 31.406 48 79.3147
3 16 31.406 48 79.3147 31.406 20 79.3147 62.7521 20 77.2602
4 16 0 0 80 20 20 79.56359 20 40 79.56359 0 40 80
4 16 20 40 79.56359 20 20 79.56359 31.406 20 79.3147 31.406 48 79.3147
3 16 20 20 79.56359 20 0 79.5636 20 0 69.56357
3 16 20 40 79.56359 31.406 48 79.3147 20 48 79.56359
4 16 123.2902 0 59.2135 153.6721 0 53.1702 154.7543 10 58.0516 124.1584 10 64.1375
4 16 92.6736 0 63.9259 123.2902 0 59.2135 124.1584 10 64.1375 93.3262 10 68.8831
4 16 67.41765 20 76.74924 62.7521 20 77.2602 61.8806 0 67.2982 67.37083 19 76.25149
3 16 61.8806 0 67.2982 76.89119 10 70.68299 67.37083 19 76.25149
4 16 30.9698 0 69.3242 61.8806 0 67.2982 62.7521 20 77.2602 31.406 20 79.3147
4 16 165.6245 10 55.39171 154.7543 10 58.0516 153.6721 0 53.1702 164.3304 0 50.56211
4 16 30.9698 0 69.3242 31.406 20 79.3147 20 20 79.56359 20 0 69.56357
4 16 61.8806 0 67.2982 92.6736 0 63.9259 93.3262 10 68.8831 76.89119 10 70.68299
4 16 300.059 0 3.4785 327.8415 0 -10.2223 332.459 20 -1.3522 304.2851 20 12.5416
4 16 242.8343 0 27.1818 271.7052 0 15.9544 273.6187 10 20.5739 244.5444 10 31.8802
4 16 213.5011 0 37.139 242.8343 0 27.1818 244.5444 10 31.8802 215.0046 10 41.9076
4 16 327.8415 0 -10.2223 337.4613 0 -15.49992 342.4613 20 -6.83965 332.459 20 -1.3522
4 16 300.059 0 3.4785 304.2851 20 12.5416 299.9892 20 14.43185 299.7809 19 13.97738
3 16 299.7809 19 13.97738 288.7518 10 13.91507 300.059 0 3.4785
4 16 300.059 0 3.4785 288.7518 10 13.91507 273.6187 10 20.5739 271.7052 0 15.9544
4 16 204.2615 10 45.03894 202.9674 0 40.20928 213.5011 0 37.139 215.0046 10 41.9076
3 16 342.4613 0 -6.83965 342.4613 20 -6.83965 337.4613 0 -15.49992
3 16 304.2851 20 12.5416 332.459 20 -1.3522 332.459 48 -1.3522
4 16 304.2851 20 12.5416 332.459 48 -1.3522 318.0192 48 5.768704 304.2851 32.69282 12.5416
4 16 304.2851 32.69282 12.5416 299.9892 28 14.43185 299.9892 20 14.43185 304.2851 20 12.5416
4 16 332.459 48 -1.3522 332.459 20 -1.3522 342.4613 20 -6.83965 342.4613 40 -6.83965
4 16 360 40 -16.4617 342.4613 40 -6.83965 342.4613 20 -6.83965 360 0 -16.4617
3 16 332.459 48 -1.3522 342.4613 40 -6.83965 342.4613 48 -6.83965
3 16 342.4613 20 -6.83965 342.4613 0 -6.83965 360 0 -16.4617
0 // Edges
2 24 20 20 79.56359 31.406 20 79.3147
2 24 31.406 20 79.3147 62.7521 20 77.2602
2 24 62.7521 20 77.2602 67.41765 20 76.74924
2 24 299.9892 20 14.43185 304.2851 20 12.5416
2 24 304.2851 20 12.5416 332.459 20 -1.3522
2 24 332.459 20 -1.3522 342.4613 20 -6.83965
2 24 20 0 79.5636 20 20 79.56359
2 24 20 20 79.56359 20 0 69.56357
2 24 165.6245 10 55.39171 164.3304 0 50.56211
2 24 202.9674 0 40.20928 204.2615 10 45.03894
2 24 342.4613 20 -6.83965 337.4613 0 -15.49992
2 24 342.4613 0 -6.83965 342.4613 20 -6.83965
2 24 67.41765 20 76.74924 67.41765 28 76.74924
2 24 67.37083 19 76.25149 67.41765 20 76.74924
2 24 76.89119 10 70.68299 67.37083 19 76.25149
2 24 76.89119 10 70.68299 93.3262 10 68.8831
2 24 93.3262 10 68.8831 124.1584 10 64.1375
2 24 124.1584 10 64.1375 154.7543 10 58.0516
2 24 154.7543 10 58.0516 165.6245 10 55.39171
2 24 204.2615 10 45.03894 215.0046 10 41.9076
2 24 215.0046 10 41.9076 244.5444 10 31.8802
2 24 244.5444 10 31.8802 273.6187 10 20.5739
2 24 273.6187 10 20.5739 288.7518 10 13.91507
2 24 288.7518 10 13.91507 299.7809 19 13.97738
2 24 299.7809 19 13.97738 299.9892 20 14.43185
2 24 299.9892 20 14.43185 299.9892 28 14.43185
0 // Conditional lines
5 24 31.406 20 79.3147 31.406 48 79.3147 62.7521 20 77.2602 20 20 79.56359
5 24 62.7521 20 77.2602 62.7521 32.6929 77.2602 67.41765 20 76.74924 31.406 20 79.3147
5 24 304.2851 20 12.5416 304.2851 32.69282 12.5416 332.459 20 -1.3522 299.9892 20 14.43185
5 24 332.459 20 -1.3522 332.459 48 -1.3522 342.4613 20 -6.83965 304.2851 20 12.5416
5 24 30.9698 0 69.3242 31.406 20 79.3147 61.8806 0 67.2982 20 0 69.56357
5 24 61.8806 0 67.2982 62.7521 20 77.2602 92.6736 0 63.9259 30.9698 0 69.3242
5 24 92.6736 0 63.9259 93.3262 10 68.8831 123.2902 0 59.2135 61.8806 0 67.2982
5 24 123.2902 0 59.2135 124.1584 10 64.1375 153.6721 0 53.1702 92.6736 0 63.9259
5 24 153.6721 0 53.1702 154.7543 10 58.0516 164.3304 0 50.56211 123.2902 0 59.2135
5 24 213.5011 0 37.139 215.0046 10 41.9076 242.8343 0 27.1818 202.9674 0 40.20928
5 24 242.8343 0 27.1818 244.5444 10 31.8802 271.7052 0 15.9544 213.5011 0 37.139
5 24 271.7052 0 15.9544 273.6187 10 20.5739 300.059 0 3.4785 242.8343 0 27.1818
5 24 300.059 0 3.4785 304.2851 20 12.5416 327.8415 0 -10.2223 271.7052 0 15.9544
5 24 327.8415 0 -10.2223 332.459 20 -1.3522 337.4613 0 -15.49992 300.059 0 3.4785
0 // Stripe arch
4 16 98.1112 10 -83.5836 73.7473 10 -79.8337 73.7473 12 -79.8337 98.1112 12 -83.5836
4 16 122.2884 10 -88.3928 98.1112 10 -83.5836 98.1112 12 -83.5836 122.2884 12 -88.3928
4 16 60.63657 12 -78.39782 73.7473 12 -79.8337 73.7473 10 -79.8337 62.84586 10 -78.63975
4 16 122.2884 10 -88.3928 122.2884 12 -88.3928 126.8015 12 -89.49715 126.8015 10 -89.49715
4 16 60.63657 12 -78.39782 62.84586 10 -78.63975 52.48277 19 -82.03067 52.5764 19 -81.03518
4 16 52.48277 21 -82.03067 52.5764 19 -81.03518 52.48277 19 -82.03067 52.43595 20 -82.52841
4 16 52.43595 28 -82.52841 52.48277 24 -82.03067 52.48277 21 -82.03067 52.43595 20 -82.52841
4 16 193.2414 10 -109.0737 169.8988 10 -101.1499 169.8988 12 -101.1499 193.2414 12 -109.0737
4 16 216.2161 10 -118.0081 193.2414 10 -109.0737 193.2414 12 -109.0737 216.2161 12 -118.0081
4 16 165.4386 12 -99.84987 169.8988 12 -101.1499 169.8988 10 -101.1499 165.4386 10 -99.84987
4 16 228.2883 12 -123.32 226.254 10 -122.4249 216.2161 10 -118.0081 216.2161 12 -118.0081
4 16 228.2883 12 -123.32 233.9499 19 -129.6341 233.5333 19 -130.543 226.254 10 -122.4249
4 16 233.9499 19 -129.6341 233.5333 21 -130.543 233.325 20 -130.9974 233.5333 19 -130.543
4 16 233.325 28 -130.9974 233.325 20 -130.9974 233.5333 21 -130.543 233.5333 24 -130.543
4 16 124.1584 10 64.1375 154.7543 10 58.0516 154.7543 12 58.0516 124.1584 12 64.1375
4 16 93.3262 10 68.8831 124.1584 10 64.1375 124.1584 12 64.1375 93.3262 12 68.8831
4 16 165.6245 10 55.39171 165.6245 12 55.39171 154.7543 12 58.0516 154.7543 10 58.0516
4 16 93.3262 12 68.8831 74.68191 12 70.92497 76.89119 10 70.68299 93.3262 10 68.8831
4 16 74.68191 12 70.92497 67.2772 19 75.25601 67.37083 19 76.25149 76.89119 10 70.68299
4 16 67.37083 21 76.2515 67.41765 20 76.74924 67.37083 19 76.25149 67.2772 19 75.25601
4 16 67.41765 28 76.74924 67.41765 20 76.74924 67.37083 21 76.2515 67.37083 24 76.2515
4 16 244.5444 10 31.8802 273.6187 10 20.5739 273.6187 12 20.5739 244.5444 12 31.8802
4 16 215.0046 10 41.9076 244.5444 10 31.8802 244.5444 12 31.8802 215.0046 12 41.9076
4 16 273.6187 10 20.5739 288.7518 10 13.91507 290.7861 12 13.02007 273.6187 12 20.5739
4 16 204.2615 12 45.03894 204.2615 10 45.03894 215.0046 10 41.9076 215.0046 12 41.9076
4 16 290.7861 12 13.02007 288.7518 10 13.91507 299.7809 19 13.97738 299.3643 19 13.06849
4 16 299.3643 19 13.06849 299.7809 19 13.97738 299.9892 20 14.43185 299.7809 21 13.97741
4 16 299.9892 20 14.43185 299.9892 28 14.43185 299.7809 24 13.97741 299.7809 21 13.97741
0 // Edges
2 24 67.37083 19 76.25149 67.2772 19 75.25601
2 24 74.68191 12 70.92497 76.89119 10 70.68299
2 24 52.48277 19 -82.03067 52.5764 19 -81.03518
2 24 60.63657 12 -78.39782 62.84586 10 -78.63975
2 24 299.3643 19 13.06849 299.7809 19 13.97738
2 24 288.7518 10 13.91507 290.7861 12 13.02007
2 24 233.9499 19 -129.6341 233.5333 19 -130.543
2 24 228.2883 12 -123.32 226.254 10 -122.4249
2 24 165.6245 10 55.39171 165.6245 12 55.39171
2 24 126.8015 12 -89.49715 126.8015 10 -89.49715
2 24 204.2615 12 45.03894 204.2615 10 45.03894
2 24 165.4386 10 -99.84987 165.4386 12 -99.84987
0 // Conditional lines
5 24 93.3262 12 68.8831 93.3262 10 68.8831 124.1584 12 64.1375 74.68191 12 70.92497
5 24 124.1584 12 64.1375 124.1584 10 64.1375 154.7543 12 58.0516 93.3262 12 68.8831
5 24 154.7543 12 58.0516 154.7543 10 58.0516 165.6245 12 55.39171 124.1584 12 64.1375
5 24 73.7473 12 -79.8337 73.7473 10 -79.8337 98.1112 12 -83.5836 60.63657 12 -78.39782
5 24 98.1112 12 -83.5836 98.1112 10 -83.5836 122.2884 12 -88.3928 73.7473 12 -79.8337
5 24 122.2884 12 -88.3928 122.2884 10 -88.3928 126.8015 12 -89.49715 98.1112 12 -83.5836
5 24 215.0046 12 41.9076 215.0046 10 41.9076 244.5444 12 31.8802 204.2615 12 45.03894
5 24 244.5444 12 31.8802 244.5444 10 31.8802 273.6187 12 20.5739 215.0046 12 41.9076
5 24 273.6187 12 20.5739 273.6187 10 20.5739 290.7861 12 13.02007 244.5444 12 31.8802
5 24 169.8988 12 -101.1499 169.8988 10 -101.1499 193.2414 12 -109.0737 165.4386 12 -99.84987
5 24 193.2414 12 -109.0737 193.2414 10 -109.0737 216.2161 12 -118.0081 169.8988 12 -101.1499
5 24 216.2161 12 -118.0081 216.2161 10 -118.0081 228.2883 12 -123.32 193.2414 12 -109.0737
0 // Central archs
4 16 25.2992 0 -60.552 50.5503 0 -62.2071 50.5503 24 -62.2071 25.2992 24 -60.552
4 16 75.7052 0 -64.962 100.7159 0 -68.8115 100.7159 24 -68.8115 75.7052 24 -64.962
4 16 100.7159 0 -68.8115 125.535 0 -73.7483 125.535 24 -73.7483 100.7159 24 -68.8115
4 16 174.4094 0 -86.8442 198.3717 0 -94.9783 198.3717 24 -94.9783 174.4094 24 -86.8442
4 16 198.3717 0 -94.9783 221.9564 0 -104.1499 221.9564 24 -104.1499 198.3717 24 -94.9783
4 16 245.1186 0 -114.3415 267.8142 0 -125.5337 267.8142 24 -125.5337 245.1186 24 -114.3415
4 16 0 0 -60 25.2992 0 -60.552 25.2992 24 -60.552 0 24 -60
4 16 50.5503 24 -62.2071 50.5503 0 -62.2071 75.7052 0 -64.962 75.7052 24 -64.962
3 16 125.535 24 -73.7483 125.535 0 -73.7483 130.6838 24 -75.00822
4 16 150.115 24 -79.763 130.6838 24 -75.00822 125.535 0 -73.7483 150.115 0 -79.763
3 16 174.4094 0 -86.8442 174.4094 24 -86.8442 169.3209 24 -85.36102
4 16 150.115 0 -79.763 174.4094 0 -86.8442 169.3209 24 -85.36102 150.115 24 -79.763
4 16 245.1186 24 -114.3415 221.9564 24 -104.1499 221.9564 0 -104.1499 245.1186 0 -114.3415
4 16 290 0 -137.7053 290 24 -137.7053 267.8142 24 -125.5337 267.8142 0 -125.5337
4 16 61.009 0 57.3363 30.5336 0 59.3338 30.5336 24 59.3338 61.009 24 57.3363
4 16 121.5537 0 49.3654 91.3683 0 54.0114 91.3683 24 54.0114 121.5537 24 49.3654
4 16 151.5077 0 43.4072 121.5537 0 49.3654 121.5537 24 49.3654 151.5077 24 43.4072
4 16 239.4141 0 17.7848 210.4941 0 27.6019 210.4941 24 27.6019 239.4141 24 17.7848
4 16 267.8784 0 6.7157 239.4141 0 17.7848 239.4141 24 17.7848 267.8784 24 6.7157
4 16 323.224 0 -19.0924 295.8328 0 -5.5845 295.8328 24 -5.5845 323.224 24 -19.0924
4 16 30.5336 24 59.3338 30.5336 0 59.3338 0 0 60 0 24 60
4 16 61.009 0 57.3363 61.009 24 57.3363 91.3683 24 54.0114 91.3683 0 54.0114
3 16 161.7422 24 40.90284 151.5077 0 43.4072 151.5077 24 43.4072
4 16 151.5077 0 43.4072 161.7422 24 40.90284 181.1733 24 36.1481 181.1733 0 36.1481
3 16 210.4941 0 27.6019 200.3792 24 30.5501 210.4941 24 27.6019
4 16 181.1733 0 36.1481 181.1733 24 36.1481 200.3792 24 30.5501 210.4941 0 27.6019
4 16 295.8328 24 -5.5845 295.8328 0 -5.5845 267.8784 0 6.7157 267.8784 24 6.7157
4 16 323.224 24 -19.0924 350 24 -33.7822 350 0 -33.7822 323.224 0 -19.0924
0 // Conditional lines
5 24 30.5336 24 59.3338 30.5336 0 59.3338 0 0 60 61.009 0 57.3363
5 24 61.009 24 57.3363 61.009 0 57.3363 91.3683 0 54.0114 30.5336 0 59.3338
5 24 91.3683 24 54.0114 91.3683 0 54.0114 121.5537 0 49.3654 61.009 0 57.3363
5 24 121.5537 24 49.3654 121.5537 0 49.3654 151.5077 0 43.4072 91.3683 0 54.0114
5 24 151.5077 24 43.4072 151.5077 0 43.4072 181.1733 0 36.1481 121.5537 0 49.3654
5 24 181.1733 24 36.1481 181.1733 0 36.1481 151.5077 0 43.4072 210.4941 0 27.6019
5 24 210.4941 24 27.6019 210.4941 0 27.6019 239.4141 0 17.7848 181.1733 0 36.1481
5 24 239.4141 24 17.7848 239.4141 0 17.7848 267.8784 0 6.7157 210.4941 0 27.6019
5 24 267.8784 24 6.7157 267.8784 0 6.7157 295.8328 0 -5.5845 239.4141 0 17.7848
5 24 295.8328 24 -5.5845 295.8328 0 -5.5845 267.8784 0 6.7157 323.224 0 -19.0924
5 24 323.224 24 -19.0924 323.224 0 -19.0924 350 0 -33.7822 295.8328 0 -5.5845
5 24 25.2992 24 -60.552 25.2992 0 -60.552 50.5503 0 -62.2071 0 0 -60
5 24 50.5503 24 -62.2071 50.5503 0 -62.2071 75.7052 0 -64.962 25.2992 0 -60.552
5 24 75.7052 24 -64.962 75.7052 0 -64.962 100.7159 0 -68.8115 50.5503 0 -62.2071
5 24 100.7159 24 -68.8115 100.7159 0 -68.8115 125.535 0 -73.7483 75.7052 0 -64.962
5 24 125.535 24 -73.7483 125.535 0 -73.7483 150.115 0 -79.763 100.7159 0 -68.8115
5 24 150.115 24 -79.763 150.115 0 -79.763 174.4094 0 -86.8442 125.535 0 -73.7483
5 24 174.4094 24 -86.8442 174.4094 0 -86.8442 198.3717 0 -94.9783 150.115 0 -79.763
5 24 198.3717 24 -94.9783 198.3717 0 -94.9783 221.9564 0 -104.1499 174.4094 0 -86.8442
5 24 221.9564 24 -104.1499 221.9564 0 -104.1499 245.1186 0 -114.3415 198.3717 0 -94.9783
5 24 245.1186 24 -114.3415 245.1186 0 -114.3415 267.8142 0 -125.5337 221.9564 0 -104.1499
5 24 267.8142 24 -125.5337 267.8142 0 -125.5337 290 0 -137.7053 245.1186 0 -114.3415
0 // End cutouts
3 16 20 40 79.56359 20 48 79.56359 20 40 76
3 16 20 40 76 20 48 79.56359 20 40 71.5
3 16 20 48 59.56363 20 40 59.56363 20 40 64
3 16 20 48 59.56363 20 40 64 20 40 68.5
4 16 20 48 79.56359 20 48 59.56363 20 40 68.5 20 40 71.5
3 16 20 40 -60.43638 20 48 -60.43638 20 40 -64
3 16 20 40 -64 20 48 -60.43638 20 40 -68.5
3 16 20 48 -80.4364 20 40 -80.4364 20 40 -76
3 16 20 48 -80.4364 20 40 -76 20 40 -71.5
4 16 20 48 -80.4364 20 40 -71.5 20 40 -68.5 20 48 -60.43638
3 16 332.4613 40 -24.16016 332.4613 48 -24.16016 334.6794 40 -20.31808
3 16 334.6794 40 -20.31808 332.4613 48 -24.16016 336.9294 40 -16.420945
3 16 342.4613 48 -6.83965 342.4613 40 -6.83965 340.6794 40 -9.92572
3 16 342.4613 48 -6.83965 340.6794 40 -9.92572 338.4294 40 -13.822855
4 16 342.4613 48 -6.83965 338.4294 40 -13.822855 336.9294 40 -16.420945 332.4613 48 -24.16016
3 16 272.4614 48 -128.0832 272.4614 40 -128.0832 270.6794 40 -131.16992
3 16 272.4614 48 -128.0832 270.6794 40 -131.16992 268.4294 40 -135.067055
3 16 262.4614 40 -145.4038 262.4614 48 -145.4038 264.6794 40 -141.56228
3 16 264.6794 40 -141.56228 262.4614 48 -145.4038 266.9294 40 -137.665145
4 16 272.4614 48 -128.0832 268.4294 40 -135.067055 266.9294 40 -137.665145 262.4614 48 -145.403
0 // Edges
2 24 20 48 79.56359 20 40 79.56359
2 24 20 40 59.56363 20 48 59.56363
2 24 20 40 -60.43638 20 48 -60.43638
2 24 20 48 -80.4364 20 40 -80.4364
2 24 342.4613 48 -6.83965 342.4613 40 -6.83965
2 24 332.4613 40 -24.16016 332.4613 48 -24.16016
2 24 272.4614 48 -128.0832 272.4614 40 -128.0832
2 24 262.4614 40 -145.4038 262.4614 48 -145.4038
0 // Central cutouts
4 16 170.4688 24 -81.0757 131.8318 24 -70.7229 131.8318 28 -70.7229 170.4688 28 -81.0757
3 16 169.3209 24 -85.36102 168.2856 28 -89.22469 168.2856 24 -89.22469
4 16 170.4688 24 -81.0757 170.4688 28 -81.0757 168.2856 28 -89.22469 169.3209 24 -85.36102
4 16 131.8318 28 -70.7229 131.8318 24 -70.7229 130.6838 24 -75.00822 129.6486 28 -78.87193
3 16 129.6486 24 -78.87193 129.6486 28 -78.87193 130.6838 24 -75.00822
4 16 160.8195 24 37.4608 199.4566 24 27.108 199.4566 28 27.108 160.8195 28 37.4608
3 16 201.4145 28 34.41376 200.3792 24 30.5501 201.4145 24 34.41376
4 16 199.4566 28 27.108 199.4566 24 27.108 200.3792 24 30.5501 201.4145 28 34.41376
4 16 160.8195 28 37.4608 162.7775 28 44.76656 161.7422 24 40.90284 160.8195 24 37.4608
3 16 161.7422 24 40.90284 162.7775 28 44.76656 162.7775 24 44.76656
0 // Edges
2 24 160.8195 28 37.4608 160.8195 24 37.4608
2 24 131.8318 28 -70.7229 131.8318 24 -70.7229
2 24 199.4566 28 27.108 199.4566 24 27.108
2 24 170.4688 28 -81.0757 170.4688 24 -81.0757
2 24 162.7775 24 44.76656 162.7775 28 44.76656
2 24 129.6486 28 -78.87193 129.6486 24 -78.87193
2 24 201.4145 28 34.41376 201.4145 24 34.41376
2 24 168.2856 28 -89.22469 168.2856 24 -89.22469
2 24 162.7775 24 44.76656 161.7422 24 40.90284
2 24 130.6838 24 -75.00822 129.6486 24 -78.87193
2 24 200.3792 24 30.5501 201.4145 24 34.41376
2 24 168.2856 24 -89.22469 169.3209 24 -85.36102
0 // Underside front arch
4 16 52.81049 24 -78.54645 73.6168 24 -80.8251 73.1599 24 -84.2952 52.48277 24 -82.03067
4 16 73.6168 24 -80.8251 97.9375 24 -84.5684 97.3298 24 -88.0153 73.1599 24 -84.2952
4 16 97.9375 24 -84.5684 122.0719 24 -89.3691 121.3144 24 -92.7861 97.3298 24 -88.0153
4 16 125.6368 24 -93.8438 121.3144 24 -92.7861 122.0719 24 -89.3691 126.5427 24 -90.46308
4 16 234.9916 24 -127.3617 233.5333 24 -130.543 214.4941 24 -122.1655 215.8334 24 -118.9319
4 16 215.8334 24 -118.9319 214.4941 24 -122.1655 191.7023 24 -113.3023 192.8994 24 -110.0134
4 16 192.8994 24 -110.0134 191.7023 24 -113.3023 168.5456 24 -105.4416 169.5981 24 -102.1036
4 16 164.2739 24 -104.1965 165.1798 24 -100.8158 169.5981 24 -102.1036 168.5456 24 -105.4416
3 16 161.4289 24 -99.35865 165.1798 24 -100.8158 164.2739 24 -104.1965
3 16 130.51928 24 -91.07645 125.6368 24 -93.8438 126.5427 24 -90.46308
4 16 133.6251 24 -79.48535 130.51928 24 -91.07645 126.5427 24 -90.46308 129.6486 24 -78.87193
4 16 150.115 24 -79.763 133.6251 24 -79.48535 129.6486 24 -78.87193 130.6838 24 -75.00822
4 16 169.3209 24 -85.36102 168.2856 24 -89.22469 164.53472 24 -87.76755 150.115 24 -79.763
3 16 164.53472 24 -87.76755 133.6251 24 -79.48535 150.115 24 -79.763
4 16 168.2856 24 -89.22469 165.1798 24 -100.8158 161.4289 24 -99.35865 164.53472 24 -87.76755
4 16 164.2739 24 -104.1965 164.25742 24 -104.25801 125.62038 24 -93.90525 125.6368 24 -93.8438
4 16 125.6368 24 -93.8438 130.51928 24 -91.07645 161.4289 24 -99.35865 164.2739 24 -104.1965
4 16 24.6013 24 -76.5368 24.6013 48 -76.5368 24 48 -76.5237 24 24 -76.5237
4 16 24.6013 48 -76.5368 24.6013 24 -76.5368 49.1558 24 -78.1462 49.1558 31.67612 -78.1462
3 16 49.1558 31.67612 -78.1462 32.86034 48 -77.07813 24.6013 48 -76.5368
4 16 52.81049 24 -78.54645 52.81049 28 -78.54645 49.1558 31.67612 -78.1462 49.1558 24 -78.1462
3 16 24 48 -64.5237 24 4 -64.5237 24 48 -76.5237
4 16 24 4 -70.5237 24 24 -76.5237 24 48 -76.5237 24 4 -64.5237
4 16 24.8631 4 -70.5425 49.6788 4 -72.169 49.1558 24 -78.1462 24.6013 24 -76.5368
4 16 74.3999 4 -74.8764 98.9795 4 -78.6596 97.9375 24 -84.5684 73.6168 24 -80.8251
4 16 98.9795 4 -78.6596 123.3706 4 -83.5113 122.0719 24 -89.3691 97.9375 24 -84.5684
4 16 24 24 -76.5237 24 4 -70.5237 24.8631 4 -70.5425 24.6013 24 -76.5368
3 16 52.81049 24 -78.54645 49.1558 24 -78.1462 49.6788 4 -72.169
4 16 73.6168 24 -80.8251 52.81049 24 -78.54645 49.6788 4 -72.169 74.3999 4 -74.8764
4 16 128.0956 4 -84.66751 126.5427 24 -90.46308 122.0719 24 -89.3691 123.3706 4 -83.5113
4 16 100.0214 28 -72.7507 100.0214 4 -72.7507 75.1831 4 -68.9278 75.1831 28 -68.9278
4 16 124.6692 28 -77.6535 124.6692 4 -77.6535 100.0214 4 -72.7507 100.0214 28 -72.7507
4 16 25.1248 48 -64.5482 25.1248 4 -64.5482 24 4 -64.5237 24 48 -64.5237
4 16 50.2017 4 -66.1919 25.1248 4 -64.5482 25.1248 48 -64.5482 33.98428 48 -65.12891
3 16 33.98428 48 -65.12891 50.2017 31.7543 -66.1919 50.2017 4 -66.1919
4 16 75.1831 4 -68.9278 50.2017 4 -66.1919 53.93412 28 -66.60066 75.1831 28 -68.9278
3 16 50.2017 31.7543 -66.1919 53.93412 28 -66.60066 50.2017 4 -66.1919
4 16 129.6486 4 -78.87193 124.6692 4 -77.6535 124.6692 28 -77.6535 129.6486 24 -78.87193
4 16 126.5427 24 -90.46308 128.0956 4 -84.66751 129.6486 4 -78.87193 129.6486 24 -78.87193
3 16 129.6486 24 -78.87193 124.6692 28 -77.6535 129.6486 28 -78.87193
4 16 234.9916 24 -127.3617 238.3567 24 -128.8424 238.3567 31.67608 -128.8424 234.9916 28 -127.3617
3 16 238.3567 24 -128.8424 260.4262 24 -139.7259 260.4262 48 -139.7259
4 16 238.3567 24 -128.8424 260.4262 48 -139.7259 253.0031 48 -136.0652 238.3567 31.67608 -128.8424
4 16 260.4262 24 -139.7259 260.9535 24 -140.0152 260.9535 48 -140.0152 260.4262 48 -139.7259
4 16 171.4023 4 -96.3813 194.9515 4 -104.3752 192.8994 24 -110.0134 169.5981 24 -102.1036
4 16 194.9515 4 -104.3752 218.1296 4 -113.3887 215.8334 24 -118.9319 192.8994 24 -110.0134
4 16 240.8924 4 -123.4046 263.1967 4 -134.4038 260.4262 24 -139.7259 238.3567 24 -128.8424
4 16 169.5981 24 -102.1036 165.1798 24 -100.8158 166.739 4 -95.0221 171.4023 4 -96.3813
3 16 238.3567 24 -128.8424 234.9916 24 -127.3617 240.8924 4 -123.4046
4 16 234.9916 24 -127.3617 215.8334 24 -118.9319 218.1296 4 -113.3887 240.8924 4 -123.4046
4 16 263.9536 4 -134.819 260.9535 24 -140.0152 260.4262 24 -139.7259 263.1967 4 -134.4038
4 16 173.2065 4 -90.659 168.2856 4 -89.22469 168.2856 24 -89.22469 173.2065 28 -90.659
4 16 197.0036 28 -98.7371 197.0036 4 -98.7371 173.2065 4 -90.659 173.2065 28 -90.659
4 16 220.4256 28 -107.8454 220.4256 4 -107.8454 197.0036 4 -98.7371 197.0036 28 -98.7371
3 16 265.9672 48 -129.0818 265.9672 4 -129.0818 243.4281 4 -117.9667
4 16 243.4281 4 -117.9667 243.4281 31.75427 -117.9667 258.0043 48 -125.1549 265.9672 48 -129.0818
4 16 239.9914 28 -116.4545 243.4281 4 -117.9667 220.4256 4 -107.8454 220.4256 28 -107.8454
3 16 243.4281 31.75427 -117.9667 243.4281 4 -117.9667 239.9914 28 -116.4545
4 16 266.9535 48 -129.6229 266.9535 4 -129.6229 265.9672 4 -129.0818 265.9672 48 -129.0818
4 16 168.2856 4 -89.22469 166.739 4 -95.0221 165.1798 24 -100.8158 168.2856 24 -89.22469
3 16 173.2065 28 -90.659 168.2856 24 -89.22469 168.2856 28 -89.22469
3 16 266.9535 4 -129.6229 266.9535 48 -129.6229 260.9535 48 -140.0152
4 16 266.9535 4 -129.6229 260.9535 48 -140.0152 260.9535 24 -140.0152 263.9536 4 -134.819
0 // Edges
2 24 24 4 -64.5237 24 4 -70.5237
2 24 24 48 -64.5237 24 4 -64.5237
2 24 24 24 -76.5237 24 48 -76.5237
2 24 24 4 -70.5237 24 24 -76.5237
2 24 129.6486 4 -78.87193 124.6692 4 -77.6535
2 24 50.2017 4 -66.1919 75.1831 4 -68.9278
2 24 50.2017 4 -66.1919 25.1248 4 -64.5482
2 24 25.1248 4 -64.5482 24 4 -64.5237
2 24 124.6692 4 -77.6535 100.0214 4 -72.7507
2 24 75.1831 4 -68.9278 100.0214 4 -72.7507
2 24 98.9795 4 -78.6596 123.3706 4 -83.5113
2 24 74.3999 4 -74.8764 49.6788 4 -72.169
2 24 24 4 -70.5237 24.8631 4 -70.5425
2 24 24.8631 4 -70.5425 49.6788 4 -72.169
2 24 123.3706 4 -83.5113 128.0956 4 -84.66751
2 24 98.9795 4 -78.6596 74.3999 4 -74.8764
2 24 128.0956 4 -84.66751 129.6486 4 -78.87193
2 24 128.0956 4 -84.66751 126.5427 24 -90.46308
2 24 129.6486 24 -78.87193 129.6486 4 -78.87193
2 24 166.739 4 -95.0221 168.2856 4 -89.22469
2 24 168.2856 4 -89.22469 168.2856 24 -89.22469
2 24 165.1798 24 -100.8158 166.739 4 -95.0221
2 24 265.9672 4 -129.0818 266.9535 4 -129.6229
2 24 168.2856 4 -89.22469 173.2065 4 -90.659
2 24 197.0036 4 -98.7371 220.4256 4 -107.8454
2 24 265.9672 4 -129.0818 243.4281 4 -117.9667
2 24 220.4256 4 -107.8454 243.4281 4 -117.9667
2 24 173.2065 4 -90.659 197.0036 4 -98.7371
2 24 263.9536 4 -134.819 263.1967 4 -134.4038
2 24 240.8924 4 -123.4046 218.1296 4 -113.3887
2 24 171.4023 4 -96.3813 166.739 4 -95.0221
2 24 218.1296 4 -113.3887 194.9515 4 -104.3752
2 24 263.1967 4 -134.4038 240.8924 4 -123.4046
2 24 194.9515 4 -104.3752 171.4023 4 -96.3813
2 24 266.9535 4 -129.6229 263.9536 4 -134.819
2 24 263.9536 4 -134.819 260.9535 24 -140.0152
2 24 260.9535 24 -140.0152 260.9535 48 -140.0152
2 24 266.9535 4 -129.6229 266.9535 48 -129.6229
2 24 24 24 -76.5237 24.6013 24 -76.5368
2 24 24.6013 24 -76.5368 49.1558 24 -78.1462
2 24 49.1558 24 -78.1462 52.81049 24 -78.54645
2 24 234.9916 24 -127.3617 238.3567 24 -128.8424
2 24 238.3567 24 -128.8424 260.4262 24 -139.7259
2 24 260.4262 24 -139.7259 260.9535 24 -140.0152
2 24 52.81049 24 -78.54645 73.6168 24 -80.8251
2 24 73.6168 24 -80.8251 97.9375 24 -84.5684
2 24 97.9375 24 -84.5684 122.0719 24 -89.3691
2 24 122.0719 24 -89.3691 126.5427 24 -90.46308
2 24 126.5427 24 -90.46308 129.6486 24 -78.87193
2 24 168.2856 24 -89.22469 165.1798 24 -100.8158
2 24 165.1798 24 -100.8158 169.5981 24 -102.1036
2 24 169.5981 24 -102.1036 192.8994 24 -110.0134
2 24 192.8994 24 -110.0134 215.8334 24 -118.9319
2 24 215.8334 24 -118.9319 234.9916 24 -127.3617
2 24 52.81049 24 -78.54645 52.81049 28 -78.54645
2 24 234.9916 24 -127.3617 234.9916 28 -127.3617
0 // Conditional lines
5 24 25.1248 4 -64.5482 25.1248 48 -64.5482 50.2017 4 -66.1919 24 4 -64.5237
5 24 50.2017 4 -66.1919 50.2017 31.7543 -66.1919 75.1831 4 -68.9278 25.1248 4 -64.5482
5 24 75.1831 4 -68.9278 75.1831 28 -68.9278 100.0214 4 -72.7507 50.2017 4 -66.1919
5 24 100.0214 4 -72.7507 100.0214 28 -72.7507 124.6692 4 -77.6535 75.1831 4 -68.9278
5 24 124.6692 4 -77.6535 124.6692 28 -77.6535 129.6486 4 -78.87193 100.0214 4 -72.7507
5 24 173.2065 4 -90.659 173.2065 28 -90.659 197.0036 4 -98.7371 168.2856 4 -89.22469
5 24 197.0036 4 -98.7371 197.0036 28 -98.7371 220.4256 4 -107.8454 173.2065 4 -90.659
5 24 220.4256 4 -107.8454 220.4256 28 -107.8454 243.4281 4 -117.9667 197.0036 4 -98.7371
5 24 243.4281 4 -117.9667 243.4281 31.75427 -117.9667 265.9672 4 -129.0818 220.4256 4 -107.8454
5 24 265.9672 4 -129.0818 265.9672 48 -129.0818 266.9535 4 -129.6229 243.4281 4 -117.9667
5 24 24.6013 24 -76.5368 24.6013 48 -76.5368 24 24 -76.5237 49.1558 24 -78.1462
5 24 49.1558 24 -78.1462 49.1558 31.67612 -78.1462 52.81049 24 -78.54645 24.6013 24 -76.5368
5 24 238.3567 24 -128.8424 238.3567 31.67608 -128.8424 260.4262 24 -139.7259 234.9916 24 -127.3617
5 24 260.4262 24 -139.7259 260.4262 48 -139.7259 260.9535 24 -140.0152 238.3567 24 -128.8424
0 // Underside rear arch
4 16 67.04311 24 72.76728 67.37083 24 76.2515 93.9136 24 73.3446 93.4568 24 69.8745
4 16 93.4568 24 69.8745 93.9136 24 73.3446 124.9399 24 68.5692 124.3321 24 65.1224
4 16 124.3321 24 65.1224 124.9399 24 68.5692 155.7283 24 62.445 154.9708 24 59.0279
4 16 154.9708 24 59.0279 155.7283 24 62.445 166.7892 24 59.7384 165.8833 24 56.35764
4 16 299.7809 24 13.97741 298.3226 24 10.79615 274.0013 24 21.4977 275.3407 24 24.7313
4 16 274.0013 24 21.4977 244.8864 24 32.8199 246.0835 24 36.1088 275.3407 24 24.7313
4 16 244.8864 24 32.8199 215.3054 24 42.8613 216.3578 24 46.1993 246.0835 24 36.1088
4 16 204.5204 24 46.00486 205.4262 24 49.38557 216.3578 24 46.1993 215.3054 24 42.8613
3 16 166.7892 24 59.7384 169.8601 24 55.74365 165.8833 24 56.35764
3 16 200.76972 24 47.46145 205.4262 24 49.38557 204.5204 24 46.00486
4 16 197.6639 24 35.87035 200.76972 24 47.46145 204.5204 24 46.00486 201.4145 24 34.41376
4 16 162.7775 24 44.76656 165.8833 24 56.35764 169.8601 24 55.74365 166.75428 24 44.15255
4 16 201.4145 24 34.41376 200.3792 24 30.5501 181.1733 24 36.1481 197.6639 24 35.87035
3 16 181.1733 24 36.1481 166.75428 24 44.15255 197.6639 24 35.87035
4 16 161.7422 24 40.90284 162.7775 24 44.76656 166.75428 24 44.15255 181.1733 24 36.1481
4 16 166.7892 24 59.7384 167.03158 24 60.64301 205.66862 24 50.29025 205.4262 24 49.38557
4 16 166.7892 24 59.7384 205.4262 24 49.38557 200.76972 24 47.46145 169.8601 24 55.74365
3 16 62.4035 24 73.2754 31.2315 24 75.3185 31.2315 48 75.3185
4 16 62.4035 32.66681 73.2754 62.4035 24 73.2754 31.2315 48 75.3185 47.097 48 74.27863
4 16 67.04311 24 72.76728 62.4035 24 73.2754 62.4035 32.66681 73.2754 67.04311 28 72.76728
4 16 31.2315 24 75.3185 24 24 75.4763 24 48 75.4763 31.2315 48 75.3185
4 16 61.8806 4 67.2982 30.9698 4 69.3242 31.2315 24 75.3185 62.4035 24 73.2754
4 16 123.2902 4 59.2135 92.6736 4 63.9259 93.4568 24 69.8745 124.3321 24 65.1224
4 16 153.6721 4 53.1702 123.2902 4 59.2135 124.3321 24 65.1224 154.9708 24 59.0279
4 16 24 4 69.4763 24 24 75.4763 31.2315 24 75.3185 30.9698 4 69.3242
3 16 61.8806 4 67.2982 62.4035 24 73.2754 67.04311 24 72.76728
4 16 92.6736 4 63.9259 61.8806 4 67.2982 67.04311 24 72.76728 93.4568 24 69.8745
4 16 165.8833 24 56.35764 164.3304 4 50.56211 153.6721 4 53.1702 154.9708 24 59.0279
3 16 30.708 48 63.3299 30.708 4 63.3299 61.3576 4 61.3211
4 16 61.3576 32.58863 61.3211 45.97305 48 62.32942 30.708 48 63.3299 61.3576 4 61.3211
4 16 65.91948 28 60.82149 61.3576 4 61.3211 91.8904 4 57.9772 91.8904 28 57.9772
3 16 61.3576 4 61.3211 65.91948 28 60.82149 61.3576 32.58863 61.3211
4 16 91.8904 28 57.9772 91.8904 4 57.9772 122.2483 4 53.3047 122.2483 28 53.3047
4 16 122.2483 28 53.3047 122.2483 4 53.3047 152.3735 4 47.3124 152.3735 28 47.3124
4 16 152.3735 28 47.3124 152.3735 4 47.3124 162.7775 4 44.76656 162.7775 24 44.76656
4 16 24 48 63.4763 24 4 63.4763 30.708 4 63.3299 30.708 48 63.3299
4 16 162.7775 4 44.76656 164.3304 4 50.56211 165.8833 24 56.35764 162.7775 24 44.76656
3 16 152.3735 28 47.3124 162.7775 24 44.76656 162.7775 28 44.76656
3 16 24 4 63.4763 24 48 63.4763 24 48 75.4763
4 16 24 48 75.4763 24 24 75.4763 24 4 69.4763 24 4 63.4763
4 16 298.3226 24 10.79615 298.3226 28 10.79615 302.5947 32.66681 8.9164 302.5947 24 8.9164
4 16 330.612 24 -4.9002 302.5947 24 8.9164 302.5947 32.66681 8.9164 316.3521 48 2.131981
3 16 316.3521 48 2.131981 330.612 48 -4.9002 330.612 24 -4.9002
4 16 330.612 48 -4.9002 336.9536 48 -8.3793 336.9536 24 -8.3793 330.612 24 -4.9002
4 16 242.8343 4 27.1818 213.5011 4 37.139 215.3054 24 42.8613 244.8864 24 32.8199
4 16 271.7052 4 15.9544 242.8343 4 27.1818 244.8864 24 32.8199 274.0013 24 21.4977
4 16 330.612 24 -4.9002 327.8415 4 -10.2224 300.059 4 3.4785 302.5947 24 8.9164
4 16 211.6969 28 31.4167 211.6969 4 31.4167 240.7822 4 21.5436 240.7822 28 21.5436
4 16 240.7822 28 21.5436 240.7822 4 21.5436 269.4091 4 10.4112 269.4091 28 10.4112
4 16 213.5011 4 37.139 202.9674 4 40.20928 204.5204 24 46.00486 215.3054 24 42.8613
3 16 298.3226 24 10.79615 302.5947 24 8.9164 300.059 4 3.4785
4 16 271.7052 4 15.9544 274.0013 24 21.4977 298.3226 24 10.79615 300.059 4 3.4785
4 16 327.8415 4 -10.2224 330.612 24 -4.9002 336.9536 24 -8.3793 333.9535 4 -13.5756
4 16 201.4145 4 34.41376 211.6969 4 31.4167 211.6969 28 31.4167 201.4145 24 34.41376
4 16 293.3228 28 -.1110438 269.4091 28 10.4112 269.4091 4 10.4112 297.5233 4 -1.9593
3 16 293.3228 28 -.1110438 297.5233 4 -1.9593 297.5233 32.58861 -1.9593
4 16 297.5233 32.58861 -1.9593 297.5233 4 -1.9593 325.071 4 -15.5444 325.071 48 -15.5444
3 16 325.071 48 -15.5444 311.3509 48 -8.77835 297.5233 32.58861 -1.9593
4 16 325.071 4 -15.5444 330.9535 4 -18.7717 330.9535 48 -18.7717 325.071 48 -15.5444
4 16 202.9674 4 40.20928 201.4145 4 34.41376 201.4145 24 34.41376 204.5204 24 46.00486
3 16 201.4145 24 34.41376 211.6969 28 31.4167 201.4145 28 34.41376
3 16 330.9535 4 -18.7717 336.9536 48 -8.3793 330.9535 48 -18.7717
4 16 330.9535 4 -18.7717 333.9535 4 -13.5756 336.9536 24 -8.3793 336.9536 48 -8.3793
0 // Edges
2 24 24 4 63.4763 24 48 63.4763
2 24 24 4 63.4763 24 4 69.4763
2 24 24 24 75.4763 24 48 75.4763
2 24 24 4 69.4763 24 24 75.4763
2 24 24 4 63.4763 30.708 4 63.3299
2 24 30.708 4 63.3299 61.3576 4 61.3211
2 24 61.3576 4 61.3211 91.8904 4 57.9772
2 24 91.8904 4 57.9772 122.2483 4 53.3047
2 24 122.2483 4 53.3047 152.3735 4 47.3124
2 24 162.7775 4 44.76656 152.3735 4 47.3124
2 24 24 4 69.4763 30.9698 4 69.3242
2 24 30.9698 4 69.3242 61.8806 4 67.2982
2 24 61.8806 4 67.2982 92.6736 4 63.9259
2 24 92.6736 4 63.9259 123.2902 4 59.2135
2 24 123.2902 4 59.2135 153.6721 4 53.1702
2 24 153.6721 4 53.1702 164.3304 4 50.56211
2 24 162.7775 4 44.76656 162.7775 24 44.76656
2 24 164.3304 4 50.56211 162.7775 4 44.76656
2 24 165.8833 24 56.35764 164.3304 4 50.56211
2 24 201.4145 4 34.41376 202.9674 4 40.20928
2 24 202.9674 4 40.20928 204.5204 24 46.00486
2 24 201.4145 24 34.41376 201.4145 4 34.41376
2 24 201.4145 4 34.41376 211.6969 4 31.4167
2 24 211.6969 4 31.4167 240.7822 4 21.5436
2 24 240.7822 4 21.5436 269.4091 4 10.4112
2 24 269.4091 4 10.4112 297.5233 4 -1.9593
2 24 297.5233 4 -1.9593 325.071 4 -15.5444
2 24 330.9535 4 -18.7717 325.071 4 -15.5444
2 24 327.8415 4 -10.2224 333.9535 4 -13.5756
2 24 202.9674 4 40.20928 213.5011 4 37.139
2 24 213.5011 4 37.139 242.8343 4 27.1818
2 24 242.8343 4 27.1818 271.7052 4 15.9544
2 24 271.7052 4 15.9544 300.059 4 3.4785
2 24 300.059 4 3.4785 327.8415 4 -10.2224
2 24 333.9535 4 -13.5756 330.9535 4 -18.7717
2 24 336.9536 24 -8.3793 333.9535 4 -13.5756
2 24 330.9535 48 -18.7717 330.9535 4 -18.7717
2 24 336.9536 48 -8.3793 336.9536 24 -8.3793
2 24 24 24 75.4763 31.2315 24 75.3185
2 24 31.2315 24 75.3185 62.4035 24 73.2754
2 24 62.4035 24 73.2754 67.04311 24 72.76728
2 24 298.3226 24 10.79615 302.5947 24 8.9164
2 24 302.5947 24 8.9164 330.612 24 -4.9002
2 24 330.612 24 -4.9002 336.9536 24 -8.3793
2 24 67.04311 24 72.76728 93.4568 24 69.8745
2 24 93.4568 24 69.8745 124.3321 24 65.1224
2 24 124.3321 24 65.1224 154.9708 24 59.0279
2 24 154.9708 24 59.0279 165.8833 24 56.35764
2 24 165.8833 24 56.35764 162.7775 24 44.76656
2 24 201.4145 24 34.41376 204.5204 24 46.00486
2 24 204.5204 24 46.00486 215.3054 24 42.8613
2 24 215.3054 24 42.8613 244.8864 24 32.8199
2 24 244.8864 24 32.8199 274.0013 24 21.4977
2 24 274.0013 24 21.4977 298.3226 24 10.79615
2 24 67.04311 24 72.76728 67.04311 28 72.76728
2 24 298.3226 24 10.79615 298.3226 28 10.79615
0 // Conditional lines
5 24 30.708 4 63.3299 30.708 48 63.3299 61.3576 4 61.3211 24 4 63.4763
5 24 61.3576 4 61.3211 61.3576 32.58863 61.3211 91.8904 4 57.9772 30.708 4 63.3299
5 24 91.8904 4 57.9772 91.8904 28 57.9772 122.2483 4 53.3047 61.3576 4 61.3211
5 24 122.2483 4 53.3047 122.2483 28 53.3047 152.3735 4 47.3124 91.8904 4 57.9772
5 24 152.3735 4 47.3124 152.3735 28 47.3124 162.7775 4 44.76656 122.2483 4 53.3047
5 24 211.6969 4 31.4167 211.6969 28 31.4167 240.7822 4 21.5436 201.4145 4 34.41376
5 24 240.7822 4 21.5436 240.7822 28 21.5436 269.4091 4 10.4112 211.6969 4 31.4167
5 24 269.4091 4 10.4112 269.4091 28 10.4112 297.5233 4 -1.9593 240.7822 4 21.5436
5 24 297.5233 4 -1.9593 297.5233 32.58861 -1.9593 325.071 4 -15.5444 269.4091 4 10.4112
5 24 325.071 4 -15.5444 325.071 48 -15.5444 330.9535 4 -18.7717 297.5233 4 -1.9593
5 24 30.9698 4 69.3242 31.2315 24 75.3185 61.8806 4 67.2982 24 4 69.4763
5 24 61.8806 4 67.2982 62.4035 24 73.2754 92.6736 4 63.9259 30.9698 4 69.3242
5 24 92.6736 4 63.9259 93.4568 24 69.8745 123.2902 4 59.2135 61.8806 4 67.2982
5 24 123.2902 4 59.2135 124.3321 24 65.1224 153.6721 4 53.1702 92.6736 4 63.9259
5 24 153.6721 4 53.1702 154.9708 24 59.0279 164.3304 4 50.56211 123.2902 4 59.2135
5 24 213.5011 4 37.139 215.3054 24 42.8613 242.8343 4 27.1818 202.9674 4 40.20928
5 24 242.8343 4 27.1818 244.8864 24 32.8199 271.7052 4 15.9544 213.5011 4 37.139
5 24 271.7052 4 15.9544 274.0013 24 21.4977 300.059 4 3.4785 242.8343 4 27.1818
5 24 300.059 4 3.4785 302.5947 24 8.9164 327.8415 4 -10.2224 271.7052 4 15.9544
5 24 327.8415 4 -10.2224 330.612 24 -4.9002 333.9535 4 -13.5756 300.059 4 3.4785
5 24 24.8631 4 -70.5425 24.6013 24 -76.5368 49.6788 4 -72.169 24 4 -70.5237
5 24 49.6788 4 -72.169 49.1558 24 -78.1462 74.3999 4 -74.8764 24.8631 4 -70.5425
5 24 74.3999 4 -74.8764 73.6168 24 -80.8251 98.9795 4 -78.6596 49.6788 4 -72.169
5 24 98.9795 4 -78.6596 97.9375 24 -84.5684 123.3706 4 -83.5113 74.3999 4 -74.8764
5 24 123.3706 4 -83.5113 122.0719 24 -89.3691 128.0956 4 -84.66751 98.9795 4 -78.6596
5 24 171.4023 4 -96.3813 169.5981 24 -102.1036 194.9515 4 -104.3752 166.739 4 -95.0221
5 24 194.9515 4 -104.3752 192.8994 24 -110.0134 218.1296 4 -113.3887 171.4023 4 -96.3813
5 24 218.1296 4 -113.3887 215.8334 24 -118.9319 240.8924 4 -123.4046 194.9515 4 -104.3752
5 24 240.8924 4 -123.4046 238.3567 24 -128.8424 263.1967 4 -134.4038 218.1296 4 -113.3887
5 24 263.1967 4 -134.4038 260.4262 24 -139.7259 263.9536 4 -134.819 240.8924 4 -123.4046
5 24 31.2315 24 75.3185 31.2315 48 75.3185 62.4035 24 73.2754 24 24 75.4763
5 24 62.4035 24 73.2754 62.4035 32.66681 73.2754 31.2315 24 75.3185 67.04311 24 72.76728
5 24 302.5947 24 8.9164 302.5947 32.66681 8.9164 330.612 24 -4.9002 298.3226 24 10.79615
5 24 330.612 24 -4.9002 330.612 48 -4.9002 336.9536 24 -8.3793 302.5947 24 8.9164
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © Massimo Maso
Licensed under CC BY 4.0
Edits:
LDraw.org Parts Tracker,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
