Official File parts/42942.dat
Part Attributes:
File Header:

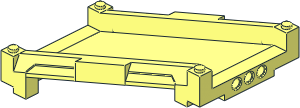

0 Car Track 16 x 8 x 2 Ramp Height 4
0 Name: 42942.dat
0 Author: Massimo Maso [Sirio]
0 !LDRAW_ORG Part UPDATE 2020-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 !HELP Ramp slope 19 degrees
0 BFC CERTIFY CCW
0 !KEYWORDS Race, racetrack, Sports
0 !HISTORY 2013-08-14 {LEGO Digital Designer} Original part shape
0 !HISTORY 2020-05-14 [Sirio] File preparation for LDraw Parts Tracker
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03
