Official File parts/44224.dat
Part Attributes:
File Header:

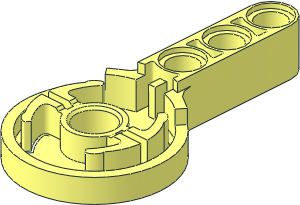

0 Technic Beam 3 with Rotation Joint 3 Socket
0 Name: 44224.dat
0 Author: Guy Vivan [guyvivan]
0 !LDRAW_ORG Part UPDATE 2024-02
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2010-04-05 [PTadmin] Official Update 2010-01
0 !HISTORY 2023-07-25 [MagFors] Adapted to rounded npeg corners
0 !HISTORY 2023-11-19 [OrionP] Official Update 2023-06
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
Show contents
1 16 0 -10 80 9 0 0 0 20 0 0 0 9 2-4cylo.dat
1 16 0 0 80 -1 0 0 0 1 0 0 0 -1 beamhole.dat
1 16 0 0 60 -1 0 0 0 1 0 0 0 -1 beamhole.dat
1 16 0 0 40 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 0 -10 30 1 0 0 0 16 0 0 0 1 npeghol7a.dat
1 16 0 10 40 -9 0 0 0 -1 0 0 0 -9 2-4ndis.dat
2 24 9 -10 28.558 9 -10 80
2 24 -9 -10 28.558 -9 -10 80
2 24 9 10 34.5 9 10 80
2 24 -9 10 34.5 -9 10 80
4 16 9 -10 80 9 -6 34.5 9 10 34.5 9 10 80
4 16 9 -10 80 9 -10 28.558 9 -6 28.558 9 -6 34.5
4 16 -9 10 34.5 -9 -6 34.5 -9 -10 80 -9 10 80
4 16 -9 -6 28.558 -9 -10 28.558 -9 -10 80 -9 -6 34.5
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\44224s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\44224s01.dat
1 16 0 0 0 -1 0 0 0 1 0 0 0 -1 s\44224s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 -1 s\44224s01.dat
1 16 0 10 0 0 0 -30 0 -1 0 30 0 0 48\1-24tndis.dat
1 16 0 10 0 0 0 30 0 -1 0 30 0 0 48\1-24tndis.dat
3 16 11.8465 10 27.9794 13.213 10 26.6819 11.481 10 27.717
3 16 -11.481 10 27.717 -11.8465 10 27.9794 -10.4792 10 29.276
4 16 -11.481 10 27.717 -10.4792 10 29.276 -7.764 10 30 -7.764 10 28.977
4 16 -10.4792 10 29.276 -9.7396 10 30.9709 -9 10 31 -7.764 10 30
3 16 -9 10 31 -9.7396 10 30.9709 -9 10 32.6658
4 16 -7.764 10 30 -9 10 31 0 10 31 0 10 30
3 16 -13.213 10 26.6819 -11.8465 10 27.9794 -11.481 10 27.717
3 16 11.8465 10 27.9794 11.481 10 27.717 10.4792 10 29.276
4 16 11.481 10 27.717 7.764 10 28.977 7.764 10 30 10.4792 10 29.276
4 16 9 10 31 9.7396 10 30.9709 10.4792 10 29.276 7.764 10 30
3 16 9.7396 10 30.9709 9 10 31 9 10 32.6658
4 16 7.764 10 30 0 10 30 0 10 31 9 10 31
1 16 7.682 -8 28.9065 -1.318 1 0 0 0 2 .3485 0 0 rect.dat
1 16 -7.682 -8 28.9065 1.318 -1 0 0 0 -2 .3485 0 0 rect.dat
2 24 -6.3639 -10 30 -6.364 -10 29.255
2 24 6.3639 -10 30 6.364 -10 29.255
4 16 6.3641 6 25.1871 6.3639 6 30 0 6 30 0 6 26
4 16 -6.3639 6 30 -6.3641 6 25.1871 0 6 26 0 6 30
4 16 6.3639 -10 30 6.364 -10 29.255 9 -10 28.558 9 -10 30
4 16 -6.364 -10 29.255 -6.3639 -10 30 -9 -10 30 -9 -10 28.558
4 16 6.3639 -10 30 6.3639 6 30 6.364 -6 29.255 6.364 -10 29.255
4 16 -6.3639 6 30 -6.3639 -10 30 -6.364 -10 29.255 -6.364 -6 29.255
2 24 -6.3639 6 30 -6.3641 6 25.1871
2 24 6.3639 6 30 6.3641 6 25.1871
2 24 -6.364 -6 29.255 -6.3641 -6 25.1871
2 24 6.364 -6 29.255 6.3641 -6 25.1871
4 16 6.3639 6 30 6.3641 6 25.1871 6.3641 -6 25.1871 6.364 -6 29.255
4 16 -6.364 -6 29.255 -6.3641 -6 25.1871 -6.3641 6 25.1871 -6.3639 6 30
2 24 1.5 -6 31.3 0 -6 31
2 24 -1.5 -6 31.3 0 -6 31
1 16 0 0 31.3 1.5 0 0 0 0 -6 0 -5.3 0 box4-2p.dat
1 16 0 0 0 0 0 -30 0 10 0 -30 0 0 48\3-8cylo.dat
1 16 0 0 0 0 0 30 0 10 0 -30 0 0 48\3-8cylo.dat
0 BFC INVERTNEXT
1 16 0 0 0 0 0 26 0 6 0 -26 0 0 48\3-8cylo.dat
0 BFC INVERTNEXT
1 16 0 0 0 0 0 -26 0 6 0 -26 0 0 48\3-8cylo.dat
1 16 0 0 0 2 0 0 0 1 0 0 0 -2 48\1-4ring13.dat
1 16 0 0 0 2 0 0 0 1 0 0 0 -2 48\1-4ring14.dat
1 16 0 0 0 -2 0 0 0 1 0 0 0 -2 48\1-4ring13.dat
1 16 0 0 0 -2 0 0 0 1 0 0 0 -2 48\1-4ring14.dat
1 16 0 0 0 2 0 0 0 1 0 0 0 2 48\1-8ring13.dat
1 16 0 0 0 2 0 0 0 1 0 0 0 2 48\1-8ring14.dat
1 16 0 0 0 -2 0 0 0 1 0 0 0 2 48\1-8ring13.dat
1 16 0 0 0 -2 0 0 0 1 0 0 0 2 48\1-8ring14.dat
0 BFC INVERTNEXT
1 16 0 -6 0 6.7293 0 25.1141 0 12 0 25.1141 0 -6.7293 48\1-16cylo.dat
0 BFC INVERTNEXT
1 16 0 6 0 -6.7293 0 -25.1141 0 -12 0 25.1141 0 -6.7293 48\1-16cylo.dat
1 16 0 -4 0 9 0 0 0 1 0 0 0 -9 48\4-4edge.dat
0 BFC INVERTNEXT
1 16 0 -4 0 1 0 0 0 1 0 0 0 -1 48\4-4con8.dat
1 16 0 -4 0 1 0 0 0 1 0 0 0 -1 48\4-4ring9.dat
1 16 0 -4 0 1 0 0 0 1 0 0 0 -1 48\4-4ring10.dat
1 16 0 -4 0 0 0 11 0 1 0 -11 0 0 48\1-6edge.dat
1 16 0 -4 0 0 0 -11 0 1 0 -11 0 0 48\1-6edge.dat
1 16 0 -4 0 0 0 11 0 1 0 11 0 0 48\1-6edge.dat
1 16 0 -4 0 0 0 -11 0 1 0 11 0 0 48\1-6edge.dat
2 24 9.526 -4 5.5 10.02 -4 4.5
2 24 -9.526 -4 5.5 -10.02 -4 4.5
2 24 -9.526 -4 -5.5 -10.02 -4 -4.5
2 24 9.526 -4 -5.5 10.02 -4 -4.5
1 16 0 -4 0 11 0 0 0 10 0 0 0 -11 48\4-4cyli.dat
1 16 0 6 0 11 0 0 0 1 0 0 0 -11 48\4-4edge.dat
1 16 0 6 0 1 0 0 0 -1 0 0 0 -1 48\4-4ring8.dat
0 BFC INVERTNEXT
1 16 0 -3 0 8 0 0 0 9 0 0 0 -8 48\4-4cylo.dat
0 BFC INVERTNEXT
1 16 0 6 0 9 0 0 0 4 0 0 0 -9 48\4-4cylo.dat
1 16 0 10 0 9 0 0 0 -1 0 0 0 -9 48\4-4ndis.dat
1 16 0 6 0 11 0 0 0 1 0 0 0 11 4-4ndis.dat
1 16 18.7185 -6 34.5 -9.7185 0 0 0 1 0 0 0 -9.22162 3-16tang.dat
0 BFC INVERTNEXT
1 16 18.7185 -6 34.5 -9.7185 0 0 0 16 0 0 0 -9.22162 3-16cylo.dat
1 16 18.7185 10 34.5 -9.7185 0 0 0 -1 0 0 0 -9.22162 3-16tang.dat
1 16 0 -6 0 18.2624 0 -23.8016 0 16 0 23.8016 0 18.2624 48\1-48cylo.dat
4 16 6.364 -6 29.255 6.3641 -6 25.1871 6.7294 -6 25.1142 9 -6 28.558
3 16 9 -6 32.6658 9 -6 28.558 9.7396 -6 30.9709
3 16 9.7396 -6 30.9709 9 -6 28.558 10.4792 -6 29.276
3 16 10.4792 -6 29.276 9 -6 28.558 11.8465 -6 27.9794
4 16 6.7294 -6 25.1142 9.9488 -6 24.0199 11.8465 -6 27.9794 9 -6 28.558
3 16 11.8465 -6 27.9794 9.9488 -6 24.0199 13.213 -6 26.6819
4 16 14.9992 -6 25.9801 13.213 -6 26.6819 9.9488 -6 24.0199 12.9994 -6 22.5162
4 16 12.9994 -6 22.5162 15.82836634 -6 20.62761388 18.2624 -6 23.8016 14.9992 -6 25.9801
1 16 -18.7185 -6 34.5 9.7185 0 0 0 1 0 0 0 -9.22162 3-16tang.dat
0 BFC INVERTNEXT
1 16 -18.7185 -6 34.5 9.7185 0 0 0 16 0 0 0 -9.22162 3-16cylo.dat
1 16 -18.7185 10 34.5 9.7185 0 0 0 -1 0 0 0 -9.22162 3-16tang.dat
1 16 0 -6 0 -18.2624 0 23.8016 0 16 0 23.8016 0 18.2624 48\1-48cylo.dat
4 16 -6.3641 -6 25.1871 -6.364 -6 29.255 -9 -6 28.558 -6.7293 -6 25.1141
3 16 -9 -6 28.558 -9 -6 32.6658 -9.7396 -6 30.9709
3 16 -9 -6 28.558 -9.7396 -6 30.9709 -10.4792 -6 29.276
3 16 -9 -6 28.558 -10.4792 -6 29.276 -11.8465 -6 27.9794
4 16 -11.8465 -6 27.9794 -9.9488 -6 24.0199 -6.7294 -6 25.1142 -9 -6 28.558
3 16 -9.9488 -6 24.0199 -11.8465 -6 27.9794 -13.213 -6 26.6819
4 16 -9.9488 -6 24.0199 -13.213 -6 26.6819 -14.9992 -6 25.9801 -12.9994 -6 22.5162
4 16 -18.2624 -6 23.8016 -15.8284 -6 20.6276 -12.9994 -6 22.5162 -14.9992 -6 25.9801
2 24 9 -6 28.558 9 -6 34.5
2 24 -9 -6 28.558 -9 -6 34.5
1 16 19.7385 5 22.5075 -1.4745 -1 0 0 0 -5 1.2945 0 0 rect2p.dat
1 16 -19.7385 5 22.5075 1.4745 1 0 0 0 5 1.2945 0 0 rect2p.dat
2 24 18.264 0 23.802 18.2624 -6 23.8016
2 24 -18.264 0 23.802 -18.2624 -6 23.8016
2 24 15.829 0 20.628 15.8284 -6 20.6276
2 24 -15.829 0 20.628 -15.8284 -6 20.6276
2 24 15.8284 -6 20.6276 18.2624 -6 23.8016
2 24 15.829 0 20.628 18.264 0 23.802
2 24 -15.8284 -6 20.6276 -18.2624 -6 23.8016
2 24 -15.829 0 20.628 -18.264 0 23.802
4 16 15.829 0 20.628 18.264 0 23.802 18.2624 -6 23.8016 15.8284 -6 20.6276
4 16 -15.8284 -6 20.6276 -18.2624 -6 23.8016 -18.264 0 23.802 -15.829 0 20.628
2 24 18.385 6 18.385 15.8284 6 20.6276
2 24 18.3846 0 18.3846 15.829 0 20.628
3 16 19.7988 0 19.7988 21.213 0 21.213 18.264 0 23.802
4 16 18.264 0 23.802 15.829 0 20.628 18.3846 0 18.3846 19.7988 0 19.7988
4 16 -15.829 0 20.628 -18.264 0 23.802 -19.7988 0 19.7988 -18.3846 0 18.3846
3 16 -18.264 0 23.802 -21.213 0 21.213 -19.7988 0 19.7988
4 16 18.3846 0 18.3846 15.829 0 20.628 15.8284 6 20.6276 18.385 6 18.385
4 16 -18.3846 6 18.3846 -15.8288 6 20.6284 -15.829 0 20.628 -18.3846 0 18.3846
1 16 6.5467 0 25.1506 0 1 -.18265 -6 0 0 0 0 .03645 rect3.dat
1 16 -6.5467 0 25.1506 0 -1 .18265 -6 0 0 0 0 .03645 rect3.dat
2 24 -18.3846 0 18.3846 -15.829 0 20.628
2 24 -18.3846 6 18.3846 -15.8288 6 20.6284
2 24 10.892 -4 1.5 11 -4 0
2 24 -10.892 -4 1.5 -11 -4 0
2 24 -10.892 -4 -1.5 -11 -4 0
2 24 10.892 -4 -1.5 11 -4 0
