Official File parts/44225.dat
Part Attributes:
File Header:

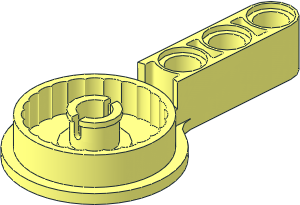

0 Technic Beam 3 with Rotation Joint 3 Pin
0 Name: 44225.dat
0 Author: Guy Vivan [guyvivan]
0 !LDRAW_ORG Part UPDATE 2024-02
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2010-04-05 [PTadmin] Official Update 2010-01
0 !HISTORY 2023-07-25 [MagFors] Adapted to rounded npeg corners
0 !HISTORY 2023-11-19 [OrionP] Official Update 2023-06
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
Show contents
1 16 0 -10 80 9 0 0 0 20 0 0 0 9 2-4cylo.dat
1 16 0 0 80 -1 0 0 0 1 0 0 0 -1 beamhole.dat
1 16 0 0 60 -1 0 0 0 1 0 0 0 -1 beamhole.dat
1 16 0 0 40 1 0 0 0 1 0 0 0 1 connhole.dat
1 16 0 -10 30 1 0 0 0 16 0 0 0 1 npeghol7a.dat
1 16 0 10 40 -9 0 0 0 -1 0 0 0 -9 2-4ndis.dat
2 24 9 -10 28.558 9 -10 80
2 24 -9 -10 28.558 -9 -10 80
2 24 9 10 34.5 9 10 80
2 24 -9 10 34.5 -9 10 80
3 16 9 6 34.5 9 10 34.5 9 10 80
4 16 9 0 28.558 9 6 34.5 9 10 80 9 -10 80
3 16 9 0 28.558 9 6 28.558 9 6 34.5
3 16 9 -10 80 9 -10 28.558 9 0 28.558
4 16 -9 0 28.558 -9 -10 80 -9 10 80 -9 6 34.5
3 16 -9 10 80 -9 10 34.5 -9 6 34.5
3 16 -9 6 34.5 -9 6 28.558 -9 0 28.558
3 16 -9 0 28.558 -9 -10 28.558 -9 -10 80
1 16 0 10 0 1 0 0 0 -1 0 0 0 1 peghole.dat
0 BFC INVERTNEXT
1 16 0 8 0 0 0 6 0 -8 0 6 0 0 4-4cyli.dat
2 24 9 -10 28.558 6.364 -10 29.255
4 16 9 -10 28.558 6.364 -10 29.255 6.364 0 29.255 9 0 28.558
4 16 -9 0 28.558 -6.364 0 29.255 -6.364 -10 29.255 -9 -10 28.558
2 24 -9 -10 28.558 -6.364 -10 29.255
2 24 -6.3639 -10 30 -6.364 -10 29.255
2 24 6.3639 -10 30 6.364 -10 29.255
4 16 -6.3639 6 30 -6.364 6 25.237 6.364 6 25.237 6.3639 6 30
4 16 6.3639 -10 30 6.364 -10 29.255 9 -10 28.558 9 -10 30
4 16 -6.364 -10 29.255 -6.3639 -10 30 -9 -10 30 -9 -10 28.558
4 16 6.364 0 29.255 6.364 -10 29.255 6.3639 -10 30 6.3639 6 30
4 16 -6.364 -10 29.255 -6.364 0 29.255 -6.3639 6 30 -6.3639 -10 30
2 24 9 0 28.558 6.364 0 29.255
2 24 -9 0 28.558 -6.364 0 29.255
2 24 9 -10 28.558 9 0 28.558
2 24 -9 -10 28.558 -9 0 28.558
2 24 6.364 0 29.255 6.364 -10 29.255
2 24 -6.364 0 29.255 -6.364 -10 29.255
2 24 -6.3639 6 30 -6.364 6 25.237
2 24 6.3639 6 30 6.364 6 25.237
2 24 -6.364 0 29.255 -6.364 0 25.237
2 24 6.364 0 29.255 6.364 0 25.237
2 24 6.364 0 25.237 6.364 6 25.237
2 24 -6.364 0 25.237 -6.364 6 25.237
4 16 6.3639 6 30 6.364 6 25.237 6.364 0 25.237 6.364 0 29.255
4 16 -6.364 0 29.255 -6.364 0 25.237 -6.364 6 25.237 -6.3639 6 30
1 16 0 6 28.6 0 0 1.5 0 -6 0 -2.6985 0 0 box3u4p.dat
1 16 0 6 0 0 0 -30 0 4 0 -30 0 0 48\3-8cylo.dat
1 16 0 6 0 0 0 30 0 4 0 -30 0 0 48\3-8cylo.dat
1 16 0 6 0 2 0 0 0 1 0 0 0 -2 48\1-4ring13.dat
1 16 0 6 0 2 0 0 0 1 0 0 0 -2 48\1-4ring14.dat
1 16 0 6 0 -2 0 0 0 1 0 0 0 -2 48\1-4ring13.dat
1 16 0 6 0 -2 0 0 0 1 0 0 0 -2 48\1-4ring14.dat
1 16 0 6 0 2 0 0 0 1 0 0 0 2 48\1-6ring13.dat
1 16 0 6 0 2 0 0 0 1 0 0 0 2 48\1-6ring14.dat
1 16 0 6 0 -2 0 0 0 1 0 0 0 2 48\1-6ring13.dat
1 16 0 6 0 -2 0 0 0 1 0 0 0 2 48\1-6ring14.dat
2 24 1.5 0 31.2985 0 0 31
2 24 -1.5 0 31.2985 0 0 31
2 24 0 0 26 1.5 0 25.9015
2 24 0 0 26 -1.5 0 25.9015
1 16 0 6 0 0 0 12 0 1 0 12 0 0 4-4ring1.dat
2 24 21.213 6 21.213 18.264 6 23.802
2 24 21.213 10 21.213 18.264 10 23.802
1 16 0 -6 0 2 0 0 0 1 0 0 0 -2 48\4-4ring12.dat
1 16 0 -6 0 26 0 0 0 12 0 0 0 -26 48\4-4cylo.dat
2 24 9 6 28.558 9 6 34.5
2 24 -9 6 28.558 -9 6 34.5
2 24 6.729 0 25.113 6.364 0 25.237
2 24 6.729 0 25.113 9.95 0 24.021
2 24 13.000005232 0 22.51597117 9.95 0 24.021
2 24 -6.729 0 25.113 -6.364 0 25.237
2 24 -6.729 0 25.113 -9.95 0 24.021
2 24 -13.000005232 0 22.51597117 -9.95 0 24.021
0 // notched ring
1 16 0 -6 22.307 2.936 0 0 0 -1 0 0 0 1.2 2-4edge.dat
1 16 5.773 -6 21.547 2.83596 0 .310583 0 -1 0 -.759893 0 1.15911 2-4edge.dat
1 16 11.153 -6 19.319 2.54265 0 .6 0 -1 0 -1.468 0 1.03923 2-4edge.dat
1 16 15.773 -6 15.774 2.07607 0 .848528 0 -1 0 -2.07607 0 .848528 2-4edge.dat
1 16 19.318 -6 11.154 1.468 0 1.03923 0 -1 0 -2.54265 0 .6 2-4edge.dat
1 16 21.547 -6 5.774 .759893 0 1.15911 0 -1 0 -2.83596 0 .310583 2-4edge.dat
1 16 0 6 22.307 2.936 0 0 0 -1 0 0 0 1.2 2-4edge.dat
1 16 5.773 6 21.547 2.83596 0 .310583 0 -1 0 -.759893 0 1.15911 2-4edge.dat
1 16 11.153 6 19.319 2.54265 0 .6 0 -1 0 -1.468 0 1.03923 2-4edge.dat
1 16 15.773 6 15.774 2.07607 0 .848528 0 -1 0 -2.07607 0 .848528 2-4edge.dat
1 16 19.318 6 11.154 1.468 0 1.03923 0 -1 0 -2.54265 0 .6 2-4edge.dat
1 16 21.547 6 5.774 .759893 0 1.15911 0 -1 0 -2.83596 0 .310583 2-4edge.dat
0 BFC INVERTNEXT
1 16 0 -6 22.307 2.936 0 0 0 12 0 0 0 1.2 2-4cyli.dat
0 BFC INVERTNEXT
1 16 5.773 -6 21.547 2.83596 0 .310583 0 12 0 -.759893 0 1.15911 2-4cyli.dat
0 BFC INVERTNEXT
1 16 11.153 -6 19.319 2.54265 0 .6 0 12 0 -1.468 0 1.03923 2-4cyli.dat
0 BFC INVERTNEXT
1 16 15.773 -6 15.774 2.07607 0 .848528 0 12 0 -2.07607 0 .848528 2-4cyli.dat
0 BFC INVERTNEXT
1 16 19.318 -6 11.154 1.468 0 1.03923 0 12 0 -2.54265 0 .6 2-4cyli.dat
0 BFC INVERTNEXT
1 16 21.547 -6 5.774 .759893 0 1.15911 0 12 0 -2.83596 0 .310583 2-4cyli.dat
1 16 0 -6 22.307 2.936 0 0 0 1 0 0 0 1.2 2-4ndis.dat
1 16 5.773 -6 21.547 2.83596 0 .310583 0 1 0 -.759893 0 1.15911 2-4ndis.dat
1 16 11.153 -6 19.319 2.54265 0 .6 0 1 0 -1.468 0 1.03923 2-4ndis.dat
1 16 15.773 -6 15.774 2.07607 0 .848528 0 1 0 -2.07607 0 .848528 2-4ndis.dat
1 16 19.318 -6 11.154 1.468 0 1.03923 0 1 0 -2.54265 0 .6 2-4ndis.dat
1 16 21.547 -6 5.774 .759893 0 1.15911 0 1 0 -2.83596 0 .310583 2-4ndis.dat
4 16 -2.936 -6 23.507 0 -6 23.507 0 -6 24 -3.132 -6 23.7936
4 16 0 -6 23.507 2.936 -6 23.507 3.132 -6 23.7936 0 -6 24
4 16 2.936 -6 22.307 3.247623 -6 23.466003 3.132 -6 23.7936 2.936 -6 23.507
4 16 3.247623 -6 23.466003 6.083583 -6 22.70611 6.2112 -6 23.1816 3.132 -6 23.7936
4 16 6.083583 -6 22.70611 8.919543 -6 21.946217 9.1848 -6 22.1736 6.2112 -6 23.1816
4 16 8.60896 -6 20.787107 9.21035 -6 21.82623 9.1848 -6 22.1736 8.919543 -6 21.946217
4 16 9.21035 -6 21.82623 11.753 -6 20.35823 12 -6 20.784 9.1848 -6 22.1736
4 16 11.753 -6 20.35823 14.29565 -6 18.89023 14.6112 -6 19.0416 12 -6 20.784
4 16 13.69565 -6 17.851 14.545458 -6 18.698598 14.6112 -6 19.0416 14.29565 -6 18.89023
4 16 14.545458 -6 18.698598 16.621528 -6 16.622528 16.9704 -6 16.9704 14.6112 -6 19.0416
4 16 16.621528 -6 16.622528 18.697598 -6 14.546458 19.0416 -6 14.6112 16.9704 -6 16.9704
4 16 17.84907 -6 13.69793 18.88923 -6 14.29665 19.0416 -6 14.6112 18.697598 -6 14.546458
4 16 18.88923 -6 14.29665 20.35723 -6 11.754 20.784 -6 12 19.0416 -6 14.6112
4 16 20.35723 -6 11.754 21.82523 -6 9.21135 22.1736 -6 9.1848 20.784 -6 12
4 16 20.786 -6 8.61135 21.946217 -6 8.920543 22.1736 -6 9.1848 21.82523 -6 9.21135
4 16 21.946217 -6 8.920543 22.70611 -6 6.084583 23.1816 -6 6.2112 22.1736 -6 9.1848
4 16 22.70611 -6 6.084583 23.466003 -6 3.248623 23.7936 -6 3.132 23.1816 -6 6.2112
4 16 22.306893 -6 2.93804 23.507 -6 2.936 23.7936 -6 3.132 23.466003 -6 3.248623
1 16 22.307 -6 0 0 0 1.2 0 -1 0 -2.936 0 0 2-4edge.dat
1 16 21.547 -6 -5.773 -.759893 0 1.15911 0 -1 0 -2.83596 0 -.310583 2-4edge.dat
1 16 19.319 -6 -11.153 -1.468 0 1.03923 0 -1 0 -2.54265 0 -.6 2-4edge.dat
1 16 15.774 -6 -15.773 -2.07607 0 .848528 0 -1 0 -2.07607 0 -.848528 2-4edge.dat
1 16 11.154 -6 -19.318 -2.54265 0 .6 0 -1 0 -1.468 0 -1.03923 2-4edge.dat
1 16 5.774 -6 -21.547 -2.83596 0 .310583 0 -1 0 -.759893 0 -1.15911 2-4edge.dat
1 16 22.307 6 0 0 0 1.2 0 -1 0 -2.936 0 0 2-4edge.dat
1 16 21.547 6 -5.773 -.759893 0 1.15911 0 -1 0 -2.83596 0 -.310583 2-4edge.dat
1 16 19.319 6 -11.153 -1.468 0 1.03923 0 -1 0 -2.54265 0 -.6 2-4edge.dat
1 16 15.774 6 -15.773 -2.07607 0 .848528 0 -1 0 -2.07607 0 -.848528 2-4edge.dat
1 16 11.154 6 -19.318 -2.54265 0 .6 0 -1 0 -1.468 0 -1.03923 2-4edge.dat
1 16 5.774 6 -21.547 -2.83596 0 .310583 0 -1 0 -.759893 0 -1.15911 2-4edge.dat
0 BFC INVERTNEXT
1 16 22.307 -6 0 0 0 1.2 0 12 0 -2.936 0 0 2-4cyli.dat
0 BFC INVERTNEXT
1 16 21.547 -6 -5.773 -.759893 0 1.15911 0 12 0 -2.83596 0 -.310583 2-4cyli.dat
0 BFC INVERTNEXT
1 16 19.319 -6 -11.153 -1.468 0 1.03923 0 12 0 -2.54265 0 -.6 2-4cyli.dat
0 BFC INVERTNEXT
1 16 15.774 -6 -15.773 -2.07607 0 .848528 0 12 0 -2.07607 0 -.848528 2-4cyli.dat
0 BFC INVERTNEXT
1 16 11.154 -6 -19.318 -2.54265 0 .6 0 12 0 -1.468 0 -1.03923 2-4cyli.dat
0 BFC INVERTNEXT
1 16 5.774 -6 -21.547 -2.83596 0 .310583 0 12 0 -.759893 0 -1.15911 2-4cyli.dat
1 16 22.307 -6 0 0 0 1.2 0 1 0 -2.936 0 0 2-4ndis.dat
1 16 21.547 -6 -5.773 -.759893 0 1.15911 0 1 0 -2.83596 0 -.310583 2-4ndis.dat
1 16 19.319 -6 -11.153 -1.468 0 1.03923 0 1 0 -2.54265 0 -.6 2-4ndis.dat
1 16 15.774 -6 -15.773 -2.07607 0 .848528 0 1 0 -2.07607 0 -.848528 2-4ndis.dat
1 16 11.154 -6 -19.318 -2.54265 0 .6 0 1 0 -1.468 0 -1.03923 2-4ndis.dat
1 16 5.774 -6 -21.547 -2.83596 0 .310583 0 1 0 -.759893 0 -1.15911 2-4ndis.dat
4 16 23.507 -6 2.936 23.507 -6 0 24 -6 0 23.7936 -6 3.132
4 16 23.507 -6 0 23.507 -6 -2.936 23.7936 -6 -3.132 24 -6 0
4 16 22.307 -6 -2.936 23.466003 -6 -3.247623 23.7936 -6 -3.132 23.507 -6 -2.936
4 16 23.466003 -6 -3.247623 22.70611 -6 -6.083583 23.1816 -6 -6.2112 23.7936 -6 -3.132
4 16 22.70611 -6 -6.083583 21.946217 -6 -8.919543 22.1736 -6 -9.1848 23.1816 -6 -6.2112
4 16 20.787 -6 -8.61035 21.82623 -6 -9.21035 22.1736 -6 -9.1848 21.946217 -6 -8.919543
4 16 21.82623 -6 -9.21035 20.35823 -6 -11.753 20.784 -6 -12 22.1736 -6 -9.1848
4 16 20.35823 -6 -11.753 18.89023 -6 -14.29565 19.0416 -6 -14.6112 20.784 -6 -12
4 16 17.85007 -6 -13.69693 18.698598 -6 -14.545458 19.0416 -6 -14.6112 18.89023 -6 -14.29565
4 16 18.698598 -6 -14.545458 16.622528 -6 -16.621528 16.9704 -6 -16.9704 19.0416 -6 -14.6112
4 16 16.622528 -6 -16.621528 14.546458 -6 -18.697598 14.6112 -6 -19.0416 16.9704 -6 -16.9704
4 16 13.69665 -6 -17.85 14.29665 -6 -18.88923 14.6112 -6 -19.0416 14.546458 -6 -18.697598
4 16 14.29665 -6 -18.88923 11.754 -6 -20.35723 12 -6 -20.784 14.6112 -6 -19.0416
4 16 11.754 -6 -20.35723 9.21135 -6 -21.82523 9.1848 -6 -22.1736 12 -6 -20.784
4 16 8.60996 -6 -20.787107 8.920543 -6 -21.946217 9.1848 -6 -22.1736 9.21135 -6 -21.82523
4 16 8.920543 -6 -21.946217 6.084583 -6 -22.70611 6.2112 -6 -23.1816 9.1848 -6 -22.1736
4 16 6.084583 -6 -22.70611 3.248623 -6 -23.466003 3.132 -6 -23.7936 6.2112 -6 -23.1816
4 16 2.936 -6 -22.307 2.936 -6 -23.507 3.132 -6 -23.7936 3.248623 -6 -23.466003
1 16 0 -6 -22.307 -2.936 0 0 0 -1 0 0 0 -1.2 2-4edge.dat
1 16 -5.773 -6 -21.547 -2.83596 0 -.310583 0 -1 0 .759893 0 -1.15911 2-4edge.dat
1 16 -11.153 -6 -19.319 -2.54265 0 -.6 0 -1 0 1.468 0 -1.03923 2-4edge.dat
1 16 -15.773 -6 -15.774 -2.07607 0 -.848528 0 -1 0 2.07607 0 -.848528 2-4edge.dat
1 16 -19.318 -6 -11.154 -1.468 0 -1.03923 0 -1 0 2.54265 0 -.6 2-4edge.dat
1 16 -21.547 -6 -5.774 -.759893 0 -1.15911 0 -1 0 2.83596 0 -.310583 2-4edge.dat
1 16 0 6 -22.307 -2.936 0 0 0 -1 0 0 0 -1.2 2-4edge.dat
1 16 -5.773 6 -21.547 -2.83596 0 -.310583 0 -1 0 .759893 0 -1.15911 2-4edge.dat
1 16 -11.153 6 -19.319 -2.54265 0 -.6 0 -1 0 1.468 0 -1.03923 2-4edge.dat
1 16 -15.773 6 -15.774 -2.07607 0 -.848528 0 -1 0 2.07607 0 -.848528 2-4edge.dat
1 16 -19.318 6 -11.154 -1.468 0 -1.03923 0 -1 0 2.54265 0 -.6 2-4edge.dat
1 16 -21.547 6 -5.774 -.759893 0 -1.15911 0 -1 0 2.83596 0 -.310583 2-4edge.dat
0 BFC INVERTNEXT
1 16 0 -6 -22.307 -2.936 0 0 0 12 0 0 0 -1.2 2-4cyli.dat
0 BFC INVERTNEXT
1 16 -5.773 -6 -21.547 -2.83596 0 -.310583 0 12 0 .759893 0 -1.15911 2-4cyli.dat
0 BFC INVERTNEXT
1 16 -11.153 -6 -19.319 -2.54265 0 -.6 0 12 0 1.468 0 -1.03923 2-4cyli.dat
0 BFC INVERTNEXT
1 16 -15.773 -6 -15.774 -2.07607 0 -.848528 0 12 0 2.07607 0 -.848528 2-4cyli.dat
0 BFC INVERTNEXT
1 16 -19.318 -6 -11.154 -1.468 0 -1.03923 0 12 0 2.54265 0 -.6 2-4cyli.dat
0 BFC INVERTNEXT
1 16 -21.547 -6 -5.774 -.759893 0 -1.15911 0 12 0 2.83596 0 -.310583 2-4cyli.dat
1 16 0 -6 -22.307 -2.936 0 0 0 1 0 0 0 -1.2 2-4ndis.dat
1 16 -5.773 -6 -21.547 -2.83596 0 -.310583 0 1 0 .759893 0 -1.15911 2-4ndis.dat
1 16 -11.153 -6 -19.319 -2.54265 0 -.6 0 1 0 1.468 0 -1.03923 2-4ndis.dat
1 16 -15.773 -6 -15.774 -2.07607 0 -.848528 0 1 0 2.07607 0 -.848528 2-4ndis.dat
1 16 -19.318 -6 -11.154 -1.468 0 -1.03923 0 1 0 2.54265 0 -.6 2-4ndis.dat
1 16 -21.547 -6 -5.774 -.759893 0 -1.15911 0 1 0 2.83596 0 -.310583 2-4ndis.dat
4 16 2.936 -6 -23.507 0 -6 -23.507 0 -6 -24 3.132 -6 -23.7936
4 16 0 -6 -23.507 -2.936 -6 -23.507 -3.132 -6 -23.7936 0 -6 -24
4 16 -2.936 -6 -22.307 -3.247623 -6 -23.466003 -3.132 -6 -23.7936 -2.936 -6 -23.507
4 16 -3.247623 -6 -23.466003 -6.083583 -6 -22.70611 -6.2112 -6 -23.1816 -3.132 -6 -23.7936
4 16 -6.083583 -6 -22.70611 -8.919543 -6 -21.946217 -9.1848 -6 -22.1736 -6.2112 -6 -23.1816
4 16 -8.61035 -6 -20.787 -9.21035 -6 -21.82623 -9.1848 -6 -22.1736 -8.919543 -6 -21.946217
4 16 -9.21035 -6 -21.82623 -11.753 -6 -20.35823 -12 -6 -20.784 -9.1848 -6 -22.1736
4 16 -11.753 -6 -20.35823 -14.29565 -6 -18.89023 -14.6112 -6 -19.0416 -12 -6 -20.784
4 16 -13.69693 -6 -17.85007 -14.545458 -6 -18.698598 -14.6112 -6 -19.0416 -14.29565 -6 -18.89023
4 16 -14.545458 -6 -18.698598 -16.621528 -6 -16.622528 -16.9704 -6 -16.9704 -14.6112 -6 -19.0416
4 16 -16.621528 -6 -16.622528 -18.697598 -6 -14.546458 -19.0416 -6 -14.6112 -16.9704 -6 -16.9704
4 16 -17.85 -6 -13.69665 -18.88923 -6 -14.29665 -19.0416 -6 -14.6112 -18.697598 -6 -14.546458
4 16 -18.88923 -6 -14.29665 -20.35723 -6 -11.754 -20.784 -6 -12 -19.0416 -6 -14.6112
4 16 -20.35723 -6 -11.754 -21.82523 -6 -9.21135 -22.1736 -6 -9.1848 -20.784 -6 -12
4 16 -20.787107 -6 -8.60996 -21.946217 -6 -8.920543 -22.1736 -6 -9.1848 -21.82523 -6 -9.21135
4 16 -21.946217 -6 -8.920543 -22.70611 -6 -6.084583 -23.1816 -6 -6.2112 -22.1736 -6 -9.1848
4 16 -22.70611 -6 -6.084583 -23.466003 -6 -3.248623 -23.7936 -6 -3.132 -23.1816 -6 -6.2112
4 16 -22.307 -6 -2.936 -23.507 -6 -2.936 -23.7936 -6 -3.132 -23.466003 -6 -3.248623
1 16 -22.307 -6 0 0 0 -1.2 0 -1 0 2.936 0 0 2-4edge.dat
1 16 -21.547 -6 5.773 .759893 0 -1.15911 0 -1 0 2.83596 0 .310583 2-4edge.dat
1 16 -19.319 -6 11.153 1.468 0 -1.03923 0 -1 0 2.54265 0 .6 2-4edge.dat
1 16 -15.774 -6 15.773 2.07607 0 -.848528 0 -1 0 2.07607 0 .848528 2-4edge.dat
1 16 -11.154 -6 19.318 2.54265 0 -.6 0 -1 0 1.468 0 1.03923 2-4edge.dat
1 16 -5.774 -6 21.547 2.83596 0 -.310583 0 -1 0 .759893 0 1.15911 2-4edge.dat
1 16 -22.307 6 0 0 0 -1.2 0 -1 0 2.936 0 0 2-4edge.dat
1 16 -21.547 6 5.773 .759893 0 -1.15911 0 -1 0 2.83596 0 .310583 2-4edge.dat
1 16 -19.319 6 11.153 1.468 0 -1.03923 0 -1 0 2.54265 0 .6 2-4edge.dat
1 16 -15.774 6 15.773 2.07607 0 -.848528 0 -1 0 2.07607 0 .848528 2-4edge.dat
1 16 -11.154 6 19.318 2.54265 0 -.6 0 -1 0 1.468 0 1.03923 2-4edge.dat
1 16 -5.774 6 21.547 2.83596 0 -.310583 0 -1 0 .759893 0 1.15911 2-4edge.dat
0 BFC INVERTNEXT
1 16 -22.307 -6 0 0 0 -1.2 0 12 0 2.936 0 0 2-4cyli.dat
0 BFC INVERTNEXT
1 16 -21.547 -6 5.773 .759893 0 -1.15911 0 12 0 2.83596 0 .310583 2-4cyli.dat
0 BFC INVERTNEXT
1 16 -19.319 -6 11.153 1.468 0 -1.03923 0 12 0 2.54265 0 .6 2-4cyli.dat
0 BFC INVERTNEXT
1 16 -15.774 -6 15.773 2.07607 0 -.848528 0 12 0 2.07607 0 .848528 2-4cyli.dat
0 BFC INVERTNEXT
1 16 -11.154 -6 19.318 2.54265 0 -.6 0 12 0 1.468 0 1.03923 2-4cyli.dat
0 BFC INVERTNEXT
1 16 -5.774 -6 21.547 2.83596 0 -.310583 0 12 0 .759893 0 1.15911 2-4cyli.dat
1 16 -22.307 -6 0 0 0 -1.2 0 1 0 2.936 0 0 2-4ndis.dat
1 16 -21.547 -6 5.773 .759893 0 -1.15911 0 1 0 2.83596 0 .310583 2-4ndis.dat
1 16 -19.319 -6 11.153 1.468 0 -1.03923 0 1 0 2.54265 0 .6 2-4ndis.dat
1 16 -15.774 -6 15.773 2.07607 0 -.848528 0 1 0 2.07607 0 .848528 2-4ndis.dat
1 16 -11.154 -6 19.318 2.54265 0 -.6 0 1 0 1.468 0 1.03923 2-4ndis.dat
1 16 -5.774 -6 21.547 2.83596 0 -.310583 0 1 0 .759893 0 1.15911 2-4ndis.dat
4 16 -23.507 -6 -2.936 -23.507 -6 0 -24 -6 0 -23.7936 -6 -3.132
4 16 -23.507 -6 0 -23.507 -6 2.936 -23.7936 -6 3.132 -24 -6 0
4 16 -22.307 -6 2.936 -23.466003 -6 3.247623 -23.7936 -6 3.132 -23.507 -6 2.936
4 16 -23.466003 -6 3.247623 -22.70611 -6 6.083583 -23.1816 -6 6.2112 -23.7936 -6 3.132
4 16 -22.70611 -6 6.083583 -21.946217 -6 8.919543 -22.1736 -6 9.1848 -23.1816 -6 6.2112
4 16 -20.787107 -6 8.60896 -21.82623 -6 9.21035 -22.1736 -6 9.1848 -21.946217 -6 8.919543
4 16 -21.82623 -6 9.21035 -20.35823 -6 11.753 -20.784 -6 12 -22.1736 -6 9.1848
4 16 -20.35823 -6 11.753 -18.89023 -6 14.29565 -19.0416 -6 14.6112 -20.784 -6 12
4 16 -17.851 -6 13.69565 -18.698598 -6 14.545458 -19.0416 -6 14.6112 -18.89023 -6 14.29565
4 16 -18.698598 -6 14.545458 -16.622528 -6 16.621528 -16.9704 -6 16.9704 -19.0416 -6 14.6112
4 16 -16.622528 -6 16.621528 -14.546458 -6 18.697598 -14.6112 -6 19.0416 -16.9704 -6 16.9704
4 16 -13.69793 -6 17.84907 -14.29665 -6 18.88923 -14.6112 -6 19.0416 -14.546458 -6 18.697598
4 16 -14.29665 -6 18.88923 -11.754 -6 20.35723 -12 -6 20.784 -14.6112 -6 19.0416
4 16 -11.754 -6 20.35723 -9.21135 -6 21.82523 -9.1848 -6 22.1736 -12 -6 20.784
4 16 -8.61135 -6 20.786 -8.920543 -6 21.946217 -9.1848 -6 22.1736 -9.21135 -6 21.82523
4 16 -8.920543 -6 21.946217 -6.084583 -6 22.70611 -6.2112 -6 23.1816 -9.1848 -6 22.1736
4 16 -6.084583 -6 22.70611 -3.248623 -6 23.466003 -3.132 -6 23.7936 -6.2112 -6 23.1816
4 16 -2.93804 -6 22.306893 -2.936 -6 23.507 -3.132 -6 23.7936 -3.248623 -6 23.466003
1 16 0 10 0 0 0 8 0 -1 0 8 0 0 4-4ndis.dat
1 16 0 10 0 0 0 30 0 -1 0 30 0 0 48\1-4chrd.dat
1 16 0 10 0 0 0 -30 0 -1 0 30 0 0 48\1-4chrd.dat
1 16 0 10 0 0 0 30 0 -1 0 -30 0 0 48\1-4chrd.dat
1 16 0 10 0 0 0 -30 0 -1 0 -30 0 0 48\1-4chrd.dat
3 16 30 10 0 8 10 8 0 10 30
3 16 0 10 30 -8 10 8 -30 10 0
3 16 -30 10 0 -8 10 8 -8 10 0
3 16 -30 10 0 -8 10 0 -8 10 -8
3 16 -30 10 0 -8 10 -8 0 10 -30
3 16 0 10 -30 -8 10 -8 0 10 -8
3 16 0 10 -30 0 10 -8 8 10 -8
3 16 0 10 30 8 10 8 0 10 8
3 16 0 10 30 0 10 8 -8 10 8
3 16 0 10 -30 8 10 -8 30 10 0
3 16 30 10 0 8 10 -8 8 10 0
3 16 30 10 0 8 10 0 8 10 8
1 16 0 4 0 0 0 8 0 1 0 8 0 0 4-4edge.dat
1 16 0 4 0 0 0 4 0 1 0 4 0 0 4-4ring2.dat
1 16 0 4 0 0 0 12 0 2 0 12 0 0 4-4cylo.dat
1 16 0 -6 0 3.06147 0 7.39104 0 1 0 7.39104 0 -3.06147 3-8edge.dat
1 16 0 -6 0 -3.06147 0 -7.39104 0 1 0 -7.39104 0 3.06147 3-8edge.dat
1 16 0 -8 0 2.2961 0 5.54328 0 1 0 5.54328 0 -2.2961 3-8edge.dat
1 16 0 -8 0 -2.2961 0 -5.54328 0 1 0 -5.54328 0 2.2961 3-8edge.dat
1 16 0 -6 0 .382683 0 .92388 0 -1 0 .92388 0 -.382683 3-8ring8.dat
1 16 0 -6 0 -.382684 0 -.92388 0 -1 0 -.92388 0 .382684 3-8ring8.dat
1 16 0 -8 0 1.14805 0 2.77164 0 1 0 2.77164 0 -1.14805 3-8ring2.dat
1 16 0 -8 0 -1.14805 0 -2.77164 0 1 0 -2.77164 0 1.14805 3-8ring2.dat
1 16 0 -8 0 3.44415 0 8.31492 0 2 0 8.31492 0 -3.44415 3-8cylo.dat
1 16 0 -8 0 -3.44415 0 -8.31492 0 2 0 -8.31492 0 3.44415 3-8cylo.dat
0 BFC INVERTNEXT
1 16 0 -8 0 -2.2961 0 -5.54328 0 8 0 -5.54328 0 2.2961 3-8cyli.dat
0 BFC INVERTNEXT
1 16 0 -8 0 2.2961 0 5.54328 0 8 0 5.54328 0 -2.2961 3-8cyli.dat
1 16 0 0 0 0 0 8 0 4 0 8 0 0 4-4cyli.dat
1 16 0 -6 0 3.06147 0 7.39104 0 6 0 7.39104 0 -3.06147 3-8cyli.dat
1 16 0 -6 0 -3.06147 0 -7.39104 0 6 0 -7.39104 0 3.06147 3-8cyli.dat
2 24 1.5 -8 5.702 1.5 -8 8.702
4 16 1.5 -8 5.702 1.5 -8 8.702 1.5 -6 8.702 1.5 -6 7.702
4 16 -1.5 -8 8.702 -1.5 -8 5.702 -1.5 -6 7.702 -1.5 -6 8.702
4 16 -1.5 -8 -5.702 -1.5 -8 -8.702 -1.5 -6 -8.702 -1.5 -6 -7.702
4 16 1.5 -8 -8.702 1.5 -8 -5.702 1.5 -6 -7.702 1.5 -6 -8.702
4 16 1.5 -8 5.702 1.5 -6 7.702 1.5 -1.5 7.702 1.5 -1.5 5.702
4 16 -1.5 -6 7.702 -1.5 -8 5.702 -1.5 -1.5 5.702 -1.5 -1.5 7.702
4 16 -1.5 -8 -5.702 -1.5 -6 -7.702 -1.5 -1.5 -7.702 -1.5 -1.5 -5.702
4 16 1.5 -6 -7.702 1.5 -8 -5.702 1.5 -1.5 -5.702 1.5 -1.5 -7.702
2 24 -1.5 -8 5.702 -1.5 -8 8.702
2 24 1.5 -8 -5.702 1.5 -8 -8.702
2 24 -1.5 -8 -5.702 -1.5 -8 -8.702
2 24 1.5 -8 8.702 1.5 -6 8.702
2 24 -1.5 -8 8.702 -1.5 -6 8.702
2 24 1.5 -8 -8.702 1.5 -6 -8.702
2 24 -1.5 -8 -8.702 -1.5 -6 -8.702
2 24 1.5 -8 5.702 1.5 -1.5 5.702
2 24 -1.5 -8 5.702 -1.5 -1.5 5.702
2 24 1.5 -8 -5.702 1.5 -1.5 -5.702
2 24 -1.5 -8 -5.702 -1.5 -1.5 -5.702
2 24 1.5 -6 7.702 1.5 -6 8.702
2 24 -1.5 -6 7.702 -1.5 -6 8.702
2 24 1.5 -6 -7.702 1.5 -6 -8.702
2 24 -1.5 -6 -7.702 -1.5 -6 -8.702
2 24 1.5 -6 7.702 1.5 -1.5 7.702
2 24 -1.5 -6 7.702 -1.5 -1.5 7.702
2 24 1.5 -6 -7.702 1.5 -1.5 -7.702
2 24 -1.5 -6 -7.702 -1.5 -1.5 -7.702
2 24 3.44415 -8 8.31492 1.5 -8 8.702
4 16 3.061464 -6 7.39104 1.5 -6 7.702 1.5 -6 8.702 3.444147 -6 8.31492
4 16 -1.5 -6 7.702 -3.061439 -6 7.39097 -3.444117 -6 8.314843 -1.5 -6 8.702
4 16 -3.06147 -6 -7.39104 -1.5 -6 -7.702 -1.5 -6 -8.702 -3.444156 -6 -8.31492
4 16 1.5 -6 -7.702 3.061439 -6 -7.39097 3.444124 -6 -8.314836 1.5 -6 -8.702
4 16 3.444147 -6 8.31492 1.5 -6 8.702 1.5 -8 8.702 3.44415 -8 8.31492
4 16 -3.444121 -8 8.314838 -1.5 -8 8.702 -1.5 -6 8.702 -3.444117 -6 8.314843
4 16 -3.444156 -6 -8.31492 -1.5 -6 -8.702 -1.5 -8 -8.702 -3.44415 -8 -8.31492
4 16 3.444121 -8 -8.314838 1.5 -8 -8.702 1.5 -6 -8.702 3.444124 -6 -8.314836
2 24 3.444147 -6 8.31492 1.5 -6 8.702
2 24 -3.444121 -8 8.314838 -1.5 -8 8.702
2 24 -3.444117 -6 8.314843 -1.5 -6 8.702
2 24 -3.44415 -8 -8.31492 -1.5 -8 -8.702
2 24 -3.444156 -6 -8.31492 -1.5 -6 -8.702
2 24 3.444121 -8 -8.314838 1.5 -8 -8.702
2 24 3.444124 -6 -8.314836 1.5 -6 -8.702
2 24 1.5 -8 5.702 2.2961 -8 5.54328
4 16 3.44415 -8 8.31492 1.5 -8 8.702 1.5 -8 5.702 2.2961 -8 5.54328
4 16 -1.5 -8 8.702 -3.444121 -8 8.314838 -2.296081 -8 5.543226 -1.5 -8 5.702
4 16 -3.44415 -8 -8.31492 -1.5 -8 -8.702 -1.5 -8 -5.702 -2.2961 -8 -5.54328
4 16 1.5 -8 -8.702 3.444121 -8 -8.314838 2.296081 -8 -5.543226 1.5 -8 -5.702
4 16 1.5 0 5.702 2.2961 0 5.54328 2.2961 -8 5.54328 1.5 -8 5.702
4 16 -1.5 -8 5.702 -2.296081 -8 5.543226 -2.2962 0 5.5434 -1.5 0 5.702
4 16 -1.5 0 -5.702 -2.2962 0 -5.5434 -2.2961 -8 -5.54328 -1.5 -8 -5.702
4 16 1.5 -8 -5.702 2.296081 -8 -5.543226 2.296081 0 -5.543226 1.5 0 -5.702
2 24 -1.5 -8 5.702 -2.296081 -8 5.543226
2 24 -1.5 -8 -5.702 -2.2961 -8 -5.54328
2 24 1.5 -8 -5.702 2.296081 -8 -5.543226
2 24 1.5 -6 7.702 3.061464 -6 7.39104
4 16 1.5 -6 7.702 3.061464 -6 7.39104 3.06147 0 7.39104 1.5 0 7.702
4 16 -1.5 0 7.702 -3.0616 0 7.3912 -3.061439 -6 7.39097 -1.5 -6 7.702
4 16 -1.5 -6 -7.702 -3.06147 -6 -7.39104 -3.0616 0 -7.3912 -1.5 0 -7.702
4 16 1.5 0 -7.702 3.061439 0 -7.39097 3.061439 -6 -7.39097 1.5 -6 -7.702
2 24 -1.5 -6 7.702 -3.061439 -6 7.39097
2 24 -1.5 -6 -7.702 -3.06147 -6 -7.39104
2 24 1.5 -6 -7.702 3.061439 -6 -7.39097
1 16 0 -1.5 6 0 0 1.5 1.5 0 0 0 -1 -.298 1-4edge.dat
1 16 0 -1.5 6 0 0 1.5 1.5 0 0 0 1 -.298 1-4ndis.dat
1 16 0 -1.5 8 0 0 1.5 1.5 0 0 0 -1 -.298 1-4edge.dat
1 16 0 -1.5 8 0 0 1.5 1.5 0 0 0 -1 -.298 1-4ndis.dat
0 BFC INVERTNEXT
1 16 0 -1.5 8 0 0 1.5 1.5 0 0 0 -2 -.298 1-4cyli.dat
1 16 0 -1.5 6 0 0 -1.5 1.5 0 0 0 -1 -.298 1-4edge.dat
1 16 0 -1.5 6 0 0 -1.5 1.5 0 0 0 1 -.298 1-4ndis.dat
1 16 0 -1.5 8 0 0 -1.5 1.5 0 0 0 -1 -.298 1-4edge.dat
1 16 0 -1.5 8 0 0 -1.5 1.5 0 0 0 -1 -.298 1-4ndis.dat
0 BFC INVERTNEXT
1 16 0 -1.5 8 0 0 -1.5 1.5 0 0 0 -2 -.298 1-4cyli.dat
1 16 0 -1.5 -6 0 0 -1.5 1.5 0 0 0 1 .298 1-4edge.dat
1 16 0 -1.5 -6 0 0 -1.5 1.5 0 0 0 -1 .298 1-4ndis.dat
1 16 0 -1.5 -8 0 0 -1.5 1.5 0 0 0 1 .298 1-4edge.dat
1 16 0 -1.5 -8 0 0 -1.5 1.5 0 0 0 1 .298 1-4ndis.dat
0 BFC INVERTNEXT
1 16 0 -1.5 -8 0 0 -1.5 1.5 0 0 0 2 .298 1-4cyli.dat
1 16 0 -1.5 -6 0 0 1.5 1.5 0 0 0 1 .298 1-4edge.dat
1 16 0 -1.5 -6 0 0 1.5 1.5 0 0 0 -1 .298 1-4ndis.dat
1 16 0 -1.5 -8 0 0 1.5 1.5 0 0 0 1 .298 1-4edge.dat
1 16 0 -1.5 -8 0 0 1.5 1.5 0 0 0 1 .298 1-4ndis.dat
0 BFC INVERTNEXT
1 16 0 -1.5 -8 0 0 1.5 1.5 0 0 0 2 .298 1-4cyli.dat
0 // reworked
1 16 0 10 0 0 0 -30 0 -1 0 30 0 0 48\1-24tndis.dat
1 16 0 10 0 0 0 30 0 -1 0 30 0 0 48\1-24tndis.dat
3 16 11.846549 10 27.979392 13.21297 10 26.681911 11.481 10 27.717
3 16 -11.481 10 27.717 -11.846549 10 27.979392 -10.479156 10 29.275952
4 16 -11.481 10 27.717 -10.479156 10 29.275952 -7.764 10 30 -7.764 10 28.977
4 16 -10.479156 10 29.275952 -9.739578 10 30.970886 -9 10 31 -7.764 10 30
3 16 -9 10 31 -9.739578 10 30.970886 -9 10 32.66582
4 16 -7.764 10 30 -9 10 31 0 10 31 0 10 30
3 16 -13.21297 10 26.681911 -11.846549 10 27.979392 -11.481 10 27.717
3 16 11.846549 10 27.979392 11.481 10 27.717 10.479156 10 29.275952
4 16 11.481 10 27.717 7.764 10 28.977 7.764 10 30 10.479156 10 29.275952
4 16 9 10 31 9.739578 10 30.970886 10.479156 10 29.275952 7.764 10 30
3 16 9.739578 10 30.970886 9 10 31 9 10 32.66582
4 16 7.764 10 30 0 10 30 0 10 31 9 10 31
1 16 15.47984 0 28.558 -6.47984 0 0 0 1 0 0 0 -6.5397 3-16tang.dat
0 BFC INVERTNEXT
1 16 15.47984 0 28.558 -6.47984 0 0 0 6 0 0 0 -6.5397 3-16cylo.dat
1 16 15.47984 6 28.558 -6.47984 0 0 0 1 0 0 0 -6.5397 3-16chrd.dat
1 16 18.7185 6 34.5 -9.7185 0 0 0 1 0 0 0 -9.22162 3-16tang.dat
0 BFC INVERTNEXT
1 16 18.7185 6 34.5 -9.7185 0 0 0 4 0 0 0 -9.22162 3-16cylo.dat
1 16 18.7185 10 34.5 -9.7185 0 0 0 -1 0 0 0 -9.22162 3-16tang.dat
1 16 0 6 0 21.21289 0 -21.21425 0 4 0 21.21425 0 21.21289 48\1-24cylo.dat
4 16 9 0 27.257254 9 0 28.558 6.364 0 29.255 6.364 0 25.237
3 16 9.986232 0 24.85326 9.493116 0 26.055257 6.729 0 25.113
4 16 9.986232 0 24.85326 6.729 0 25.113 9.95 0 24.021 10.897945 0 23.933778
4 16 9.493116 0 26.055257 9 0 27.257254 6.364 0 25.237 6.729 0 25.113
3 16 10.897945 0 23.933778 9.95 0 24.021 11.809011 0 23.013642
3 16 9 6 32.66582 9 6 28.558 9.739578 6 30.970886
3 16 9.739578 6 30.970886 9 6 28.558 10.479156 6 29.275952
3 16 10.479156 6 29.275952 9 6 28.558 11.846549 6 27.979392
4 16 13 6 22.516 13.21297 6 26.681911 11.846549 6 27.979392 9 6 28.558
3 16 14 6 24.248 14.99923 6 25.980145 13.21297 6 26.681911
3 16 13.21297 6 26.681911 13 6 22.516 14 6 24.248
1 16 -15.47984 0 28.558 6.47984 0 0 0 1 0 0 0 -6.5397 3-16tang.dat
0 BFC INVERTNEXT
1 16 -15.47984 0 28.558 6.47984 0 0 0 6 0 0 0 -6.5397 3-16cylo.dat
1 16 -15.47984 6 28.558 6.47984 0 0 0 1 0 0 0 -6.5397 3-16chrd.dat
1 16 -18.7185 6 34.5 9.7185 0 0 0 1 0 0 0 -9.22162 3-16tang.dat
0 BFC INVERTNEXT
1 16 -18.7185 6 34.5 9.7185 0 0 0 4 0 0 0 -9.22162 3-16cylo.dat
1 16 -18.7185 10 34.5 9.7185 0 0 0 -1 0 0 0 -9.22162 3-16tang.dat
1 16 0 6 0 -21.21289 0 21.21425 0 4 0 21.21425 0 21.21289 48\1-24cylo.dat
4 16 -6.364 0 29.255 -9 0 28.558 -9 0 27.257254 -6.364 0 25.237
3 16 -9.493116 0 26.055257 -9.986232 0 24.85326 -6.729 0 25.113
4 16 -9.95 0 24.021 -6.729 0 25.113 -9.986232 0 24.85326 -10.897945 0 23.933778
4 16 -6.364 0 25.237 -9 0 27.257254 -9.493116 0 26.055257 -6.729 0 25.113
3 16 -9.95 0 24.021 -10.897945 0 23.933778 -11.809011 0 23.013642
3 16 -9 6 28.558 -9 6 32.66582 -9.739578 6 30.970886
3 16 -9 6 28.558 -9.739578 6 30.970886 -10.479156 6 29.275952
3 16 -9 6 28.558 -10.479156 6 29.275952 -11.846549 6 27.979392
4 16 -11.846549 6 27.979392 -13.21297 6 26.681911 -13 6 22.516 -9 6 28.558
3 16 -14 6 24.248 -13 6 22.516 -13.21297 6 26.681911
3 16 -13.21297 6 26.681911 -15 6 25.98 -14 6 24.248
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
2023-08-12 01:58:25
2023-10-23 19:27:10
2023-10-23 20:03:46
it seems that the edges at the cylinder tips are missing...
It is such a pitty that Guy is no longer among us. Such a fine crafted part.
2023-11-01 15:15:04
2023-11-04 20:16:09
2023-11-19 03:08:48
Release 2023-06
Update ring primitives via script. Do not hold.
2024-03-23 00:50:30
2024-03-24 17:25:24
Release 2024-02
Creative Commons Attribution License information
This part is copyright © Guy Vivan
Licensed under CC BY 2.0
Edits:
LDraw.org Parts Tracker,
Magnus Forsberg,
Orion Pobursky,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
