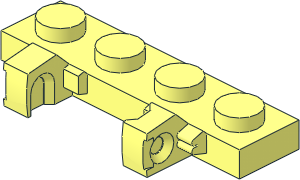

Hinge Plate 1 x 4 Locking with Two Single Fingers on Side

File Header:

0 Hinge Plate  1 x  4 Locking with Two Single Fingers on Side
0 Name: 44568.dat
0 Author: Orion Pobursky [OrionP]
0 !LDRAW_ORG Part UPDATE 2024-07
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2010-04-05 [PTadmin] Official Update 2010-01
0 !HISTORY 2024-08-17 [GeraldLasser] corrected the hinges up/down and bottom geometry
0 !HISTORY 2024-08-26 [OrionP] Official Update 2024-07

Show contents

1 16 0 4 0 1 0 0 0 -1 0 0 0 1 stud3.dat
0 BFC INVERTNEXT
1 16 30 8 0 6 0 0 0 -4 0 0 0 6 box5.dat
0 BFC INVERTNEXT
1 16 -30 8 0 6 0 0 0 -4 0 0 0 6 box5.dat
0 BFC INVERTNEXT
1 16 0 8 0 21 0 0 0 -4 0 0 0 6 box5.dat
1 16 18.5 4 0 0 0 -2.5 0 3.75 0 1.5 0 0 box4-1.dat
1 16 -18.5 4 0 0 0 2.5 0 3.75 0 1.5 0 0 box4-1.dat

4 16 -40 8 10 -36 8 6 -36 8 -6 -40 8 -10
4 16 40 8 -10 36 8 -6 36 8 6 40 8 10
3 16 40 8 10 36 8 6 24 8 6
3 16 40 8 10 24 8 6 21 8 6
4 16 -40 8 10 40 8 10 21 8 6 -21 8 6
3 16 -21 8 6 -24 8 6 -40 8 10
3 16 -40 8 10 -24 8 6 -36 8 6
4 16 -21 8 6 -21 8 -6 -24 8 -6 -24 8 6
4 16 24 8 6 24 8 -6 21 8 -6 21 8 6
4 16 24 8 -6 36 8 -6 40 8 -10 24 8 -10
4 16 21 8 -6 24 8 -6 24 8 -10 16 8 -10
4 16 -21 8 -6 21 8 -6 16 8 -10 -16 8 -10
4 16 -24 8 -6 -21 8 -6 -16 8 -10 -24 8 -10
4 16 -36 8 -6 -24 8 -6 -24 8 -10 -40 8 -10

1 16 0 4 -10 0 0 -40 4 0 0 0 20 0 box3u2p.dat
4 16 29 0 -10 29 5.444 -10 40 8 -10 40 0 -10
4 16 24 5.444 -10 24 8 -10 40 8 -10 29 5.444 -10
4 16 -40 0 -10 -40 8 -10 -29 5.444 -10 -29 0 -10
4 16 -24 5.444 -10 -29 5.444 -10 -40 8 -10 -24 8 -10
3 16 16 8 -10 16 5.444 -10 11 5.444 -10
3 16 -16 5.444 -10 -16 8 -10 -11 5.444 -10
4 16 11 5.444 -10 -11 5.444 -10 -16 8 -10 16 8 -10
4 16 -11 5.444 -10 11 5.444 -10 11 0 -10 -11 0 -10
2 24 16 8 -10 -16 8 -10
2 24 -11 0 -10 11 0 -10
2 24 -11 0 -10 -29 0 -10
2 24 -29 0 -10 -40 0 -10
2 24 -40 8 -10 -24 8 -10
2 24 24 8 -10 40 8 -10
2 24 40 0 -10 29 0 -10
2 24 29 0 -10 11 0 -10

3 16 40 0 -10 40 0 10 29 0 -10
3 16 29 0 -10 40 0 10 11 0 -10
3 16 11 0 -10 40 0 10 -11 0 -10
4 16 40 0 10 -40 0 10 -29 0 -10 -11 0 -10
3 16 -29 0 -10 -40 0 10 -40 0 -10

1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug-1x4.dat
1 16 -20 2 -10 1 0 0 0 1 0 0 0 1 clh6d.dat
1 16 20 2 -10 -1 0 0 0 1 0 0 0 1 clh6u.dat
