Official File parts/44572.dat
Part Attributes:
File Header:

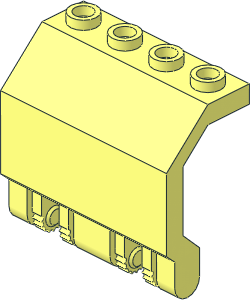

0 Hinge Panel 2 x 4 x 3.333 Locking
0 Name: 44572.dat
0 Author: Willy Tschager [Holly-Wood]
0 !LDRAW_ORG Part UPDATE 2012-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS connection, Coupling, joining, joint, junction, juncture
0 !HISTORY 2007-08-25 {LEGO Universe Team} Original part shape
0 !HISTORY 2007-10-03 [Holly-Wood] File preparation for LDraw Parts Tracker
0 !HISTORY 2012-09-18 [MagFors] corrected hinge position and design
0 !HISTORY 2012-12-28 [PTadmin] Official Update 2012-03
