Official File parts/4480.dat
Part Attributes:
File Header:

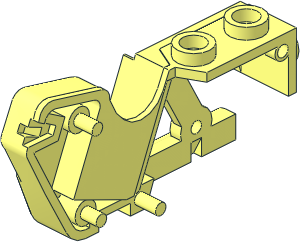

0 ~Bike 2 Wheel Motorcycle Frame 3 x 6 x 3 - Right Side
0 Name: 4480.dat
0 Author: Magnus Forsberg [MagFors]
0 !LDRAW_ORG Part UPDATE 2019-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !CATEGORY Vehicle
0 !HISTORY 2019-09-09 [PTadmin] Official Update 2019-02
Show contents
1 16 0 0 0 -1 0 0 0 1 0 0 0 1 s\4481s01.dat
0 // rear
1 16 -5 0.125 -16 4 0 0 0 0 -0.125 -2 1 0 rect3.dat
4 16 -9 0 20 -9 0.25 19.75 -9 0.25 -14 -9 0 -14
4 16 -9 0 20 -9 20 20 -9 20 19.75 -9 0.25 19.75
4 16 1 3 -18 -9 3 -18 -9 3 -14 9 3 -14
1 16 0 3.002 -0.6355 -9 0 0 0 -1 0.002 0 0 13.3645 rect3.dat
1 16 9 5.125 14.85 0 -18 0 2.12132 0 2.12132 2.12132 0 -2.12132 2-4cylo.dat
0 BFC INVERTNEXT
1 16 0 5.125 14.85 0 9 0 -2 0 0 0 0 2 4-4cylc.dat
1 16 9 5.125 14.85 0 -1 0 -1 0 0 0 0 -1 4-4ring2.dat
1 16 9 5.125 14.85 0 -1 0 -2.12132 0 -2.12132 -2.12132 0 2.12132 2-4ndis.dat
1 16 5 1.5 -16 0 0 4 1.5 0 0 0 1 2 rect.dat
4 16 9 0 -14 9 3 -14 9 3.004 12.729 9 0.882 14.85
3 16 9 0.882 14.85 9 0 20 9 0 -14
3 16 9 0.882 14.85 9 5.125 19.093 9 0 20
1 16 0 13.623 18.4855 -9 0 0 0 6.377 0 0 0.0145 -1.5 box2-5.dat
4 16 9 7.246 16.971 9 20 17 9 20 20 9 5.125 19.093
3 16 9 20 20 9 0 20 9 5.125 19.093
1 16 0 10 3 -9 0 0 0 -10 0 0 0 17 box2-7.dat
4 16 -1 0 -18 1 0 -18 9 0 -14 -9 0 -14
1 16 0 0 -10 1 0 0 0 1 0 0 0 1 stud2.dat
1 16 0 0 10 1 0 0 0 1 0 0 0 1 stud2.dat
1 16 0 10 20 1 0 0 0 0 1 0 -1 0 stud2.dat
0 // between legs
2 24 -1 0 -20.25 -1 5.444 -22.685
2 24 -1 5.444 -22.685 -1 8.364 -24.636
2 24 -1 8.364 -24.636 -1 10.315 -27.556
2 24 -1 10.315 -27.556 -1 11 -31
2 24 -1 11 -31 -1 10.315 -34.444
2 24 -1 10.315 -34.444 -1 8.364 -37.364
2 24 -1 8.364 -37.364 -1 5.144 -40.315
2 24 -1 5.144 -40.315 -1 -0.063 -42.85
4 16 -1 0.25 -18 -1 0.25 -20 -1 0 -20.25 -1 0 -18
4 16 -1 0.25 -20 -1 32 -33 -1 5.444 -22.685 -1 0 -20.25
3 16 -1 32 -33 -1 8.364 -24.636 -1 5.444 -22.685
3 16 -1 32 -33 -1 10.315 -27.556 -1 8.364 -24.636
3 16 -1 32 -33 -1 11 -31 -1 10.315 -27.556
4 16 -1 10.315 -34.444 -1 11 -31 -1 32 -33 -1 24 -53
3 16 -1 24 -53 -1 8.364 -37.364 -1 10.315 -34.444
3 16 -1 5.144 -40.315 -1 8.364 -37.364 -1 24 -53
4 16 -1 24 -53 -1 -0.104 -43.097 -1 -0.063 -42.85 -1 5.144 -40.315
2 24 1 0 -20.25 1 5.444 -22.685
2 24 1 8.364 -24.636 1 5.444 -22.685
2 24 1 10.315 -27.556 1 8.364 -24.636
2 24 1 11 -31 1 10.315 -27.556
2 24 1 10.315 -34.444 1 11 -31
2 24 1 8.364 -37.364 1 10.315 -34.444
2 24 1 5.144 -40.315 1 8.364 -37.364
2 24 1 5.144 -40.315 1 -0.063 -42.85
1 16 0 29.4345 -46.5 0 0 1 4.0655 -1 0 10.062 0 0 rect3.dat
2 24 1 0.917 -46.478 1 25.369 -56.562
4 16 -1 0.917 -46.478 -1 25.369 -56.562 1 25.369 -56.562 1 0.917 -46.478
2 24 1 3 -21.126 0 3 -18
2 24 1 3 -21.126 1 33.5 -33.614
2 24 1 3 -18 1 3 -21.126
3 16 1 3 -21.126 0 3 -18 1 3 -18
4 16 1 0 -20.25 1 3 -21.126 1 3 -18 1 0 -18
2 24 1 33.5 -36.438 1 33.5 -33.614
2 24 1 33.5 -33.614 0 33.5 -30.625
4 16 1 33.5 -36.438 0 33.5 -36.438 0 33.5 -30.625 1 33.5 -33.614
4 16 1 33.5 -33.614 0 33.5 -30.625 0 3 -18 1 3 -21.126
4 16 1 0 -20.25 1 5.444 -22.685 1 33.5 -33.614 1 3 -21.126
3 16 1 8.364 -24.636 1 33.5 -33.614 1 5.444 -22.685
3 16 1 10.315 -27.556 1 33.5 -33.614 1 8.364 -24.636
3 16 1 11 -31 1 33.5 -33.614 1 10.315 -27.556
4 16 1 33.5 -36.438 1 33.5 -33.614 1 11 -31 1 10.315 -34.444
4 16 1 8.364 -37.364 1 25.369 -56.562 1 33.5 -36.438 1 10.315 -34.444
4 16 1 25.369 -56.562 1 8.364 -37.364 1 5.144 -40.315 1 0.917 -46.478
3 16 1 5.144 -40.315 1 -0.063 -42.85 1 0.917 -46.478
1 16 0 0 -19.125 -1 0 0 0 1 0 0 0 -1.125 rect3.dat
4 16 -1 0 -20.25 -1 5.444 -22.685 1 5.444 -22.685 1 0 -20.25
4 16 1 8.364 -24.636 1 5.444 -22.685 -1 5.44 -22.685 -1 8.364 -24.636
4 16 1 10.315 -27.556 1 8.364 -24.636 -1 8.364 -24.636 -1 10.315 -27.556
4 16 1 11 -31 1 10.315 -27.556 -1 10.315 -27.556 -1 11 -31
4 16 1 10.315 -34.444 1 11 -31 -1 11 -31 -1 10.315 -34.444
4 16 1 8.364 -37.364 1 10.315 -34.444 -1 10.315 -34.444 -1 8.364 -37.364
4 16 1 5.144 -40.315 1 8.364 -37.364 -1 8.364 -37.364 -1 5.144 -40.315
4 16 -1 5.144 -40.315 -1 -0.063 -42.85 1 -0.063 -42.85 1 5.144 -40.315
5 24 -1 5.444 -22.685 1 5.444 -22.685 -1 0 -20.25 -1 8.364 -24.636
5 24 -1 8.364 -24.636 1 8.364 -24.636 -1 5.444 -22.685 -1 10.315 -27.556
5 24 -1 10.315 -27.556 1 10.315 -27.556 -1 8.364 -24.636 -1 11 -31
5 24 -1 11 -31 1 11 -31 -1 10.315 -27.556 -1 10.315 -34.444
5 24 -1 10.315 -34.444 1 10.315 -34.444 -1 11 -31 -1 8.364 -37.364
5 24 -1 8.364 -37.364 1 8.364 -37.364 -1 10.315 -34.444 -1 5.144 -40.315
5 24 -1 5.144 -40.315 1 5.144 -40.315 -1 8.364 -37.364 -1 -0.063 -42.85
5 24 -1 -0.063 -42.85 1 -0.063 -42.85 -1 5.144 -40.315 -1 -1.564 -42.909
0 // middle cover
4 16 -1 -1.509 -43.152 -1 -1.564 -42.909 -1 -0.063 -42.85 -1 -0.104 -43.097
4 16 -1 -2.786 -43.74 -1 -2.928 -43.538 -1 -1.564 -42.909 -1 -1.509 -43.152
4 16 -1 -3.948 -44.641 -1 -2.928 -43.538 -1 -2.786 -43.74 -1 -3.74 -44.771
4 16 -1 -4.468 -46.051 -1 -3.948 -44.641 -1 -3.74 -44.771 -1 -4.225 -46.089
4 16 -1 -8.645 -64.373 -1 -4.468 -46.051 -1 -4.225 -46.089 -1 -8.379 -64.415
4 16 -1 -8.312 -66.107 -1 -8.575 -66.17 -1 -8.645 -64.373 -1 -8.379 -64.415
4 16 -1 -7.603 -67.645 -1 -7.822 -67.804 -1 -8.575 -66.17 -1 -8.312 -66.107
4 16 -1 -6.501 -69.025 -1 -7.822 -67.804 -1 -7.603 -67.645 -1 -6.36 -68.795
1 16 1 -0.665 -46.653 0 -2 0 0.60227 0 -3.8026 3.8026 0 0.60227 1-4cylo.dat
2 24 1 -8.645 -64.373 1 -4.468 -46.051
2 24 -1 -4.468 -46.051 -1 -8.645 -64.373
4 16 1 -8.645 -64.373 1 -4.468 -46.051 -1 -4.468 -46.051 -1 -8.645 -64.373
1 16 1 -4.092 -65.094 0 -2 0 -4.55324 0 -0.72116 0.72116 0 -4.55324 3-16cylo.dat
1 16 1 0.468 -49.322 0 -1 0 0.4485 0 -2.8485 2.84454 0 0.45116 1-4edge.dat
0 BFC INVERTNEXT
1 16 1 0.468 -49.322 0 -2 0 0.4485 0 -2.8485 2.84454 0 0.45116 1-4cyli.dat
2 24 1 -2.38 -48.871 1 -5.703 -63.532
4 16 -1 -5.703 -63.532 -1 -2.38 -48.871 1 -2.38 -48.871 1 -5.703 -63.532
1 16 1 -2.274 -64.075 0 -1 0 -3.42926 0 -0.54314 0.54314 0 -3.42926 3-16edge.dat
0 BFC INVERTNEXT
1 16 1 -2.274 -64.075 0 -2 0 -3.42926 0 -0.54314 0.54314 0 -3.42926 3-16cyli.dat
4 16 1 -1.564 -42.909 1 -0.207 -46.521 1 0.917 -46.478 1 -0.063 -42.85
4 16 1 -2.928 -43.538 1 -1.229 -46.992 1 -0.207 -46.521 1 -1.564 -42.909
4 16 1 -1.992 -47.817 1 -1.229 -46.992 1 -2.928 -43.538 1 -3.948 -44.641
4 16 1 -3.948 -44.641 1 -4.468 -46.051 1 -2.38 -48.871 1 -1.992 -47.817
4 16 1 -8.645 -64.373 1 -5.703 -63.532 1 -2.38 -48.871 1 -4.468 -46.051
4 16 1 -8.575 -66.17 1 -5.65 -64.886 1 -5.703 -63.532 1 -8.645 -64.373
4 16 1 -7.822 -67.804 1 -5.082 -66.116 1 -5.65 -64.886 1 -8.575 -66.17
4 16 1 -4.088 -67.036 1 -5.082 -66.116 1 -7.822 -67.804 1 -6.501 -69.025
2 24 1 -4.088 -67.036 1 -2.744 -67.632
2 24 1 -2.744 -67.632 1 -4.017 -69.833
2 24 0 -2.744 -67.632 1 -2.744 -67.632
2 24 -1 -4.017 -69.833 1 -4.017 -69.833
2 24 1 -4.017 -69.833 1 -6.501 -69.025
2 24 -1 -4.017 -69.833 -1 -6.501 -69.025
3 16 -1 -6.36 -68.794 -1 -4.017 -69.833 -1 -6.501 -69.025
4 16 1 -4.017 -69.833 1 -6.501 -69.025 -1 -6.501 -69.025 -1 -4.017 -69.833
4 16 1 -4.088 -67.036 1 -2.744 -67.632 0 -2.744 -67.632 -1 -4.088 -67.036
4 16 1 -6.501 -69.025 1 -4.017 -69.833 1 -2.744 -67.632 1 -4.088 -67.036
3 16 -1 -4.017 -69.833 -1 -2.744 -67.632 0 -2.744 -67.632
4 16 0 -2.744 -67.632 1 -2.744 -67.632 1 -4.017 -69.833 -1 -4.017 -69.833
5 24 1 0.917 -46.478 -1 0.917 -46.478 -1 25.369 -56.562 1 -0.207752 -46.5213
5 24 -1 -8.645 -64.373 1 -8.645 -64.373 1 -4.468 -46.051 -1 -8.57473 -66.1702
5 24 1 -5.703 -63.532 -1 -5.703 -63.532 -1 -2.38 -48.871 1 -5.65015 -64.8856
5 24 1 -6.501 -69.025 -1 -6.501 -69.025 1 -4.017 -69.833 1 -7.82153 -67.8037
5 24 -1 -4.088 -67.036 1 -4.088 -67.036 1 -2.744 -67.632 1 -5.08288 -66.1158
0 // pins
1 16 8 36 -30.5 0 -8 0 -2 0 0 0 0 -2 4-4cylc.dat
1 16 6 32 -51 0 -6 0 -2 0 0 0 0 -2 4-4cylc.dat
1 16 7 2.25 -53.5 0 -7 0 -2 0 0 0 0 -2 4-4cylc.dat
0 // logo
1 16 -11 0 -62 0 1 0 1 0 0 0 0 -1 logo5.dat
