Official File parts/15533.dat
Part Attributes:
File Header:

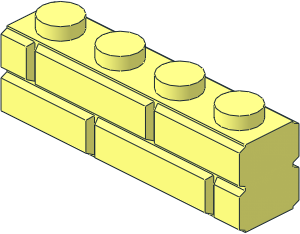

0 Brick 1 x 4 with Embossed Bricks
0 Name: 15533.dat
0 Author: Owen Burgoyne [C3POwen]
0 !LDRAW_ORG Part UPDATE 2014-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2014-06-21 [PTadmin] Official Update 2014-01
Show contents
1 16 0 4 0 1 0 0 0 -5 0 0 0 1 stug3-1x3.dat
4 16 -40 24 8 -36 24 6 -36 24 -6 -40 24 -8
4 16 40 24 8 36 24 6 -36 24 6 -40 24 8
4 16 40 24 -8 36 24 -6 36 24 6 40 24 8
4 16 -40 24 -8 -36 24 -6 36 24 -6 40 24 -8
0 BFC INVERTNEXT
1 16 0 24 0 36 0 0 0 -20 0 0 0 6 box5.dat
1 16 0 24 0 40 0 0 0 1 0 0 0 8 recte4.dat
0 // Brick end
1 16 -40 23.7 0 0 1 0 -0.3 0 0 0 0 8 rect2p.dat
4 16 -40 23.4 -8 -40 22.5 -10 -40 22.5 10 -40 23.4 8
1 16 -40 18 0 0 1 0 -4.5 0 0 0 0 10 rect2p.dat
4 16 -40 13.5 -10 -40 12.6 -8 -40 12.6 8 -40 13.5 10
1 16 -40 12 0 0 1 0 -0.6 0 0 0 0 8 rect2p.dat
4 16 -40 11.4 -8 -40 10.5 -10 -40 10.5 10 -40 11.4 8
1 16 -40 6 0 0 1 0 -4.5 0 0 0 0 10 rect2p.dat
4 16 -40 1.5 -10 -40 0.6 -8 -40 0.6 8 -40 1.5 10
1 16 -40 0.3 0 0 9.6 0 -0.3 0 0 0 0 8 rect2p.dat
2 24 -40 22.5 -10 -40 23.4 -8
2 24 -40 10.5 -10 -40 11.4 -8
2 24 -40 1.5 -10 -40 0.6 -8
2 24 -40 13.5 -10 -40 12.6 -8
0 // Brick end
1 16 40 23.7 0 0 -1 0 0.3 0 0 0 0 8 rect2p.dat
4 16 40 23.4 8 40 22.5 10 40 22.5 -10 40 23.4 -8
1 16 40 18 0 0 -1 0 -4.5 0 0 0 0 -10 rect2p.dat
4 16 40 13.5 10 40 12.6 8 40 12.6 -8 40 13.5 -10
1 16 40 12 0 0 -1 0 -0.6 0 0 0 0 -8 rect2p.dat
4 16 40 11.4 8 40 10.5 10 40 10.5 -10 40 11.4 -8
1 16 40 6 0 0 -1 0 -4.5 0 0 0 0 -10 rect2p.dat
4 16 40 1.5 10 40 0.6 8 40 0.6 -8 40 1.5 -10
1 16 40 0.3 0 0 -9.6 0 -0.3 0 0 0 0 -8 rect2p.dat
2 24 40 22.5 -10 40 23.4 -8
2 24 40 10.5 -10 40 11.4 -8
2 24 40 1.5 -10 40 0.6 -8
2 24 40 13.5 -10 40 12.6 -8
0 // Brick rear
1 16 0 23.7 8 40 0 0 0 0 0.3 0 -24 0 rect2p.dat
1 16 0 22.95 9 -40 0 0 0 -16 -0.45 0 -7.2 1 rect3.dat
1 16 0 18 10 0 0 40 -4.5 0 0 0 -1 0 rect1.dat
1 16 0 13.05 9 -40 0 0 0 20 -0.45 0 -9 -1 rect3.dat
1 16 0 12 8 0 0 40 -0.6 0 0 0 -1.02128 0 rect1.dat
1 16 0 10.95 9 -40 0 0 0 -20 -0.45 0 -9 1 rect3.dat
1 16 0 6 10 0 0 40 -4.5 0 0 0 -1 0 rect1.dat
1 16 0 1.05 9 -40 0 0 0 20 -0.45 0 -9 -1 rect3.dat
4 16 -40 0.6 8 -40 0 8 40 0 8 40 0.6 8
0 // Brick front
1 16 -25.3 18 -8 0 0 14.7 5.4 0 0 0 1 0 recte3.dat
1 16 10 18 -8 19.4 0 0 0 0 -5.4 0 1 0 recte4.dat
1 16 35.3 18 -8 0 0 -4.7 -5.4 0 0 0 1 0 recte3.dat
1 16 -35.3 6 -8 0 0 4.7 5.4 0 0 0 1 0 recte3.dat
1 16 -10 6 -8 19.4 0 0 0 0 -5.4 0 1 0 recte4.dat
1 16 25.3 6 -8 0 0 -14.7 -5.4 0 0 0 1 0 recte3.dat
1 16 -25.75 18 -10 0 0 14.25 4.5 0 0 0 1 0 rect3.dat
1 16 10 18 -10 0 0 18.5 4.5 0 0 0 1 0 rect.dat
1 16 35.75 18 -10 0 0 -4.25 -4.5 0 0 0 1 0 rect3.dat
1 16 -35.75 6 -10 0 0 4.25 4.5 0 0 0 1 0 rect3.dat
1 16 -10 6 -10 0 0 -18.5 -4.5 0 0 0 1 0 rect.dat
1 16 25.75 6 -10 0 0 -14.25 -4.5 0 0 0 1 0 rect3.dat
4 16 -40 22.5 -10 -40 23.4 -8 -10.6 23.4 -8 -11.5 22.5 -10
4 16 -10.6 23.4 -8 -10.6 12.6 -8 -11.5 13.5 -10 -11.5 22.5 -10
4 16 -11.5 13.5 -10 -10.6 12.6 -8 -40 12.6 -8 -40 13.5 -10
2 24 -11.5 22.5 -10 -10.6 23.4 -8
2 24 -11.5 13.5 -10 -10.6 12.6 -8
4 16 -8.5 22.5 -10 -8.5 13.5 -10 -9.4 12.6 -8 -9.4 23.4 -8
4 16 -8.5 22.5 -10 -9.4 23.4 -8 29.4 23.4 -8 28.5 22.5 -10
4 16 29.4 23.4 -8 29.4 12.6 -8 28.5 13.5 -10 28.5 22.5 -10
4 16 28.5 13.5 -10 29.4 12.6 -8 -9.4 12.6 -8 -8.5 13.5 -10
2 24 -8.5 22.5 -10 -9.4 23.4 -8
2 24 28.5 22.5 -10 29.4 23.4 -8
2 24 -8.5 13.5 -10 -9.4 12.6 -8
2 24 28.5 13.5 -10 29.4 12.6 -8
4 16 31.5 22.5 -10 30.6 23.4 -8 40 23.4 -8 40 22.5 -10
4 16 31.5 22.5 -10 31.5 13.5 -10 30.6 12.6 -8 30.6 23.4 -8
4 16 40 13.5 -10 40 12.6 -8 30.6 12.6 -8 31.5 13.5 -10
2 24 31.5 22.5 -10 30.6 23.4 -8
2 24 31.5 13.5 -10 30.6 12.6 -8
4 16 -40 10.5 -10 -40 11.4 -8 -30.6 11.4 -8 -31.5 10.5 -10
4 16 -31.5 1.5 -10 -31.5 10.5 -10 -30.6 11.4 -8 -30.6 0.6 -8
4 16 -31.5 1.5 -10 -30.6 0.6 -8 -40 0.6 -8 -40 1.5 -10
2 24 -31.5 10.5 -10 -30.6 11.4 -8
2 24 -31.5 1.5 -10 -30.6 0.6 -8
4 16 -29.4 0.6 -8 -29.4 11.4 -8 -28.5 10.5 -10 -28.5 1.5 -10
4 16 -28.5 10.5 -10 -29.4 11.4 -8 9.4 11.4 -8 8.5 10.5 -10
4 16 8.5 1.5 -10 8.5 10.5 -10 9.4 11.4 -8 9.4 0.6 -8
4 16 8.5 1.5 -10 9.4 0.6 -8 -29.4 0.6 -8 -28.5 1.5 -10
2 24 -28.5 10.5 -10 -29.4 11.4 -8
2 24 -28.5 1.5 -10 -29.4 0.6 -8
2 24 8.5 10.5 -10 9.4 11.4 -8
2 24 8.5 1.5 -10 9.4 0.6 -8
4 16 10.6 0.6 -8 10.6 11.4 -8 11.5 10.5 -10 11.5 1.5 -10
4 16 11.5 10.5 -10 10.6 11.4 -8 40 11.4 -8 40 10.5 -10
4 16 40 1.5 -10 40 0.6 -8 10.6 0.6 -8 11.5 1.5 -10
2 24 11.5 10.5 -10 10.6 11.4 -8
2 24 11.5 1.5 -10 10.6 0.6 -8
0 // Mortar
4 16 -10 24 -8 -10.6 23.4 -8 -40 23.4 -8 -40 24 -8
4 16 30 24 -8 29.4 23.4 -8 -9.4 23.4 -8 -10 24 -8
4 16 40 24 -8 40 23.4 -8 30.6 23.4 -8 30 24 -8
4 16 -10 24 -8 -9.4 23.4 -8 -10.6 12.5 -8 -10.6 23.4 -8
4 16 -10 11.4 -8 -10.6 12.6 -8 -9.4 23.5 -8 -9.4 12.6 -8
4 16 30 24 -8 30.6 23.4 -8 29.4 12.5 -8 29.4 23.4 -8
4 16 30 11.4 -8 29.4 12.6 -8 30.6 23.5 -8 30.6 12.6 -8
4 16 -30 12.6 -8 -30.6 11.4 -8 -40 11.4 -8 -40 12.6 -8
4 16 -10.6 12.6 -8 -10 11.4 -8 -29.4 11.4 -8 -30 12.6 -8
4 16 10 12.6 -8 9.4 11.4 -8 -10 11.4 -8 -9.4 12.6 -8
4 16 29.4 12.6 -8 30 11.4 -8 10.6 11.4 -8 10 12.6 -8
4 16 40 12.6 -8 40 11.4 -8 30 11.4 -8 30.6 12.6 -8
4 16 -30.6 0.6 -8 -30.6 11.5 -8 -29.4 0.6 -8 -30 0 -8
4 16 -29.4 11.4 -8 -29.4 0.5 -8 -30.6 11.4 -8 -30 12.6 -8
4 16 9.4 0.6 -8 9.4 11.5 -8 10.6 0.6 -8 10 0 -8
4 16 10.6 11.4 -8 10.6 0.5 -8 9.4 11.4 -8 10 12.6 -8
4 16 -40 0 -8 -40 0.6 -8 -30.6 0.6 -8 -30 0 -8
4 16 -30 0 -8 -29.4 0.6 -8 9.4 0.6 -8 10 0 -8
4 16 10 0 -8 10.6 0.6 -8 40 0.6 -8 40 0 -8
0 // Brick top
1 16 0 0 0 40 0 0 0 1 0 0 0 8 rect.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug-1x4.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
