Official File parts/4590.dat
Part Attributes:
File Header:

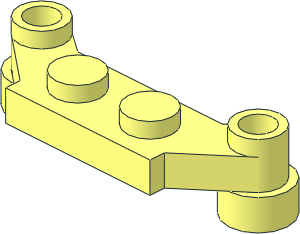

0 Plate 1 x 2 with 2 Offset Hollow Studs
0 Name: 4590.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2024-06
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 1998-06-20 [PTadmin] Official Update 1998-06
0 !HISTORY 1999-05-17 [PTadmin] Official Update 1999-03
0 !HISTORY 2003-06-30 [Steffen] BFCed, converted several quads to ring primitives, fixed two quads that did not fit to their bounding edges
0 !HISTORY 2003-12-02 [Steffen] fixed 2 very tiny BFC errors (wrongly oriented 1-4ndiscs)
0 !HISTORY 2004-04-22 [PTadmin] Official Update 2004-02
0 !HISTORY 2007-10-26 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2020-06-04 [Sirio] Reshaped and updated the use of primitives: removed ringr.dat or ringrr.dat, introduced use of boxes and 3-8cylo.dat, merged some triangles to quads, reduced overalpping surfaces
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03
0 !HISTORY 2024-07-16 [Jaco] Update description
0 !HISTORY 2024-07-29 [OrionP] Official Update 2024-06
Show contents
0 // Primitives
1 16 0 4 0 1 0 0 0 -1 0 0 0 1 stud3.dat
0 BFC INVERTNEXT
1 16 0 8 0 16 0 0 0 -4 0 0 0 6 box5.dat
1 16 0 4 2 20 0 0 0 -4 0 0 0 8 box2-11.dat
1 16 0 4 -6 -20 0 0 0 0 -4 0 -4 0 box4-2p.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug-1x2.dat
1 16 -30 0 10 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 30 0 10 1 0 0 0 1 0 0 0 1 stud2a.dat
1 16 -30 12 10 1 0 0 0 -1 0 0 0 -1 stud4a.dat
1 16 30 12 10 1 0 0 0 -1 0 0 0 -1 stud4a.dat
1 16 -30 8 10 8 0 0 0 4 0 0 0 8 4-4cyli.dat
1 16 30 8 10 8 0 0 0 4 0 0 0 8 4-4cyli.dat
1 16 -30 12 10 2 0 0 0 -1 0 0 0 2 4-4ring2.dat
1 16 30 12 10 2 0 0 0 -1 0 0 0 2 4-4ring2.dat
1 16 -30 12 10 6 0 0 0 1 0 0 0 6 4-4edge.dat
1 16 30 12 10 6 0 0 0 1 0 0 0 6 4-4edge.dat
0 BFC INVERTNEXT
1 16 -30 8 10 4 0 0 0 4 0 0 0 4 4-4cyli.dat
0 BFC INVERTNEXT
1 16 30 8 10 4 0 0 0 4 0 0 0 4 4-4cyli.dat
1 16 -30 8 10 0 0 -2 0 1 0 -2 0 0 5-8ring3.dat
1 16 30 8 10 0 0 2 0 1 0 -2 0 0 5-8ring3.dat
1 16 -30 12 10 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 30 12 10 4 0 0 0 1 0 0 0 4 4-4edge.dat
1 16 -30 8 10 8 0 0 0 1 0 0 0 8 4-4edge.dat
1 16 30 8 10 8 0 0 0 1 0 0 0 8 4-4edge.dat
0 BFC INVERTNEXT
1 16 -30 0 10 4 0 0 0 8 0 0 0 4 4-4cyli.dat
0 BFC INVERTNEXT
1 16 30 0 10 4 0 0 0 8 0 0 0 4 4-4cyli.dat
1 16 -30 0 10 -6 0 0 0 8 0 0 0 6 3-8cyli.dat
1 16 30 0 10 6 0 0 0 8 0 0 0 6 3-8cyli.dat
1 16 -30 0 10 -6 0 0 0 8 0 0 0 -6 1-8cyli.dat
1 16 30 0 10 6 0 0 0 8 0 0 0 -6 1-8cyli.dat
1 16 -30 8 10 0 0 -6 0 1 0 -6 0 0 5-8edge.dat
1 16 30 8 10 0 0 6 0 1 0 -6 0 0 5-8edge.dat
1 16 -21.5 4 3 0 0 -3 0 -1 0 3 0 0 3-8chrd.dat
1 16 21.5 4 3 0 0 3 0 -1 0 3 0 0 3-8chrd.dat
0 BFC INVERTNEXT
1 16 -20.25 6 1.53 0 0 1.25 2 0 0 0 4.47 0 box2-7.dat
0 BFC INVERTNEXT
1 16 20.25 6 1.53 0 0 -1.25 2 0 0 0 4.47 0 box2-7.dat
0 BFC INVERTNEXT
1 16 -21.5 4 3 0 0 -3 0 4 0 3 0 0 3-8cylo.dat
0 BFC INVERTNEXT
1 16 21.5 4 3 0 0 3 0 4 0 3 0 0 3-8cylo.dat
1 16 -21.5 8 3 -3 0 0 0 -1 0 0 0 3 1-4ndis.dat
1 16 21.5 8 3 3 0 0 0 -1 0 0 0 3 1-4ndis.dat
1 16 -21.5 8 3 -3 0 0 0 -1 0 0 0 -3 1-8ndis.dat
1 16 21.5 8 3 3 0 0 0 -1 0 0 0 -3 1-8ndis.dat
1 16 -22.88 4 12.12 0 -1 2.88 4 0 0 0 0 -2.12 rect3.dat
1 16 22.88 4 12.12 0 1 -2.88 -4 0 0 0 0 -2.12 rect3.dat
1 16 -27.12 4 -.12 7.12 1 0 0 0 4 -5.88 0 0 rect2p.dat
1 16 27.12 4 -.12 7.12 -1 0 0 0 4 5.88 0 0 rect2p.dat
1 16 -30 0 10 6 0 0 0 1 0 0 0 6 1-8edge.dat
1 16 30 0 10 -6 0 0 0 1 0 0 0 6 1-8edge.dat
1 16 -30 0 10 6 0 0 0 1 0 0 0 -6 3-8edge.dat
1 16 30 0 10 -6 0 0 0 1 0 0 0 -6 3-8edge.dat
1 16 -30 8 10 8 0 0 0 1 0 0 0 8 1-8chrd.dat
1 16 30 8 10 -8 0 0 0 1 0 0 0 8 1-8chrd.dat
1 16 -30 8 10 0 0 8 0 1 0 -8 0 0 1-8chrd.dat
1 16 30 8 10 0 0 -8 0 1 0 -8 0 0 1-8chrd.dat
0 // Central faces
4 16 -20 8 10 20 8 10 16 8 6 -16 8 6
4 16 -19 8 6 -16 8 6 -16 8 -6 -19 8 -2.94
4 16 16 8 -6 16 8 6 19 8 6 19 8 -2.94
4 16 -20 8 -6 -19 8 -2.94 -16 8 -6 -20 8 -10
4 16 16 8 -6 19 8 -2.94 20 8 -6 20 8 -10
4 16 -16 8 -6 16 8 -6 20 8 -10 -20 8 -10
0 // Edges
2 24 -20 8 10 20 8 10
0 // Left side
0 // Faces
4 16 -20 8 10 -16 8 6 -19 8 6 -22 8 10
3 16 -22 8 10 -25.76 8 14.24 -20 8 10
3 16 -19 8 6 -21.5 8 6 -22 8 10
3 16 -22 8 10 -21.5 8 6 -24.5 8 6
3 16 -34.2426 8 5.7574 -24.5 8 6 -24.5 8 3
3 16 -34.2426 8 5.7574 -24.5 8 3 -24.5 8 0
3 16 -24.5 8 0 -20 8 -6 -34.2426 8 5.7574
4 16 -19 8 -2.94 -20 8 -6 -24.5 8 0 -23.6213 8 .8787
3 16 -30 8 4 -30 8 2 -24.3432 8 4.3432
4 16 -23.6213 4 .8787 -21.5 4 6 -19 4 6 -19 4 -2.94
4 16 -23.6213 4 .8787 -19 4 -2.94 -19 8 -2.94 -23.6213 8 .8787
3 16 -25.76 8 14.24 -22 8 10 -24.3432 8 15.6568
4 16 -25.76 0 14.24 -25.76 0 5.76 -20 0 -6 -20 0 10
3 16 -25.76 0 5.76 -34.24 0 5.76 -20 0 -6
0 // Edges
2 24 -23.6213 8 .8787 -19 8 -2.94
2 24 -19 8 -2.94 -19 4 -2.94
2 24 -19 4 -2.94 -23.6213 4 .8787
0 // Conditional lines
5 24 -23.6213 8 .8787 -23.6213 4 .8787 -24.2717 8 1.8519 -19 8 -2.94
0 // Right side
0 // Faces
4 16 19 8 6 16 8 6 20 8 10 22 8 10
3 16 25.76 8 14.24 22 8 10 20 8 10
3 16 21.5 8 6 19 8 6 22 8 10
3 16 21.5 8 6 22 8 10 24.5 8 6
3 16 24.5 8 6 34.2426 8 5.7574 24.5 8 3
3 16 24.5 8 3 34.2426 8 5.7574 24.5 8 0
3 16 20 8 -6 24.5 8 0 34.2426 8 5.7574
4 16 24.5 8 0 20 8 -6 19 8 -2.94 23.6213 8 .8787
3 16 30 8 2 30 8 4 24.3432 8 4.3432
4 16 19 4 6 21.5 4 6 23.6213 4 .8787 19 4 -2.94
4 16 19 8 -2.94 19 4 -2.94 23.6213 4 .8787 23.6213 8 .8787
3 16 22 8 10 25.76 8 14.24 24.3432 8 15.6568
4 16 20 0 -6 25.76 0 5.76 25.76 0 14.24 20 0 10
3 16 34.24 0 5.76 25.76 0 5.76 20 0 -6
0 // Edges
2 24 23.6213 8 .8787 19 8 -2.94
2 24 19 8 -2.94 19 4 -2.94
2 24 19 4 -2.94 23.6213 4 .8787
0 // Conditional lines
5 24 23.6213 8 .8787 23.6213 4 .8787 24.2717 8 1.8519 19 8 -2.94
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
Update description
2024-07-16 15:21:22
2024-07-17 21:21:35
What is it that is Offset?
Maybe this is a Plate 1x2 with 2 Offset Hollow Studs?
Maybe this is a Plate 1x2 with 2 Offset Hollow Studs?
2024-07-19 18:00:14
Original name was Plate 1 x 4 Offset. Since this part was shown as "regular" plate (in LDCad) adding the word "with" would move it to "modified plates"
2024-07-19 18:47:59
Header Edits
description:
Plate 1 x 4 with Offset
to
Plate 1 x 2 with 2 Offset Hollow Studs
2024-07-20 11:19:49
2024-07-29 02:26:56
Release 2024-06
Creative Commons Attribution License information
This part is copyright © James Jessiman
Licensed under CC BY 4.0
