File Detail parts/45907.dat

Official File parts/45907.dat

Part Attributes:

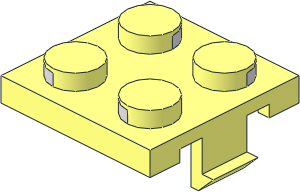

~Electric Connector Plate 2 x 2 with Contacts

File Header:

0 ~Electric Connector Plate  2 x  2 with Contacts
0 Name: 45907.dat
0 Author: Willy Tschager [Holly-Wood]
0 !LDRAW_ORG Part UPDATE 2025-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2009-05-02 [PTadmin] Official Update 2009-01
0 !HISTORY 2024-10-13 [Holly-Wood] Complete rewrite, original by Guy Vivan
0 !HISTORY 2025-01-20 [OrionP] Official Update 2025-01
