Official File parts/4591.dat
Part Attributes:
File Header:

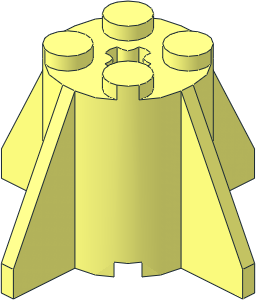

0 Brick 2 x 2 x 2 Round with Fins
0 Name: 4591.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2020-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Rocket, Space
0 !HISTORY 2004-03-25 [westrate] Added stud10, repositioned fins
0 !HISTORY 2004-04-18 [OrionP] BFC'd
0 !HISTORY 2005-12-28 [PTadmin] Official Update 2005-01
0 !HISTORY 2007-07-08 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2020-06-04 [Sirio] Updated the use of primitives
0 !HISTORY 2020-11-14 [MagFors] Reworked outer surface
0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03
Show contents
2 24 19.6026 48 2 18.48 48 7.65
2 24 18.48 48 7.65 16 48 11.36
2 24 16 44 11.36 14.14 44 14.14
2 24 14.14 44 14.14 11.36 44 16
2 24 -16 44 11.36 -14.14 44 14.14
2 24 -14.14 44 14.14 -11.35 44 16
2 24 -11.36 48 16 -7.65 48 18.48
2 24 19.6026 48 -2 18.48 48 -7.65
2 24 16 44 -11.36 14.14 44 -14.14
2 24 14.14 44 -14.14 11.36 44 -16
2 24 11.36 48 -16 7.65 48 -18.48
2 24 -18.48 48 -7.65 -16 48 -11.36
2 24 -16 44 -11.36 -14.14 44 -14.14
2 24 -14.14 44 -14.14 -11.35 44 -16
1 16 0 20 0 1 0 0 0 -7 0 0 0 1 stud4a.dat
1 16 0 4 0 8 0 0 0 -1 0 0 0 -8 4-4ring1.dat
1 16 0 4 0 8 0 0 0 1 0 0 0 8 4-4edge.dat
1 16 0 4 0 8 0 0 0 16 0 0 0 8 4-4cyli.dat
1 16 0 0 0 6 0 0 0 1 0 0 0 6 4-4ndis.dat
1 16 0 20 0 1 0 0 0 1 0 0 0 1 axlehol3.dat
1 16 0 0 0 1 0 0 0 20 0 0 0 1 axlehole.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 axlehol2.dat
1 16 0 44 0 16 0 0 0 1 0 0 0 16 4-4edge.dat
1 16 0 4 0 16 0 0 0 1 0 0 0 16 4-4edge.dat
4 16 18.48 48 -7.65 16 48 -11.36 16 48 11.36 18.48 48 7.65
4 16 19.6026 48 -2 18.48 48 -7.65 18.48 48 7.65 19.6026 48 2
4 16 19.6026 48 2 18.48 48 7.65 18.48 0 7.65 19.6026 0 2
3 16 18.48 48 7.65 16 48 11.36 16 44 11.36
2 24 11.36 48 16 7.65 48 18.48
3 16 11.36 44 16 11.36 48 16 7.65 48 18.48
2 24 -16 48 11.36 -18.48 48 7.65
3 16 -18.48 48 7.65 -16 44 11.36 -16 48 11.36
3 16 -7.65 48 18.48 -11.36 48 16 -11.35 44 16
2 24 16 48 -11.36 18.48 48 -7.65
3 16 18.48 48 -7.65 16 44 -11.36 16 48 -11.36
3 16 7.65 48 -18.48 11.36 48 -16 11.36 44 -16
1 16 16 46 0 0 1 0 -2 0 0 0 0 11.36 rect.dat
3 16 -18.48 48 -7.65 -16 48 -11.36 -16 44 -11.36
2 24 -11.36 48 -16 -7.65 48 -18.48
3 16 -11.35 44 -16 -11.36 48 -16 -7.65 48 -18.48
4 16 -11.9387 0 -15.6145 -11.35 44 -16 -7.65 48 -18.48 -7.65 0 -18.48
0 BFC INVERTNEXT
1 16 0 4 0 16 0 0 0 40 0 0 0 16 4-4cyli.dat
1 16 0 44 0 16 0 0 0 -1 0 0 0 16 1-4tang.dat
1 16 0 44 0 -16 0 0 0 -1 0 0 0 16 1-4tang.dat
1 16 0 44 0 16 0 0 0 -1 0 0 0 -16 1-4tang.dat
1 16 0 44 0 -16 0 0 0 -1 0 0 0 -16 1-4tang.dat
3 16 16 44 3.1824 14.7824 44 6.1232 16 44 11.36
3 16 16 44 11.36 14.7824 44 6.1232 13.5648 44 9.064
4 16 11.31 44 11.31 14.14 44 14.14 16 44 11.36 13.5648 44 9.064
3 16 9.064 44 13.5648 6.1232 44 14.7824 11.36 44 16
4 16 11.36 44 16 14.14 44 14.14 11.31 44 11.31 9.064 44 13.5648
3 16 6.1232 44 14.7824 3.1824 44 16 11.36 44 16
3 16 -14.7824 44 6.1232 -16 44 3.1824 -16 44 11.36
3 16 -13.5648 44 9.064 -14.7824 44 6.1232 -16 44 11.36
4 16 -16 44 11.36 -14.14 44 14.14 -11.31 44 11.31 -13.5648 44 9.064
4 16 -11.35 44 16 -9.064 44 13.5648 -11.31 44 11.31 -14.14 44 14.14
3 16 -6.1232 44 14.7824 -9.064 44 13.5648 -11.35 44 16
3 16 -3.1824 44 16 -6.1232 44 14.7824 -11.35 44 16
3 16 14.7824 44 -6.1232 16 44 -3.1824 16 44 -11.36
4 16 11.31 44 -11.31 13.5648 44 -9.064 16 44 -11.36 14.14 44 -14.14
3 16 13.5648 44 -9.064 14.7824 44 -6.1232 16 44 -11.36
3 16 11.36 44 -16 6.1232 44 -14.7824 9.064 44 -13.5648
4 16 11.31 44 -11.31 14.14 44 -14.14 11.36 44 -16 9.064 44 -13.5648
3 16 3.1824 44 -16 6.1232 44 -14.7824 11.36 44 -16
3 16 -16 44 -3.1824 -14.7824 44 -6.1232 -16 44 -11.36
4 16 -16 44 -11.36 -13.5648 44 -9.064 -11.31 44 -11.31 -14.14 44 -14.14
3 16 -14.7824 44 -6.1232 -13.5648 44 -9.064 -16 44 -11.36
3 16 -9.064 44 -13.5648 -6.1232 44 -14.7824 -11.35 44 -16
4 16 -11.35 44 -16 -14.14 44 -14.14 -11.31 44 -11.31 -9.064 44 -13.5648
3 16 -6.1232 44 -14.7824 -3.1824 44 -16 -11.35 44 -16
2 24 40 48 2 19.6026 48 2
2 24 19.6026 48 2 19.6026 0 2
2 24 19.6026 48 -2 19.6026 0 -2
1 16 29.8013 48 0 0 0 -10.1987 0 -1 0 -2 0 0 rect1.dat
1 16 40 44 0 0 -1 0 -4 0 0 0 0 -2 rect.dat
1 16 29.8013 20 0 0 0 -10.1987 0 1 -20 2 0 0 rect3.dat
4 16 40 48 2 19.6026 48 2 19.6026 0 2 40 40 2
4 16 40 48 -2 40 40 -2 19.6026 0 -2 19.6026 48 -2
1 16 0 0 0 1 0 0 0 1 0 0 0 1 stug10-2x2.dat
2 24 -18.4788 0 -7.65185 -15.6145 0 -11.9397
2 24 -7.65 0 -18.48 -11.9387 0 -15.6145
2 24 7.65185 0 -18.4788 11.9397 0 -15.6145
2 24 18.4788 0 -7.65185 15.6145 0 -11.9387
2 24 18.4788 0 -7.65185 19.6026 0 -2
2 24 18.48 0 7.65 19.6026 0 2
2 24 18.48 0 7.65 15.6145 0 11.9397
2 24 7.6537 0 18.4776 11.9387 0 15.6145
2 24 -7.65185 0 18.4788 -11.9397 0 15.6145
2 24 -18.4788 0 7.65185 -15.6145 0 11.9387
2 24 -2 48 19.6026 -7.65 48 18.48
2 24 2 48 19.6026 7.65 48 18.48
4 16 7.65 48 18.48 11.36 48 16 -11.36 48 16 -7.65 48 18.48
4 16 2 48 19.6026 7.65 48 18.48 -7.65 48 18.48 -2 48 19.6026
4 16 2 48 19.6026 2 0 19.6026 7.6537 0 18.4776 7.65 48 18.48
1 16 0 46 16 0 0 -11.36 -2 0 0 0 1 0 rect.dat
2 24 -2 48 40 -2 48 19.6026
2 24 -2 48 19.6026 -2 0 19.6026
2 24 2 48 19.6026 2 0 19.6026
1 16 0 48 29.8013 2 0 0 0 -1 0 0 0 -10.1987 rect1.dat
1 16 0 44 40 0 0 2 -4 0 0 0 -1 0 rect.dat
1 16 0 20 29.8013 -2 0 0 0 1 -20 0 0 -10.1987 rect3.dat
4 16 -2 48 40 -2 48 19.6026 -2 0 19.6026 -2 40 40
4 16 2 48 40 2 40 40 2 0 19.6026 2 48 19.6026
2 24 7.6537 0 18.4776 2 0 19.6026
2 24 -7.65185 0 18.4788 -2 0 19.6026
2 24 -19.6026 48 -2 -18.48 48 -7.65
2 24 -19.6026 48 2 -18.48 48 7.65
4 16 -18.48 48 7.65 -16 48 11.36 -16 48 -11.36 -18.48 48 -7.65
4 16 -19.6026 48 2 -18.48 48 7.65 -18.48 48 -7.65 -19.6026 48 -2
1 16 -16 46 0 0 -1 0 -2 0 0 0 0 -11.36 rect.dat
2 24 -40 48 -2 -19.6026 48 -2
2 24 -19.6026 48 -2 -19.6026 0 -2
2 24 -19.6026 48 2 -19.6026 0 2
1 16 -29.8013 48 0 0 0 10.1987 0 -1 0 2 0 0 rect1.dat
1 16 -40 44 0 0 1 0 -4 0 0 0 0 2 rect.dat
1 16 -29.8013 20 0 0 0 10.1987 0 1 -20 -2 0 0 rect3.dat
4 16 -40 48 -2 -19.6026 48 -2 -19.6026 0 -2 -40 40 -2
4 16 -40 48 2 -40 40 2 -19.6026 0 2 -19.6026 48 2
2 24 -18.4788 0 7.65185 -19.6026 0 2
2 24 -18.4788 0 -7.65185 -19.6026 0 -2
2 24 2 48 -19.6026 7.65 48 -18.48
2 24 -2 48 -19.6026 -7.65 48 -18.48
4 16 -7.65 48 -18.48 -11.36 48 -16 11.36 48 -16 7.65 48 -18.48
4 16 -2 48 -19.6026 -7.65 48 -18.48 7.65 48 -18.48 2 48 -19.6026
4 16 -2 48 -19.6026 -2 0 -19.6026 -7.65 0 -18.48 -7.65 48 -18.48
1 16 0 46 -16 0 0 11.36 -2 0 0 0 -1 0 rect.dat
2 24 2 48 -40 2 48 -19.6026
2 24 2 48 -19.6026 2 0 -19.6026
2 24 -2 48 -19.6026 -2 0 -19.6026
1 16 0 48 -29.8013 -2 0 0 0 -1 0 0 0 10.1987 rect1.dat
1 16 0 44 -40 0 0 -2 -4 0 0 0 1 0 rect.dat
1 16 0 20 -29.8013 2 0 0 0 1 -20 0 0 10.1987 rect3.dat
4 16 2 48 -40 2 48 -19.6026 2 0 -19.6026 2 40 -40
4 16 -2 48 -40 -2 40 -40 -2 0 -19.6026 -2 48 -19.6026
2 24 -7.65 0 -18.48 -2 0 -19.6026
2 24 7.65185 0 -18.4788 2 0 -19.6026
4 16 11.36 44 -16 11.9397 0 -15.6145 7.65185 0 -18.4788 7.65 48 -18.48
4 16 11.9397 0 -15.6145 11.36 44 -16 14.14 44 -14.14 14.142 0 -14.142
4 16 2 48 -19.6026 7.65 48 -18.48 7.65185 0 -18.4788 2 0 -19.6026
5 24 14.142 0 -14.142 14.14 44 -14.14 7.65185 0 -18.4788 18.4788 0 -7.65185
5 24 7.65185 0 -18.4788 7.65 48 -18.48 11.9397 0 -15.6145 2 0 -19.6026
5 24 18.4788 0 -7.65185 18.48 48 -7.65 15.6145 0 -11.9387 19.6026 0 -2
4 16 -14.14 44 -14.14 -11.35 44 -16 -11.9387 0 -15.6145 -14.142 0 -14.142
4 16 18.48 0 7.65 15.6145 0 11.9397 15.6145 0 -11.9387 18.4788 0 -7.65185
4 16 -6 0 -6 -11.9387 0 -15.6145 11.9397 0 -15.6145 6 0 -6
4 16 -2 0 -19.6026 2 0 -19.6026 7.65185 0 -18.4788 -7.65 0 -18.48
4 16 18.48 48 7.65 16 44 11.36 15.6145 0 11.9397 18.48 0 7.65
4 16 14.14 44 14.14 14.142 0 14.142 15.6145 0 11.9397 16 44 11.36
5 24 14.142 0 14.142 14.14 44 14.14 18.48 0 7.65 7.6537 0 18.4776
5 24 18.48 0 7.65 18.48 48 7.65 19.6026 0 2 15.6145 0 11.9397
5 24 7.6537 0 18.4776 7.65 48 18.48 11.9387 0 15.6145 2 0 19.6026
4 16 16 44 -11.36 18.48 48 -7.65 18.4788 0 -7.65185 15.6145 0 -11.9387
4 16 15.6145 0 -11.9387 14.142 0 -14.142 14.14 44 -14.14 16 44 -11.36
4 16 19.6026 48 -2 19.6026 0 -2 18.4788 0 -7.65185 18.48 48 -7.65
4 16 6 0 6 6 0 -6 15.6145 0 -11.9387 15.6145 0 11.9397
4 16 19.6026 0 -2 19.6026 0 2 18.48 0 7.65 18.4788 0 -7.65185
4 16 -14.142 0 14.142 -11.9397 0 15.6145 -11.35 44 16 -14.14 44 14.14
4 16 -11.9397 0 15.6145 -7.65185 0 18.4788 -7.65 48 18.48 -11.35 44 16
4 16 -2 48 19.6026 -7.65 48 18.48 -7.65185 0 18.4788 -2 0 19.6026
5 24 -14.142 0 14.142 -14.14 44 14.14 -7.65185 0 18.4788 -18.4788 0 7.65185
5 24 -7.65185 0 18.4788 -7.65 48 18.48 -2 0 19.6026 -11.9397 0 15.6145
5 24 -18.4788 0 7.65185 -18.48 48 7.65 -15.6145 0 11.9387 -19.6026 0 2
4 16 7.65 48 18.48 7.6537 0 18.4776 11.9387 0 15.6145 11.36 44 16
4 16 11.9387 0 15.6145 14.142 0 14.142 14.14 44 14.14 11.36 44 16
4 16 11.9387 0 15.6145 7.6537 0 18.4776 -7.65185 0 18.4788 -11.9397 0 15.6145
4 16 -18.4788 0 -7.65185 -15.6145 0 -11.9397 -15.6145 0 11.9387 -18.4788 0 7.65185
4 16 -6 0 6 6 0 6 11.9387 0 15.6145 -11.9397 0 15.6145
4 16 2 0 19.6026 -2 0 19.6026 -7.65185 0 18.4788 7.6537 0 18.4776
4 16 -18.4788 0 -7.65185 -18.48 48 -7.65 -16 44 -11.36 -15.6145 0 -11.9397
4 16 -15.6145 0 -11.9397 -16 44 -11.36 -14.14 44 -14.14 -14.142 0 -14.142
4 16 -19.6026 48 -2 -18.48 48 -7.65 -18.4788 0 -7.65185 -19.6026 0 -2
5 24 -14.142 0 -14.142 -14.14 44 -14.14 -18.4788 0 -7.65185 -7.65 0 -18.48
5 24 -18.4788 0 -7.65185 -18.48 48 -7.65 -19.6026 0 -2 -15.6145 0 -11.9397
5 24 -7.65 0 -18.48 -7.65 48 -18.48 -11.9387 0 -15.6145 -2 0 -19.6026
4 16 -14.142 0 14.142 -14.14 44 14.14 -16 44 11.36 -15.6145 0 11.9387
4 16 -18.48 48 7.65 -18.4788 0 7.65185 -15.6145 0 11.9387 -16 44 11.36
4 16 -19.6026 48 2 -19.6026 0 2 -18.4788 0 7.65185 -18.48 48 7.65
4 16 7.65185 0 -18.4788 11.9397 0 -15.6145 -11.9387 0 -15.6145 -7.65 0 -18.48
4 16 -6 0 -6 -6 0 6 -15.6145 0 11.9387 -15.6145 0 -11.9397
4 16 -19.6026 0 2 -19.6026 0 -2 -18.4788 0 -7.65185 -18.4788 0 7.65185
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © James Jessiman
Licensed under CC BY 4.0
