File Detail parts/46538.dat

Official File parts/46538.dat

Part Attributes:

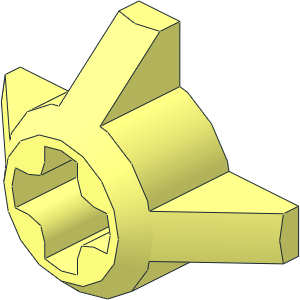

~Trigger Button for Spring Shooter 2 x 6 x 1.333

File Header:

0 ~Trigger Button for Spring Shooter  2 x  6 x  1.333
0 Name: 46538.dat
0 Author: Philippe Hurbain [Philo]
0 !LDRAW_ORG Part UPDATE 2020-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !CATEGORY Technic

0 !HISTORY 2020-12-29 [PTadmin] Official Update 2020-03

Show contents

2 24 8.5026 -2.5 2.25 8.315 -3.444 2.25
4 16 8.5026 -2.5 2.25 8.5026 -2.5 12 8.315 -3.444 12 8.315 -3.444 2.25
2 24 8.5026 2.5 2.25 8.315 3.444 2.25
2 24 8.5026 -2.5 2.25 8.5026 -2.5 12
1 16 2.972075 -8.40875 7.125 -0.00015 0 -0.47215 -0.0001 1 -0.0939 4.875 0 0 rect3.dat
2 24 8.5026 -2.5 2.25 17 -2.5 10.1499
4 16 8.5026 -2.5 12 8.5026 -2.5 2.25 17 -2.5 10.1499 17 -2.5 12
2 24 8.5026 -2.5 12 17 -2.5 12
4 16 8.5026 -2.5 2.25 9 0 2.25 17 0 9.6875 17 -2.5 10.1499
2 24 17 -2.5 10.1499 17 0 9.6875
2 24 2.5 -8.5026 2.25 2.5 -15 9.5597
4 16 2.5 -15 9.5597 0 -15 9 0 -9 2.25 2.5 -8.5026 2.25
2 24 2.5 -15 9.5597 0 -15 9
4 16 8.315 3.444 10 8.5026 2.5 10 8.5026 2.5 2.25 8.315 3.444 2.25
2 24 8.5026 2.5 2.25 8.5026 2.5 10
2 24 8.5026 2.5 2.25 17 2.5 10.1499
4 16 17 2.5 10.1499 8.5026 2.5 2.25 8.5026 2.5 10 17 2.5 12
4 16 17 0 9.6875 9 0 2.25 8.5026 2.5 2.25 17 2.5 10.1499
1 16 17 0 11.07495 0 -1 0 2.5 0 0 0 0 0.92505 rect3.dat
3 16 17 -2.5 10.1499 17 0 9.6875 17 2.5 10.1499
2 24 8.315 -3.444 12 8.5026 -2.5 12
2 24 8.315 3.444 10 8.5026 2.5 10
2 24 17 2.5 10.1499 17 0 9.6875
1 16 0 0 0 1 0 0 0 0 -1 0 10 0 axlehole.dat
1 16 0 0 10 1 0 0 0 0 -1 0 1 0 axlehol2.dat
1 16 0 0 0 1 0 0 0 0 -1 0 1 0 axlehol2.dat
1 16 0 0 0 1 0 0 0 0 -1 0 1 0 4-4ring6.dat
1 16 0 0 0 6 0 0 0 0 -6 0 1 0 4-4ering.dat
1 16 0 0 1.125 1 0 0 0 0 -1 0 -1.125 0 4-4con7.dat
1 16 0 0 2.25 1 0 0 0 0 -1 0 -1.125 0 4-4con8.dat
1 16 0 0 0 7 0 0 0 0 -7 0 1 0 4-4edge.dat
1 16 0 0 2.25 8.315 0 -3.444 -3.444 0 -8.315 0 9.75 0 1-8cylo.dat
1 16 0 0 2.25 8.315 0 -3.444 3.444 0 8.315 0 7.75 0 3-8cylo.dat
2 24 -8.5026 -2.5 2.25 -8.315 -3.444 2.25
4 16 -8.315 -3.444 12 -8.5026 -2.5 12 -8.5026 -2.5 2.25 -8.315 -3.444 2.25
2 24 -8.5026 2.5 2.25 -8.315 3.444 2.25
2 24 -8.5026 -2.5 2.25 -8.5026 -2.5 12
1 16 -2.972075 -8.40875 7.125 -0.00015 0 0.472 0.0001 1 -0.0938 -4.875 0 0 rect3.dat
2 24 -8.5026 -2.5 2.25 -17 -2.5 10.1499
4 16 -17 -2.5 10.1499 -8.5026 -2.5 2.25 -8.5026 -2.5 12 -17 -2.5 12
2 24 -8.5026 -2.5 12 -17 -2.5 12
4 16 -17 0 9.6875 -9 0 2.25 -8.5026 -2.5 2.25 -17 -2.5 10.1499
2 24 -17 -2.5 10.1499 -17 0 9.6875
2 24 -2.5 -8.5026 2.25 -2.5 -15 9.5597
4 16 0 -9 2.25 0 -15 9 -2.5 -15 9.5597 -2.5 -8.5026 2.25
2 24 -2.5 -15 9.5597 0 -15 9
4 16 -8.5026 2.5 2.25 -8.5026 2.5 10 -8.315 3.444 10 -8.315 3.444 2.25
2 24 -8.5026 2.5 2.25 -8.5026 2.5 10
2 24 -8.5026 2.5 2.25 -17 2.5 10.1499
4 16 -8.5026 2.5 10 -8.5026 2.5 2.25 -17 2.5 10.1499 -17 2.5 12
4 16 -8.5026 2.5 2.25 -9 0 2.25 -17 0 9.6875 -17 2.5 10.1499
1 16 -17 0 11.07495 0 1 0 -2.5 0 0 0 0 0.92505 rect3.dat
3 16 -17 0 9.6875 -17 -2.5 10.1499 -17 2.5 10.1499
2 24 -8.315 -3.444 12 -8.5026 -2.5 12
2 24 -8.315 3.444 10 -8.5026 2.5 10
2 24 -17 2.5 10.1499 -17 0 9.6875
1 16 0 0 2.25 -8.315 0 3.444 -3.444 0 -8.315 0 9.75 0 1-8cylo.dat
2 24 17 2.5 12 -17 2.5 12
2 24 8.5026 2.5 10 -8.5026 2.5 10
4 16 17 2.5 12 8.5026 2.5 10 -8.5026 2.5 10 -17 2.5 12
4 16 -17 2.5 12 -8.5026 -2.5 12 8.5026 -2.5 12 17 2.5 12
4 16 -8.5026 2.5 10 8.5026 2.5 10 5.3642 -6.0641 10 -5.3642 -6.0641 10
3 16 -17 2.5 12 -17 -2.5 12 -8.5026 -2.5 12
3 16 17 -2.5 12 17 2.5 12 8.5026 -2.5 12
1 16 0 0 10 2.77164 0 -1.14805 1.14805 0 2.77164 0 -1 0 3-8ring2.dat
3 16 8.5026 2.5 10 8.3149 3.4442 10 5.543 2.296 10
3 16 -8.315 3.444 10 -8.5026 2.5 10 -5.5432 2.2961 10
1 16 0 -15 10.77985 2.5 0 0 0 1 0 0 0 1.22015 rect3.dat
3 16 -2.5 -15 9.5597 0 -15 9 2.5 -15 9.5597
4 16 2.5 -8.5026 2.25 2.5 -8.5026 12 2.5 -15 12 2.5 -15 9.5597
4 16 -2.5 -15 12 -2.5 -8.5026 12 -2.5 -8.5026 2.25 -2.5 -15 9.5597
1 16 0 -11.7513 12 0 0 2.5 -3.2487 0 0 0 -1 0 rect2p.dat
4 16 -3.4443 -8.3148 12 -2.5 -8.5026 12 2.5 -8.5026 12 3.444 -8.315 12
4 16 -3.4443 -8.3148 12 3.444 -8.315 12 8.315 -3.444 12 -8.315 -3.444 12
4 16 -8.5026 -2.5 12 -8.315 -3.444 12 8.315 -3.444 12 8.5026 -2.5 12
1 16 0 0 12 8.315 0 -3.444 -3.444 0 -8.315 0 -1 0 1-8chrd.dat
1 16 0 0 12 -8.315 0 3.444 -3.444 0 -8.315 0 -1 0 1-8chrd.dat
5 24 -8.3151 3.4443 2.25 -8.315 3.444 10 -8.5026 2.5 2.25 -6.3641 6.3642 2.25
5 24 -8.315 -3.444 12 -8.3151 -3.4443 2.25 -8.5026 -2.5 2.25 -6.3642 -6.3641 2.25
5 24 -17 0 9.6875 -9 0 2.25 -8.5026 -2.5 2.25 -8.5026 2.5 2.25
5 24 8.3151 3.4443 2.25 8.315 3.444 10 8.5026 2.5 2.25 6.3641 6.3642 2.25
5 24 8.315 -3.444 12 8.3151 -3.4443 2.25 8.5026 -2.5 2.25 6.3642 -6.3641 2.25
5 24 17 0 9.6875 9 0 2.25 8.5026 -2.5 2.25 8.5026 2.5 2.25
5 24 0 -15 9 0 -9 2.25 2.5 -8.5026 2.25 -2.5 -8.5026 2.25
