Official File parts/4695.dat
Part Attributes:
File Header:

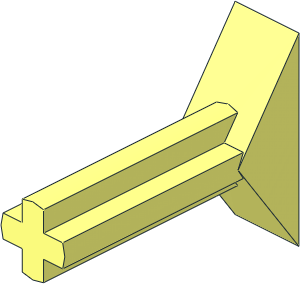

0 ~Technic Pneumatic Valve Lever
0 Name: 4695.dat
0 Author: Marc Klein [marckl]
0 !LDRAW_ORG Part UPDATE 2009-03
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2006-08-21 [WilliamH] Modelled junction of axle to triangular part
0 !HISTORY 2009-12-15 [arezey] Sealed junction gaps
0 !HISTORY 2009-12-29 [PTadmin] Official Update 2009-03
Show contents
1 16 0 0 -40.5 0 0 1 1 0 0 0 1 0 axleend.dat
1 16 0 0 -40.5 0 0 1 1 0 0 0 1 0 axlehol2.dat
1 16 0 0 -40.5 0 0 1 1 0 0 0 1 0 axlehol9.dat
1 16 0 0 -40.5 0 0 1 1 0 0 0 32.5 0 axlehol8.dat
4 16 2 -2 -6.533 5.602 -2 -6.533 6 -16.38 3.536 2 -5.602 -3.974
2 24 2 -2 -6.533 5.602 -2 -6.533
2 24 5.602 -2 -8 5.602 -2 -6.533
4 16 5.602 -2 -8 5.602 -2 -6.533 2 -2 -6.533 2 -2 -8
4 16 6 0 -8 6 0 -7.935 5.602 -2 -6.533 5.602 -2 -8
4 16 5.602 2 -8 5.602 2 -6.533 6 0 -7.935 6 0 -8
4 16 -5.602 -2 -8 -5.602 -2 -6.533 -6 0 -7.935 -6 0 -8
4 16 -6 0 -8 -6 0 -7.935 -5.602 2 -6.533 -5.602 2 -8
5 24 6 0 -7.935 6 0 -8 5.602 2 -8 5.602 -2 -8
5 24 -6 0 -7.935 -6 0 -8 -5.602 2 -8 -5.602 -2 -8
5 24 0 -6 -3.734 0 -6 -8 2 -5.602 -8 -2 -5.602 -8
5 24 0 6 -3.734 0 6 -8 2 5.602 -8 -2 5.602 -8
2 24 -5.602 -2 -8 -5.602 -2 -6.533
2 24 2 -2 -6.533 2 -2 -8
2 24 -2 -2 -6.533 -2 -2 -8
2 24 2 -5.602 -3.974 2 -2 -6.533
2 24 2 -5.602 -3.974 2 -5.602 -8
4 16 2 -5.602 -3.974 2 -5.602 -8 2 -2 -8 2 -2 -6.533
4 16 0 -6 -3.734 0 -6 -8 2 -5.602 -8 2 -5.602 -3.974
4 16 -2 -2 -8 -2 -2 -6.533 -5.602 -2 -6.533 -5.602 -2 -8
4 16 -2 -2 -6.533 -2 -2 -8 -2 -5.602 -8 -2 -5.602 -3.974
4 16 -2 -5.602 -3.974 -2 -5.602 -8 0 -6 -8 0 -6 -3.734
4 16 2 2 -8 2 2 -6.533 5.602 2 -6.533 5.602 2 -8
4 16 2 2 -6.533 2 2 -8 2 5.602 -8 2 5.667 -3.974
4 16 2 5.667 -3.974 2 5.602 -8 0 6 -8 0 6 -3.734
4 16 -5.602 2 -8 -5.602 2 -6.533 -2 2 -6.533 -2 2 -8
4 16 -2 5.667 -3.974 -2 5.602 -8 -2 2 -8 -2 2 -6.533
4 16 0 6 -3.734 0 6 -8 -2 5.602 -8 -2 5.667 -3.974
2 24 -2 -5.602 -3.974 -2 -5.602 -8
2 24 5.602 2 -8 5.602 2 -6.533
2 24 -5.602 2 -8 -5.602 2 -6.533
2 24 -2 2 -6.533 -2 2 -8
2 24 2 2 -6.533 2 2 -8
2 24 2 5.602 -3.974 2 2 -6.533
2 24 2 5.602 -3.974 2 5.602 -8
2 24 -2 5.602 -3.974 -2 5.602 -8
3 16 2 -5.602 -3.974 6 -16.38 3.536 0 -6 -3.734
2 24 0 -6 -3.734 2 -5.602 -3.974
4 16 0 -6 -3.734 6 -16.38 3.536 -6 -16.38 3.536 -2 -5.602 -3.974
2 24 6 -16.38 3.536 -6 -16.38 3.536
2 24 -2 -5.602 -3.974 0 -6 -3.734
3 16 -6 0 -7.935 -5.602 -2 -6.533 -6 -16.38 3.536
2 24 -6 0 -7.935 -5.602 -2 -6.533
2 24 -6 -16.38 3.536 -6 0 -7.935
4 16 -6 -16.38 3.536 -5.602 -2 -6.533 -2 -2 -6.533 -2 -5.602 -3.974
2 24 -5.602 -2 -6.533 -2 -2 -6.533
2 24 -2 -2 -6.533 -2 -5.602 -3.974
3 16 5.602 -2 -6.533 6 0 -7.935 6 -16.38 3.536
2 24 5.602 -2 -6.533 6 0 -7.935
2 24 6 0 -7.935 6 -16.38 3.536
4 16 -2 2 -6.533 -5.602 2 -6.533 -6 16.38 3.536 -2 5.602 -3.974
2 24 -2 2 -6.533 -5.602 2 -6.533
2 24 -2 5.602 -3.974 -2 2 -6.533
3 16 -2 5.602 -3.974 -6 16.38 3.536 0 6 -3.734
2 24 0 6 -3.734 -2 5.602 -3.974
4 16 0 6 -3.734 -6 16.38 3.536 6 16.38 3.536 2 5.602 -3.974
2 24 -6 16.38 3.536 6 16.38 3.536
2 24 2 5.602 -3.974 0 6 -3.734
3 16 6 0 -7.935 5.602 2 -6.533 6 16.38 3.536
2 24 6 0 -7.935 5.602 2 -6.533
2 24 6 16.38 3.536 6 0 -7.935
4 16 6 16.38 3.536 5.602 2 -6.533 2 2 -6.533 2 5.602 -3.974
2 24 5.602 2 -6.533 2 2 -6.533
3 16 -5.602 2 -6.533 -6 0 -7.935 -6 16.38 3.536
2 24 -5.602 2 -6.533 -6 0 -7.935
2 24 -6 0 -7.935 -6 16.38 3.536
4 16 -6 -16.38 3.536 6 -16.38 3.536 6 16.38 3.536 -6 16.38 3.536
2 24 6 -16.38 3.536 6 16.38 3.536
2 24 -6 16.38 3.536 -6 -16.38 3.536
3 16 6 0 -7.935 6 16.38 3.536 6 -16.38 3.536
3 16 -6 0 -7.935 -6 -16.38 3.536 -6 16.38 3.536
0 //
Status:
Official
This part has the following warnings
- Line 17, quad is not coplanar (angle 1.7613042145254)
- Line 41, quad is not coplanar (angle 2.1166476365477)
- Line 44, quad is not coplanar (angle 2.1166476365477)
- Line 55, quad is not coplanar (angle 1.1958370219562)
- Line 61, quad is not coplanar (angle 1.761304214525)
- Line 67, quad is not coplanar (angle 1.7613042145254)
- Line 72, quad is not coplanar (angle 1.1958370219562)
- Line 78, quad is not coplanar (angle 1.761304214525)
