Official File parts/47330.dat
Part Attributes:
File Header:

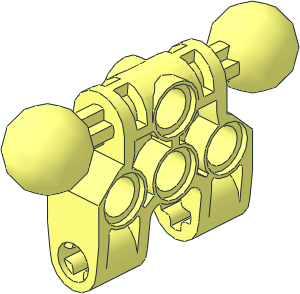

0 Technic Connector Block 3 x 3 x 1 with Two Ball Joints
0 Name: 47330.dat
0 Author: Chris Dee [cwdee]
0 !LDRAW_ORG Part UPDATE 2022-02
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2009-05-02 [PTadmin] Official Update 2009-01
0 !HISTORY 2020-06-04 [Sirio] Updated the use of primitives: removed ringr.dat or ringrr.dat, introduced use of n-fcylo.dat, merged some triangle to quads
0 !HISTORY 2021-12-25 [MagFors] made ccw, axleholes, missing condlines, bfc error
0 !HISTORY 2022-03-06 [PTadmin] Official Update 2022-02
