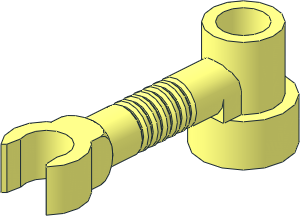

Brick 1 x 1 x 0.667 Round with Bar and Clip Vertical

File Header:

0 Brick  1 x  1 x  0.667 Round with Bar and Clip Vertical
0 Name: 4735.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2022-04
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 1998-06-20 [PTadmin] Official Update 1998-06
0 !HISTORY 1999-05-17 [PTadmin] Official Update 1999-03
0 !HISTORY 2007-10-26 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2009-05-30 [guyvivan] Made BFC'ed and use more primitives
0 !HISTORY 2009-09-03 [PTadmin] Official Update 2009-02
0 !HISTORY 2019-12-03 [GeraldLasser] added Groves and adapted Clip
0 !HISTORY 2022-07-18 [PTadmin] Official Update 2022-04

Show contents

1 16 0 12 0 1 0 0 0 -1 0 0 0 1 stud4a.dat
1 16 0 12 0 6 0 0 0 1 0 0 0 6 4-4edge.dat
