Official File parts/4738b.dat
Part Attributes:
File Header:

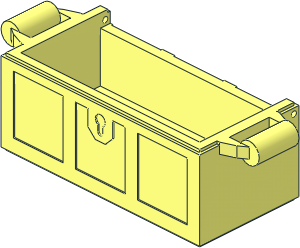

0 Container Treasure Chest without Slots
0 Name: 4738b.dat
0 Author: James Jessiman
0 !LDRAW_ORG Part UPDATE 2022-01
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Adventurers, baggage, Belville, buried treasure, Cargo, Castle
0 !KEYWORDS doubloons, footlocker, hoard, Locker, loot, minifig accessory
0 !KEYWORDS pieces of eight, Pirates, Rebrickable 4738a, steamer trunk, Trunk
0 !KEYWORDS wealth
0 !HISTORY 2004-09-24 [cwdee] Created from "with Slots" version
0 !HISTORY 2005-12-28 [PTadmin] Official Update 2005-01
0 !HISTORY 2007-07-08 [PTadmin] Header formatted for Contributor Agreement
0 !HISTORY 2008-07-01 [PTadmin] Official Update 2008-01
0 !HISTORY 2021-04-28 [Philo] Corrected hinge geometry, minor improvements
0 !HISTORY 2022-01-14 [PTadmin] Official Update 2022-01
Show contents
