Official File parts/47405.dat
Part Attributes:
File Header:

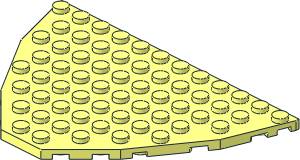

0 Boat Bow Plate 12 x 8
0 Name: 47405.dat
0 Author: William Howard [WilliamH]
0 !LDRAW_ORG Part UPDATE 2013-02
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !KEYWORDS Wing
0 !HISTORY 2004-12-11 [Steffen] Un-mirrored studs
0 !HISTORY 2009-05-02 [PTadmin] Official Update 2009-01
0 !HISTORY 2012-10-02 [Steffen] BFC rationalisation
0 !HISTORY 2013-07-27 [theJudeAbides] Used more primitives, fixed T-Junctions and gaps
0 !HISTORY 2013-08-09 [theJudeAbides] Added more underside detail, added missing cond-lines
0 !HISTORY 2013-12-23 [PTadmin] Official Update 2013-02
Show contents
0 // Front Part and Ribs
4 16 -20 8 -80 -25.757 8 -74.243 -22.928 8 -71.415 -18.343 8 -76
4 16 -20 8 -80 -18.343 8 -76 18.343 8 -76 20 8 -80
4 16 20 8 -80 18.343 8 -76 22.928 8 -71.415 25.757 8 -74.243
2 24 -20 8 -80 -25.757 8 -74.243
4 16 -25.757 4 -74.243 -25.757 8 -74.243 -20 8 -80 -20 0 -80
1 16 0 4 -80 20 0 0 0 0 4 0 1 0 rect.dat
2 24 20 8 -80 25.757 8 -74.243
4 16 25.757 4 -74.243 20 0 -80 20 8 -80 25.757 8 -74.243
1 16 22.05 6 -75.121 0 -1.41421 2.29244 2 0 0 0 1.41421 2.29244 box2-5.dat
1 16 0 6 -76 18.343 0 0 0 0 -2 0 -1 0 rect2p.dat
1 16 -22.05 6 -75.121 0 1.41421 -2.29244 -2 0 0 0 1.41421 2.29244 box2-5.dat
1 16 -40 4 -60 0 0 1 0 1 0 -1 0 0 ribt45.dat
1 16 40 4 -60 1 0 0 0 1 0 0 0 1 ribt45.dat
0 // Front-Left T
4 16 -54.242 8 -45.758 -60 8 -40 -56.18 8 -38.18 -51.414 8 -42.929
3 16 -60 8 -40 -57.93 8 -35.93 -56.18 8 -38.18
4 16 -56.18 8 -38.18 -57.93 8 -35.93 -55.28 8 -33.28 -53.28 8 -35.28
4 16 -64.741 8 -32.889 -61.431 8 -30.682 -57.93 8 -35.93 -60 8 -40
1 16 -52.828 6 -44.3435 -1.414 -1 0 0 0 2 -1.4145 0 0 rect.dat
1 16 -53.797 6 -40.5545 2.383 0 0 0 0 2 -2.3745 -1 0 rect2p.dat
1 16 -54.73 6 -36.73 0 -1 -1.45 -2 0 0 0 0 -1.45 rect3.dat
1 16 -54.28 6 -34.28 0 -1 1 -2 0 0 0 0 -1 rect.dat
1 16 -56.605 6 -34.605 0 1 -1.325 2 0 0 0 0 -1.325 rect3.dat
1 16 -59.6805 6 -33.306 1.7505 -1 0 0 0 2 -2.624 0 0 rect2p.dat
1 16 -63.086 6 -31.7855 0 0 -1.655 2 0 0 0 -1 -1.1035 rect.dat
2 24 -60 8 -40 -64.741 8 -32.889
2 24 -54.242 8 -45.758 -60 8 -40
4 16 -60 8 -40 -60 0 -40 -64.741 4 -32.889 -64.741 8 -32.889
2 24 -60 8 -40 -60 0 -40
4 16 -60 0 -40 -60 8 -40 -54.242 8 -45.758 -54.242 4 -45.758
0 // Front-Right T
4 16 51.414 8 -42.929 56.18 8 -38.18 60 8 -40 54.242 8 -45.758
3 16 56.18 8 -38.18 57.93 8 -35.93 60 8 -40
4 16 53.28 8 -35.28 55.28 8 -33.28 57.93 8 -35.93 56.18 8 -38.18
4 16 60 8 -40 57.93 8 -35.93 61.431 8 -30.682 64.741 8 -32.889
1 16 52.828 6 -44.3435 1.414 1 0 0 0 -2 -1.4145 0 0 rect.dat
1 16 53.797 6 -40.5545 -2.383 0 0 0 0 -2 -2.3745 -1 0 rect2p.dat
1 16 54.73 6 -36.73 0 1 1.45 2 0 0 0 0 -1.45 rect3.dat
1 16 54.28 6 -34.28 0 1 1 -2 0 0 0 0 1 rect.dat
1 16 56.605 6 -34.605 0 -1 1.325 -2 0 0 0 0 -1.325 rect3.dat
1 16 59.6805 6 -33.306 1.7505 1 0 0 0 2 2.624 0 0 rect2p.dat
1 16 63.086 6 -31.7855 0 0 -1.655 2 0 0 0 -1 1.1035 rect.dat
2 24 60 8 -40 64.741 8 -32.889
2 24 54.242 8 -45.758 60 8 -40
4 16 64.741 8 -32.889 64.741 4 -32.889 60 0 -40 60 8 -40
2 24 60 8 -40 60 0 -40
4 16 54.242 4 -45.758 54.242 8 -45.758 60 8 -40 60 0 -40
0 // Front-Left P
4 16 -72.296 8 -15.543 -71.411 8 -15.719 -67.764 8 -21.188 -67.601 8 -22.006
4 16 -74.243 8 -14.243 -72.296 8 -15.543 -67.601 8 -22.006 -70.644 8 -24.035
4 16 -87.694 8 1.54 -75.543 8 -12.296 -74.243 8 -14.243 -70.644 8 -24.035
3 16 -87.694 8 1.54 -76 8 -10 -75.543 8 -12.296
4 16 -87.694 8 1.54 -76.957 8 -7.404 -75.822 8 -9.106 -76 8 -10
3 16 -76.957 8 -7.404 -87.694 8 1.54 -78.141 8 -5.63
3 16 -87.694 8 1.54 -84.485 8 3.881 -78.141 8 -5.63
4 16 -87.694 8 1.54 -87.391 8 3.062 -85.657 8 5.657 -84.485 8 3.881
3 16 -84.485 8 3.881 -85.657 8 5.657 -84.243 8 4.243
1 16 -80 8 0 1.414 0 1.414 0 -1 0 -1.414 0 1.414 2-4ring3.dat
4 16 -75.757 8 -4.243 -74.343 8 -5.657 -76.957 8 -7.404 -77.704 8 -5.543
3 16 -76.957 8 -7.404 -78.141 8 -5.63 -77.704 8 -5.543
1 16 -69.1225 6 -23.0205 1.5215 0 0 0 0 -2 1.0145 1 0 rect.dat
1 16 -69.5875 6 -18.4535 -1.8235 -1 0 0 0 -2 2.7345 0 0 rect.dat
1 16 -71.8535 6 -15.631 0.4425 0 0 0 0 2 -0.088 -1 0 rect2p.dat
5 24 -72.296 8 -15.543 -72.296 4 -15.543 -74.243 8 -14.243 -71.411 8 -15.719
1 16 -73.2695 6 -14.893 0.9735 0 0 0 0 2 -0.65 -1 0 rect2p.dat
5 24 -74.243 8 -14.243 -74.243 4 -14.243 -75.543 8 -12.296 -72.296 8 -15.543
1 16 -74.893 6 -13.2695 0.65 -1 0 0 0 2 -0.9735 0 0 rect2p.dat
5 24 -75.543 8 -12.296 -75.543 4 -12.296 -76 8 -10 -74.243 8 -14.243
1 16 -75.7715 6 -11.148 0.2285 -1 0 0 0 2 -1.148 0 0 rect2p.dat
5 24 -76 8 -10 -76 4 -10 -75.822 8 -9.106 -75.543 8 -12.296
1 16 -75.911 6 -9.553 -0.089 -1 0 0 0 2 -0.447 0 0 rect2p.dat
1 16 -76.3895 6 -8.255 -0.5675 -1 0 0 0 -2 0.851 0 0 rect.dat
1 16 -77.9225 6 -5.5865 0 0 -0.2185 2 0 0 0 -1 -0.0435 rect3.dat
5 24 -77.704 4 -5.543 -77.704 8 -5.543 -75.757 8 -4.243 -78.141 8 -5.63
1 16 -76.7305 6 -4.893 -0.9735 0 0 0 0 -2 -0.65 -1 0 rect2p.dat
5 24 -75.757 8 -4.243 -75.757 4 -4.243 -77.704 8 -5.543 -74.457 8 -2.296
0 BFC INVERTNEXT
1 16 -80 4 0 -4.243 0 4.243 0 4 0 4.243 0 4.243 2-4cylo.dat
1 16 -84.364 6 4.062 0 -1 -0.121 -2 0 0 0 0 -0.181 rect3.dat
5 24 -84.243 4 4.243 -84.243 8 4.243 -84.485 8 3.881 -82.2962 8 5.5434
1 16 -81.313 6 -0.8745 3.172 -1 0 0 0 2 -4.7555 0 0 rect2p.dat
1 16 -80 4 0 -7.39123 0 3.06155 0 4 0 3.06155 0 7.39123 5-8cylo.dat
5 24 -87.391 4 3.062 -87.391 8 3.062 -87.694 8 1.54 -85.657 8 5.657
1 16 -87.5425 6 2.301 0 1 -0.1515 2 0 0 0 0 -0.761 rect3.dat
1 16 -79.169 6 -11.2475 0 1 8.525 2 0 0 0 0 -12.7875 rect1.dat
4 16 -72.296 4 -15.543 -74.243 4 -14.243 -75.543 4 -12.296 -76 4 -10
4 16 -71.411 4 -15.719 -72.296 4 -15.543 -76 4 -10 -75.822 4 -9.106
1 16 -60 8 -20 2 0 0 0 -1 0 0 0 2 4-4ring3.dat
0 BFC INVERTNEXT
1 16 -60 4 -20 6 0 0 0 4 0 0 0 6 4-4cylo.dat
1 16 -60 4 -20 0 0 8 0 4 0 -8 0 0 3-4cylo.dat
1 16 -60 4 -20 0 0 -8 0 4 0 -8 0 0 3-16cylo.dat
1 16 -67.882 6 -20.594 0.118 1 0 0 0 -2 -0.594 0 0 rect2p.dat
1 16 -67.496 6 -22.534 0.105 1 0 0 0 -2 -0.528 0 0 rect2p.dat
5 24 -67.391 8 -23.062 -67.391 4 -23.062 -65.657 8 -25.657 -68 8 -20
5 24 -68 8 -20 -68 4 -20 -67.391 8 -23.062 -67.391 8 -16.938
0 // Front-Right P
4 16 67.601 8 -22.006 67.764 8 -21.188 71.411 8 -15.719 72.296 8 -15.543
4 16 70.644 8 -24.035 67.601 8 -22.006 72.296 8 -15.543 74.243 8 -14.243
4 16 70.644 8 -24.035 74.243 8 -14.243 75.543 8 -12.296 87.694 8 1.54
3 16 75.543 8 -12.296 76 8 -10 87.694 8 1.54
4 16 76 8 -10 75.822 8 -9.106 76.957 8 -7.404 87.694 8 1.54
3 16 78.141 8 -5.63 87.694 8 1.54 76.957 8 -7.404
3 16 78.141 8 -5.63 84.485 8 3.881 87.694 8 1.54
4 16 84.485 8 3.881 85.657 8 5.657 87.391 8 3.062 87.694 8 1.54
3 16 84.243 8 4.243 85.657 8 5.657 84.485 8 3.881
1 16 80 8 0 -1.414 0 -1.414 0 -1 0 -1.414 0 1.414 2-4ring3.dat
4 16 77.704 8 -5.543 76.957 8 -7.404 74.343 8 -5.657 75.757 8 -4.243
3 16 77.704 8 -5.543 78.141 8 -5.63 76.957 8 -7.404
1 16 69.1225 6 -23.0205 -1.5215 0 0 0 0 2 1.0145 1 0 rect.dat
1 16 69.5875 6 -18.4535 1.8235 1 0 0 0 2 2.7345 0 0 rect.dat
1 16 71.8535 6 -15.631 -0.4425 0 0 0 0 -2 -0.088 -1 0 rect2p.dat
5 24 72.296 8 -15.543 72.296 4 -15.543 74.243 8 -14.243 71.411 8 -15.719
1 16 73.2695 6 -14.893 -0.9735 0 0 0 0 -2 -0.65 -1 0 rect2p.dat
5 24 74.243 8 -14.243 74.243 4 -14.243 75.543 8 -12.296 72.296 8 -15.543
1 16 74.893 6 -13.2695 -0.65 1 0 0 0 -2 -0.9735 0 0 rect2p.dat
5 24 75.543 8 -12.296 75.543 4 -12.296 76 8 -10 74.243 8 -14.243
1 16 75.7715 6 -11.148 -0.2285 1 0 0 0 -2 -1.148 0 0 rect2p.dat
5 24 76 8 -10 76 4 -10 75.822 8 -9.106 75.543 8 -12.296
1 16 75.911 6 -9.553 0 1 -0.089 -2 0 0 0 0 0.447 rect3.dat
1 16 76.3895 6 -8.255 0 1 0.5675 -2 0 0 0 0 0.851 rect3.dat
1 16 77.9225 6 -5.5865 0 0 0.2185 -2 0 0 0 -1 -0.0435 rect3.dat
5 24 77.704 4 -5.543 77.704 8 -5.543 75.757 8 -4.243 78.141 8 -5.63
1 16 76.7305 6 -4.893 0.9735 0 0 0 0 2 -0.65 -1 0 rect2p.dat
5 24 75.757 8 -4.243 75.757 4 -4.243 77.704 8 -5.543 74.457 8 -2.296
0 BFC INVERTNEXT
1 16 80 4 0 4.243 0 -4.243 0 4 0 4.243 0 4.243 2-4cylo.dat
1 16 84.364 6 4.062 0 1 0.121 2 0 0 0 0 -0.181 rect3.dat
5 24 84.243 4 4.243 84.243 8 4.243 84.485 8 3.881 82.2962 8 5.5434
1 16 81.313 6 -0.8745 -3.172 1 0 0 0 -2 -4.7555 0 0 rect2p.dat
1 16 80 4 0 7.39123 0 -3.06155 0 4 0 3.06155 0 7.39123 5-8cylo.dat
5 24 87.391 4 3.062 87.391 8 3.062 87.694 8 1.54 85.657 8 5.657
1 16 87.5425 6 2.301 0 -1 0.1515 -2 0 0 0 0 -0.761 rect3.dat
1 16 79.169 6 -11.2475 0 -1 8.525 2 0 0 0 0 12.7875 rect1.dat
4 16 76 4 -10 75.543 4 -12.296 74.243 4 -14.243 72.296 4 -15.543
4 16 75.822 4 -9.106 76 4 -10 72.296 4 -15.543 71.411 4 -15.719
1 16 60 8 -20 2 0 0 0 -1 0 0 0 2 4-4ring3.dat
0 BFC INVERTNEXT
1 16 60 4 -20 6 0 0 0 4 0 0 0 6 4-4cylo.dat
1 16 60 4 -20 8 0 0 0 4 0 0 0 8 3-4cylo.dat
1 16 60 4 -20 7.39104 0 -3.06147 0 4 0 -3.06147 0 -7.39104 3-16cylo.dat
1 16 67.882 6 -20.594 0.118 -1 0 0 0 -2 0.594 0 0 rect2p.dat
1 16 67.496 6 -22.534 0.105 -1 0 0 0 -2 0.528 0 0 rect2p.dat
5 24 67.391 8 -23.062 67.391 4 -23.062 65.657 8 -25.657 68 8 -20
5 24 68 8 -20 68 4 -20 67.391 8 -23.062 67.391 8 -16.938
0 // Back-Left P
4 16 -92.271 8 15.554 -95.259 8 12.889 -100 8 20 -96.342 8 21.658
3 16 -100 8 20 -97.44 8 24.56 -96.342 8 21.658
4 16 -96.342 8 21.658 -97.44 8 24.56 -95.28 8 26.72 -93.28 8 24.72
4 16 -107.68 8 43 -100.19 8 32.03 -97.44 8 24.56 -100 8 20
4 16 -100.19 8 32.03 -107.68 8 43 -107.4 8 43.05 -100.93 8 34.26
4 16 -107.4 8 43.05 -105.657 8 45.657 -104.243 8 44.243 -100.93 8 34.26
4 16 -105.657 8 45.657 -103.061 8 47.391 -102.269 8 45.543 -104.243 8 44.243
4 16 -103.061 8 47.391 -100 8 48 -100 8 46 -102.296 8 45.543
1 16 -100 8 40 0 0 2 0 -1 0 2 0 0 2-4ring3.dat
4 16 -100.93 8 34.26 -100 8 34 -100 8 32 -100.19 8 32.03
1 16 -93.765 6 14.2215 0 0 -1.494 -2 0 0 0 1 -1.3325 rect.dat
1 16 -94.3065 6 18.606 0 -1 -2.0355 2 0 0 0 0 3.052 rect3.dat
1 16 -94.811 6 23.189 -1.531 -1 0 0 0 2 -1.531 0 0 rect2p.dat
1 16 -94.28 6 25.72 0 -1 1 -2 0 0 0 0 -1 rect.dat
1 16 -96.36 6 25.64 1.08 1 0 0 0 2 1.08 0 0 rect2p.dat
1 16 -98.815 6 28.295 1.375 -1 0 0 0 2 -3.735 0 0 rect.dat
1 16 -102.55 6 39.25 -1.67 -1 0 0 0 2 5 0 0 rect.dat
0 BFC INVERTNEXT
1 16 -100 4 40 0 0 6 0 4 0 -6 0 0 5-8cylo.dat
5 24 -100 8 34 -100 4 34 -100.93 8 34.26 -97.704 8 34.457
1 16 -100.45 6 34.13 -0.45 0 0 0 0 2 0.13 -1 0 rect2p.dat
1 16 -100.08 6 32.015 -0.08 0 0 0 0 2 0.015 1 0 rect2p.dat
5 24 -100 4 32 -100 8 32 -100.19 8 32.03 -96.938 8 32.609
1 16 -100 4 40 0 0 8 0 4 0 8 0 0 2-4cylo.dat
5 24 -100 8 48 -100 4 48 -103.061 8 47.391 -96.938 8 47.391
1 16 -100 4 40 0 0 -8 0 4 0 8 0 0 3-16cylo.dat
1 16 -107.53 6 43.04 0 0 0.12 -2 0 0 0 -1 0.04 rect.dat
2 24 -100 8 20 -107.68 8 43
2 24 -95.259 8 12.889 -100 8 20
4 16 -100 8 20 -100 0 20 -107.68 4 43 -107.68 8 43
2 24 -100 8 20 -100 0 20
4 16 -95.259 8 12.889 -95.259 4 12.889 -100 0 20 -100 8 20
0 // Back-Right P
4 16 96.342 8 21.658 100 8 20 95.259 8 12.889 92.271 8 15.554
3 16 96.342 8 21.658 97.44 8 24.56 100 8 20
4 16 93.28 8 24.72 95.28 8 26.72 97.44 8 24.56 96.342 8 21.658
4 16 100 8 20 97.44 8 24.56 100.19 8 32.03 107.68 8 43
4 16 100.19 8 32.03 100.93 8 34.26 107.4 8 43.05 107.68 8 43
4 16 107.4 8 43.05 100.93 8 34.26 104.243 8 44.243 105.657 8 45.657
4 16 105.657 8 45.657 104.243 8 44.243 102.269 8 45.543 103.061 8 47.391
4 16 103.061 8 47.391 102.296 8 45.543 100 8 46 100 8 48
1 16 100 8 40 0 0 -2 0 -1 0 2 0 0 2-4ring3.dat
4 16 100.93 8 34.26 100.19 8 32.03 100 8 32 100 8 34
1 16 93.765 6 14.2215 1.494 0 0 0 0 -2 -1.3325 1 0 rect.dat
1 16 94.3065 6 18.606 0 1 2.0355 -2 0 0 0 0 3.052 rect3.dat
1 16 94.811 6 23.189 -1.531 1 0 0 0 2 1.531 0 0 rect2p.dat
1 16 94.28 6 25.72 0 1 1 -2 0 0 0 0 1 rect.dat
1 16 96.36 6 25.64 1.08 -1 0 0 0 2 -1.08 0 0 rect2p.dat
1 16 98.815 6 28.295 -1.375 1 0 0 0 -2 -3.735 0 0 rect.dat
1 16 102.55 6 39.25 1.67 1 0 0 0 2 5 0 0 rect.dat
0 BFC INVERTNEXT
1 16 100 4 40 0 0 -6 0 4 0 -6 0 0 5-8cylo.dat
5 24 100 8 34 100 4 34 100.93 8 34.26 97.704 8 34.457
1 16 100.45 6 34.13 0.45 0 0 0 0 2 0.13 -1 0 rect2p.dat
1 16 100.08 6 32.015 0.08 0 0 0 0 2 0.015 1 0 rect2p.dat
5 24 100 4 32 100 8 32 100.19 8 32.03 96.938 8 32.609
1 16 100 4 40 0 0 -8 0 4 0 8 0 0 2-4cylo.dat
5 24 100 8 48 100 4 48 103.061 8 47.391 96.938 8 47.391
1 16 100 4 40 0 0 8 0 4 0 8 0 0 3-16cylo.dat
1 16 107.53 6 43.04 0 0 -0.12 -2 0 0 0 -1 0.04 rect.dat
2 24 100 8 20 107.68 8 43
2 24 95.259 8 12.889 100 8 20
4 16 100 8 20 107.68 8 43 107.68 4 43 100 0 20
2 24 100 8 20 100 0 20
4 16 95.259 8 12.889 100 8 20 100 0 20 95.259 4 12.889
0 // Back-Left Q
1 16 -100 8 60 2 0 0 0 -1 0 0 0 2 4-4ring3.dat
4 16 -109.38 8 59.62 -108 8 60 -107.39 8 56.94 -111.89 8 55.68
4 16 -109.38 8 59.62 -111.89 8 55.68 -114.27 8 62.83 -110.83 8 63.98
0 BFC INVERTNEXT
1 16 -100 4 60 6 0 0 0 4 0 0 0 6 4-4cylo.dat
1 16 -110.1 6 61.8 0 -1 -0.73 -2 0 0 0 0 2.18 rect.dat
1 16 -108.69 6 59.81 0 0 0.69 -2 0 0 0 -1 0.19 rect3.dat
1 16 -100 4 60 0 0 8 0 4 0 -8 0 0 3-4cylo.dat
1 16 -100 4 60 0 0 -8 0 4 0 -8 0 0 3-16cylo.dat
1 16 -109.64 6 56.31 0 0 2.25 -2 0 0 0 1 0.63 rect3.dat
1 16 -113.08 6 59.25 1.19 1 0 0 0 2 -3.57 0 0 rect3.dat
0 // Back-Right Q
1 16 100 8 60 -2 0 0 0 -1 0 0 0 2 4-4ring3.dat
4 16 109.38 8 59.62 111.89 8 55.68 107.39 8 56.94 108 8 60
4 16 109.38 8 59.62 110.83 8 63.98 114.27 8 62.83 111.89 8 55.68
0 BFC INVERTNEXT
1 16 100 4 60 -6 0 0 0 4 0 0 0 6 4-4cylo.dat
1 16 110.1 6 61.8 0 1 0.73 -2 0 0 0 0 2.18 rect.dat
1 16 108.69 6 59.81 0 0 -0.69 -2 0 0 0 -1 0.19 rect3.dat
1 16 100 4 60 0 0 -8 0 4 0 -8 0 0 3-4cylo.dat
1 16 100 4 60 0 0 8 0 4 0 -8 0 0 3-16cylo.dat
1 16 109.64 6 56.31 0 0 -2.25 -2 0 0 0 1 0.63 rect3.dat
1 16 113.08 6 59.25 -1.19 -1 0 0 0 2 -3.57 0 0 rect3.dat
0 // Back Part
2 24 -117.73 8 73.23 -119 8 77
4 16 -117.73 8 73.23 -119 8 77 -114.83 8 76 -114.27 8 74.37
3 16 -119 8 80 -114.83 8 76 -119 8 77
4 16 119 8 80 114.83 8 76 -114.83 8 76 -119 8 80
3 16 119 8 80 119 8 77 114.83 8 76
4 16 117.73 8 73.23 114.27 8 74.37 114.83 8 76 119 8 77
2 24 117.73 8 73.23 119 8 77
1 16 -114.55 6 75.18 0 -1 -0.28 2 0 0 0 0 0.81 rect.dat
1 16 0 6 76 -114.83 0 0 0 0 2 0 1 0 rect2p.dat
1 16 114.55 6 75.18 0 1 0.28 2 0 0 0 0 0.81 rect.dat
2 24 -117.73 4 73.23 -117.73 8 73.23
4 16 -117.73 8 73.23 -117.73 4 73.23 -119 0 77 -119 8 77
4 16 117.73 8 73.23 119 8 77 119 0 77 117.73 4 73.23
2 24 117.73 4 73.23 117.73 8 73.23
1 16 0 4 77 119 0 0 0 0 -4 0 3 0 box4-2p.dat
0 // Underside Studs
1 16 0 4 20 -1 0 0 0 -1 0 0 0 1 stug4-5x5.dat
1 16 0 4 -40 1 0 0 0 -1 0 0 0 1 stug4-1x5.dat
1 16 -60 4 30 0 0 1 0 -1 0 -1 0 0 stug4-1x4.dat
1 16 60 4 30 0 0 1 0 -1 0 -1 0 0 stug4-1x4.dat
1 16 0 4 -60 1 0 0 0 -1 0 0 0 1 stug4-1x3.dat
1 16 -80 4 40 0 0 1 0 -1 0 -1 0 0 stug4-1x3.dat
1 16 80 4 40 0 0 1 0 -1 0 -1 0 0 stug4-1x3.dat
0 // Bottom Surface
2 24 -117.73 4 73.23 -114.27 4 62.83
2 24 117.73 4 73.23 114.27 4 62.83
2 24 -111.89 4 55.68 -107.68 4 43
2 24 111.89 4 55.68 107.68 4 43
2 24 -95.259 4 12.889 -87.694 4 1.54
2 24 95.259 4 12.889 87.694 4 1.54
0 BFC INVERTNEXT
1 16 -114.27 8 68.6 1.72 0 1.73 0 -4 0 0.57 0 -5.2 box3u8p.dat
0 BFC INVERTNEXT
1 16 114.27 8 68.6 -1.72 0 -1.73 0 -4 0 0.57 0 -5.2 box3u8p.dat
4 16 -107.68 4 43 -111.9 4 55.7 -105.657 4 45.657 -107.4 4 43
4 16 -111.89 4 55.68 -108.38 4 56.65 -104.87 4 46.17 -105.657 4 45.657
4 16 107.68 4 43 107.4 4 43 105.657 4 45.657 111.9 4 55.7
4 16 111.89 4 55.68 105.657 4 45.657 104.87 4 46.17 108.38 4 56.65
4 16 -87.694 4 1.54 -95.259 4 12.889 -92.271 4 15.554 -87.391 4 3.062
3 16 -87.391 4 3.062 -92.271 4 15.554 -85.657 4 5.657
4 16 87.694 4 1.54 87.391 4 3.062 92.271 4 15.554 95.259 4 12.889
3 16 87.391 4 3.062 85.657 4 5.657 92.271 4 15.554
1 16 -66.038 4 -27.3588 -1.655 0 -2.9525 0 -1 0 -1.1035 0 4.4265 rect1.dat
1 16 66.038 4 -27.3588 1.654 0 -2.9525 0 -1 0 -1.103 0 -4.4265 rect1.dat
1 16 -48.5853 4 -48.5863 -1.4145 0 -4.243 0 -1 0 -1.414 0 4.243 rect1.dat
1 16 48.5853 4 -48.5863 1.414 0 -4.243 0 -1 0 -1.4145 0 -4.243 rect1.dat
1 16 -28.585 4 -68.5863 -1.4145 0 -4.2425 0 -1 0 -1.414 0 4.243 rect1.dat
1 16 28.585 4 -68.5863 1.4145 0 -4.2425 0 -1 0 -1.4145 0 -4.243 rect1.dat
4 16 -110.83 4 63.98 -114.83 4 76 114.83 4 76 110.83 4 63.98
4 16 -104.87 4 46.17 -110.83 4 63.98 110.83 4 63.98 104.87 4 46.17
4 16 -100.19 4 32.03 -104.87 4 46.17 104.87 4 46.17 100.19 4 32.03
4 16 -96.41 4 21.76 -100.19 4 32.03 100.19 4 32.03 96.41 4 21.76
4 16 -56.91 4 -37.46 -96.41 4 21.76 96.41 4 21.76 56.91 4 -37.46
4 16 -18.343 4 -76 -56.91 4 -37.46 56.91 4 -37.46 18.343 4 -76
0 // Outside Edges and Sides
2 24 -100 0 20 -119 0 77
2 24 100 0 20 119 0 77
2 24 -60 0 -40 -100 0 20
2 24 60 0 -40 100 0 20
2 24 -20 0 -80 -60 0 -40
2 24 20 0 -80 60 0 -40
4 16 -111.9 4 55.7 -100 0 20 -119 0 77 -114.27 4 62.83
3 16 -117.73 4 73.23 -114.27 4 62.83 -119 0 77
3 16 -111.9 4 55.7 -107.68 4 43 -100 0 20
4 16 114.27 4 62.83 119 0 77 100 0 20 111.9 4 55.7
3 16 114.27 4 62.83 117.73 4 73.23 119 0 77
3 16 107.68 4 43 111.9 4 55.7 100 0 20
4 16 -87.694 4 1.54 -70.644 4 -24.035 -60 0 -40 -100 0 20
3 16 -95.259 4 12.889 -87.694 4 1.54 -100 0 20
3 16 -70.644 4 -24.035 -64.741 4 -32.889 -60 0 -40
4 16 60 0 -40 70.644 4 -24.035 87.694 4 1.54 100 0 20
3 16 87.694 4 1.54 95.259 4 12.889 100 0 20
3 16 64.741 4 -32.889 70.644 4 -24.035 60 0 -40
4 16 -60 0 -40 -45.757 4 -54.243 -34.242 4 -65.758 -20 0 -80
3 16 -54.242 4 -45.758 -45.757 4 -54.243 -60 0 -40
3 16 -34.242 4 -65.758 -25.757 4 -74.243 -20 0 -80
4 16 60 0 -40 20 0 -80 34.242 4 -65.758 45.757 4 -54.243
3 16 45.757 4 -54.243 54.242 4 -45.758 60 0 -40
3 16 25.757 4 -74.243 34.242 4 -65.758 20 0 -80
0 // Top and Studs
4 16 -119 0 77 -100 0 20 100 0 20 119 0 77
4 16 -100 0 20 -60 0 -40 60 0 -40 100 0 20
4 16 -60 0 -40 -20 0 -80 20 0 -80 60 0 -40
1 16 0 0 20 0 0 -1 0 1 0 1 0 0 stug-6x6.dat
1 16 -90 0 70 0 0 -1 0 1 0 1 0 0 stug-3x1.dat
1 16 90 0 70 0 0 -1 0 1 0 1 0 0 stug-3x1.dat
1 16 -80 0 40 0 0 -1 0 1 0 1 0 0 stug-2x2.dat
1 16 80 0 40 0 0 -1 0 1 0 1 0 0 stug-2x2.dat
1 16 0 0 -50 0 0 -1 0 1 0 1 0 0 stug-4x1.dat
1 16 0 0 -70 0 0 -1 0 1 0 1 0 0 stug-2x1.dat
1 16 -70 0 0 0 0 -1 0 1 0 1 0 0 stug-1x2.dat
1 16 70 0 0 0 0 -1 0 1 0 1 0 0 stug-1x2.dat
Status:
Official
Unofficial parents
Part Events:
Archived Part Events:
None
Creative Commons Attribution License information
This part is copyright © William Howard
Licensed under CC BY 2.0
Edits:
LDraw.org Parts Tracker,
Steffen,
Jude Parrill,
3D View
Website copyright ©2003-2025 LDraw.org, see Legal Info for details.
LDraw is a completely unofficial, community run free CAD system which represents official parts produced by the LEGO company.
LDraw™ is a trademark owned and licensed by the Estate of James Jessiman
LEGO® is a registered trademark of the LEGO Group, which does not sponsor,
endorse, or authorize this site. Visit the official Lego website at
http://www.lego.com
