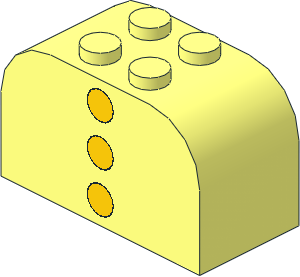

Brick 2 x 4 x 2 with Curved Top with 3 Yellow Dots Pattern
0 Brick  2 x  4 x  2 with Curved Top with 3 Yellow Dots Pattern
0 Name: 4744p05.dat
0 Author: Tore Eriksson [Tore_Eriksson]
0 !LDRAW_ORG Part UPDATE 2025-09
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !KEYWORDS BrickLink 4744px5, Rebrickable 4744pr0042, Set 4137

0 !HISTORY 2009-09-03 [PTadmin] Official Update 2009-02
0 !HISTORY 2024-03-23 [OrionP] Updated ring primitives
0 !HISTORY 2024-03-24 [OrionP] Official Update 2024-02
0 !HISTORY 2025-09-27 [OrionP] Changed winding to CCW
0 !HISTORY 2025-09-29 [OrionP] Official Update 2025-09
