File Detail parts/47456.dat

Official File parts/47456.dat

Part Attributes:

External Sites:

View on Rebrickable View on BrickLink View on Brickset View on BrickOwl

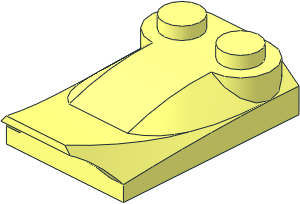

Slope Brick Curved 2 x 3 x 0.667 with Fin and 2 Top Studs

File Header:

0 Slope Brick Curved  2 x  3 x 0.667 with Fin and 2 Top Studs
0 Name: 47456.dat
0 Author: Jeff Jones [notmaster]
0 !LDRAW_ORG Part UPDATE 2025-08
0 !LICENSE Licensed under CC BY 4.0 : see CAreadme.txt

0 BFC CERTIFY CCW

0 !HISTORY 2007-11-01 [mikeheide] Added missing egdelines, corrected four 1-4edge.dat
0 !HISTORY 2009-09-03 [PTadmin] Official Update 2009-02
0 !HISTORY 2018-05-13 [cwdee] Correct description
0 !HISTORY 2018-12-08 [PTadmin] Official Update 2018-02
0 !HISTORY 2024-01-04 [GeraldLasser] Closed Gaps and Subfiled Common Geometry for Use with 79897
0 !HISTORY 2025-06-28 [notmaster] complete rewrite, original by pir
0 !HISTORY 2025-08-31 [OrionP] Official Update 2025-08

Show contents

1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\47456s01.dat
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\47456s03.dat
1 16 0 0 0 0 0 1 0 1 0 -1 0 0 stug-2x1.dat
1 16 0 12 10 20 0 0 0 0 4 0 -1 0 rect3.dat
3 16 -20 8 10 -20 16 10 -20 8 0
4 16 -20 8.749 -20.022 -20 8.333 -10.014 -20 8 0 -20 16 10
3 16 -20 8.749 -20.022 -20 16 10 -20 16 -50
4 16 -20 8.749 -20.022 -20 16 -50 -20 10.083 -40.016 -20 9.333 -30.022
3 16 -20 10.083 -40.016 -20 16 -50 -20 11 -50
4 16 20 8 10 20 8 0 20 8.333 -10.014 20 16 10
3 16 20 16 10 20 8.333 -10.014 20 8.749 -20.022
4 16 20 16 10 20 8.749 -20.022 20 9.333 -30.022 20 16 -50
4 16 20 9.333 -30.022 20 10.083 -40.016 20 11 -50 20 16 -50
2 24 -20 8 0 -20 8.333 -10.014
2 24 -20 8.333 -10.014 -20 8.749 -20.022
2 24 -20 8.749 -20.022 -20 9.333 -30.022
2 24 -20 9.333 -30.022 -20 10.083 -40.016
2 24 -20 10.083 -40.016 -20 11 -50
2 24 20 11 -50 20 10.083 -40.016
2 24 20 10.083 -40.016 20 9.333 -30.022
2 24 20 9.333 -30.022 20 8.749 -20.022
2 24 20 8.749 -20.022 20 8.333 -10.014
2 24 20 8.333 -10.014 20 8 0
4 16 20 16 10 16 16 6 -16 16 6 -20 16 10
4 16 16 16 -46 16 16 6 20 16 10 20 16 -50
4 16 -20 16 10 -16 16 6 -16 16 -46 -20 16 -50
4 16 -20 16 -50 -16 16 -46 16 16 -46 20 16 -50
1 16 0 14 -46 0 0 -16 2 0 0 0 -1 0 rect2p.dat
1 16 0 12.5 6 -16 0 0 0 0 3.5 0 1 0 rect3.dat

2 24 -20 11 -50 -20 16 -50
2 24 16 12 -46 16 10 -26
2 24 16 9 6 16 9 0
2 24 16 9 0 16 9 -6
2 24 16 9 -10 16 9 -6
2 24 16 9 -10 16 10 -26

2 24 -16 12 -46 -16 10 -26
2 24 -16 9 6 -16 9 0
2 24 -16 9 0 -16 9 -6
2 24 -16 9 -10 -16 9 -6
2 24 -16 9 -10 -16 10 -26
2 24 20 11 -50 20 16 -50

3 16 16 9 0 16 9 6 16 16 6
3 16 16 9 0 16 16 6 16 9 -6
3 16 16 9 -6 16 16 6 16 9 -10
4 16 16 16 6 16 16 -46 16 10 -26 16 9 -10
3 16 16 10 -26 16 16 -46 16 12 -46
3 16 -16 9 6 -16 9 0 -16 16 6
3 16 -16 16 6 -16 9 0 -16 9 -6
3 16 -16 16 6 -16 9 -6 -16 9 -10
4 16 -16 10 -26 -16 16 -46 -16 16 6 -16 9 -10
3 16 -16 16 -46 -16 10 -26 -16 12 -46
1 16 0 16 -20 16 0 0 0 1 0 0 0 -26 recte3.dat
1 16 0 16 -20 20 0 0 0 1 0 0 0 -30 recte3.dat

Status:

Official

Unofficial parents

Part Events:

Archived Part Events:

Gerald Lasser [GeraldLasser]

initially submitted the part.

2024-01-07 21:30:37

Subfiled and there were gaps in the old file

Jeff Jones [notmaster]

submitted a new version of the part.

2025-06-28 11:19:26

Magnus Forsberg [MagFors]

edited the part header.

2025-06-28 13:26:27

Header Edits

description:
Slope Brick Curved 2 x 3 x 2/3 with Fin and 2 Top Studs
to
Slope Brick Curved 2 x 3 x 0.667 with Fin and 2 Top Studs

Gerald Lasser [GeraldLasser]

posted a vote of Certify.

2025-07-21 17:33:48

Takeshi Takahashi [RainbowDolphin]

posted a vote of Certify.

2025-07-22 13:21:51

Orion Pobursky [OrionP]

posted a vote of Admin Review.

2025-08-26 05:44:47

Orion Pobursky [OrionP]

2025-08-31 02:18:31

Release 2025-08

Creative Commons Attribution License information

This part is copyright © Jeff Jones
Licensed under CC BY 4.0

Edits:
LDraw.org Parts Tracker, Michael Heidemann, Chris Dee, Gerald Lasser, Orion Pobursky,
