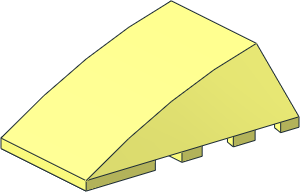

0 Wedge 4 x 4 Triple Curved without Studs
0 Name: 47753.dat
0 Author: Mark Chittenden [mdublade]
0 !LDRAW_ORG Part UPDATE 2011-02
0 !LICENSE Licensed under CC BY 2.0 and CC BY 4.0 : see CAreadme.txt
0 BFC CERTIFY CCW
0 !HISTORY 2006-08-16 [guyvivan] Improve part and made BFC'ed
0 !HISTORY 2010-04-05 [PTadmin] Official Update 2010-01
0 !HISTORY 2011-10-11 [Wesley] subfiled for pattern usability
0 !HISTORY 2011-12-29 [PTadmin] Official Update 2011-02
1 16 0 0 0 1 0 0 0 1 0 0 0 1 s\47753s01.dat
0 // top surface
4 16 20 0 40 -20 0 40 -20 2 20 20 2 20
4 16 20 2 20 -20 2 20 -20 6 0 20 6 0
4 16 20 6 0 -20 6 0 -20 12 -20 20 12 -20
4 16 20 12 -20 -20 12 -20 -20 20 -40 20 20 -40
5 24 -20 2 20 20 2 20 0 6 0 0 0 40
5 24 -20 6 0 20 6 0 0 2 20 0 12 -20
5 24 -20 12 -20 20 12 -20 0 6 0 0 20 -40
0 // left side surface
3 16 -40 20 40 -20 2 20 -20 0 40
3 16 -35 20 20 -20 2 20 -40 20 40
3 16 -35 20 20 -20 6 0 -20 2 20
3 16 -35 20 20 -30 20 0 -20 6 0
3 16 -20 12 -20 -20 6 0 -30 20 0
3 16 -30 20 0 -20 20 -40 -20 12 -20
2 24 -20 0 40 -20 2 20
2 24 -20 2 20 -20 6 0
2 24 -20 6 0 -20 12 -20
2 24 -20 12 -20 -20 20 -40
5 24 -40 20 40 -20 2 20 -20 0 40 -35 20 20
5 24 -35 20 20 -20 6 0 -20 2 20 -30 20 0
5 24 -20 2 20 -35 20 20 -20 6 0 -20 0 40
5 24 -20 12 -20 -30 20 0 -20 6 0 -25 20 -20
5 24 -20 6 0 -30 20 0 -20 12 -20 -20 2 20
0 // right side surface
3 16 40 20 40 20 0 40 20 2 20
3 16 20 2 20 35 20 20 40 20 40
3 16 35 20 20 20 2 20 20 6 0
3 16 30 20 0 35 20 20 20 6 0
3 16 30 20 0 20 6 0 20 12 -20
3 16 30 20 0 20 12 -20 20 20 -40
2 24 20 0 40 20 2 20
2 24 20 2 20 20 6 0
2 24 20 6 0 20 12 -20
2 24 20 12 -20 20 20 -40
5 24 40 20 40 20 2 20 20 0 40 35 20 20
5 24 35 20 20 20 6 0 20 2 20 30 20 0
5 24 20 2 20 35 20 20 20 6 0 20 0 40
5 24 20 12 -20 30 20 0 20 6 0 25 20 -20
5 24 20 6 0 30 20 0 20 12 -20 20 2 20
This part is copyright © Mark Chittenden
Licensed under CC BY 2.0
Edits:
LDraw.org Parts Tracker,
Guy Vivan,
Christian Neumann,
3D View
